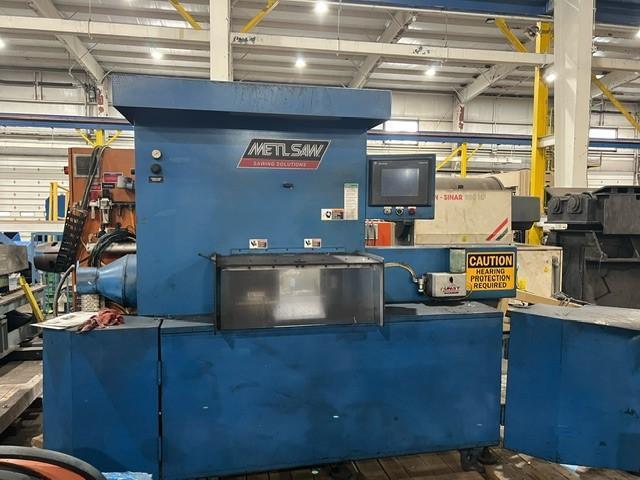

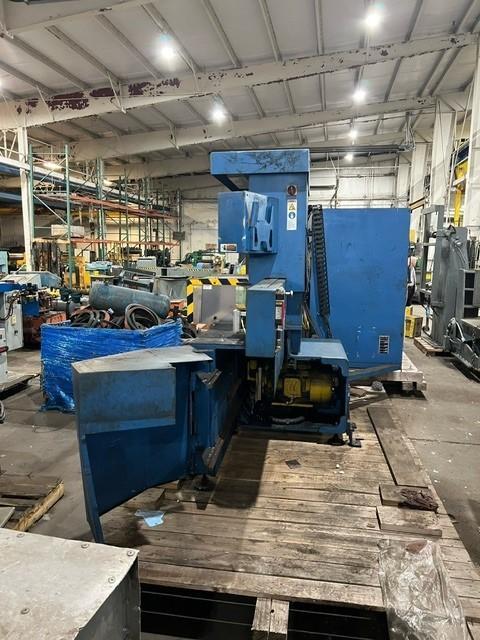

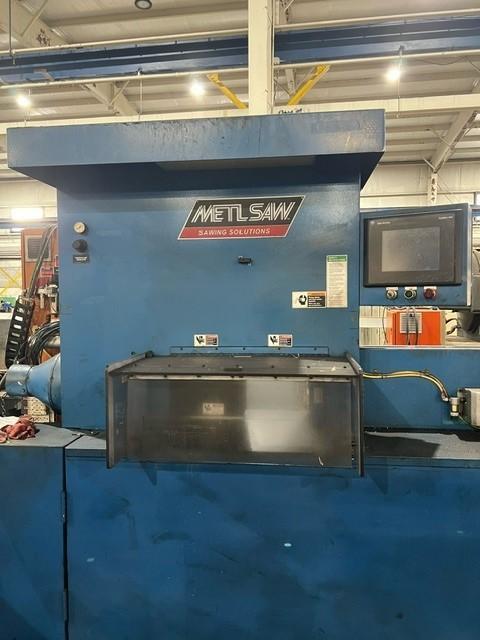

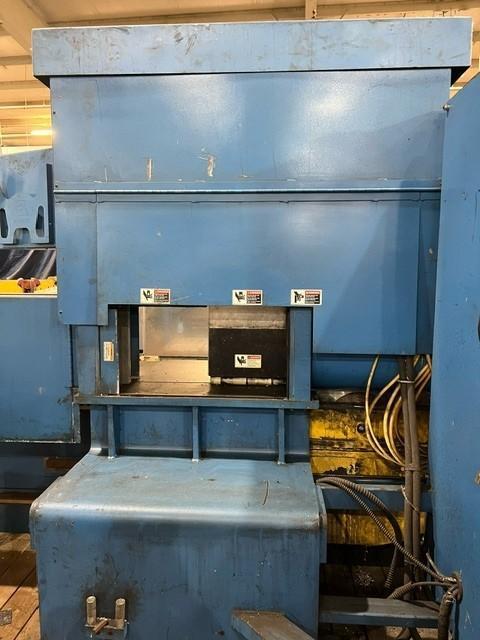

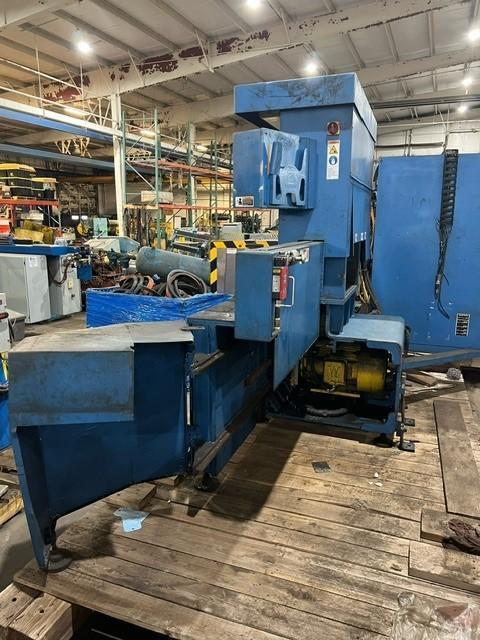

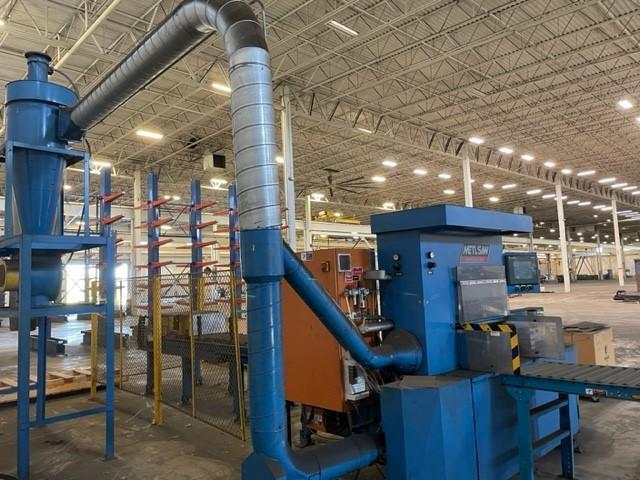

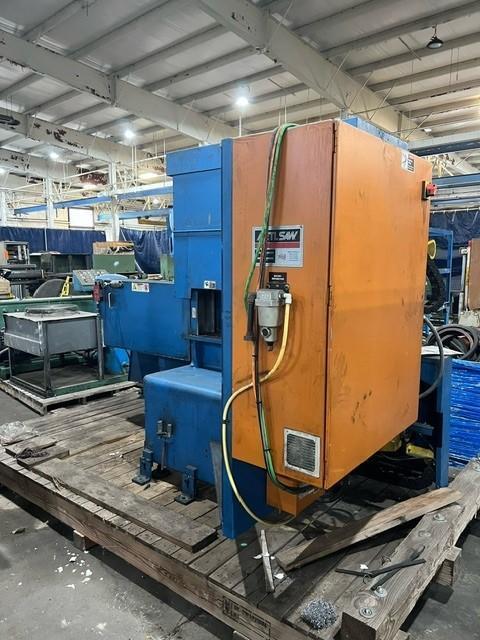

USED METLSAW 24" X 14" NON-FERROUS (ALUMINUM) PROGRAMMABLE CIRCULAR SAW MODEL CS2-T12, Stock# 11122, Year: 2012
Brand
Category
Model

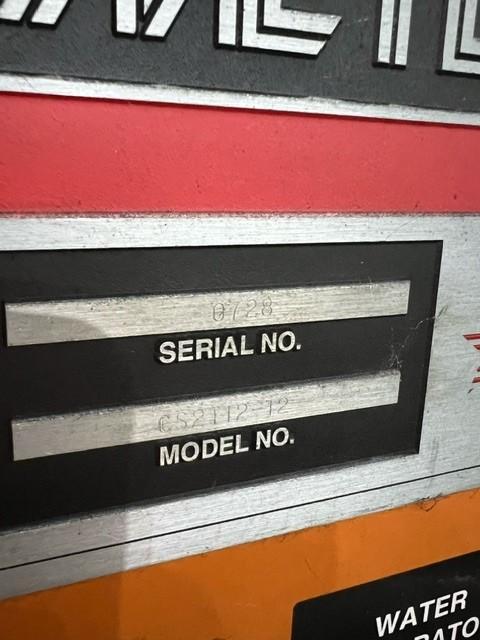

CS2-T12
Stock #
11122
Year
2012
Condition
Used
Location
Michigan
|
Brand: Metlsaw

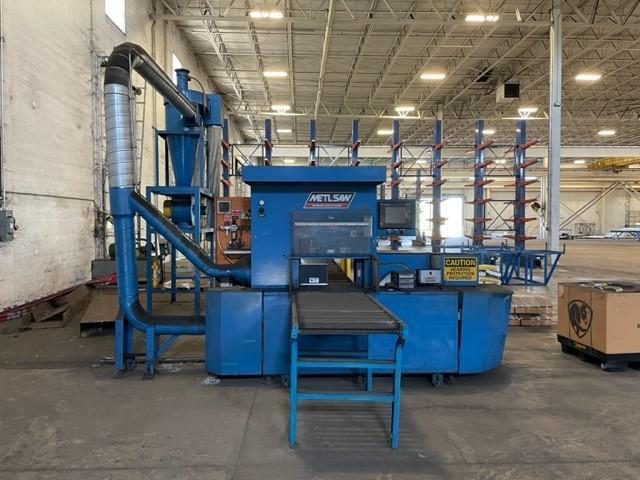

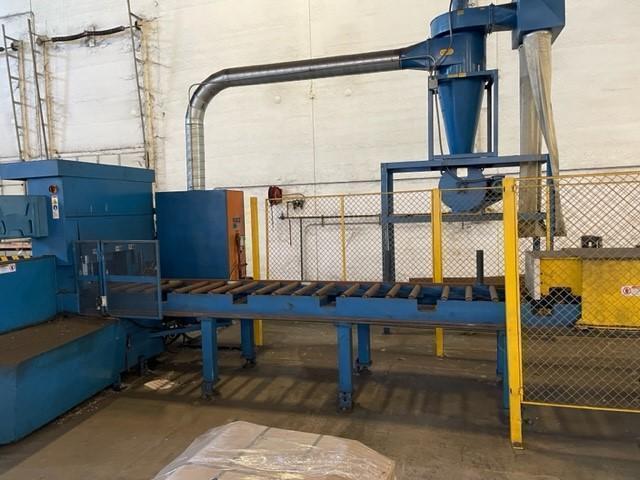

Model: CS2-T12 Maximum material width: 24" Maximum material thickness: 8" - 14" Programmable backgauge range: 12' Backgauge speed: 0 - 500 IPM Backgauge reverse speed: 0 - 800 IPM Maximum sawblade diameter: 28" Cutting speeds: Up to 500 sq. in./min. (aluminum) Carriage feed rate: 0 - 500 IPM Blade motor: 30 H.P. Voltage: 480 volt 3 phase (80 amps) Air requirements: 30 CFM @ 80 PSI Features: Cuts solids, extrusions, tubes or rounds Automatic fast forward blade travel Universal clamping for single or bundle cutting Variable cutting speed according to type & thickness of material Servo controlled carriage drive provides smooth, finely controlled cutting speeds Variable cutting lengths allow very small pieces to be cut as efficiently as large pieces CRT display shows actual position of backgauge at all times Automatic proportional speed control (automatically adjusts carriage traverse speed to thickness of material) Equipped with: Allen Bradley Panelview 1000 programmable controller Programmable precision backgauge automatically feeds to 12' (maximum) Chip collector system |
