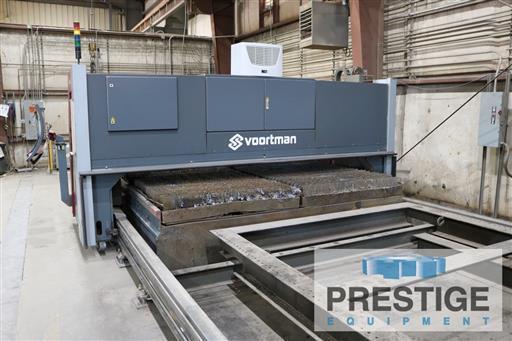

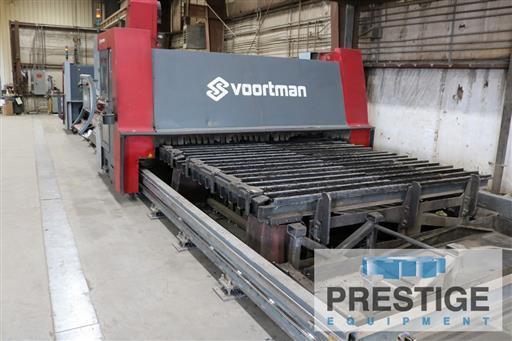

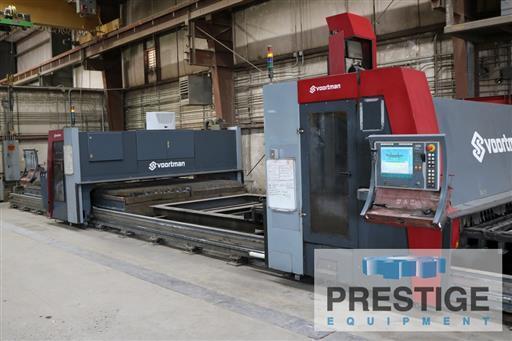

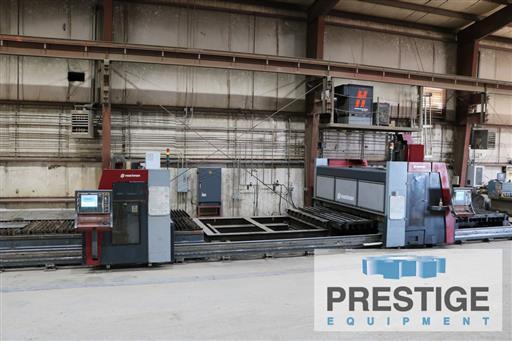

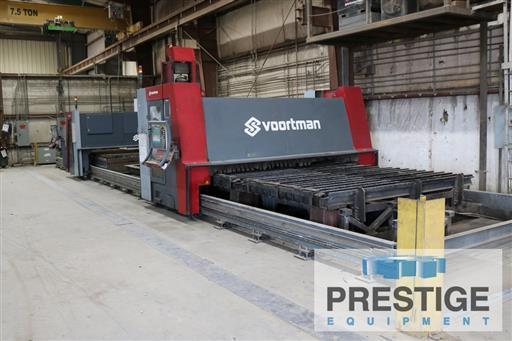

Voortman V330-3000 Dual Gantry 10' x 20' CNC Plate Processing Machine

CAPACITY:
Maximum Cutting Width 10'
Mininum Cutting Width 6"
Maximum Cutting Length 20'
Minimum Cutting Length 20"
Minimum Plate Thickness 1/4"
Maximum Plate Thickness 6"
Maximum Capacity 245 Lbs/ft2
Minimum Plate Weight 110 Lbs./Plate
DRILLING UNIT:
Drilling Diameter 13/64"-1-9/16"
Thread Tapping 1/4"-1-1/8"
Automatic Tool Changer 5 x VTC 5/40 (5 x 5 Positions)
Spindle Speed 0-2500 RPM
Main Motor 40 HP
Spindle SK 40
Drilling Table Work Height 29.92"
Maximum Table Capacity 245 Lbs/Ft2

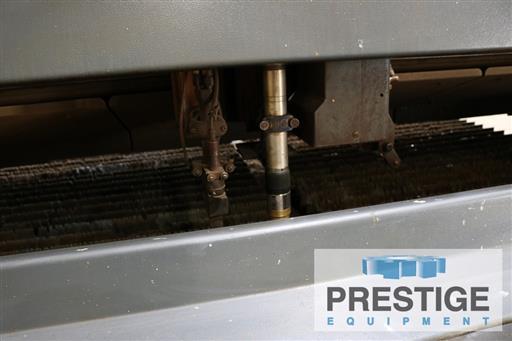

PLASMA UNIT:
Minimum Thickness 1/8"
Maximum Thickness 3-1/8"
Maximum Piercing Capacity 2"
Dross-Free Cutting Max 1-1/2"



Equipped With:

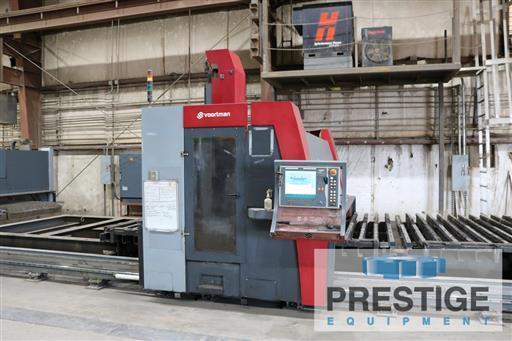

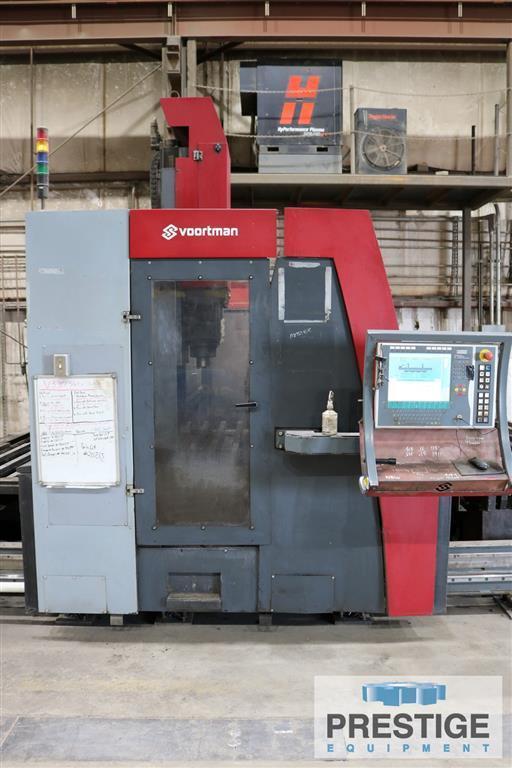

Voortman PC Based CNC Control with 15" Touch Screen
Automatic Height Sensing
Marking Lines
Hypertherm HPR400XD 400 Amp Plasma Unit

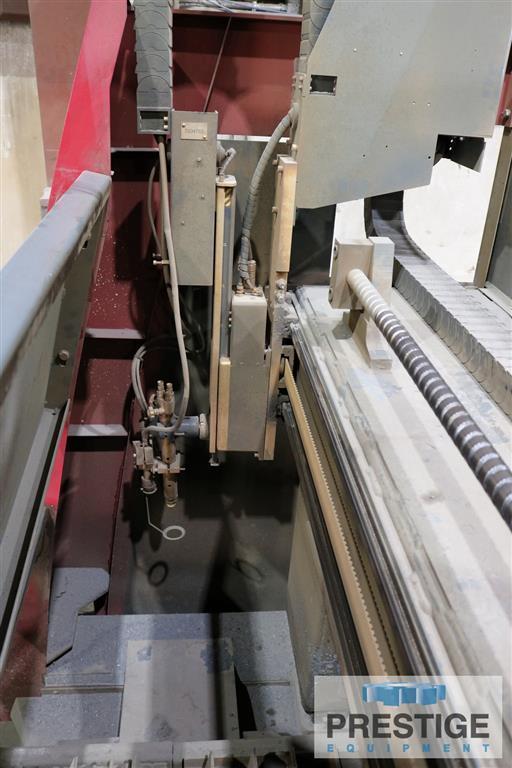

Oxy-Fuel Cutting Unit (2 pcs, Including IHT M4000 CAP Automatic Height Control)
Air Conditioning for Switch Panel
Donaldson DFPRO8 Dust Collector

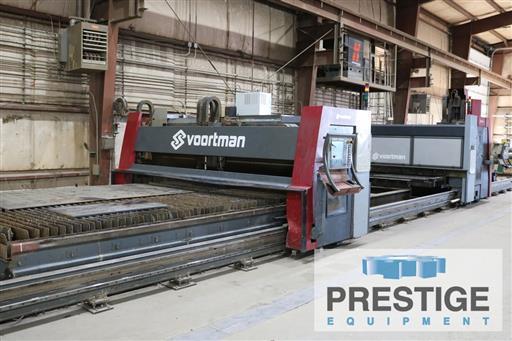

Dual Gantries

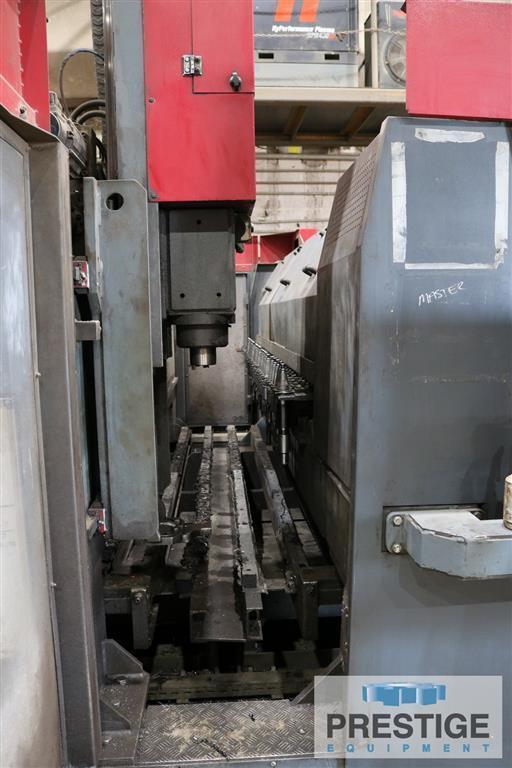

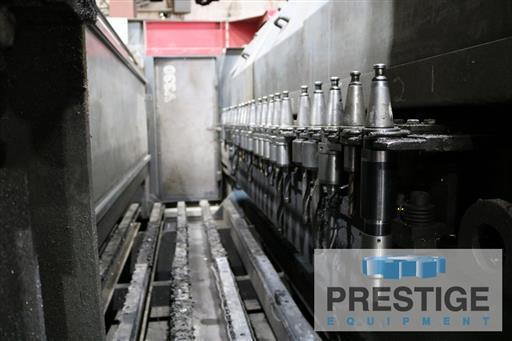

25 Station Automatic Tool Changer
Automatic Tool Length Measuring
Marking by Milling
High Accuracy Zero Reference Measurement with CCD Camera


NOTE: Inspect In Plant Under Power
