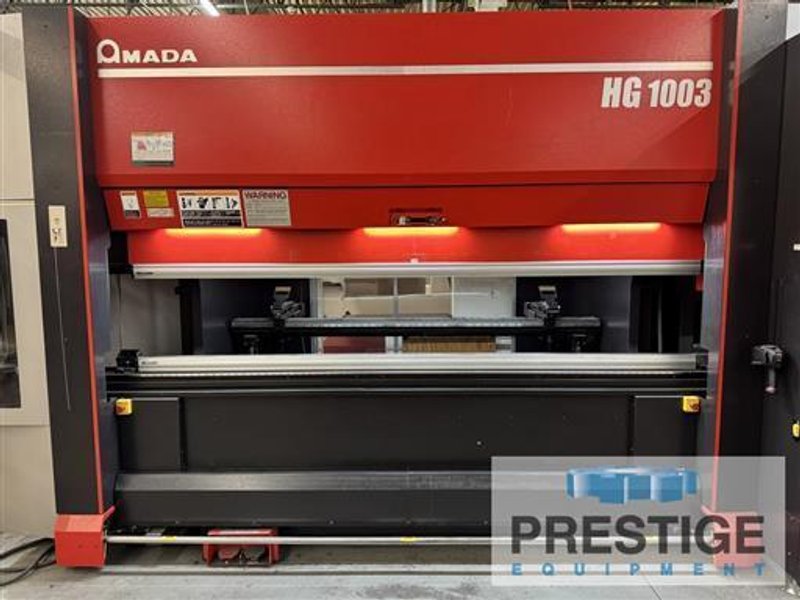

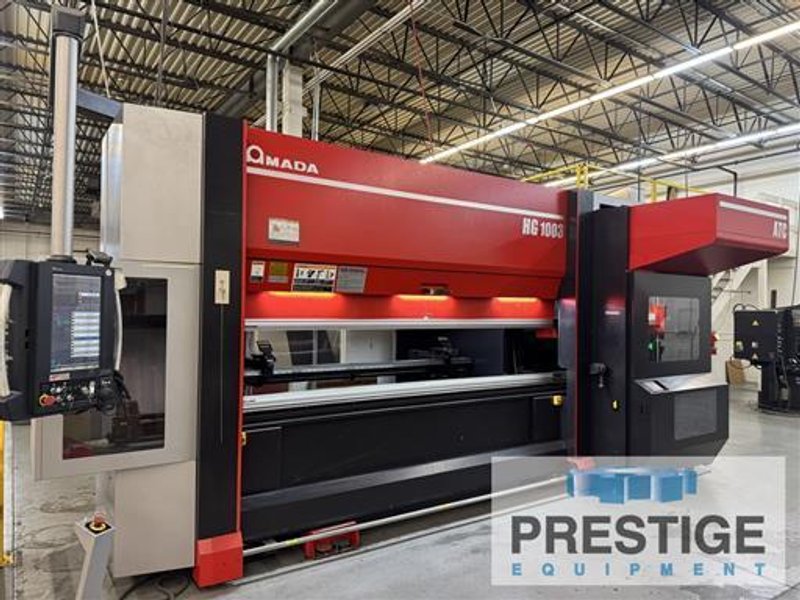

Brakes Press Hydraulic

CAPACITY:
Maximum Tonnage Capacity 110 Ton
Table Length 122.4"
Maximum Bending Length 120.5"
Distance Between Housings 106.3"
Open Height 23.4"
Throat Depth 17.7"
Stroke Length 9.8"
Approach Speed 8.66"/sec
Bending Speed 0.78"sec
Return Speed 9.84"/sec
Overall Length 244.5"
Overall Width 126.8"
Overall Height 115.9"
Approximate Shipping Weight 26,896 Lbs.

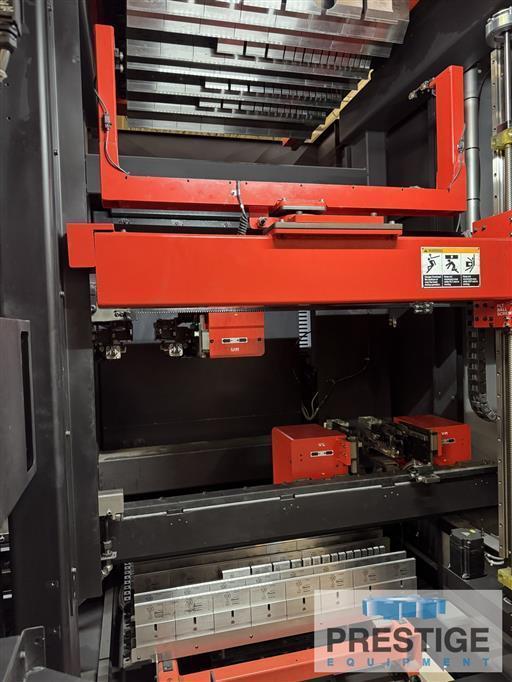

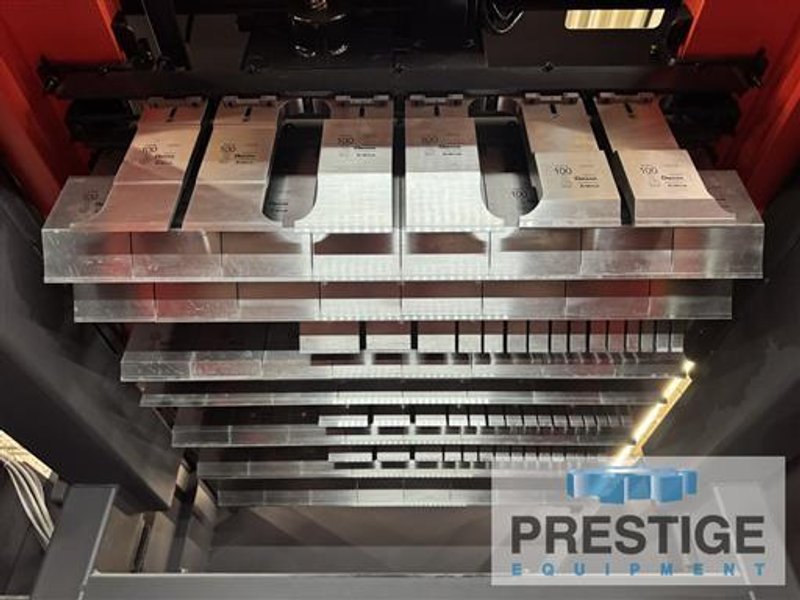

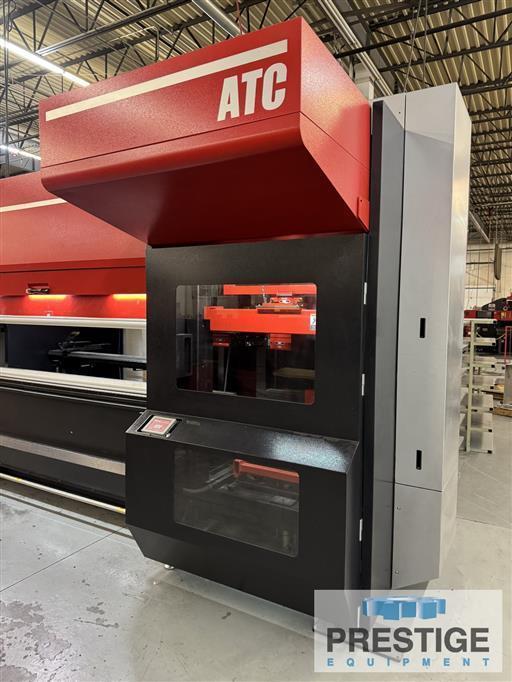

AUTOMATIC TOOL CHANGER:
Tool Style Amada
Punch Stockers 15
Die Stockers 18
ATC Location Right Side
Auto Tool Layout Range 118.1"
Minimum Tool Punch 0.196"
"V" Range 0.157"-1.57"
Punch Reversal Unit Stocker 1-12 Reversible Only
Punch Height 8.7"



Equipped With:

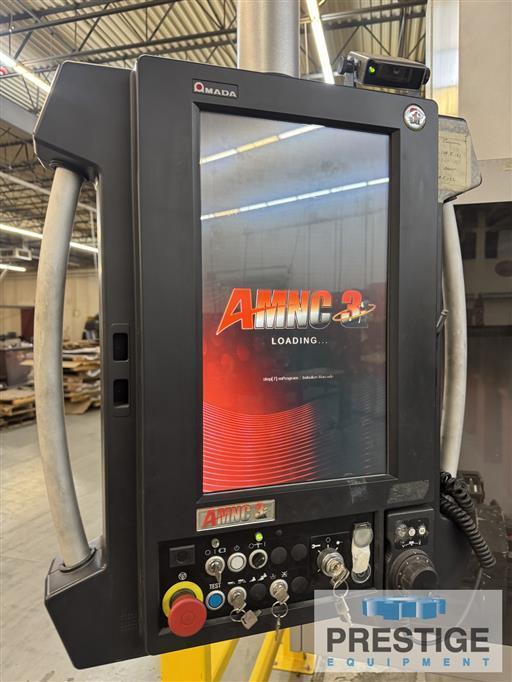

Amada AMNC 3i CNC Control with 19" Multi Touch LCD Screen
6-Axis Back Gauge Plus 2-Axis L-Shift

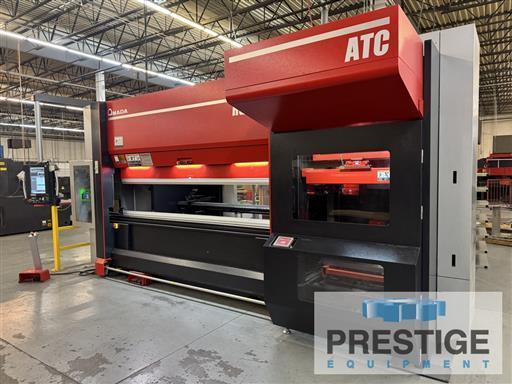

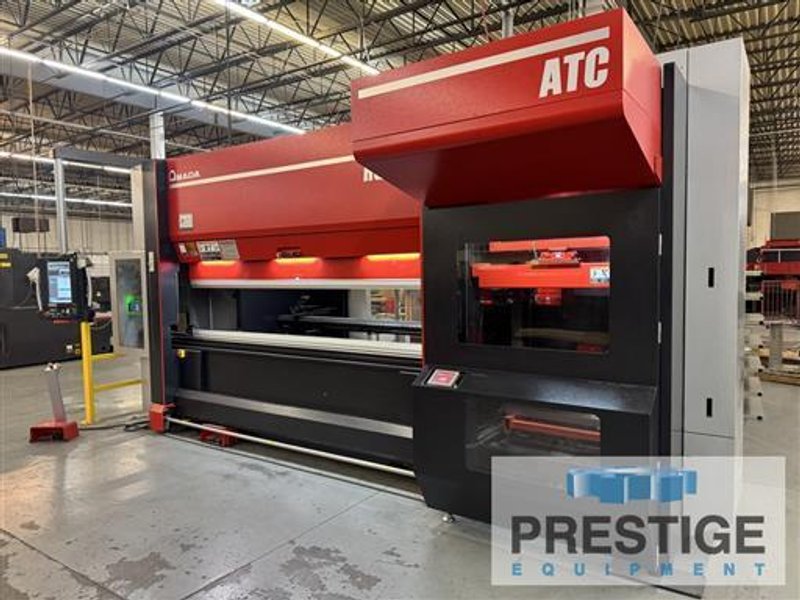

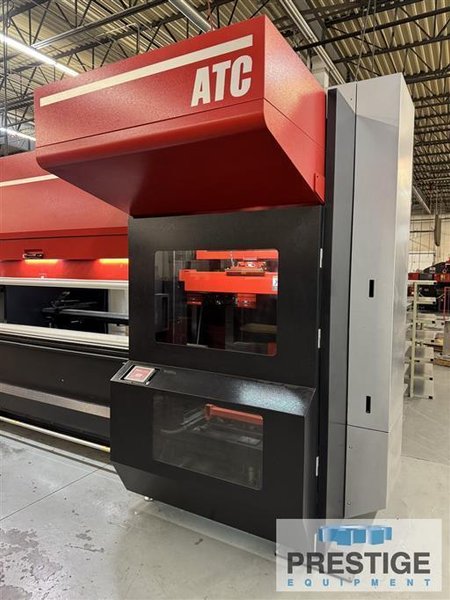

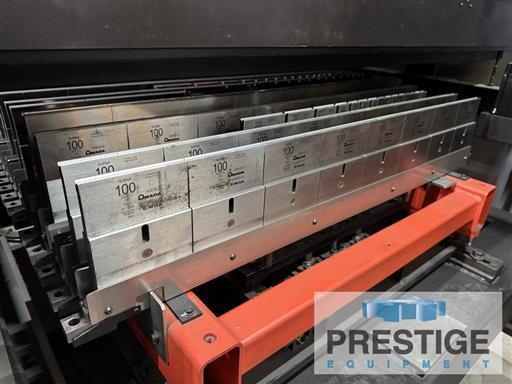

Amada HG Automatic Tool Changer (ATC Stores 86.6' of Tooling)
Integrated Bend Sensor
Fully Tooled
