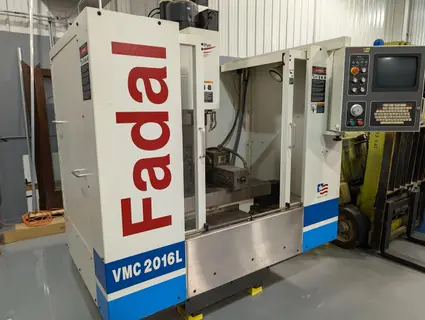

Fadal 2016L VMC, 2000 – VH65 4th Axis Rotary

X Axis: 20″ Y Axisl: 16″ Z Axis: 20″ Table Size: 29.5″ x 16″ Floor to Table: 30.5″ Cutting Feed Rate: 0.01-250 ipm Rapid Feed Rate (X/Y/Z): 500 ipm (X/Y/Z) Max. Weight on Table: 2,000 lbs.

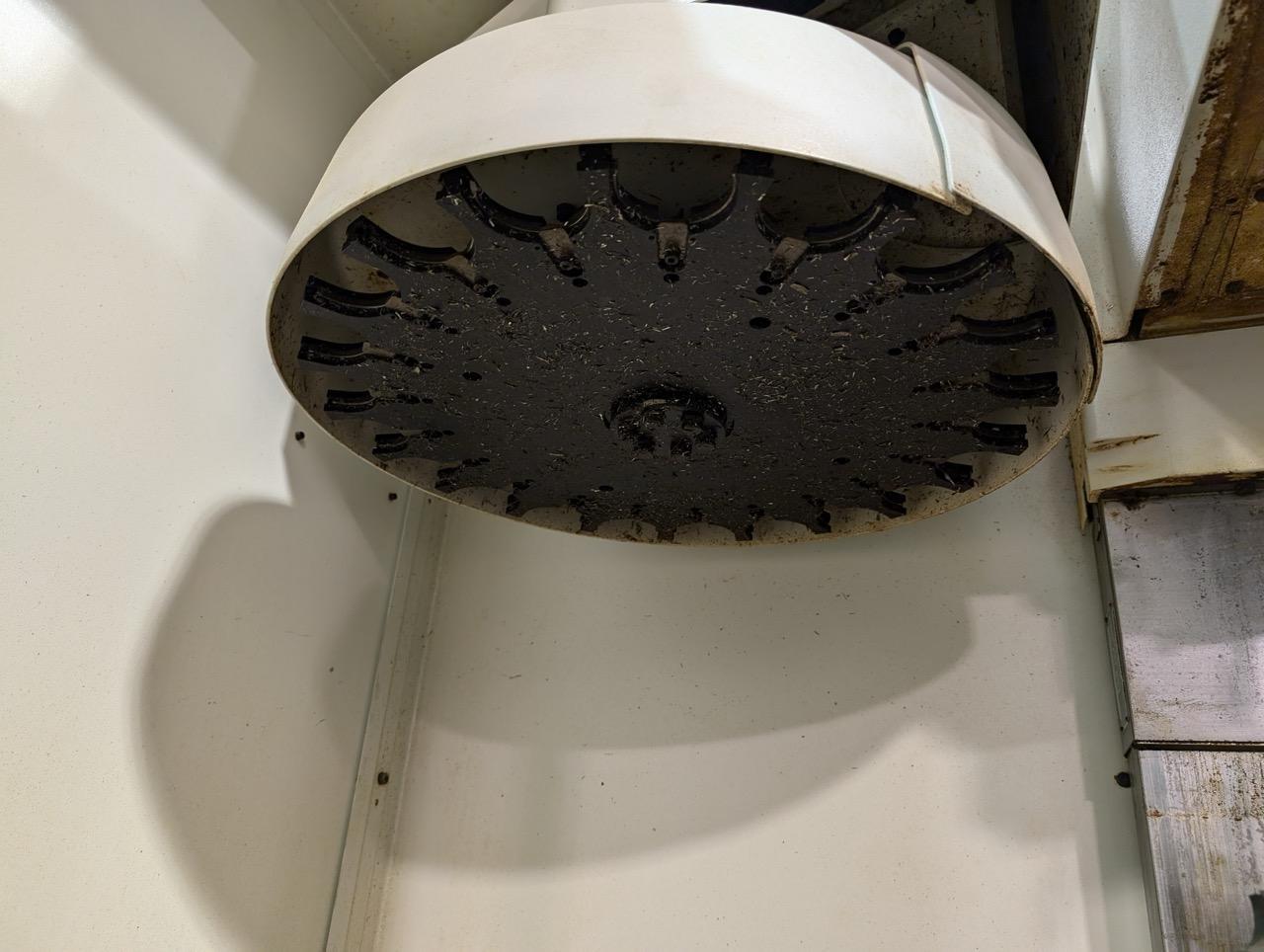

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Nose to Table: 4″- 24″ Spindle Center to Column Ways: 17″ Main Motor (Auto 2 Speed Vector): 15 HP, 11.2 KW Spindle Speed 10 – 7,500 rpm Spindle Taper: 40 Auto Tool Changer: 20 ATC, Tool Selection: Random, Bi-directional Max. Tool Diameter: 3″ (4.5″ w/o adjacent tools)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Power: 230/440 VAC, 3 Ph, 60 Hz Air required (Momentary): 120 psi, 15 scfm Machine Dimensions (l x w x h): 77″ x 75″ x 101″ Machine Weight 5,800 lbs

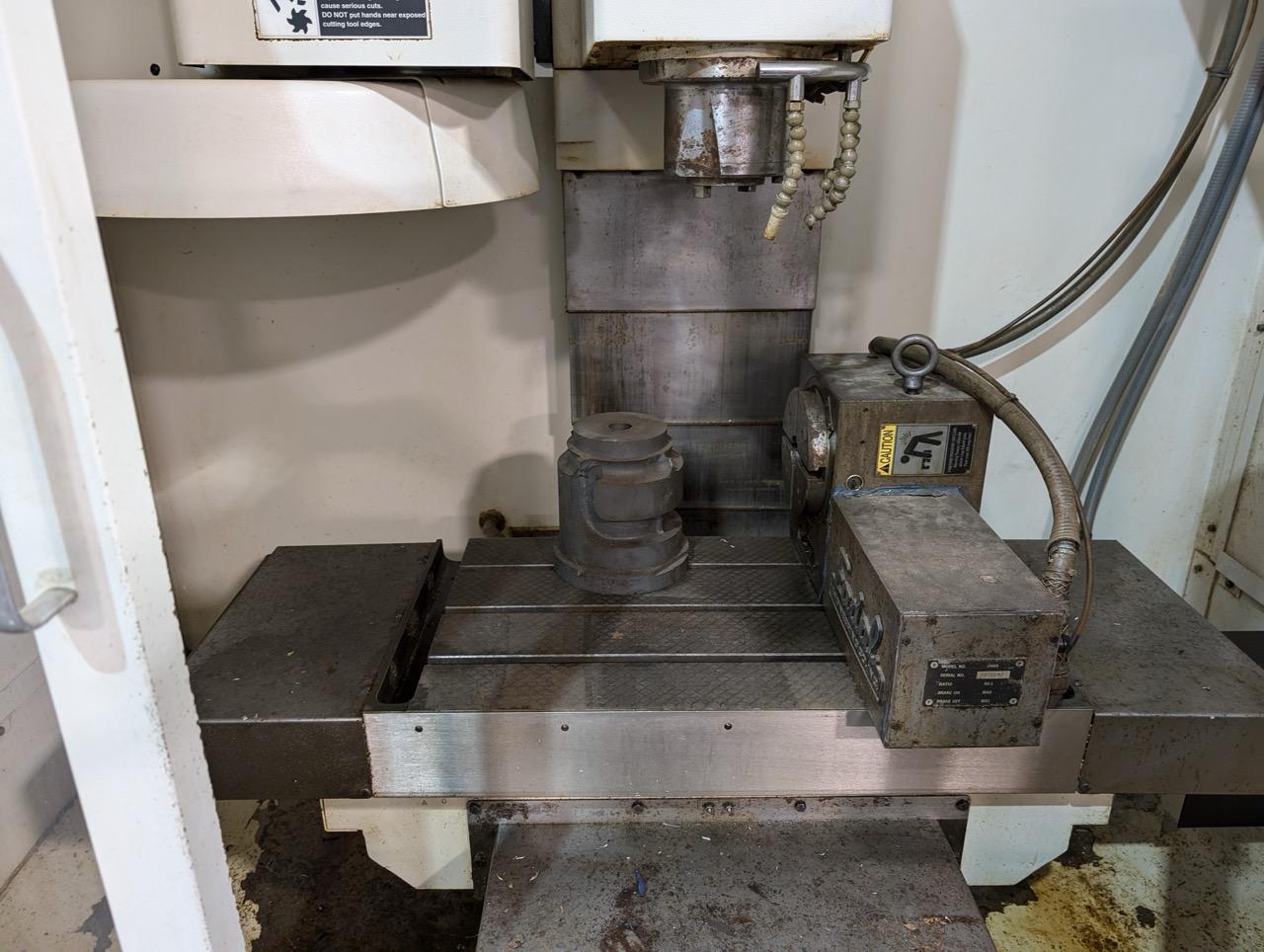

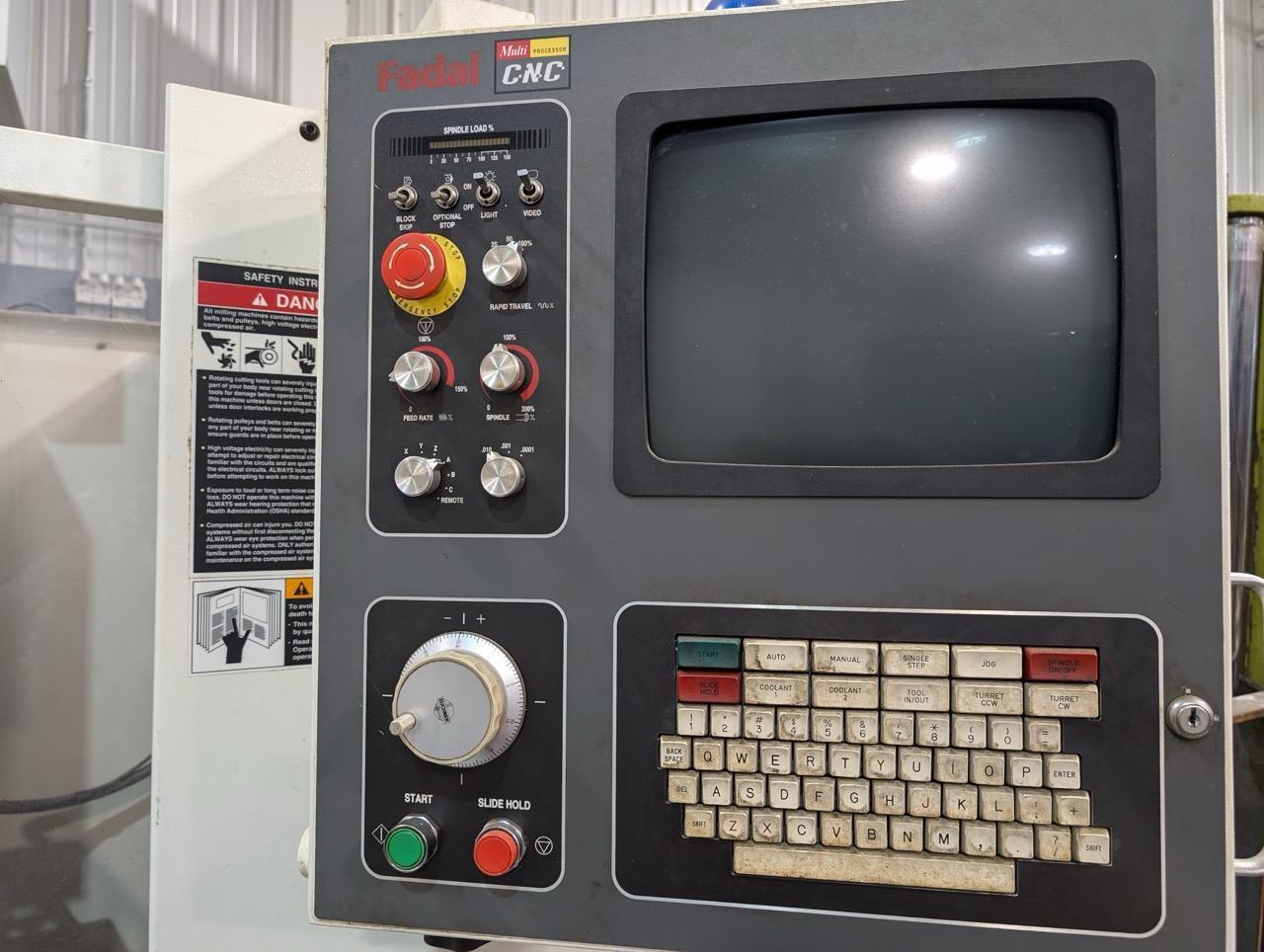

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Fadal Multi Processor CNC Control 4th Axis Rotary Unit- Fadal VH65
