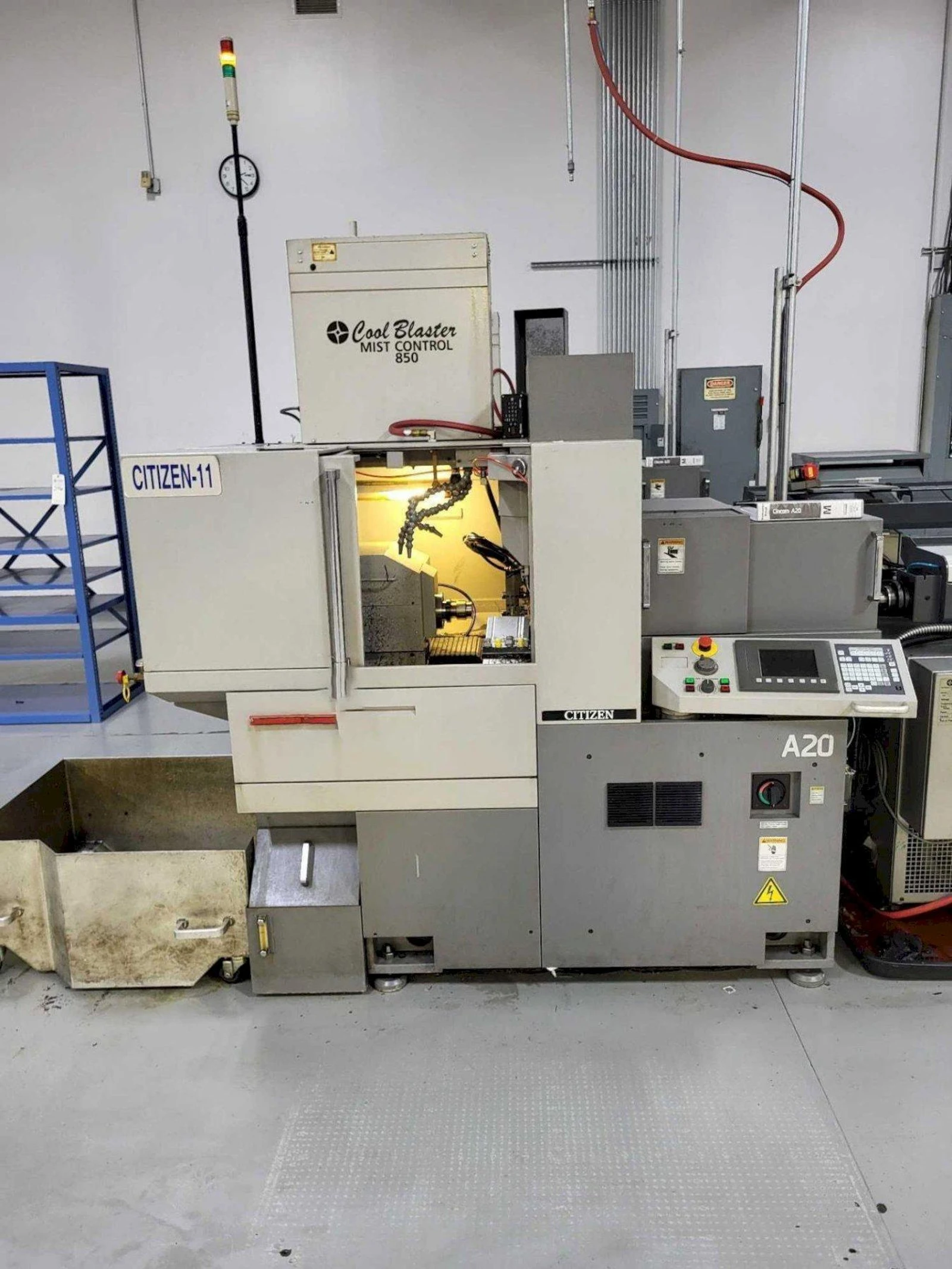

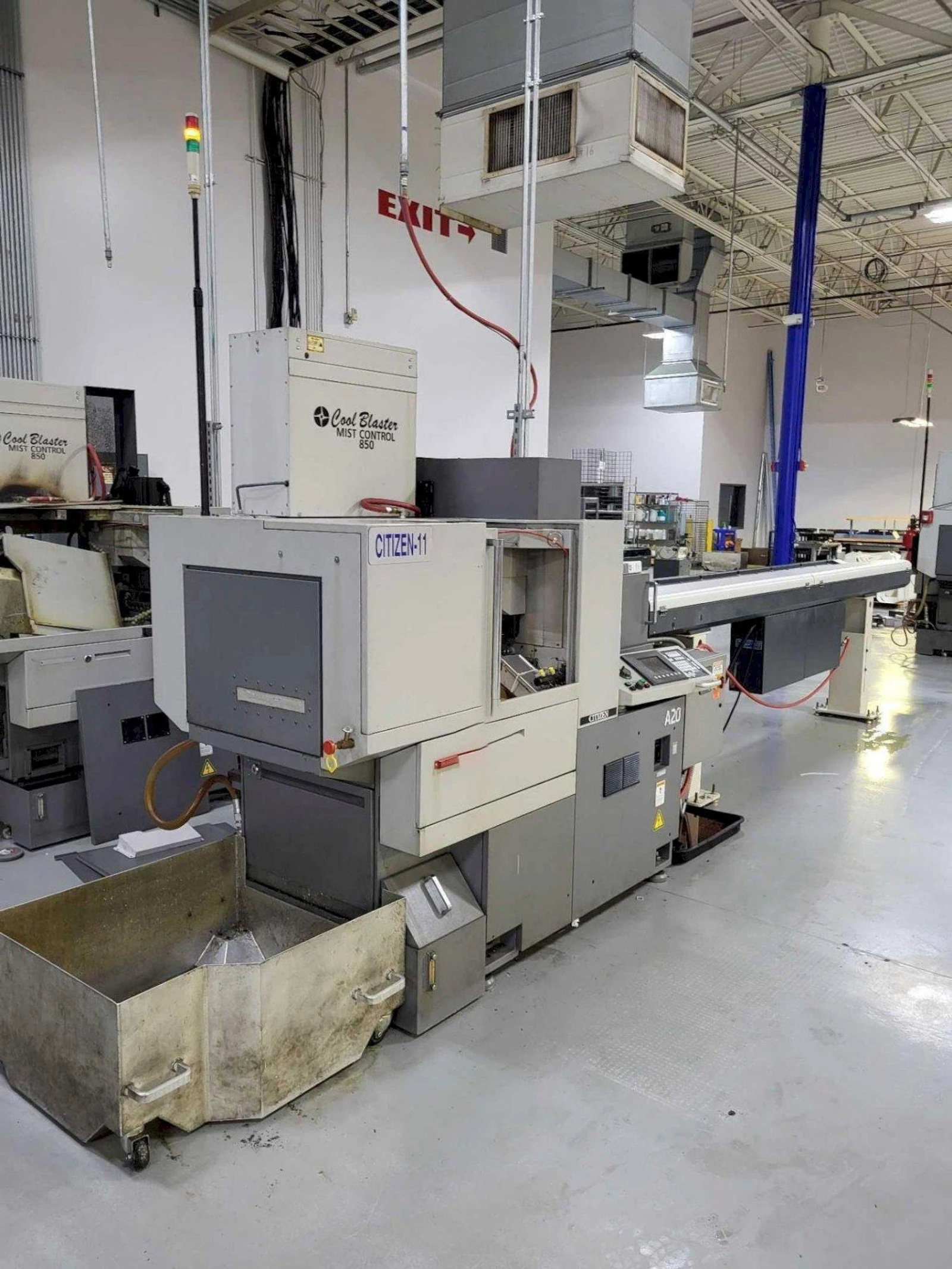

Citizen A20 VIIPL CNC Swiss Lathe, 2008 – LNS Barfeed, Fire Suppression System, Cool Blaster Mist Buster

Max Turning Diameter: 25/32″ (20 mm) Max Turning Length: 7.87″ (200 mm) Max Protrusion Length of the Back Spindle Workpiece: 1.96″ (50 mm) Max Bar Capacity: 0.79″ (20 mm) Tool Capacity: 21

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle: Main Spindle Index: 0.001 degree (C-axis control) Main Spindle Bore: 1.02″ (26 mm) Main Spindle Speed: 10,000 RPM Main Spindle Motor: 5 HP Back Spindle Index: 0.01 degree (C-axis control) Back Spindle Speed: 8,000 RPM Back Spindle Motor: 2 HP Standard Tools:

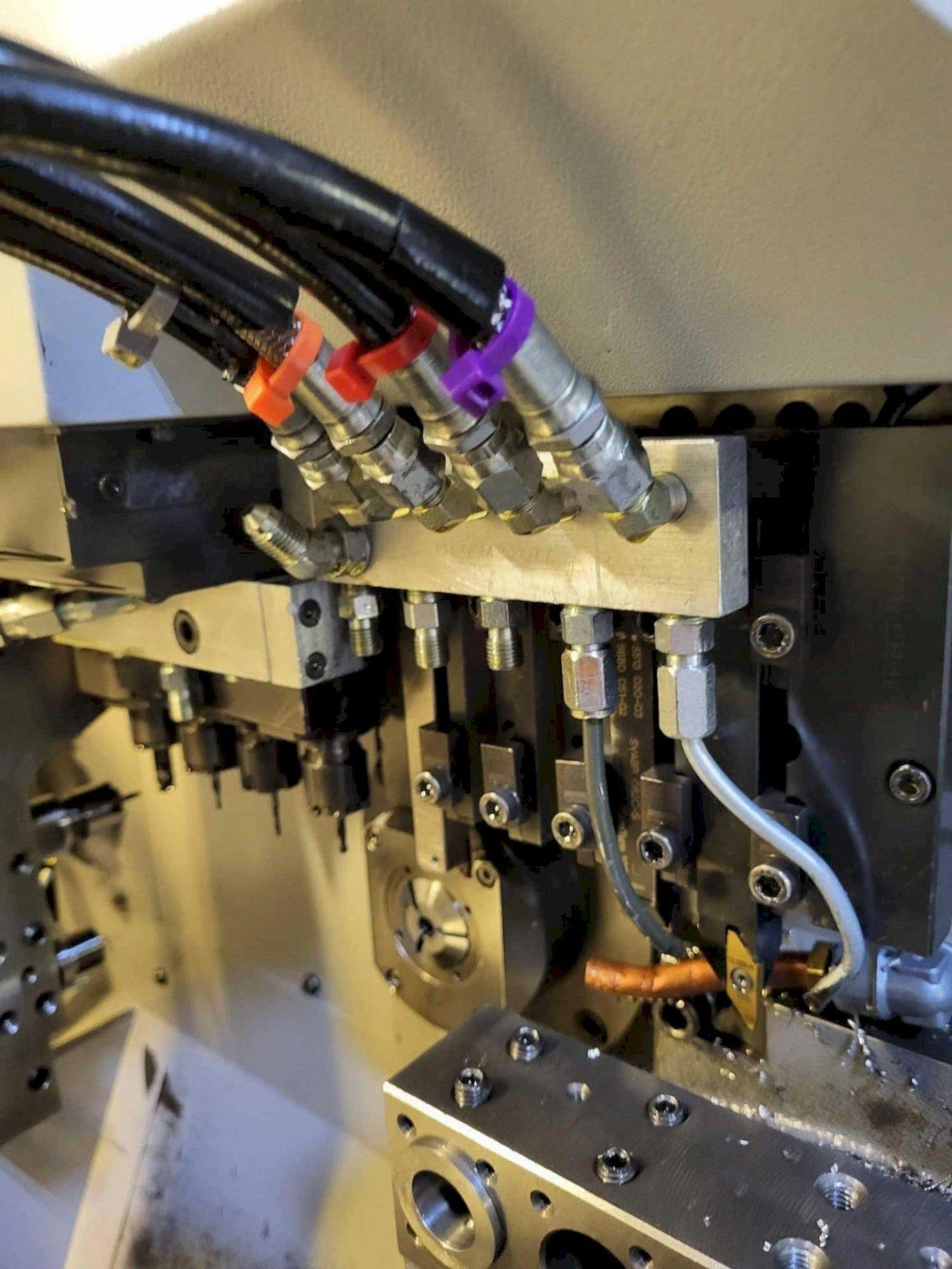

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Turning Tools: 5 Front End Working Tools: 5 static Back End Working Tools: 8 static on 2 blocks Max Drilling Capability: 25/64″ (10 mm) Max Tapping Capability: M8 x P1.25 Die Cutting Capability: M8 x P1.25 Power Driven Tools Attachment:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Front Working Power Driven Tools: Max Front Drilling: 25/64″ (10 mm) Max Front Milling: 25/64″ (10 mm) Max Front Tapping: M8 x P1.25 Driven Tool Speed: 6,000 RPM Driven Tool Motor: 1 HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,General: Power Source: AC 220V / Three Phase / 60 Hz Overall Dimensions: 84″ x 44″ x 74″ high Weight: 5,621 lbs approx.

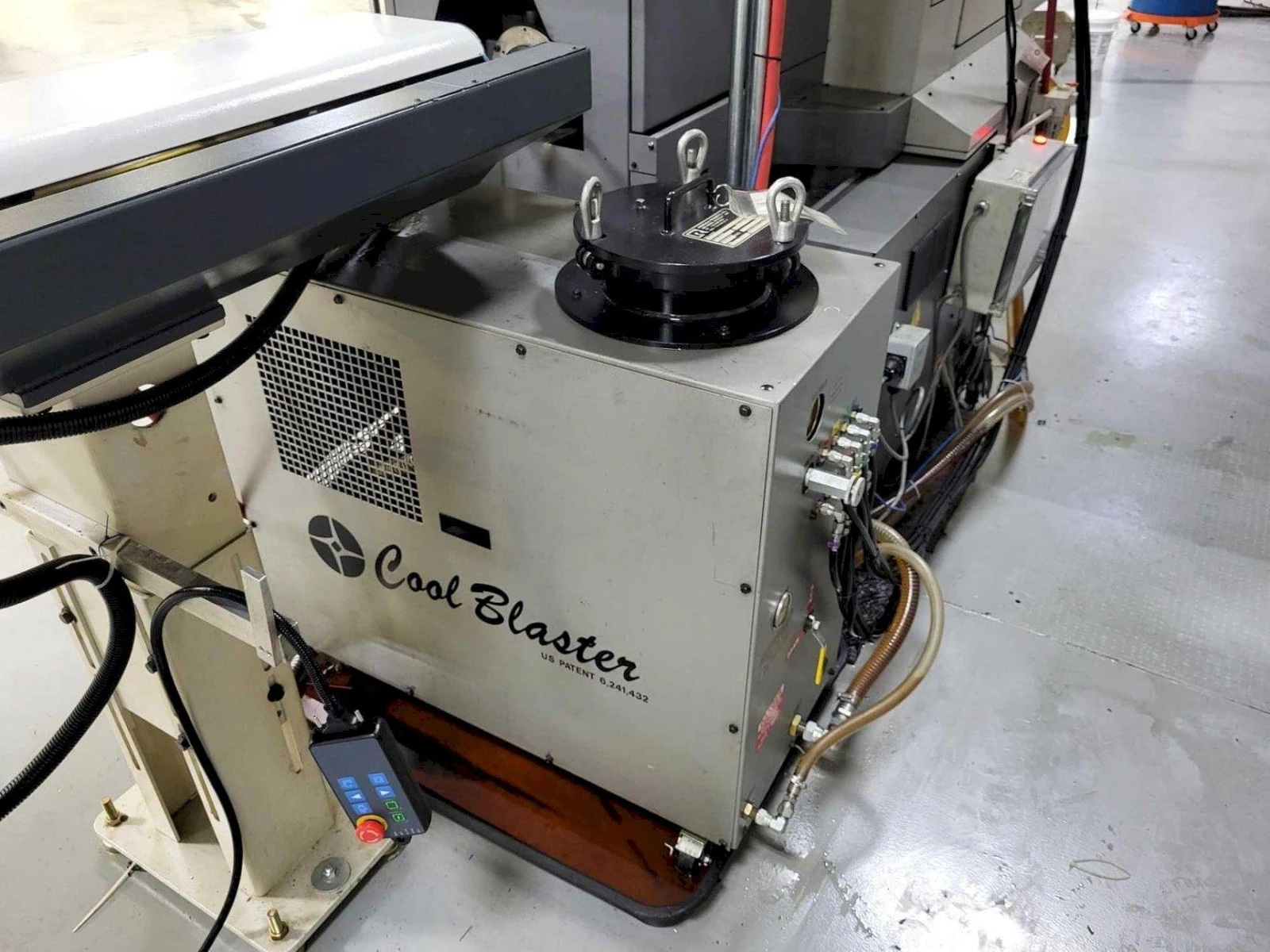

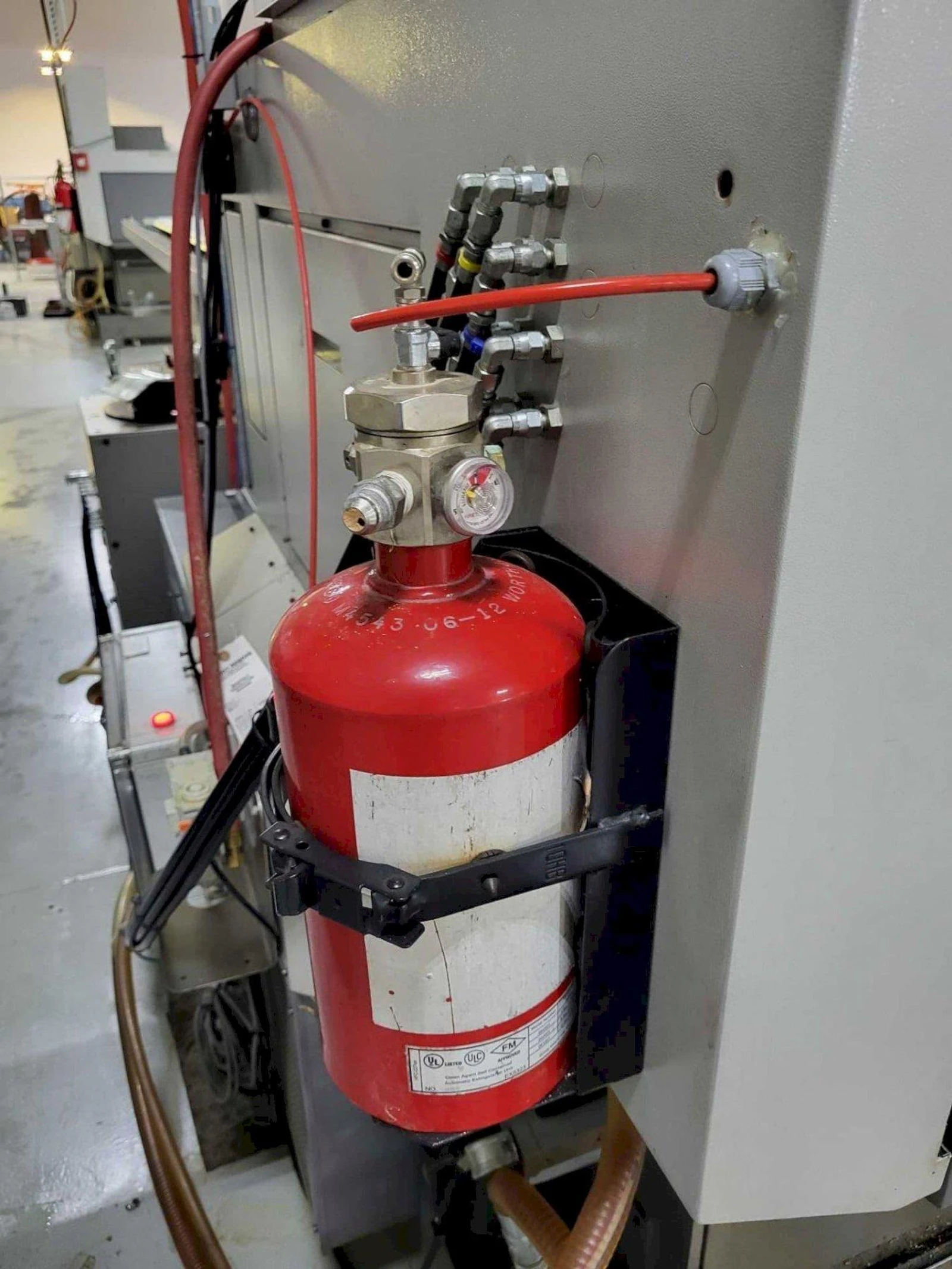

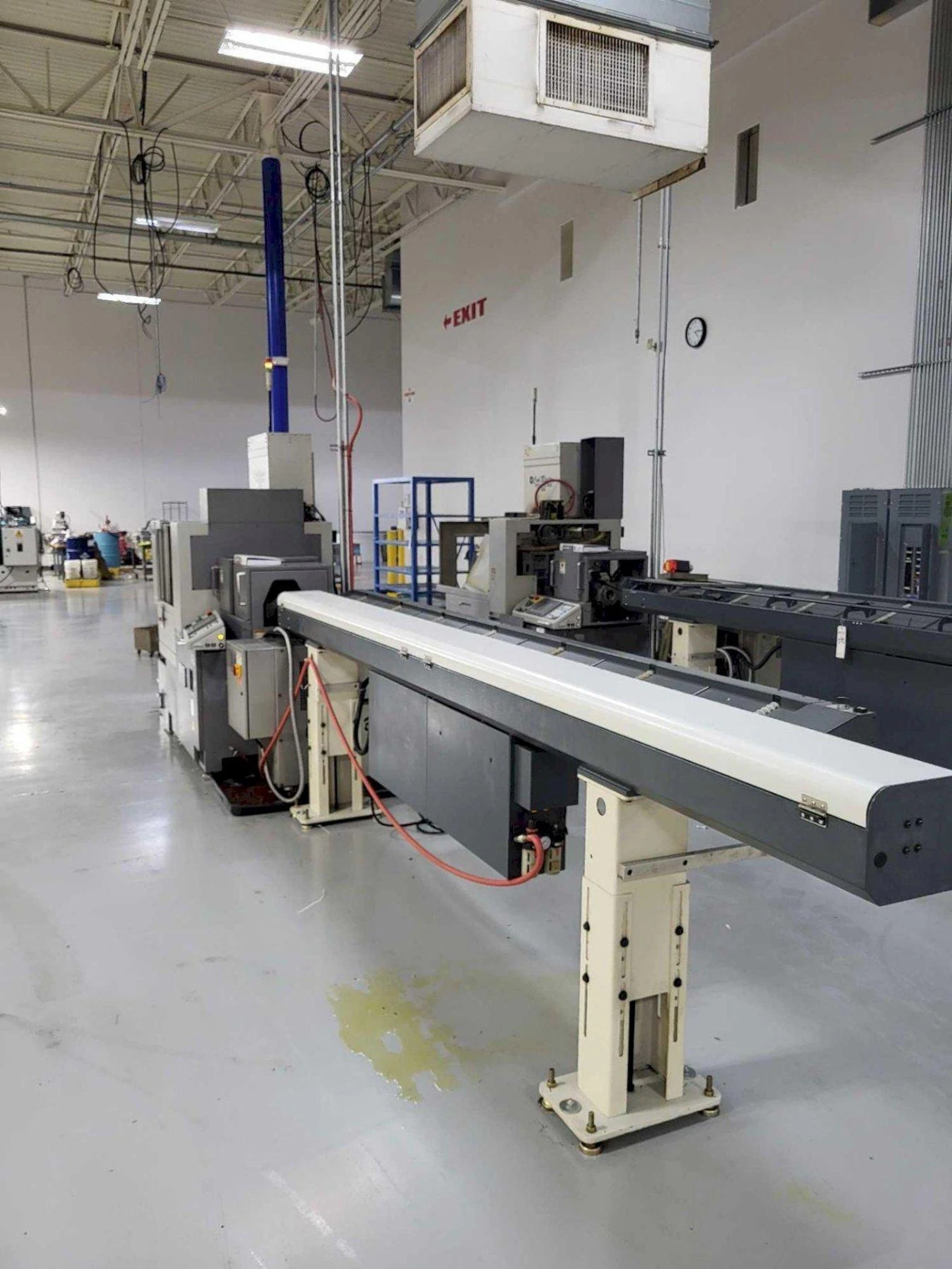

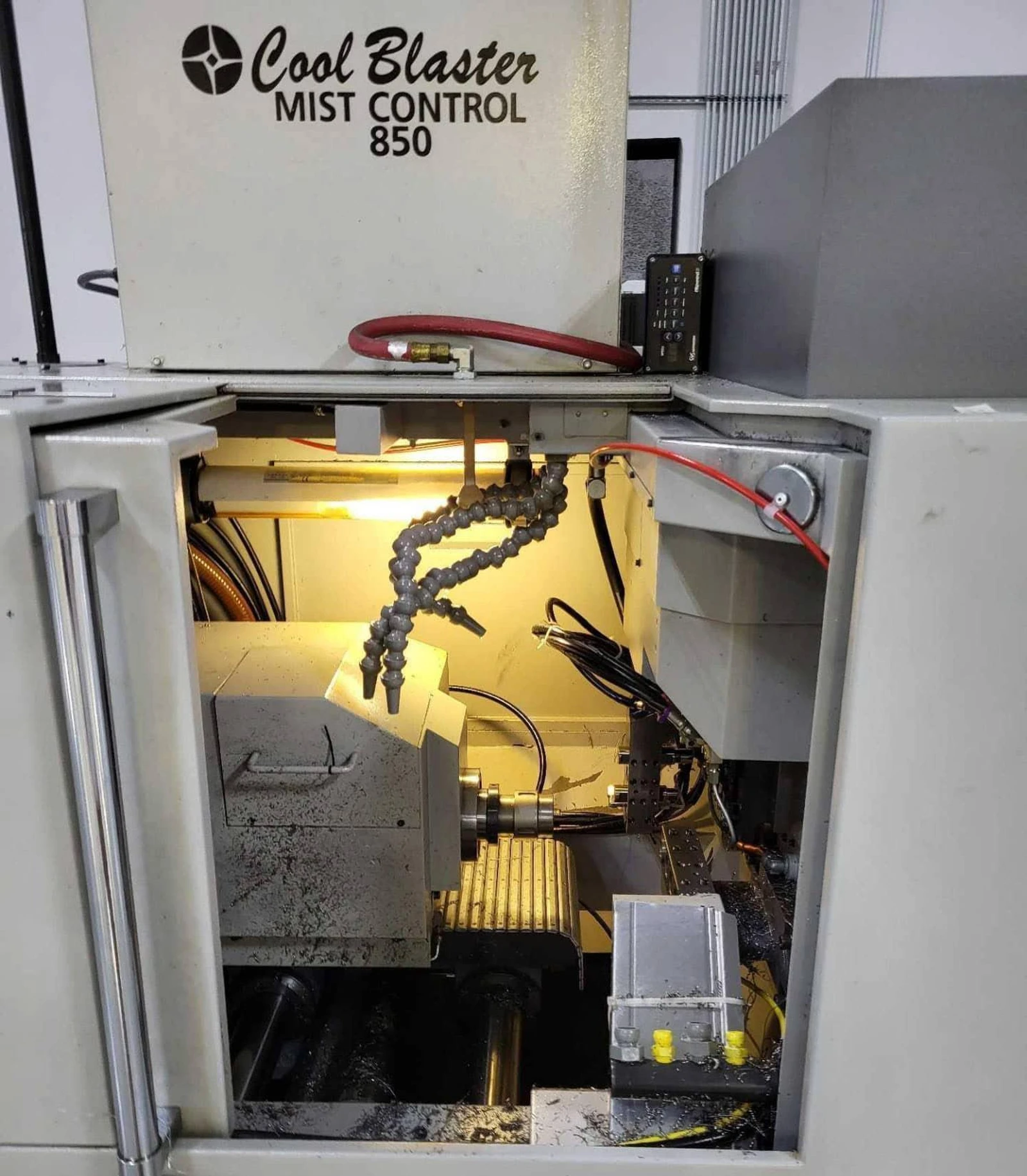

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: LNS barfeed Fire suppression system Cool Blaster Mist Buster

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
