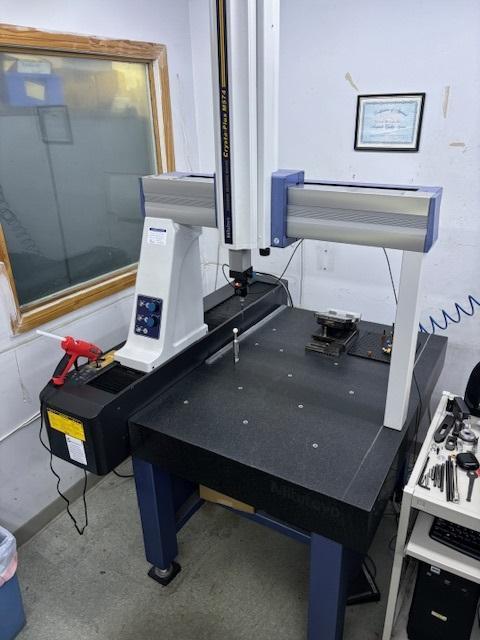

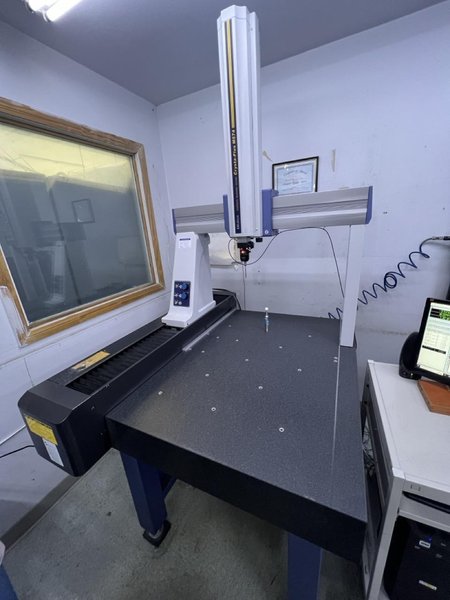

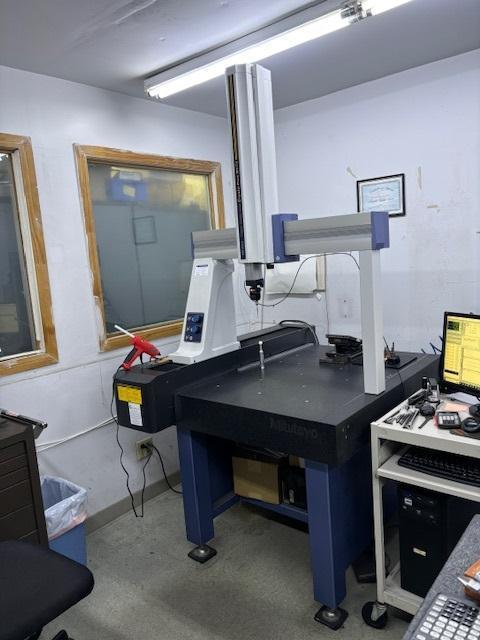

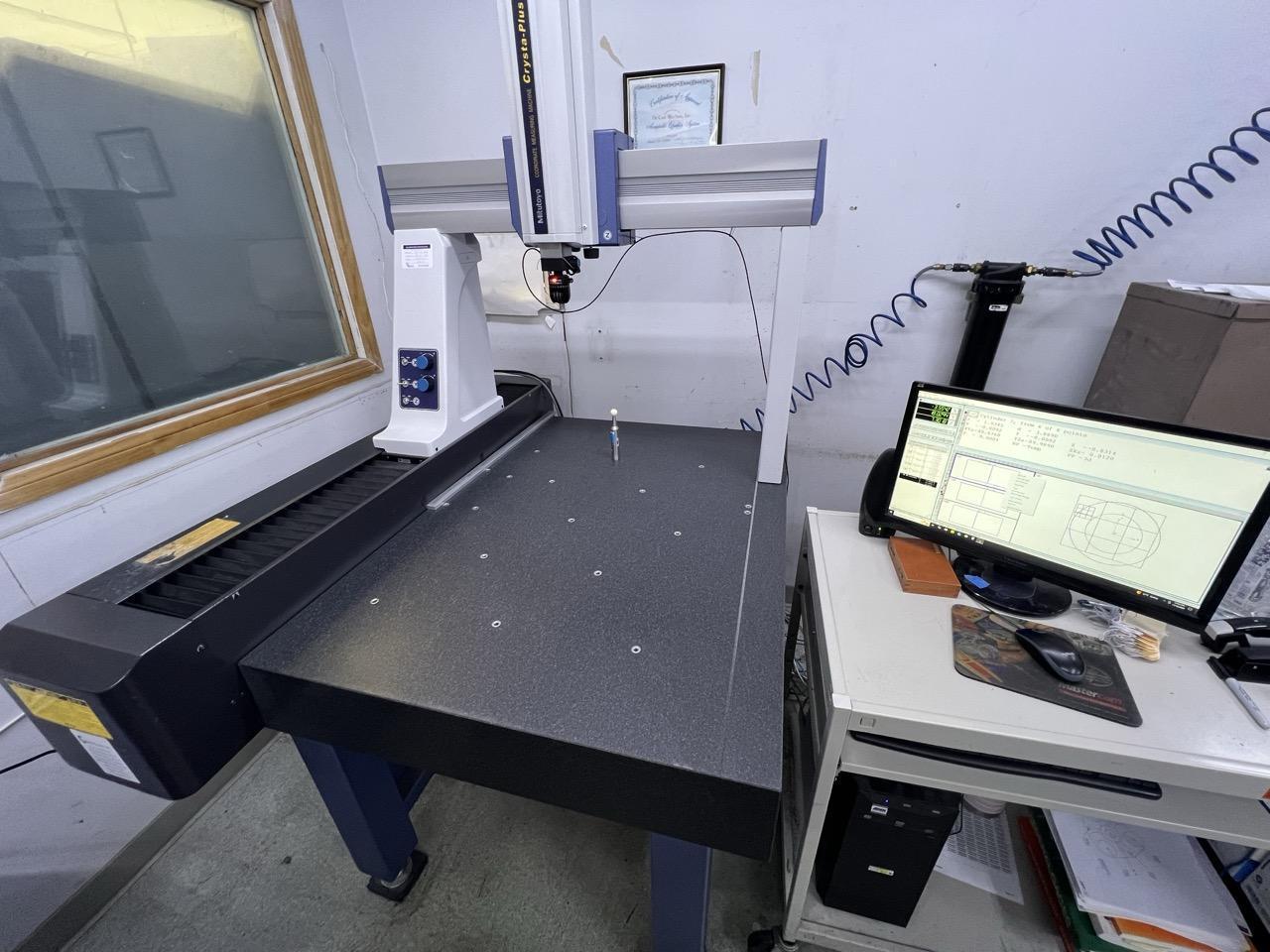

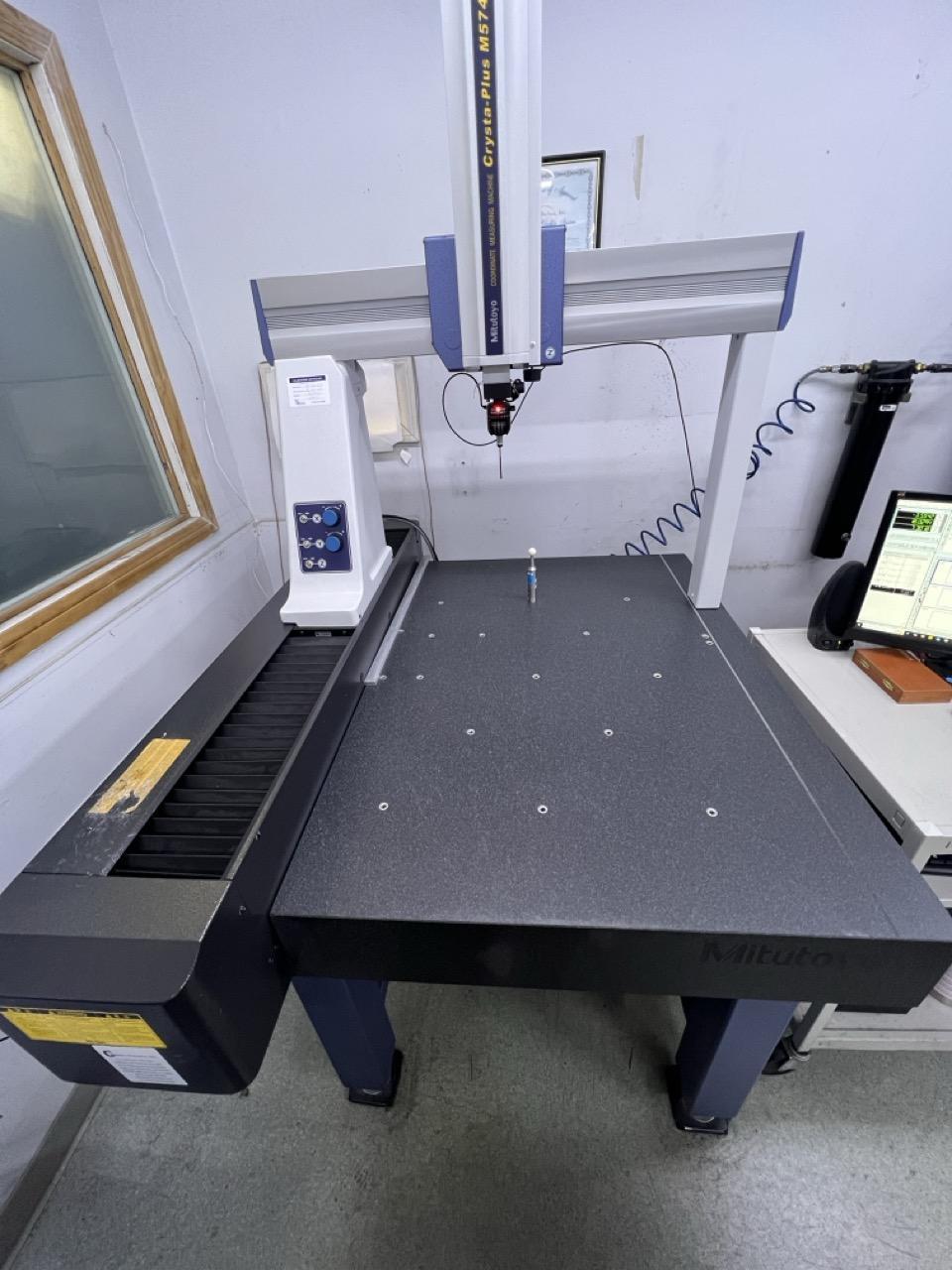

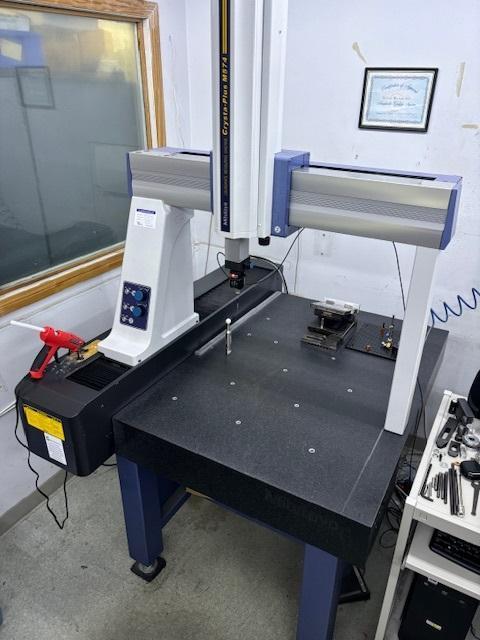

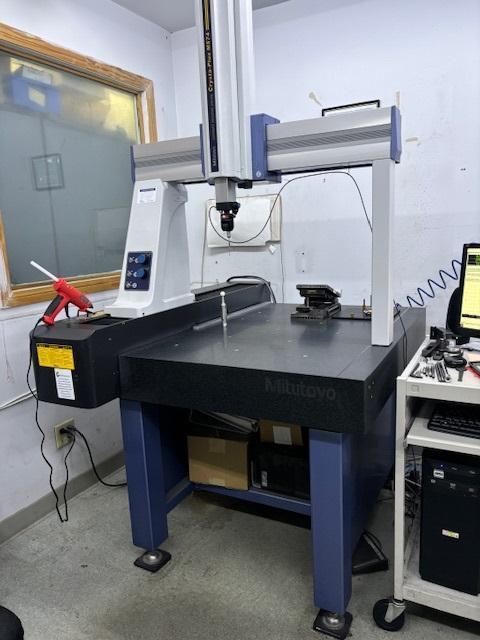

5.7.4 Mitutoyo Crysta Plus M574 CMM, 2012 – Available Immediately
Brand
Category
Model
Crysta Plus M574
Stock #
746917
Year
2012
Condition
Not specified
Location
Not specified
|
X Axis: 19.69″
Y Axis: 27.56″
Z Axis: 15.75″
Resolution: 0.00002″
Working Area: 25.12″ x 45.67″
Tapped Insert: M8 x 1.25
Workpiece Max Height: 20.08″
Workpiece Max Weight: 396 LBS
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Weight: Approximately 1400 LBS Dimensions: 42.60″ x 57.40″ x 89.96″ All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Last Calibration: Feb 2025 PC & Software: Quadra Chek 5000 Software (QC 5000 version: 3.40) or Mitutoyo MCOSMOS Software All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
