40,000 lbs. x 36" Feed Lease High Strength Steel Coil Feed Line, Year 2015
Brand
Category
Type
Model
R-40M-36 / FLPS-4.25-7-36 / RF-6-36
Stock #
2915
Year
2015
Condition
Excellent
Location
Michigan
| Coil Weight | 40000 pounds |
| Coil Width | 36 inches |
| Coil Thickness | .187 inches |
|

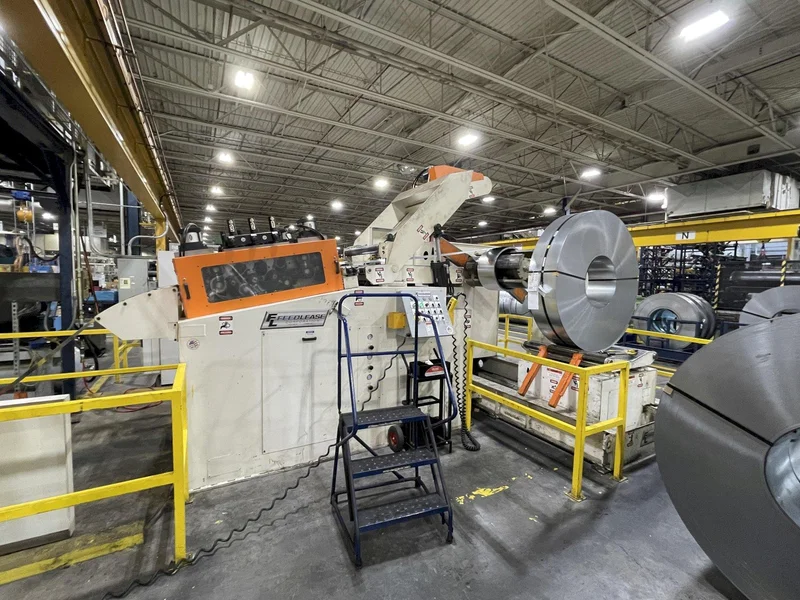

High Strength Steel Coil Feed Line
40,000 lbs. Capacity Feed Lease Conventional Coil Feed Line Specifications:
Coil weight capacity: 40,000 Lbs.
Coil width capacity: 36"
High Strength Steel Material Capacities @ 60,000 KSI Yield
Stock thickness capacity: .187" x 36" Wide High Strength Steel
Maximum Coil Thickness: .236" x 12" Wide High Strength Steel
Minimum Coil thickness: .030"
Expansion range: 19.5" - 24.5"
Coil O.D. Capacity: 72
Right to Left Feed Direction Feed Lease Complete "High Strength Steel" Coil Feed Line Equipment and Features:
Feed Lease Pull Off Coil Reel with Load Car
Model No.: R-40M-36, Serial No. 5599 Four leaf mandrel with (4) Adjustable coil keeper arms
Wedge Type Expansion Hydraulic mandrel expansion
Failsafe Pneumatic drag brake mounted on main spindle
Adjustable tensioning
Narrow Coil Support Arms Threading drive for jog forward and reverse
Coil Car with 18" Vertical Lift
Six Button Pendant Remote
Feed Lease Powered Coil Straightener "High Strength Steel"
Model FLPS-4.25-7-36, Serial No. 5598
Entry and Exit roll assembly x 5.5" diameter
Air operated upper pinch roll adjustment
Seven straightener rolls x 4.25" diameter
Independently adjustable upper straightening rolls through 3 ton mechanical screw jacks
Cluster Gear driven pinch rolls Digital readouts for upper straightening roll position Adjustable stock width edge guides
Coil hold down arm with motorized end wheel
Stock peeler table with spade extension
Coil end-debender roll
Exit cascade loop support rollers
Automatic lubrication system
40 H.P. AC Variable speed drive
15-120 Feet per Minute Pay Out Rate
Centralized controls for reel and straightener - Allen Bradley Micro Logix
Secondary coil debender to assist with the threading process Jog forward and reverse w/ remote pendant
End of stock sensor
Auto / Run cycle
Laser Style Variable speed loop control
Feed Lease Threading Table
Model FLTT-3618, Single Side Threading Table, Serial No. 5597 Hydraulic actuated
Passline adjustment +-6" at feed entrance Single side bomb bay style design
Feed Lease Servo Roll Feed
Cabinet Mounted Feed Model R.F. 6 x 36, Serial No. 5596
6" diameter full width upper and lower servo feed rolls
Pilot pin release of upper feed roll by (2) 6” bore cylinders Maximum Feed Length 0 to 999.99 inches
Matte chrome finish on servo feed rolls
Four gear cluster arrangement transfers power to the upper feed roll Air operated upper servo feed roll adjustment / pilot
Entry side cascade material support section
Stock width edge guides
Automatic lubrication system from powered straightener
Solenoid controlled pilot release
Air pressure/regulator
Cabinet base mounted w/ adjustable pass line height
48" Motorized pass line height - adjustment +/-5” Allen Bradley Kinetic Drive w/Panel view 6” Color touch screen Powered Roll Out
* Feeder can travel into loop area for allowing hand feeding and stacking
* If a pit is used the feeder could travel away from the press over the pit
Feed will clamp into home position
40,000 lbs. x 36" Feed Lease Conventional High Strength Steel coil feed lines are designed to handle heavy-duty applications with high-strength steel coils. These lines are built to withstand the rigors of continuous operation and high-speed production processes. They feature robust construction, advanced straightener technology, and precise servo-controlled feed systems to ensure accurate and reliable material delivery.
Can be seen under power upon request in the S & G Press Livonia Michigan Warehouse!
