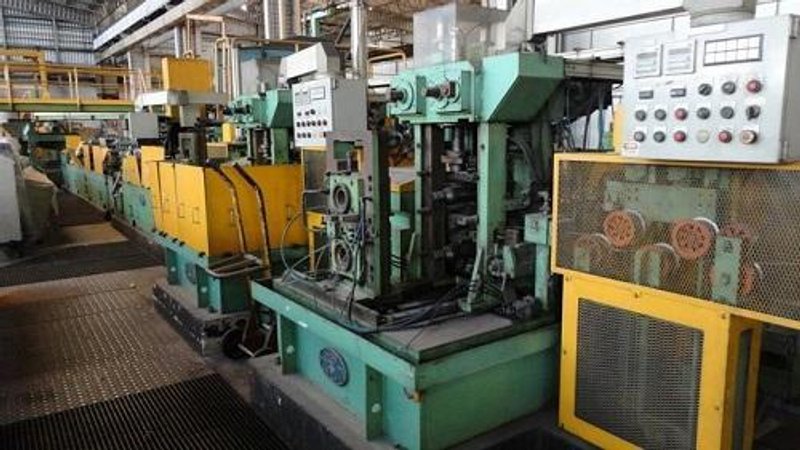

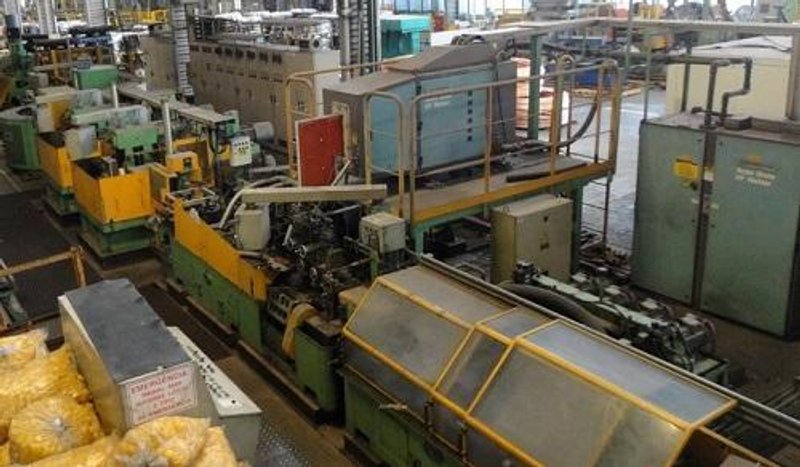

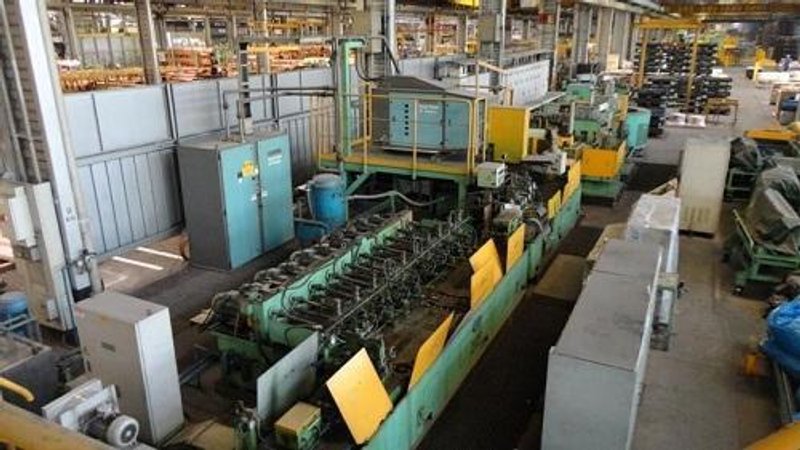

15.87MM X .80MM MORI MIU-30 RAFTED TUBE MILL #2

15.87MM X .80MM MORI MIU-30 RAFTED TUBE MILL

SPECS:

MODEL: MIU-30 TYPE TUBE MILL

MANUFACTURER: MORI MACHINERY CORPORATION

CONSTRUCTION YEAR: 2003

ALLOY: COPPER STRIP UNS C12200

FINAL MATERIAL: WELDED INNER GROOVED COPPER TUBES FOR REFRIGERATION AND AIR-CONDITIONED INDUSTRY

TYPE OF WELDER: HF – HIGH FREQUENCY

MAIN MATERIAL SPECIFICATION:

WIDTH OF ENTRANCE STRIP: 20 – 55 MM

STRIP THICKNESS: 0.30 – 0.80 MM

STRAIGHTNESS OF THE ENTRANCE STRIP: 1/1000 MM

STRIP WIDTH TOLERANCE: ± 0.04 MM

STRIP THICKNESS TOLERANCE: ± 0.01 MM

ID FOR UNCOLIER: 450 MM

OD FOR UNCOILER: <= 1500 MM

WEIGHT FOR UNCOILER: <= 450 KG

FINAL DIMENSION OF TUBES: Ø 6.35 MM ~ Ø 15.87 MM.

TUBES TOLERANCE: ± 0.04 MM

WORKING SPEED: MAX. 200 M/MIN. 2

COMPONENT LIST INCLUDES:

UNCOILER

SHEAR & WELDER AND DANCER ROLL

HORIZONTAL ACCUMULATOR

EMBOSSING STAND

FORMING SECTION

WELDER

SIZING SECTION

ROTARY PRESS CUTOFF

TUBE WINDER TURNTABLE

WATER AND EMULSION TANK

BASIC LAYOUT
