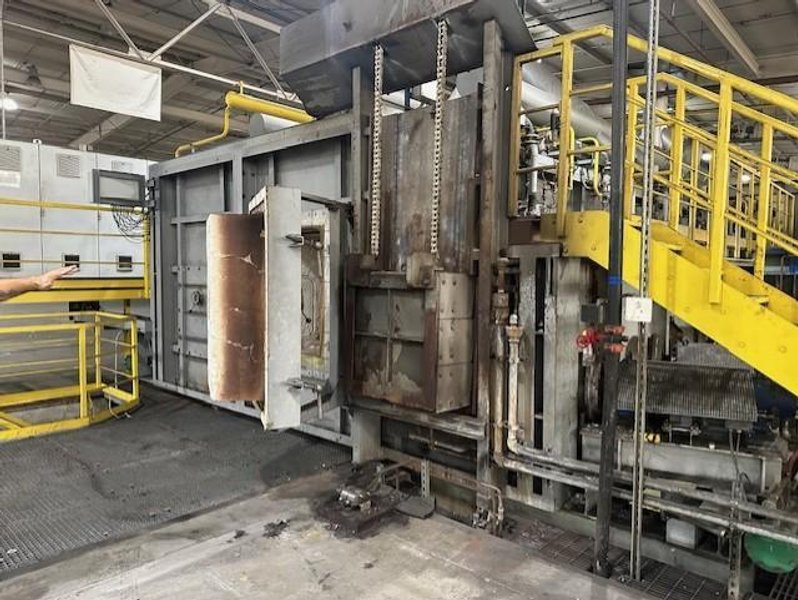

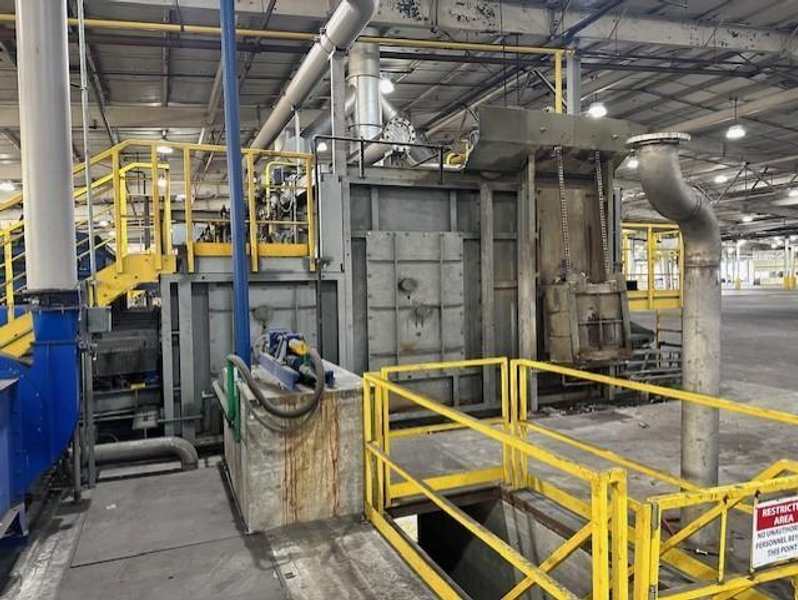

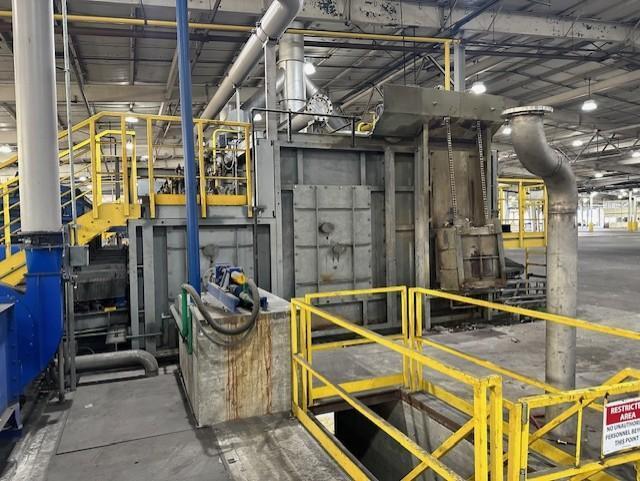

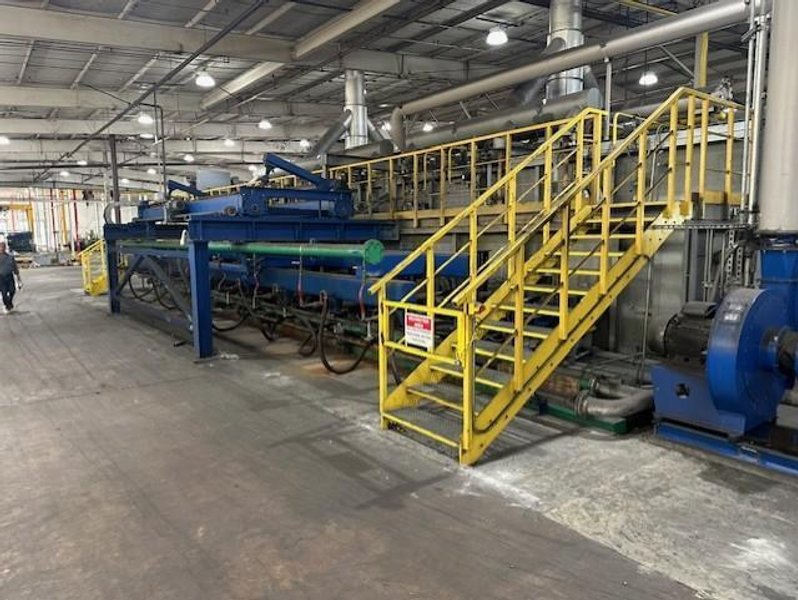

16" SXP SEAMLESS PIPE ANNEALING FURNACE
Brand
Not specified
Category
Type
Model
Not specified
Stock #
116552
Year
Not specified
Condition
Used
Location
Missouri
|
MANUFACTURER - SXP
TYPE - WALKING BEAM ANNEALING FURNACE
MATERIAL - STAINLESS STEEL SEAMLESS PIPES
YEAR - 2016
PIPE CAPACITY RANGE - 3.8" - 16"
PIPE LENGTH CAPACITY - 9' - 47'
MAXIMUM TEMPERATURE - 2100 DEGREES FARENHEIT
NUMBER OF RECUPERATION BURNERS - 15 (8 LEFT, 7 RIGHT)
NUMBER OF ZONES - 2
AIR COMPRESSION SYSTEM - 100 MBAR NOMINCAL PRESSURE (40Kw CAPACITY)
MAX THROUGHPUT - UP TO 48 PIPES PER 12 HOUR SHIFT

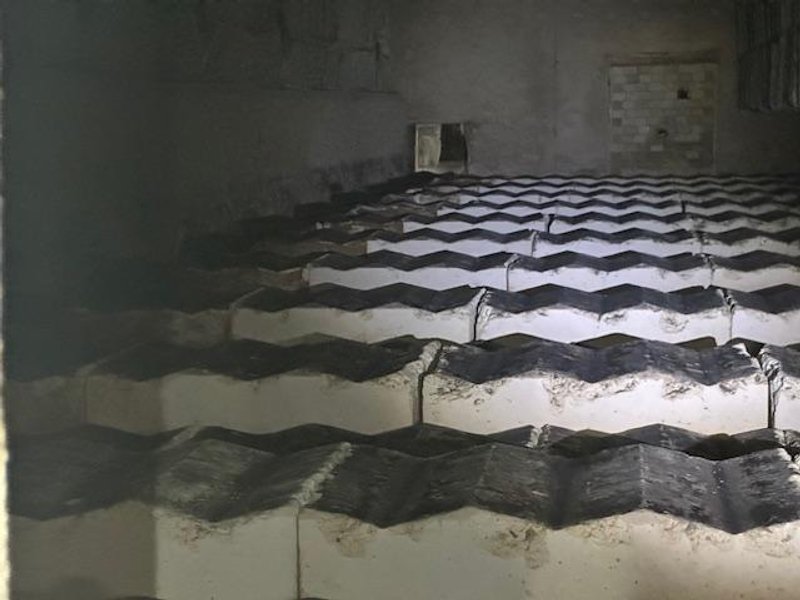

DISTANCE BETWEEN INSIDE WALKING BEAM - 250MM (VALLEY TO VALLEY)
NUMBER OF MOVEABLE BEAMS - 10 (INSIDE FURNACE)
WALKING BEAM MOVEMENT - HYDRAULIC (INSTALLED UNDER PLATFORM)
WALKING BEAM LIFT DISTANCE - 80-100MM
WALKING BEAM TRANSPORTATION - 150MM HORIZONTALLY (POSITION TO POSITION)
WALKING BEAM ADJUSTMENTS - HORIZONTALLY & VERTICALLY ADJUSTED
ENTRY AND EXIT DOORS - ELECTRO MECHANICALLY CONTROLLED
ROLLER BELTS MAX SPEED - 100M/MIN (BOTH DIRECTIONS)
FURNACE INCLUDES:

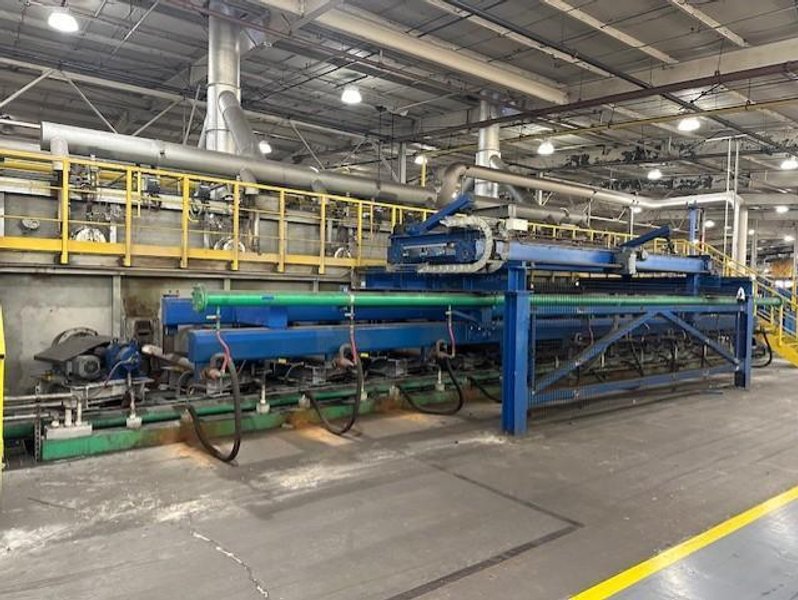

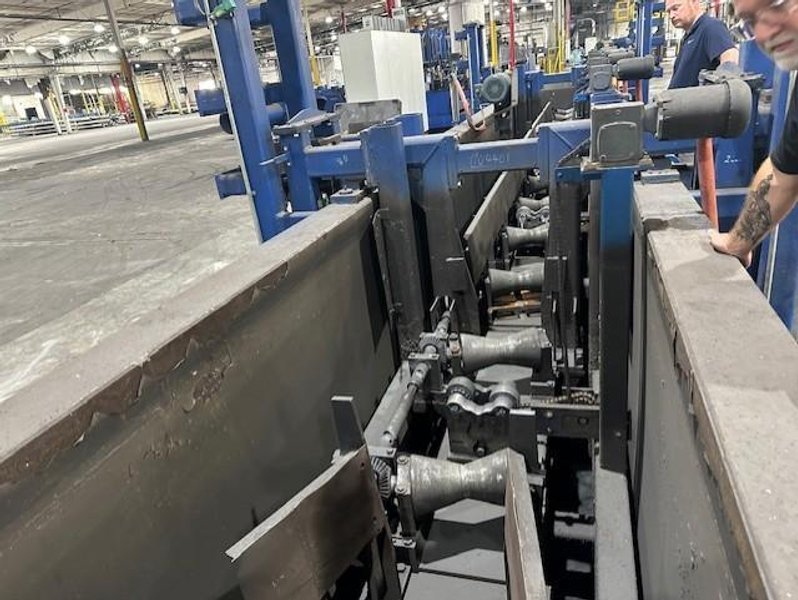

INFEED, WALKING BEAM (INSIDE FURNACE) AND OUTFEED CONVEYANCE |
