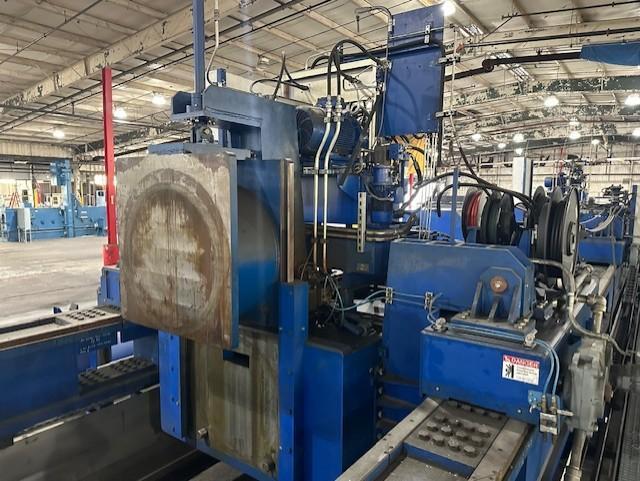

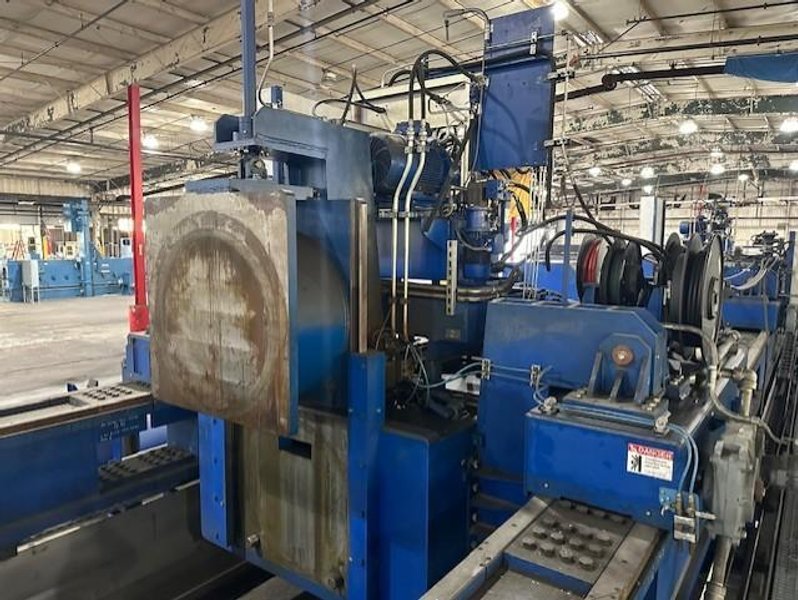

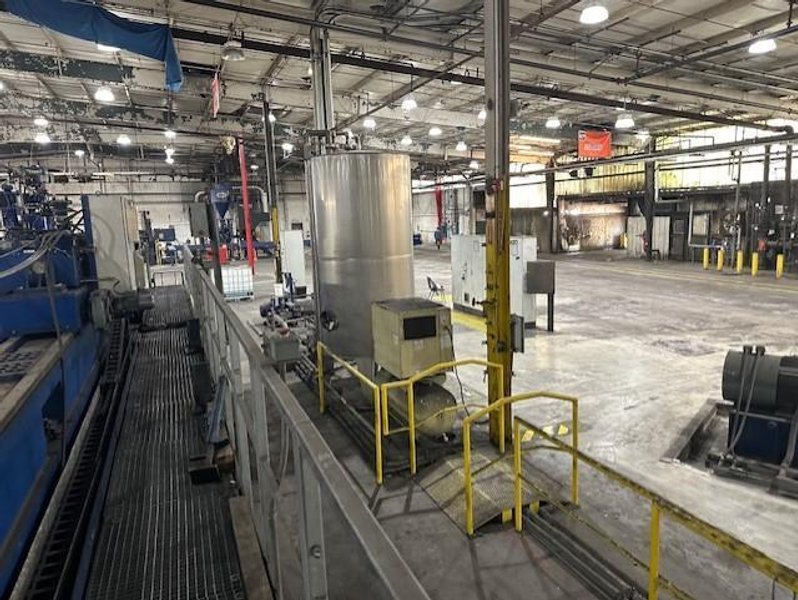

14" SXP SEAMLESS TUBE HYDROTESTING MACHINE W/ HIGH PRESSURE PUMPS
Brand
Category
Model
Not specified
Stock #
116545
Year
Not specified
Condition
Used
Location
Missouri
|
MANUFACTURER - SXP
TYPE - SEAMLESS TUBE HYDROTESTING MACHINE
YEAR COMMISSIONED - 2015
MAXIMUM OPERATING PRESSURE - 10,000 PSI
HIGH PRESSURE PUMPS - 10,000 PSI
PRESSURE IN BAR - 700
MAXIMUM PIPE DIAMETER - 14" OD
MINIMUM PIPE DIAMETER - 4.5" OD
MAXIMUM PIPE LENGTH - 44.25'
MINIMUM PIPE LENGTH - 15.1'
NUMBER OF DISTANCE PIPES - 5
SIZES OF DISTANCE PIPES - 1600MM, 3600MM, 5600MM, 7600MM, 9600MM

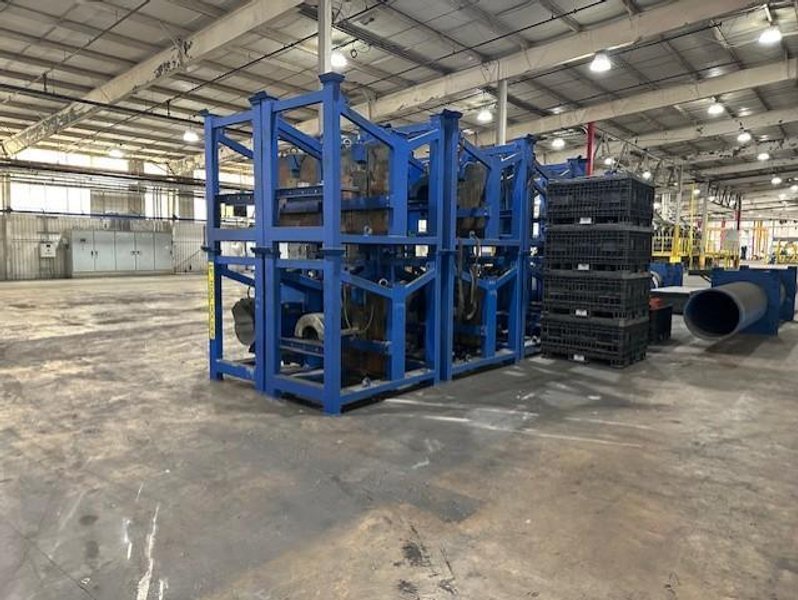

NUMBER TOOLING SETS - 6", 8", 10", 11", 12", 14", 16", 18"
MAX THROUGHPUT - UP TO 24 PIPES PER 12 HOUR SHIFT
MAIN COMPONENTS

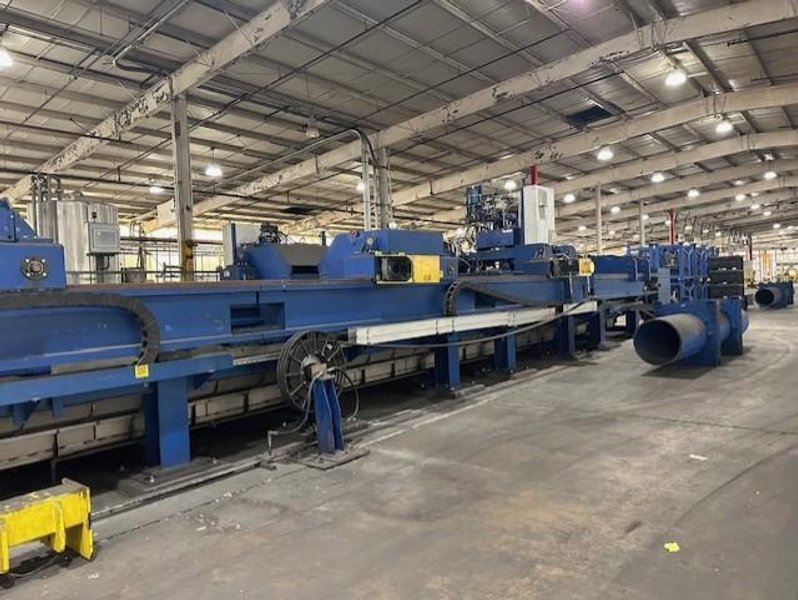

HYDROSTATIC MACHINE BASE, TROUGH AND OPERATORS PLATFORM

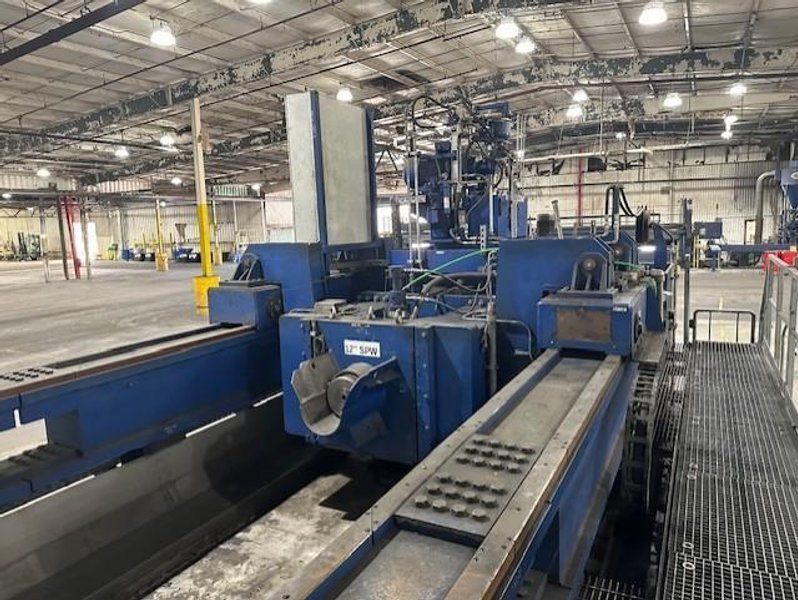

SPINDLE CARRAIGE UNIT (SPW)
SHORT STROKE TO ACCOMMODATE TUBE ALIGNMENT
SPINDLE CARRIAGE STROKE - 72" (1870MM)
MOTOR - 7.5 Kw
INCLUDES - HYD. UNIT, HIGH PRESSURE HOSE, COOLING WATER VALVE, WATER FILL
VALVE, SENSOR CONNECTION BOX, TOOL PLATE, TOOL HEAD

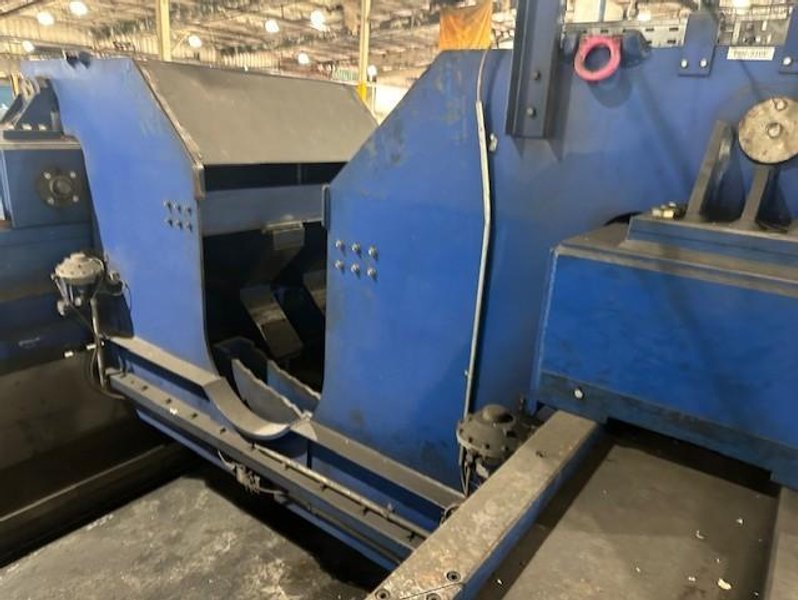

CLAMPING CARRIAGE UNIT (PRW)
MOVES TO CENTER OF TUBE
MOTOR - 0.37 Kw
INCLUDES - GEARED MOTOR, BEARING SURFACE MOUNT, CLAPMS

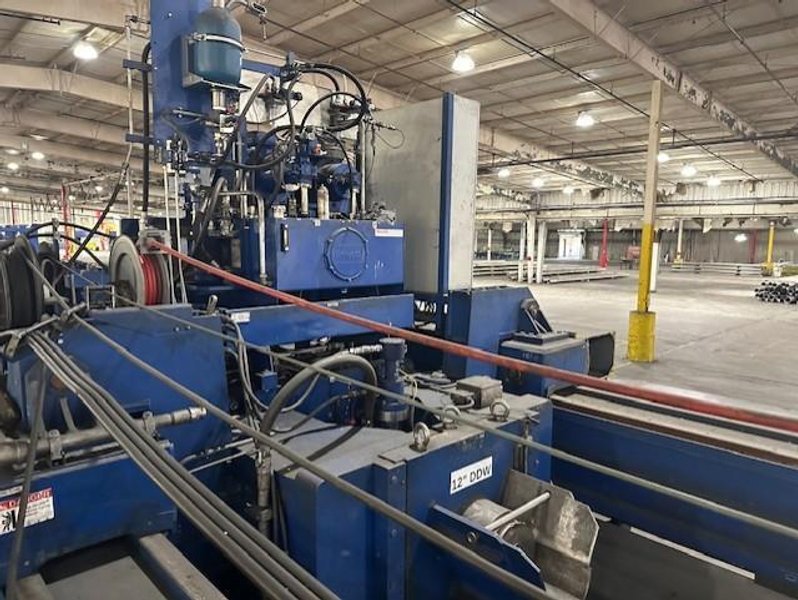

CARRIAGE DISTANCE UNIT (DDW)
FIXED
MOTOR - (2) 1.5 Kw
INCLUDES - (2) HYD. UNITS, COOLING WATER LINES, CONNECTION TO PRW, EXHAUSTING
VALVE & HOSE, TOLL PLATE, TOOL HEAD
HIGH PRESSURE PUMP
WATER SUPPLY TANK
ATLAS COPCO AIR COMPRESSOR - TO RUN PRW CARRAIGE

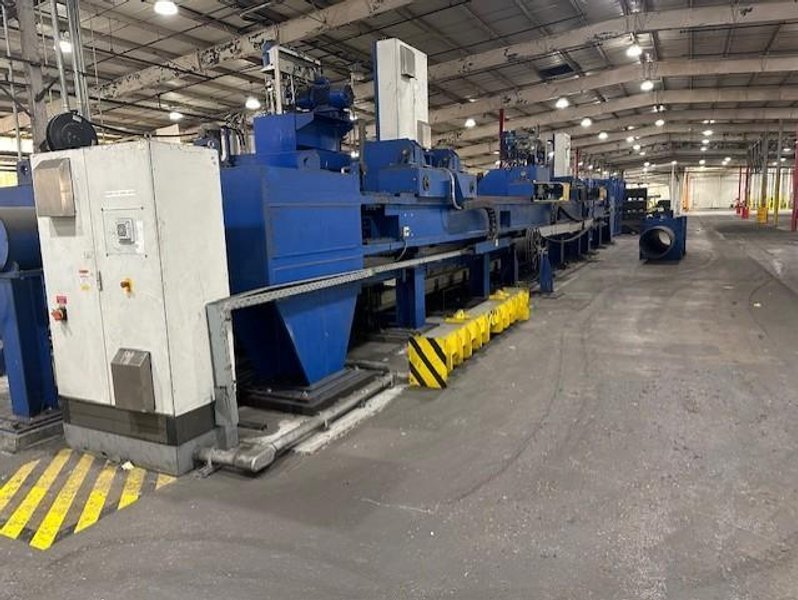

OPERATORS CONTROL PANEL HMI
NO LOADING TABLES - TUBE LOADING IN AND LOADING OUT BY FORKLIFT |
