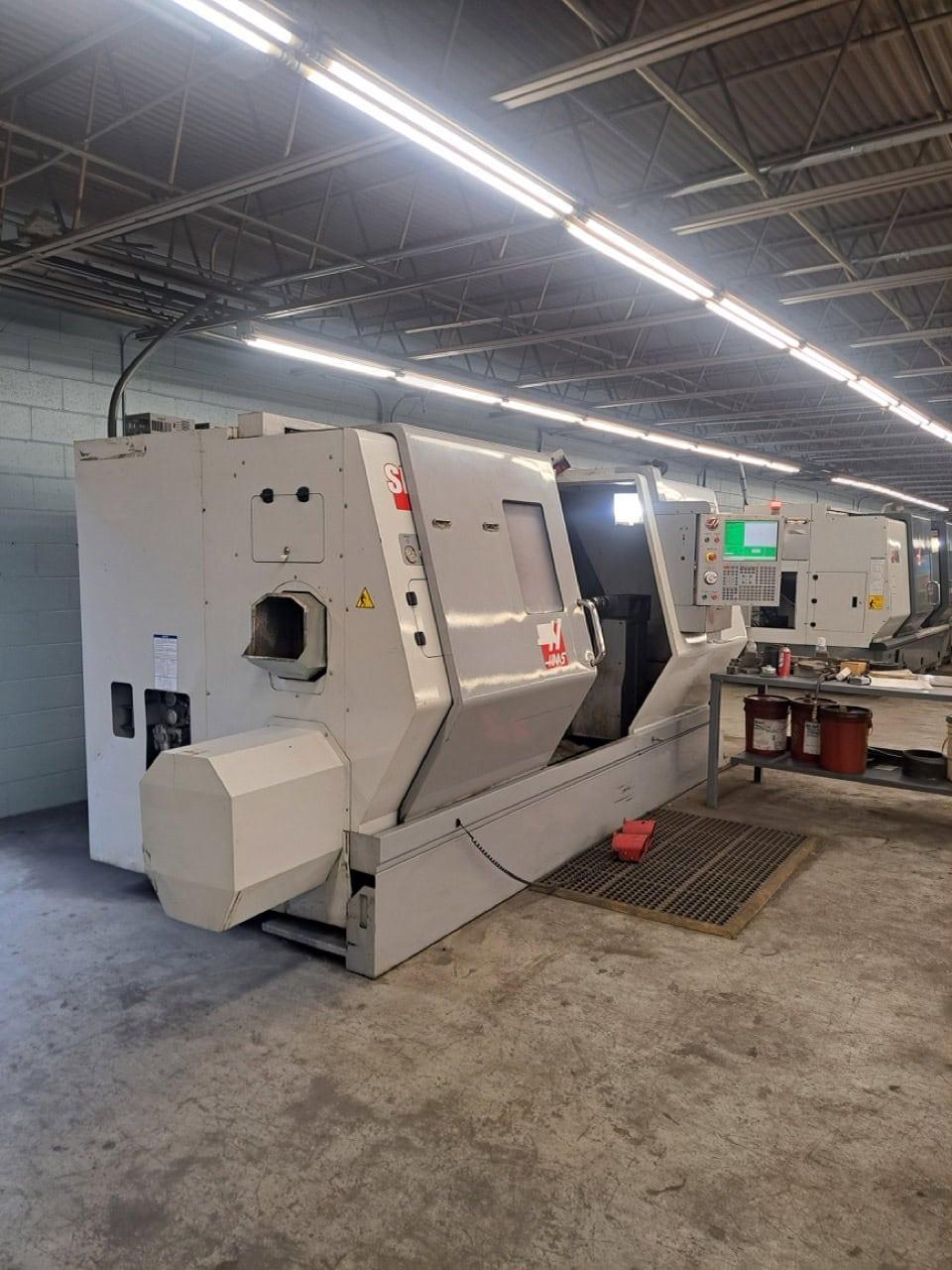

Haas SL-40 CNC Lathe, 2012 – Chip Conveyor, Tailstock
Brand
Category
Type
Model
SL-40
Stock #
479907
Year
2012
Condition
Not specified
Location
Not specified
|
Chuck Size: 15″
Max Swing: 40″
Max Swing Over Cross Slide: 25″
Max Cutting Diameter: 25.5″
Max Cutting Length: 44″
Max Bar Capacity: 4″
X-axis Travel: 17″
Z-axis Travel: 44″
Spindle Nose / bore: A2-8 / 4.62″
Spindle Speeds: 2,400 RPM
Spindle Motor: 55 HP
Number of Turret Positions: 10 Station Turret
Rapid Traverse Rates: 710 IPM
Approx. Dimensions: 170″ x 102″ x 89″
Approx. Weight: 25,000 lbs.
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: HAAS CNC Control Chip Conveyor Tailstock All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
