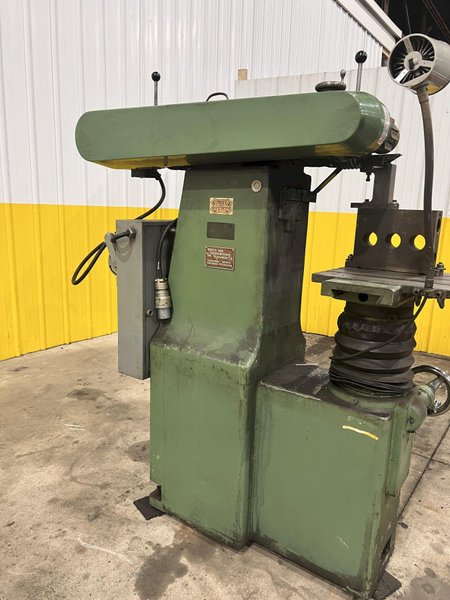

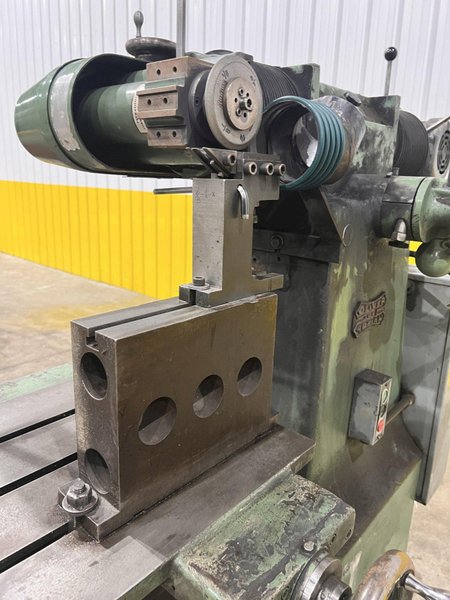

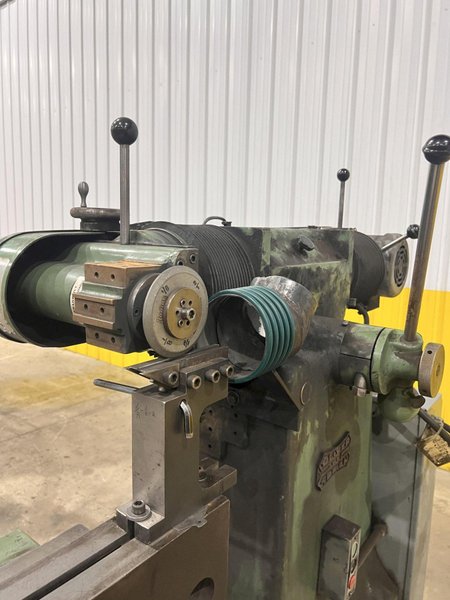

OLIVER ACE MODEL 300HD GRINDER DRILL BIT SHARPENER: STOCK #22124
Brand
Category
Type
Model
Not specified
Stock #
22124
Year
Not specified
Condition
Good
Location
Ohio
Price
$4,950.00
|

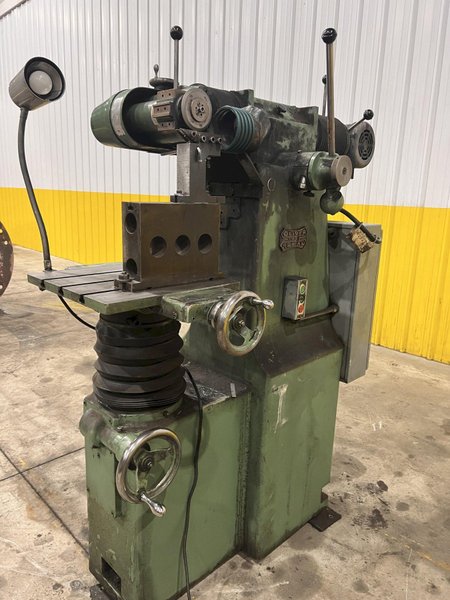

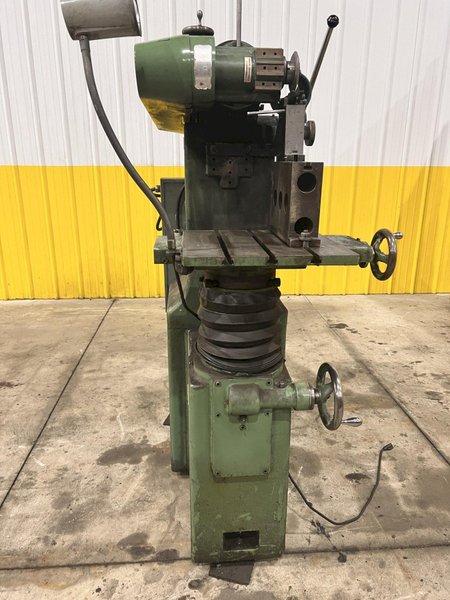

OLIVER ACE MODEL 300HD GRINDER
SERIAL ................................. ACE 1234
MODEL .................................. 300 HD
SWING .................................. 8"
DISTANCE BETWEEN CENTERS ............... 15"
AREA OF TABLE .......................... 16" X 16"
CROSS CARRIAGE TRAVEL .................. 14"
ANGULAR ADJUSTMENT OF CARRIAGE ......... 180 DEGREES
ANGULAR ADJUSTMENT OF HEAD ............. 180 DEGREES
ANGLE ADJUSTMENT OF TABLE IN VERTICAL .. 45 DEGREES
DISTANCE GRINDING WHEEL & TABLE ........ 7-3/4"
DISTANCE GRINDING WHEEL & BASE TABLE ... 16-3/4"
HORIZONTAL TRAVEL OF GRINDING UNIT ..... 7"
VERTICAL ADJUSTMENT OF TABLE ........... 12-1/2"
VERTICAL ADJUSTMENT OF GRINDING WHEEL .. 1-1/2"
MOTOR .................................. 1 HORSEPOWER
UNSURPASSED FOR CUTTING TOOL RECONDITIONING
No competitive machine can come close to matching the Oliver ACE for payout on capital invested. Set-up and grinding times are at an absolute minimum to give increased output from your cutter grinding department. The ACE is simple and fool-proof to operate. All readings are made on a direct basis and it is not necessary to make intricate computations. This eliminates the need for skilled cutter and tool grinders with a consequent reduction in labor cost for each reconditioned tool.
The construction of the model 300HD cannot be matched by any competitive unit from either a quality or maintenance standpoint.

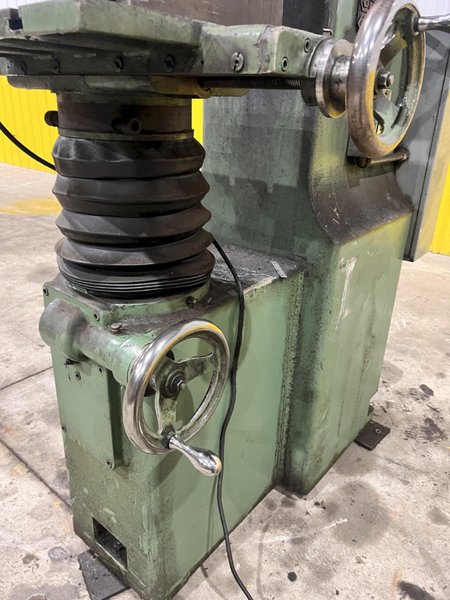

All of the sensitive areas are above the grinding line and away from any grit or abrasive matter. In addition, the ways are all enclosed in a dust tight bellows type enclosure to insure maximum life.
The ram reciprocates on balls riding on several hardened ways with only fingertip pressure required for movement.
A precision type permanently lubricated grinding wheel spindle is supplied. Radial thrust ball bearings are used in combination with a spring pre-load system to give you one of the best grinding spindles in the industry.
The work spindle is hardened and ground and is complete with a special feature - a 24 division index plate for those jobs where fingers are difficult to use. |
