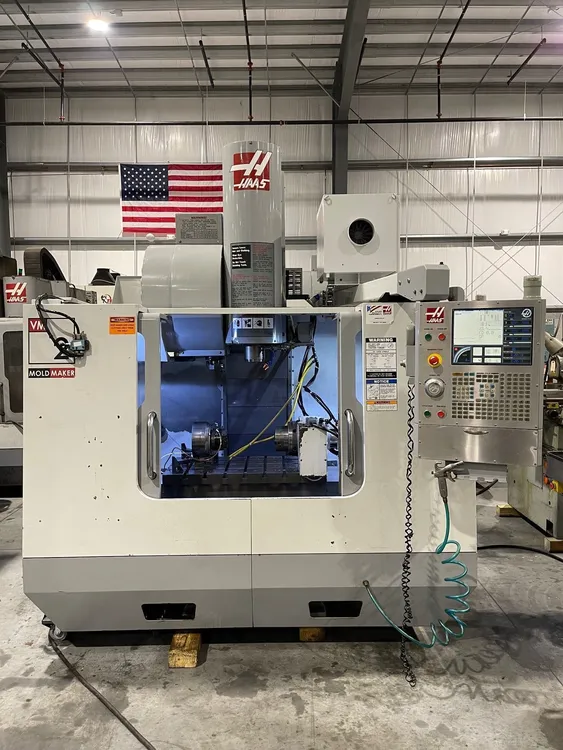

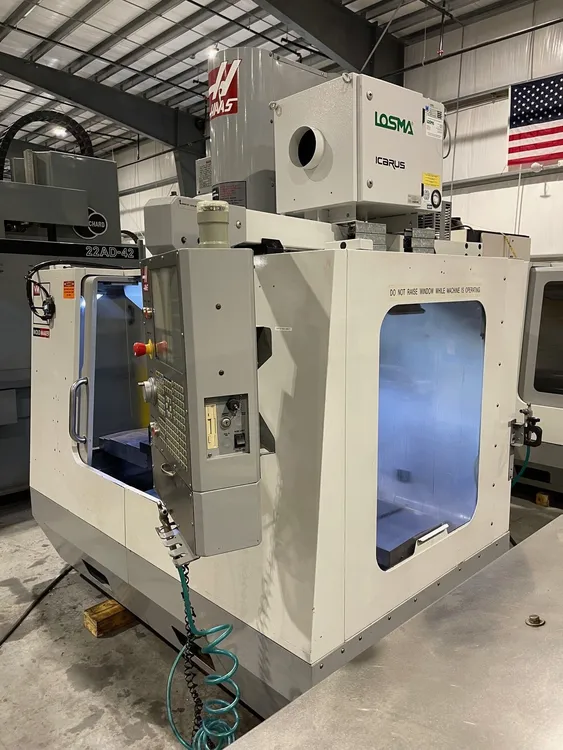

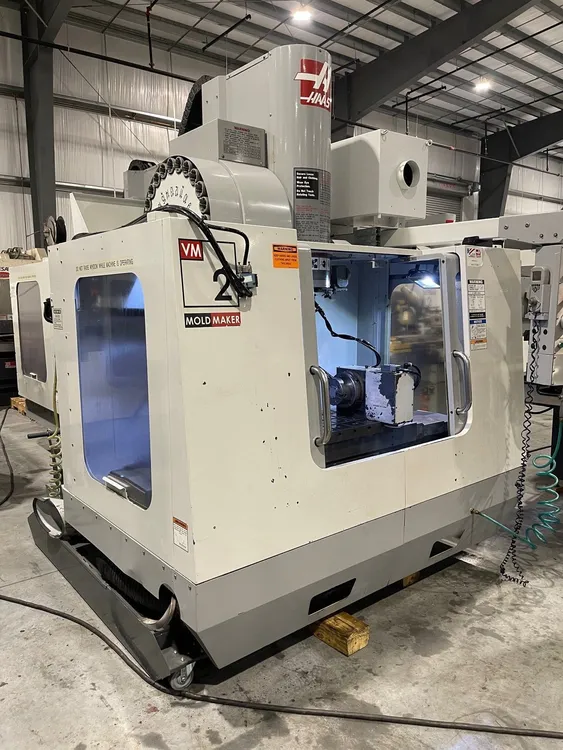

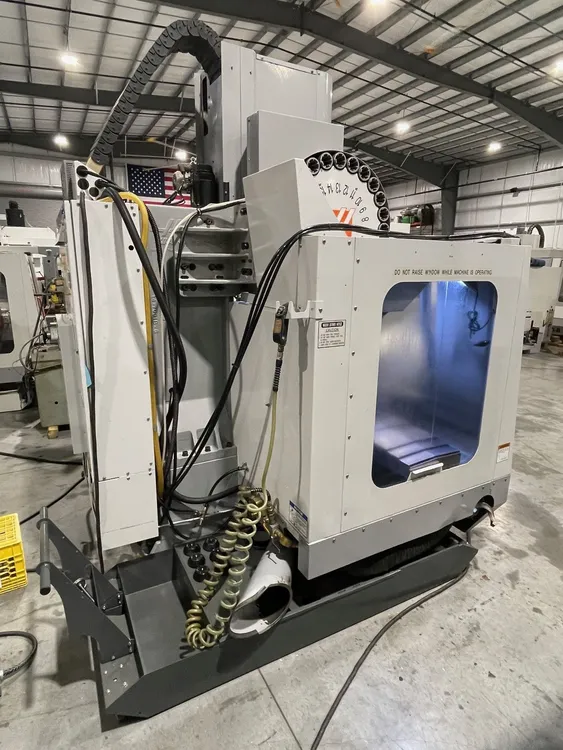

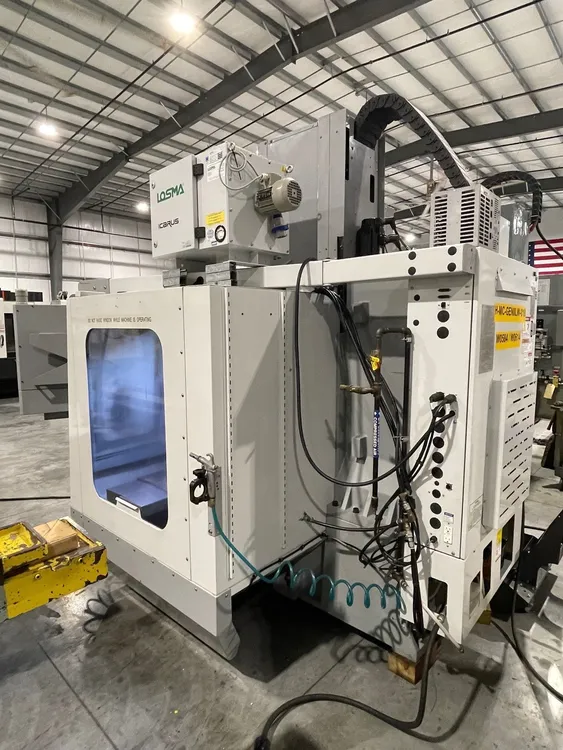

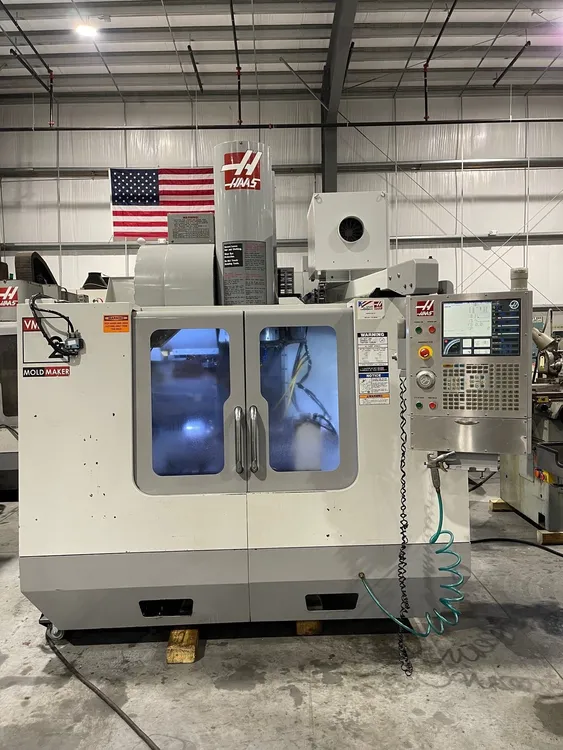

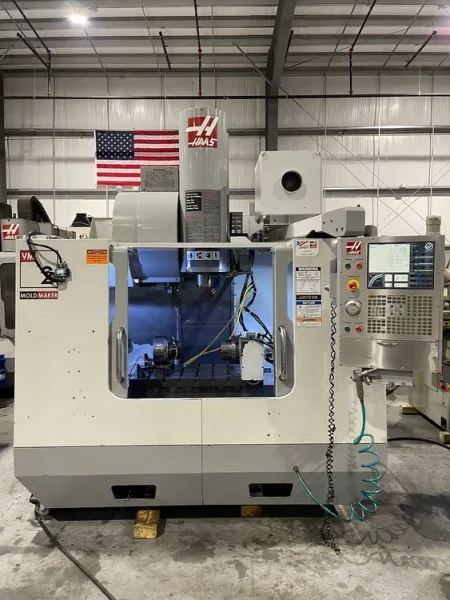

HAAS #VM-2 CNC Vertical Machining Center 2006’ HSM 4th USA Stock #7102

HAAS #VM-2 CNC Vertical Machining Center 2006’ HSM 4th USA Stock #7102

Name: HAAS #VM-2 CNC Vertical Machining Center 2006’ HSM 4th USA Stock #7102
Brand: EXTREMA
SKU: 7102
Availability: PreOrder

Brand

EXTREMA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Vertical Machining Centers

Manufacturer:

HAAS

Model:

VM-2

Year:

2006

Stock #:

7102

Status:

For Sale

Description

HAAS #VM-2 CNC Vertical Machining Center 2006’ HSM 4th USA Stock #7102

ImperialMetric

X axis	30"	762 mm
Y axis	20"	508 mm
Z axis	20"	508 mm
Power	30 hp	22.4 kW
RPM	12,000 RPM	12,000 RPM
# ATC	24	24
Taper	40	40
Table-W	18"	457.2 mm
Table-L	36"	914.4 mm
# Axis	3	3
Dimensions	111’’ L x 91’’ W x 91’’ H	111’’ L x 91’’ W x 91’’ H
Weight	8000 Lbs.	8000 Lbs.

HAAS #VM-2 CNC Vertical Machining Center 2006’ HSM 4th USA Stock #7102
Stock #-7102
Model # VM-2

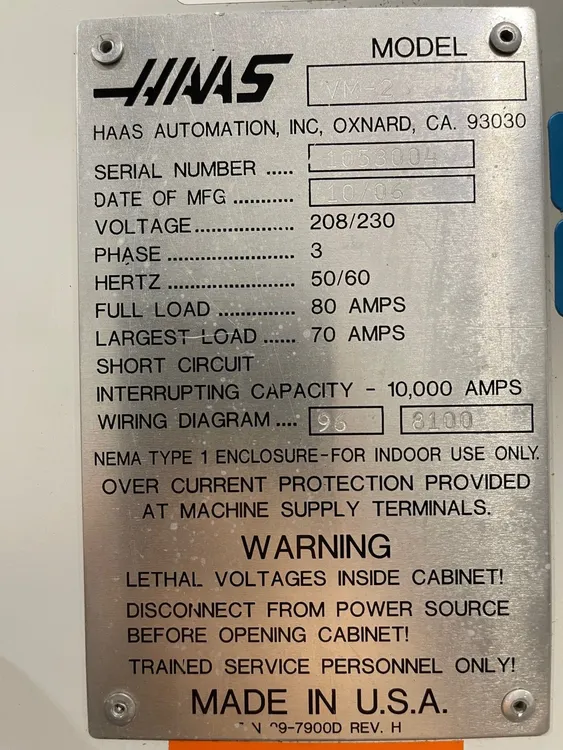

Serial # 1053004
Year of manufacture- 10/2006’
Table size- 18” x 36”
Number of T-slots- (3)
Max table weight- 3000 Lbs.
Travels-
X axis- 30”
Y axis- 20”
Z axis- 20”
Maximum distance from spindle nose to table- 24”
Minimum distance from spindle nose to table- 4”
Maximum spindle speeds- 12,000 R.P.M.
Spindle taper- CAT-40
Max cutting rate- 500 I.P.M.
X,Y,Z Rapids- 710 I.P.M.
Side mount tool changer- 24 +1 Tool capacity
Max tool diameter- 3”
Max tool length- 11”
Max tool weight - 12 Lbs.

Machine hours-Servo time 23,166, Motion time 11,782, Spindle time- 12,166

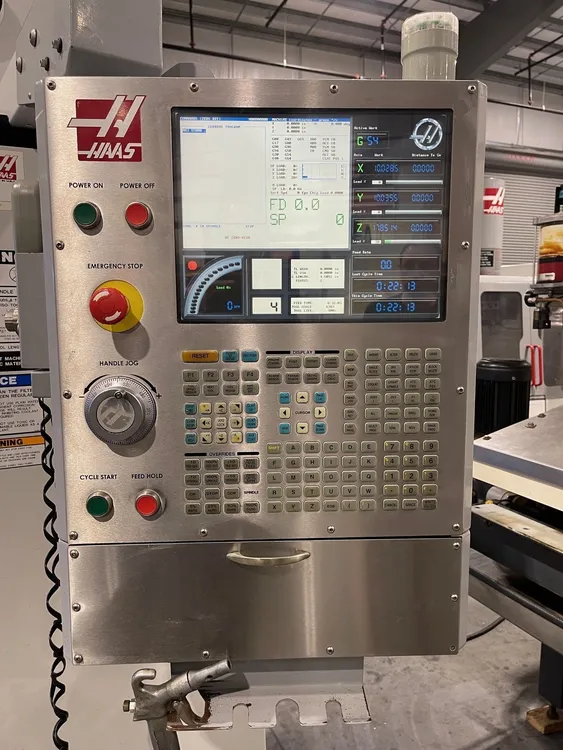

HAAS CNC Control

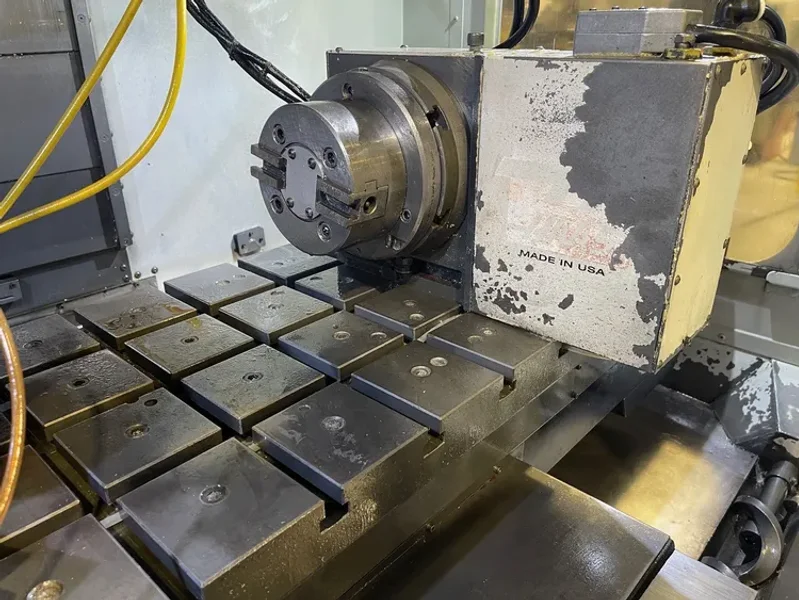

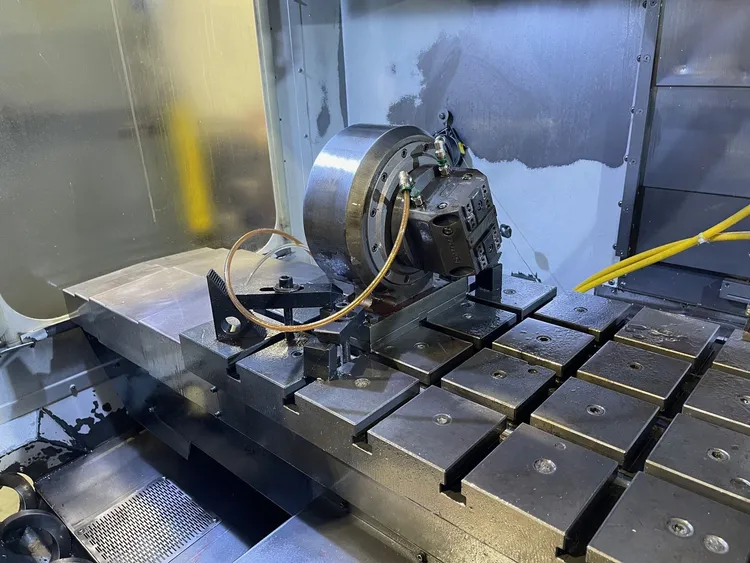

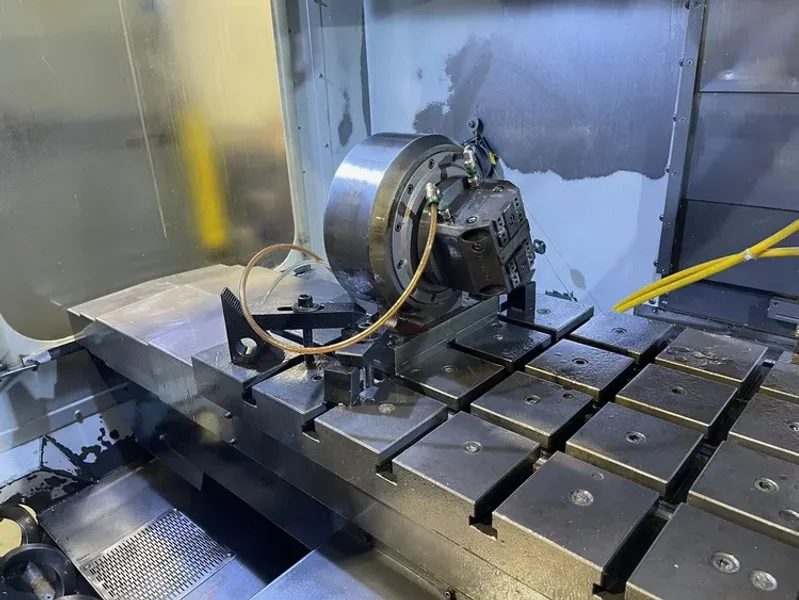

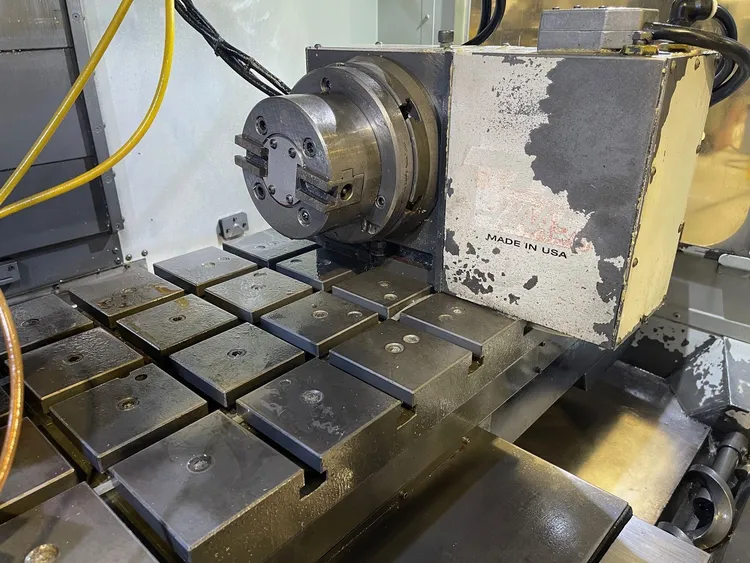

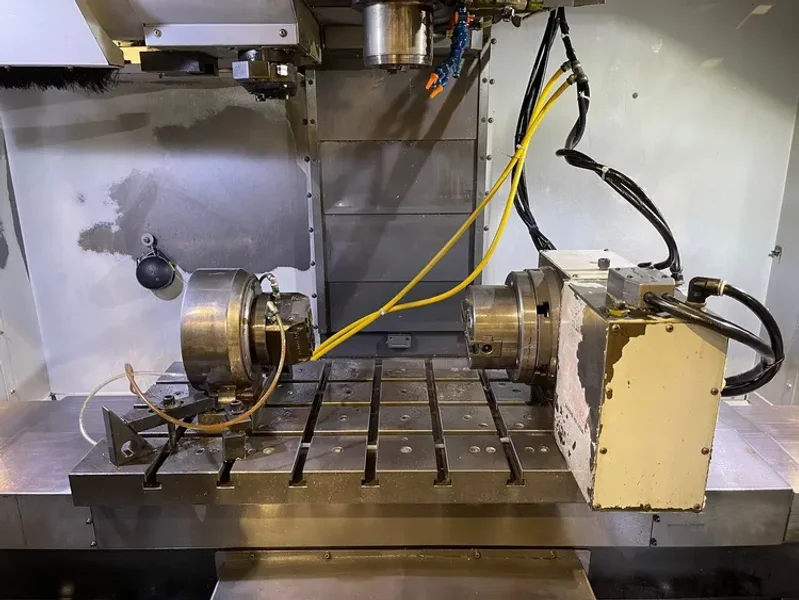

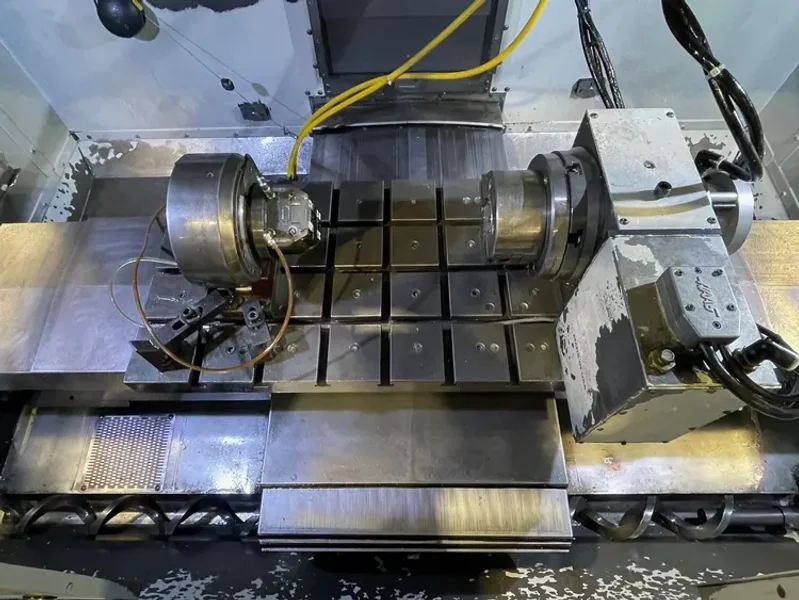

Haas HRT-210 rotary table with pneumatic closer
Programmable coolant nozzle

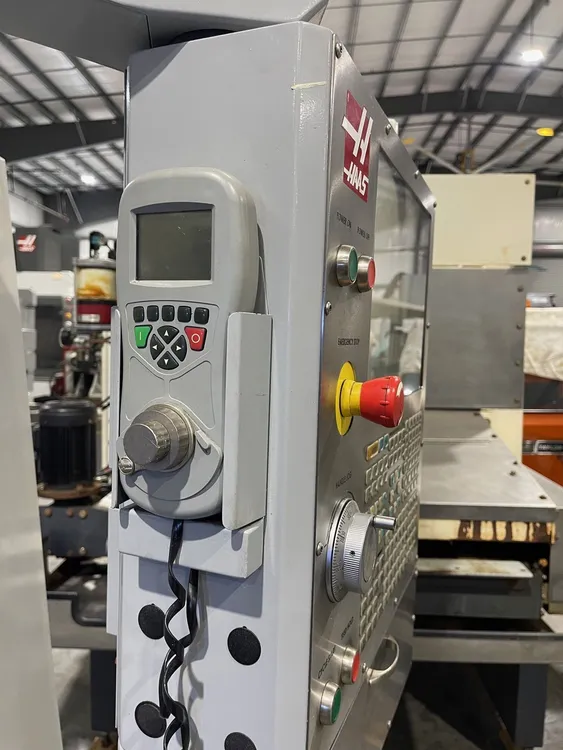

MPG Manual Pulse Generator
Prewired for 4th Axis
Side mount tool changer 24 tool station
Telescopic way covers
Air gun
(4) Leveling pads

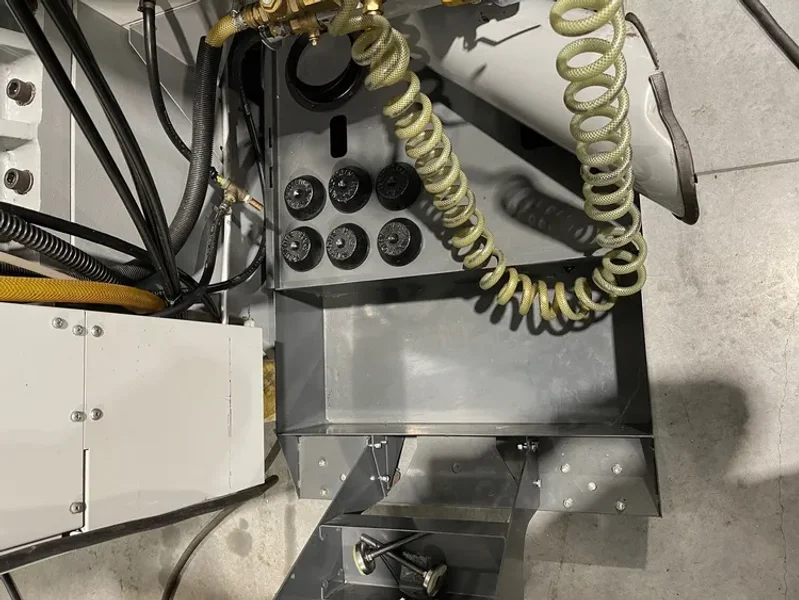

Chip Auger
BIJUR automatic lubrication system
External coolant tank & Less pump
Control options- Programmable coolant, Rigid tapping, DNC, Rotation & Scaling, Quick code, Macros, M19 spindle orient, Quick code, Pre-Orient Tap, Advanced Tool Management, High Speed Machining, Prewired 4th axis

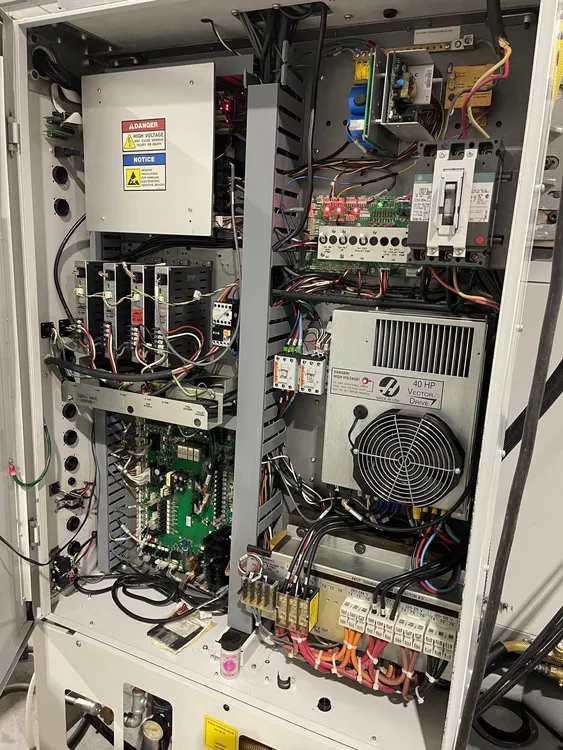

Machine is wired for 230 Volt / 3 phase / 60 HZ
Machine weight- 8000 Lbs.
Machine dimensions- 111’’ L x 91’’ W x 91’’ H
Machine location- F.O.B. Sarasota, Florida
