CLAUSING 3VS08 Vertical Milling Machine 2008’ #6752

CLAUSING 3VS08 Vertical Milling Machine 2008’ #6752

Name: CLAUSING 3VS08 Vertical Milling Machine 2008’ #6752
Brand: IAP
SKU: 6752
Availability: PreOrder

Brand

IAP

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Milling Machines

Manufacturer:

CLAUSING

Model:

3VS08

Year:

2008

Stock #:

6752

Status:

For Sale

Description

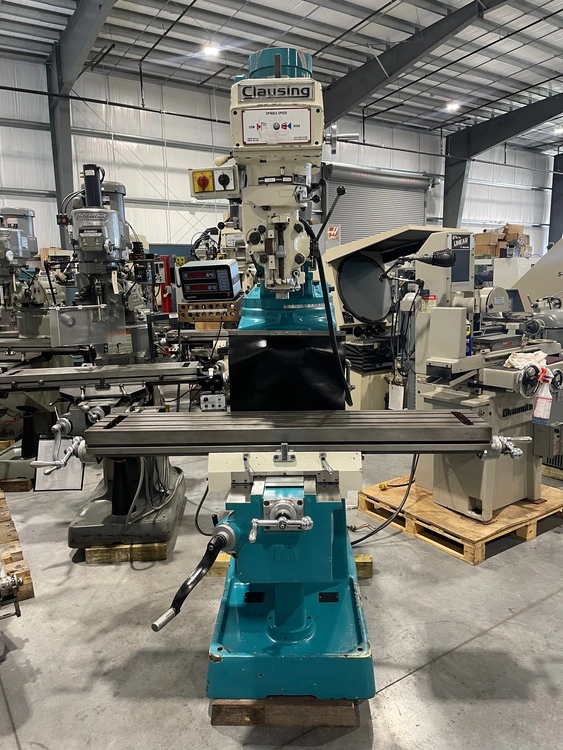

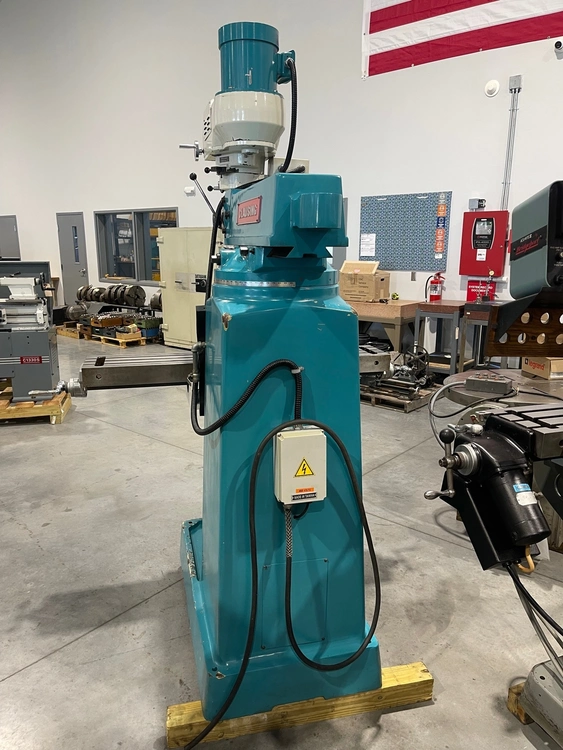

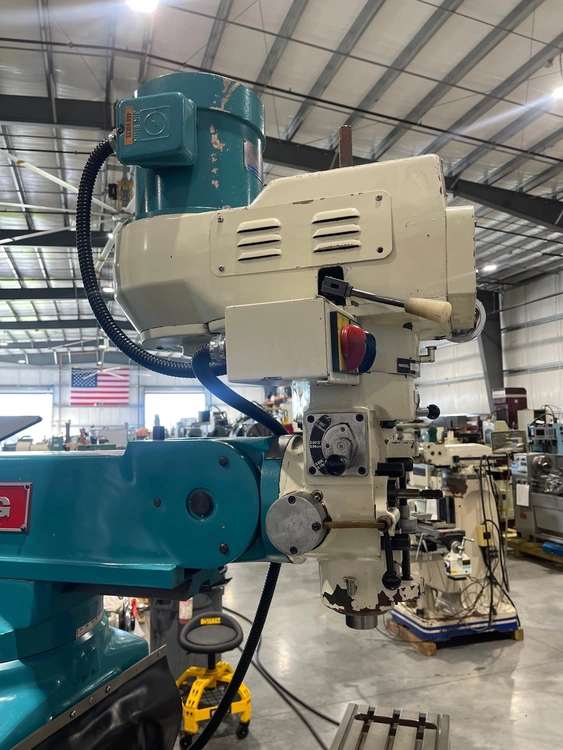

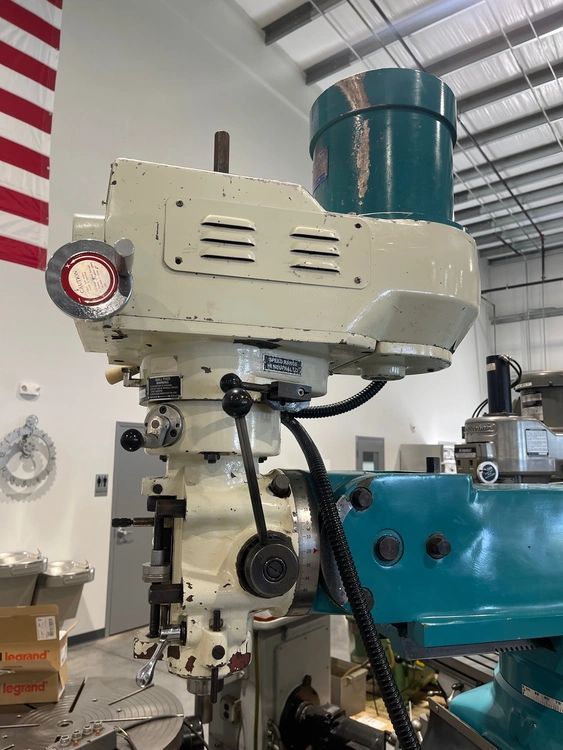

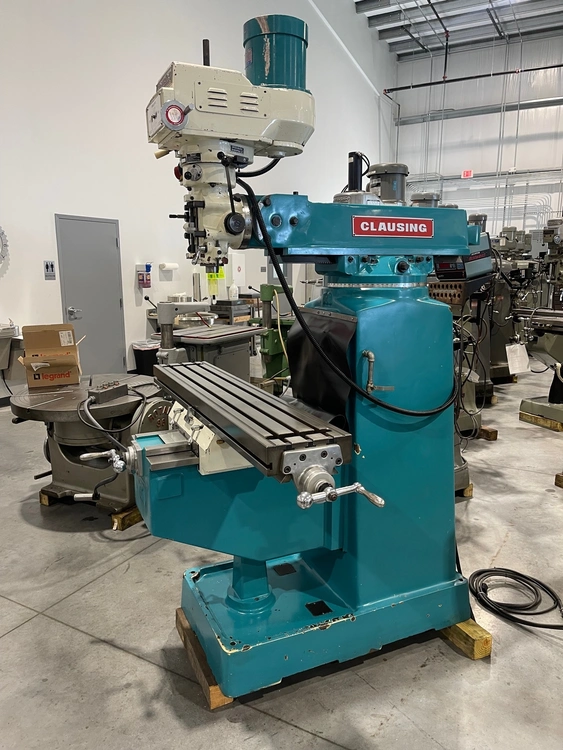

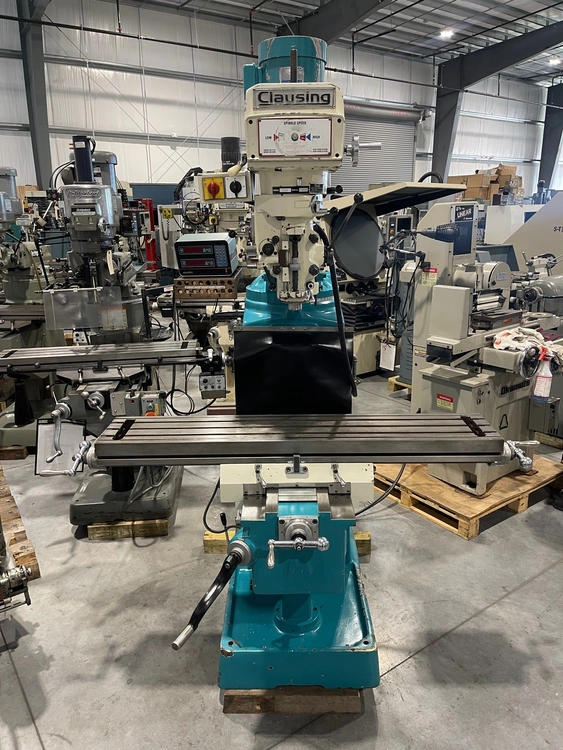

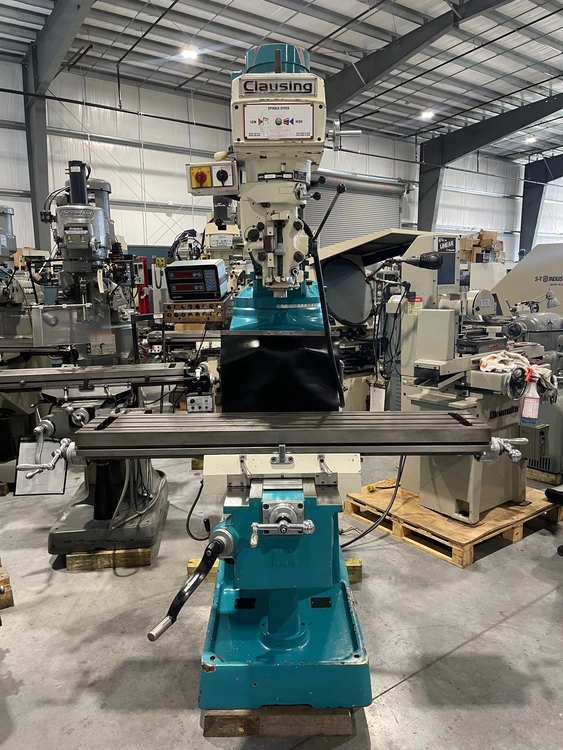

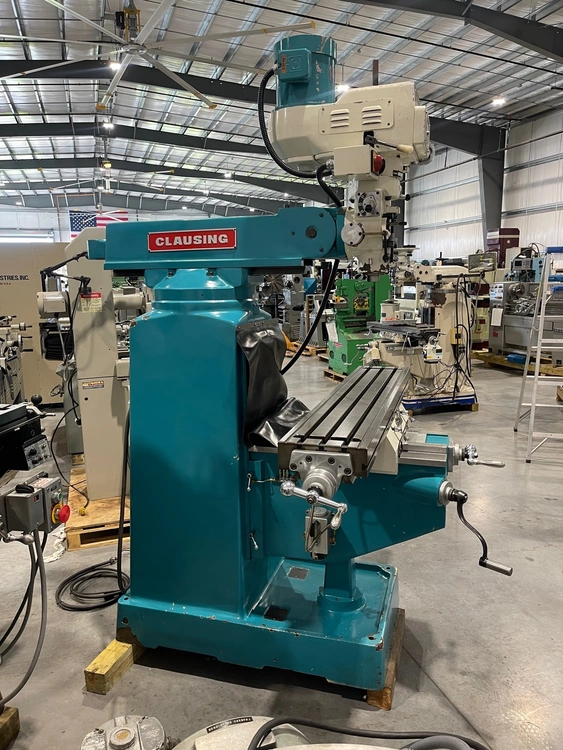

CLAUSING 3VS08 Vertical Milling Machine 2008’

Reference #6752

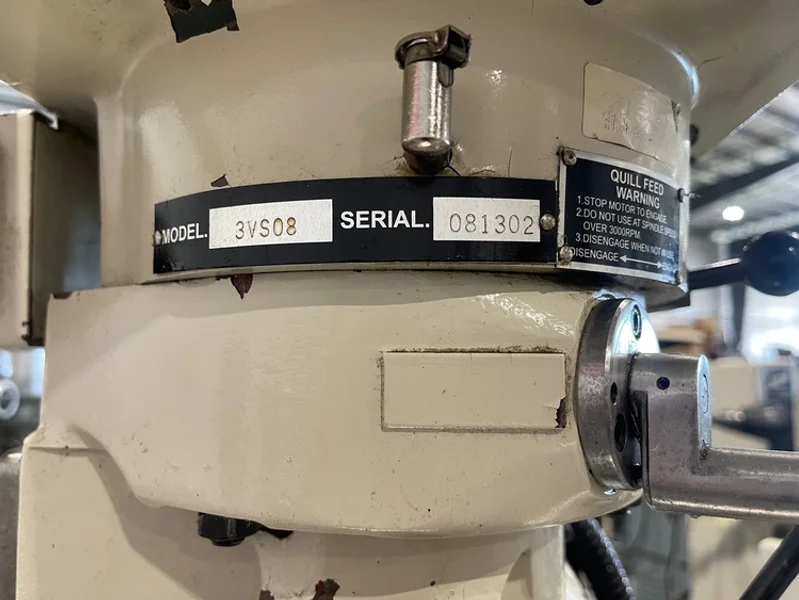

Model # 3VS08
Serial #081302
Year of manufacture- 2008’

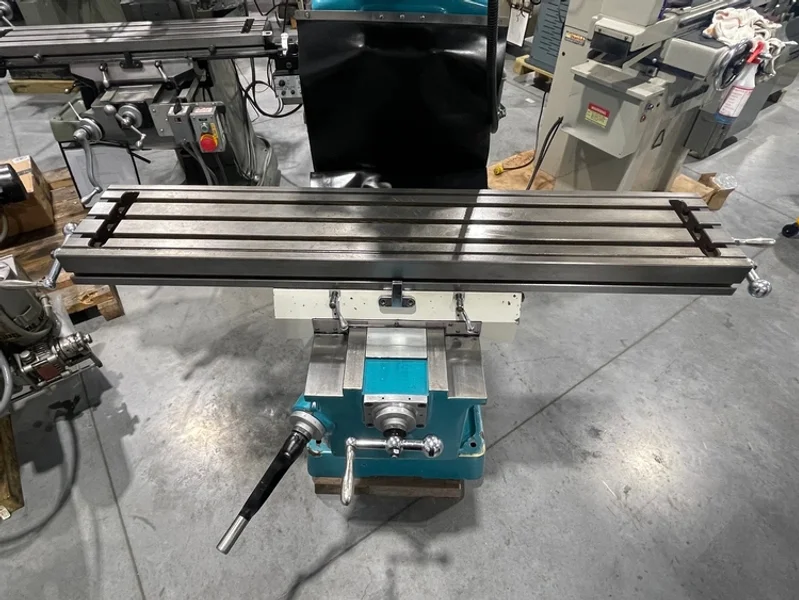

Table size- 10” x 54”
Number of T-slots- 3
T-slot width- 5/8”
Travels-
X axis- 39.6”
Y axis- 15.6”
Knee- 15”
Ram- 22”
Spindle travel- 5”

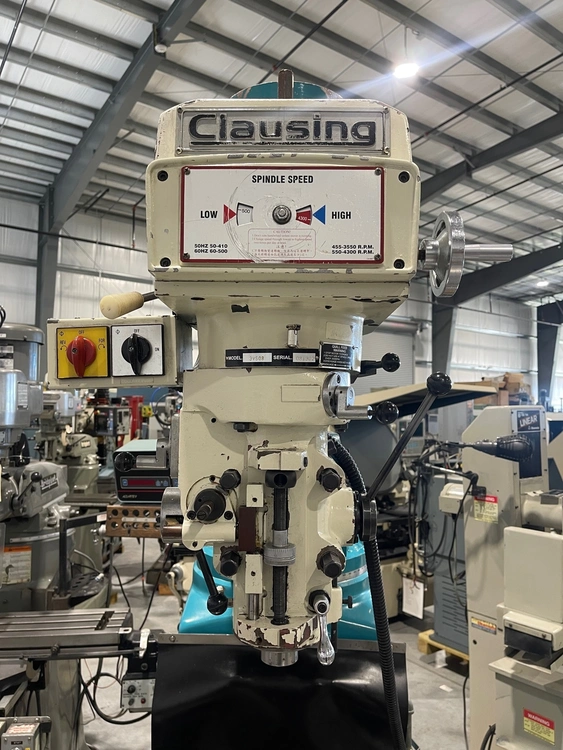

Spindle speeds- Low range 60 – 500 R.P.M. / High range 550-4300 R.P.M.
Spindle taper- R-8
Quill feeds- (3) .0015 / .0031 / .006
Quill diameter- 3.38”
Max table load- 665 Lbs.
Column diameter- 14.96”
Knee width-11.81”
Column bearing length- 16.83”

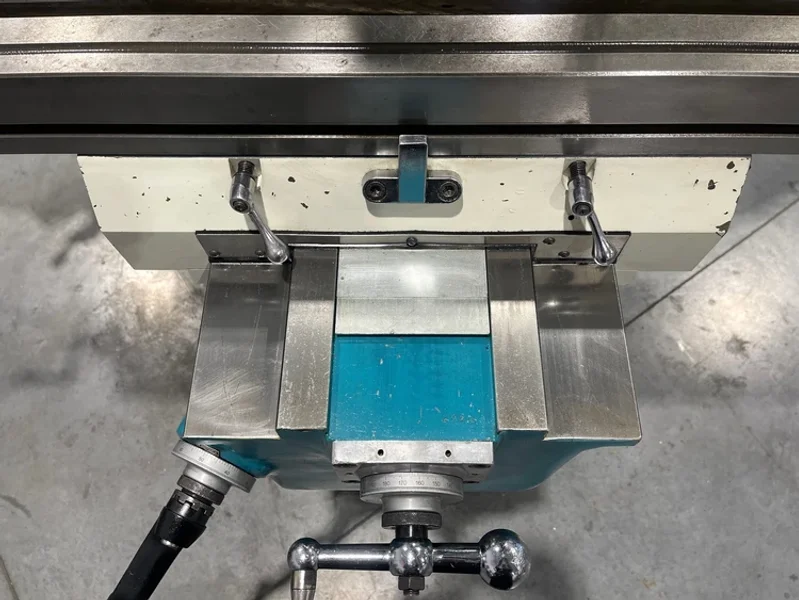

Saddle / table bearing length- 19.88”
Ram / turret bearing length- 17.51”
Ram length- 32.75”

Meehanite casting
Hardened & Ground X,Y & Z ways
X & Y ways coated with Turcite
Hardened & ground table
Hardened & ground spindle
Chromed & ground quill
Chromed X,Y & Z leadscrews
3 H.P. Motor 230 / 460 volt
Machine is wired 460 volt
