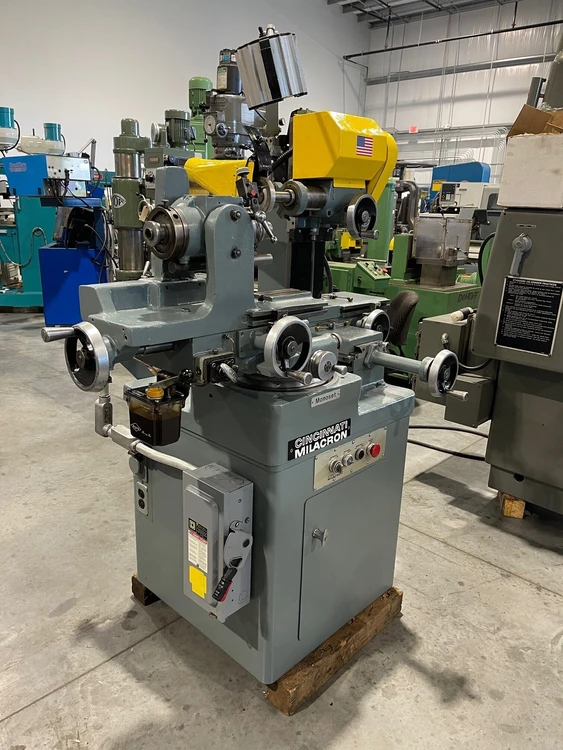

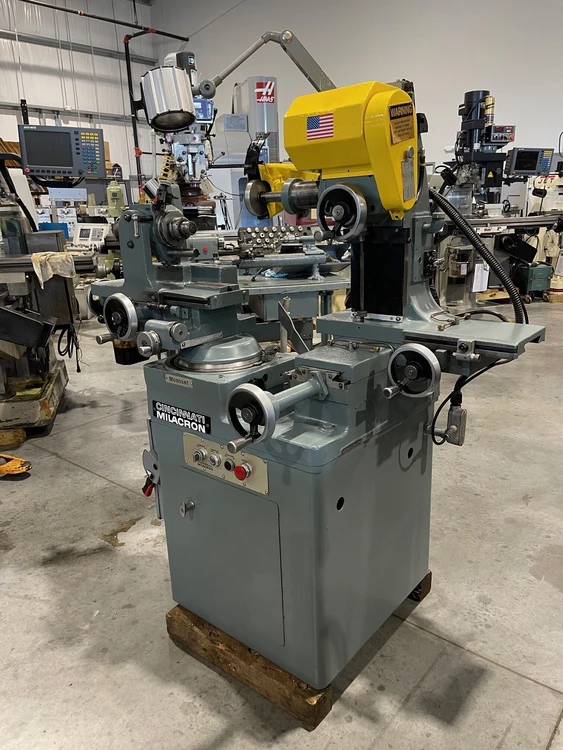

CINCINNATI MILACRON Monoset Tool & Cutter Grinder 1978’ #7056

CINCINNATI MILACRON Monoset Tool & Cutter Grinder 1978’ #7056

Name: CINCINNATI MILACRON Monoset Tool & Cutter Grinder 1978’ #7056
Brand: ECLIPSE
SKU: 7056
Availability: PreOrder

Brand

ECLIPSE

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Tool & Cutter Grinders

Manufacturer:

CINCINNATI MILACRON

Model:

MONOSET

Year:

1978

Stock #:

7056

Status:

For Sale

Description

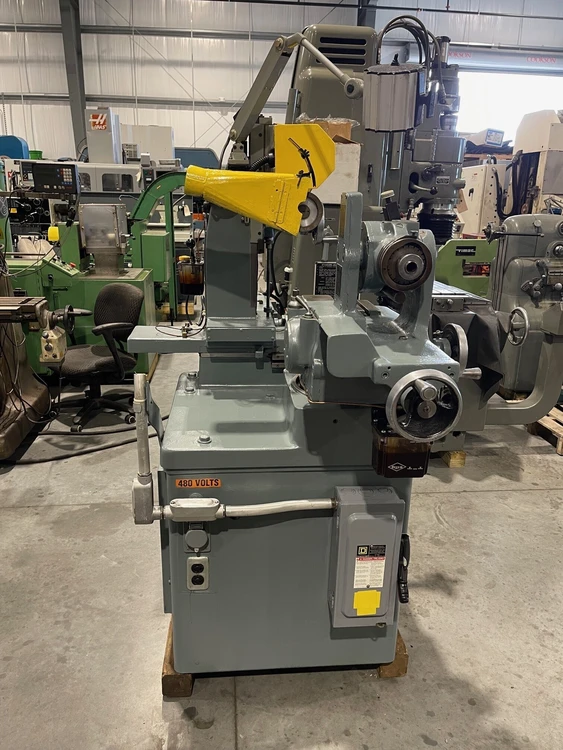

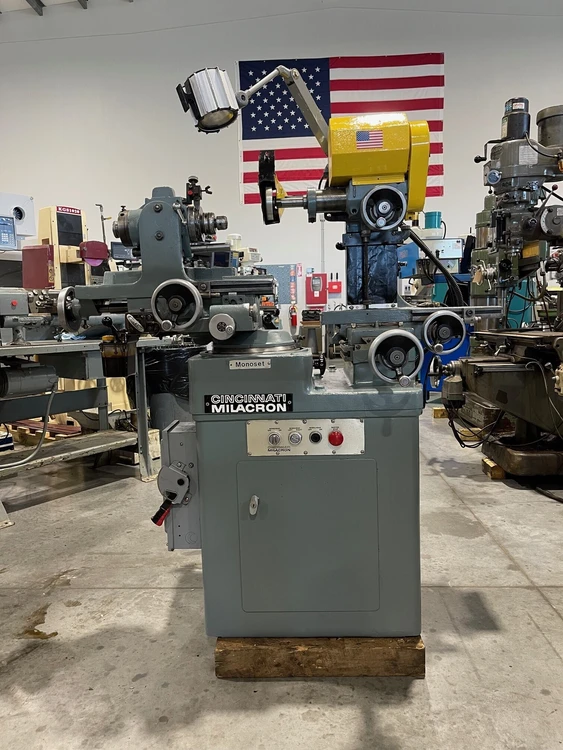

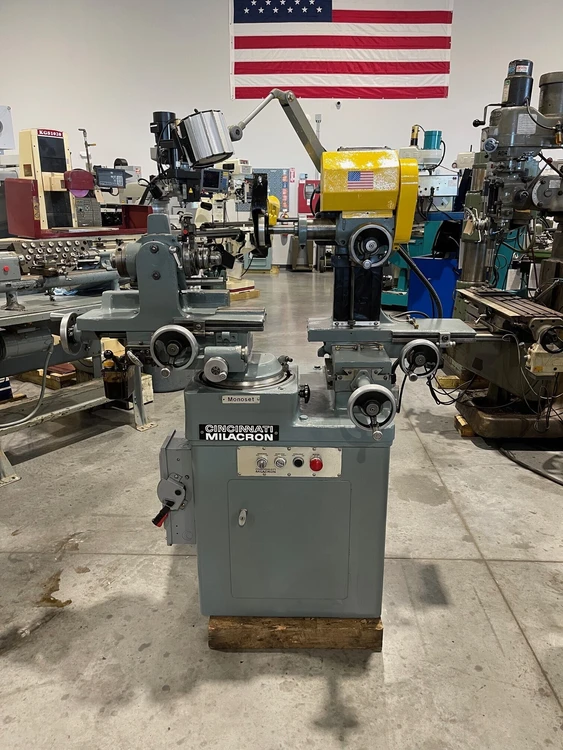

CINCINNATI MILACRON Monoset Tool & Cutter Grinder 1978’

CINCINNATI MILACRON Monoset Tool & Cutter Grinder 1978’
Reference #7056

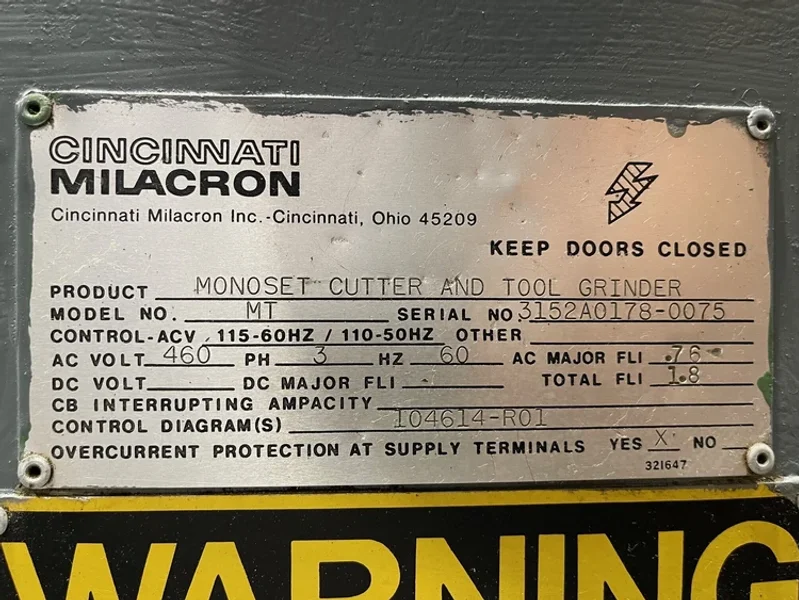

Model # MT Monoset
Serial # 3152A0178-0075
Year of manufacture - 1978’
Capacity:
Workhead swing over main slide, maximum diameter- 12”
Maximum/Minimum workhead collet hole diameter- 1-1/4"/ 0.12"
Maximum grinding wheel diameter- 4”
Maximum length of work between spindle and tailstock center- 6”
Range:
Workhead slide travel:
Longitudinal- 5-3/4”
cross, offset slide, total travel- 5-1/4”
front of center- 3”
rear of center- 2-1/4”
Workhead spindle rotation- 360°
Workhead angular adjustments:

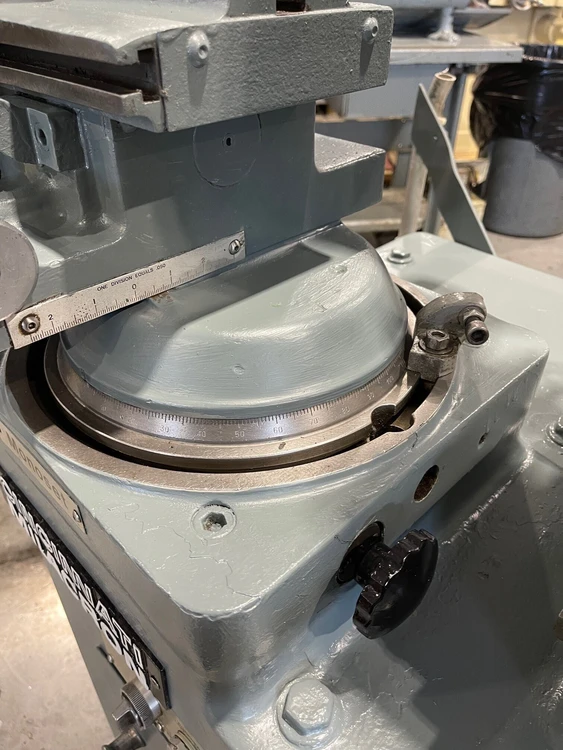

maximum turntable swivel- 235°
above and below center- 40°
Wheelhead slide travel:
Longitudinal- 6”
Cross- 7-1/2”
Wheelhead, vertical movement:
above center- 4.5”
below center- 5”
Speeds:
(3) Wheelhead spindle speeds- 4000, 5729, 8000 R.P.M.

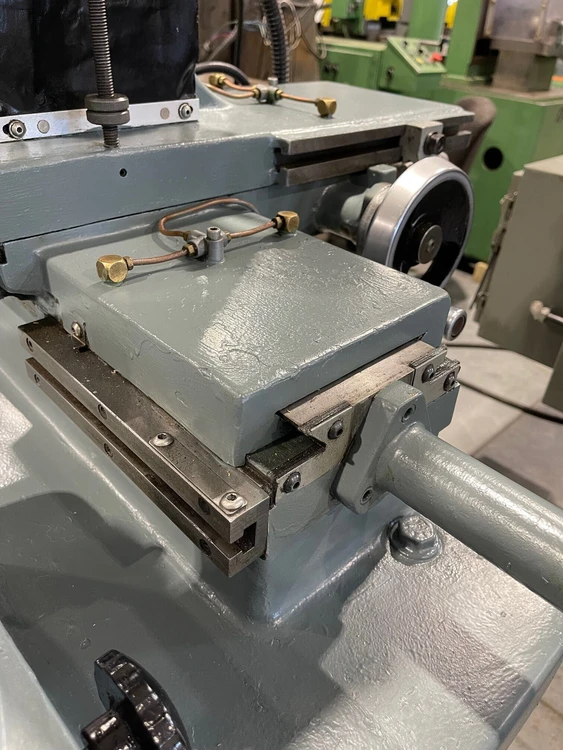

Hard chrome ways on three slides
Wheel guard
Splatter shield
BIJUR one-shot lubrication system
Work light
1/2 H.P. 3/60/460 volt wheelhead drive motor and electrical controls
Machine is wired for 460 volt operation.
Machine weight- 1500 Lbs.
Machine dimensions- 48” x 52” x 64” H
Machine location- F.O.B. Sarasota, Florida
