SWEED PANEL TURNER SYSTEM W/ INFEED TRANSFER AND OUTFEED
Brand
Category
Model
Not specified
Stock #
116560
Year
Not specified
Condition
Used
Location
Not specified
|

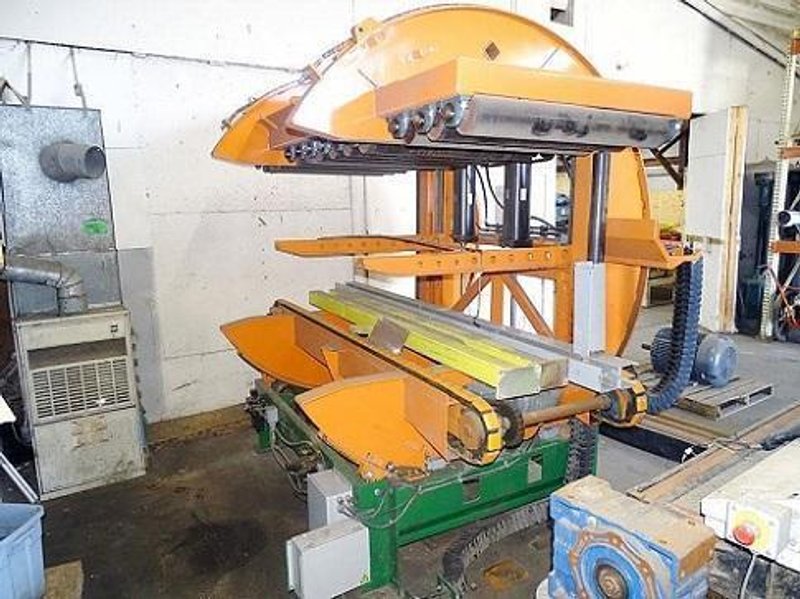

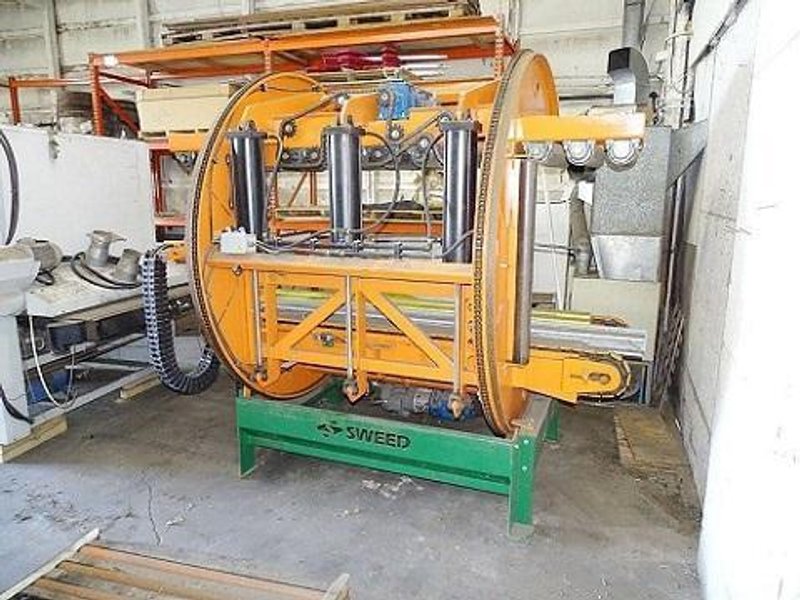

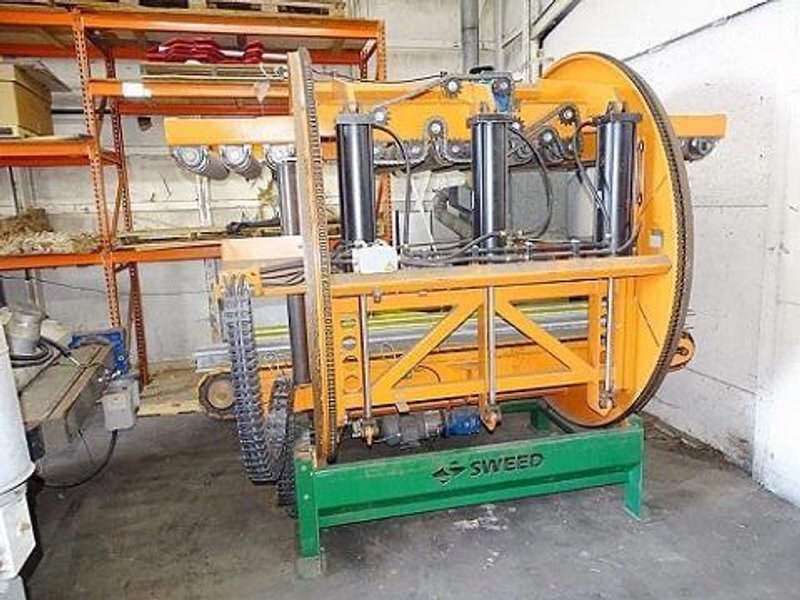

SWEED PANEL TURNER SYSTEM W/ INFEED TRANSFER AND OUTFEED
C-DESIGN WITH HYDRAULIC MOVEMENT - 6-1/2 HP, 230/460V, 3 PHASE

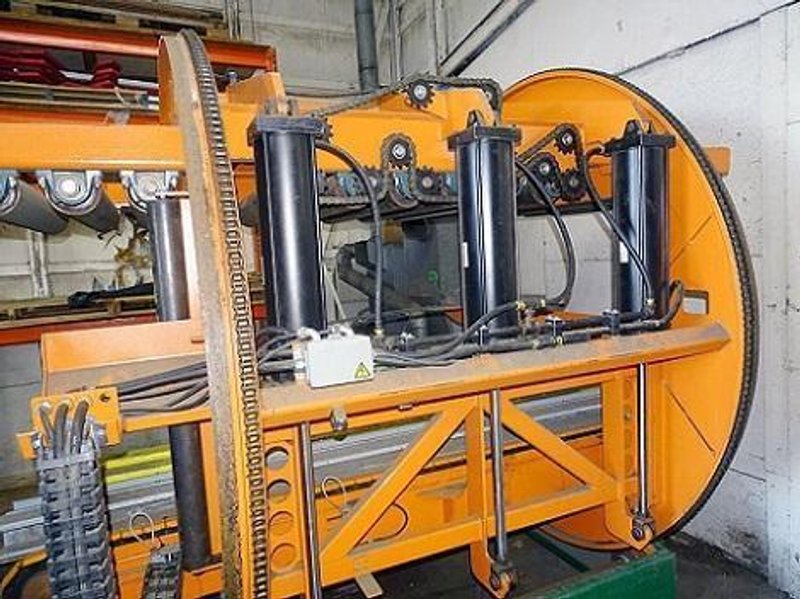

(3) CLAMPING CYLINDERS, DRIVEN FEED ROLLERS

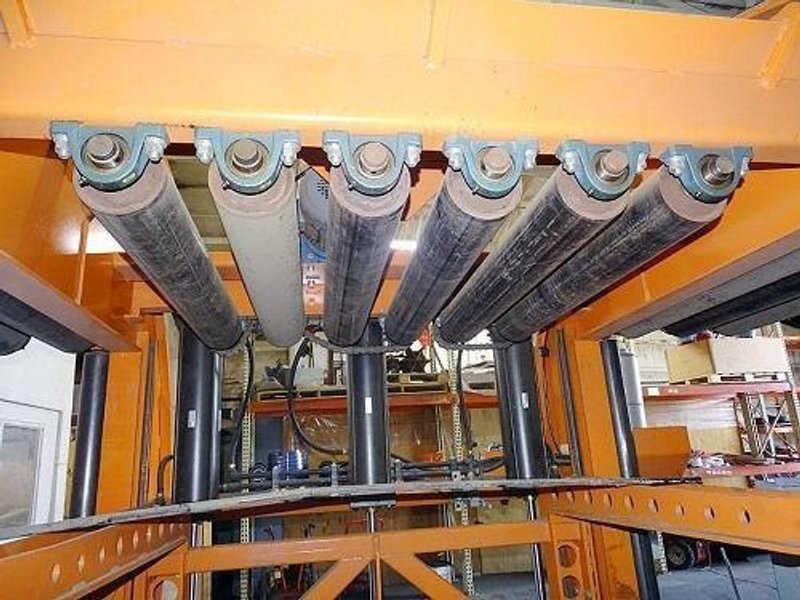

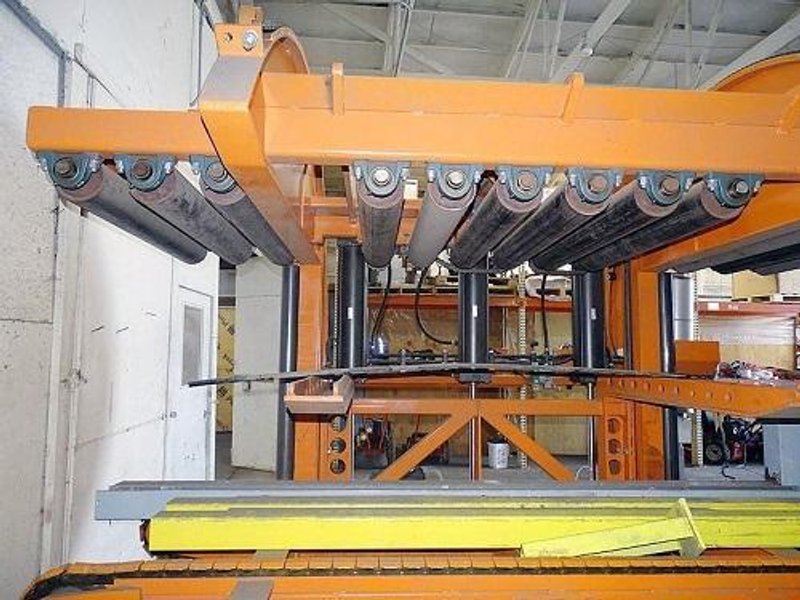

UPPER FEED ROLLERS: 5 HP, 230/460V, 3 PHASE
LOWER FLAT PADDED FEED CHAINS: APPROXIMATELY 3 HP, 230/460V, 3 PHASE
INFEED TRANSFER HAS (3) SECTIONS
(1) 200" X 37" WIDE, (1) 185" X 37" WIDE AND (1) 176" X 37" WIDE
DRIVE MOTOR: 7-1/2 HP, 230/460V, 3 PHASE
OUTFEED: (2) SECTIONS
(1) 128" LONG WITH SCISSOR LIFT IN BASE (DRIVEN CHAINS)
(1) 126" LONG (CASE ROLLERS) WITH FORK POCKET/LIFT SPOTS
DRIVE MOTORS: 3 HP, 230/460V, 3 PHASE
FREE-STANDING ELECTRICAL AND CONTROL CABINET
ALLEN-BRADLEY PANEL VIEW PLUS TOUCHSCREEN CONTROLLER
PASSLINE HEIGHT: 42"
|
