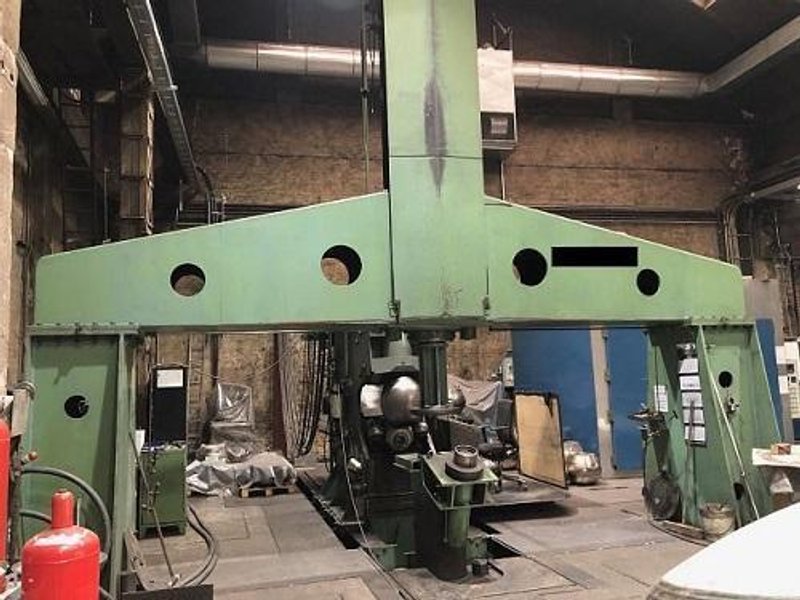

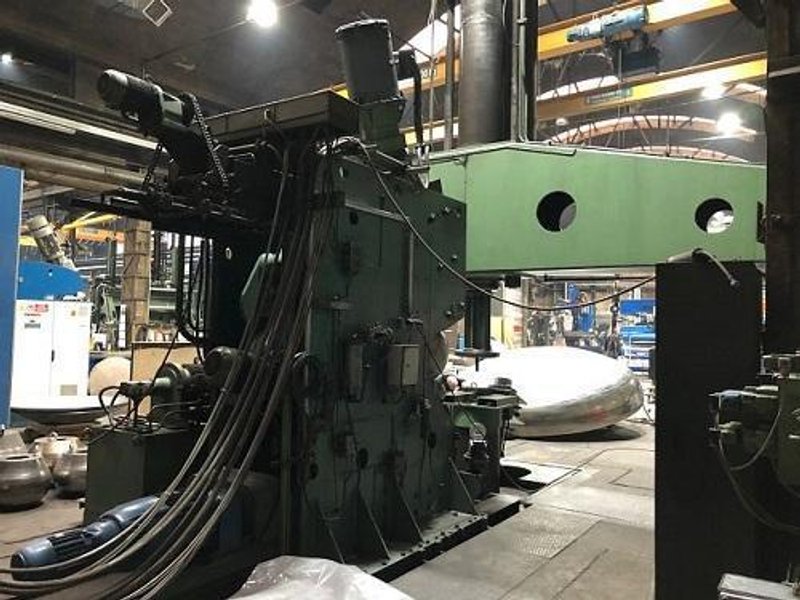

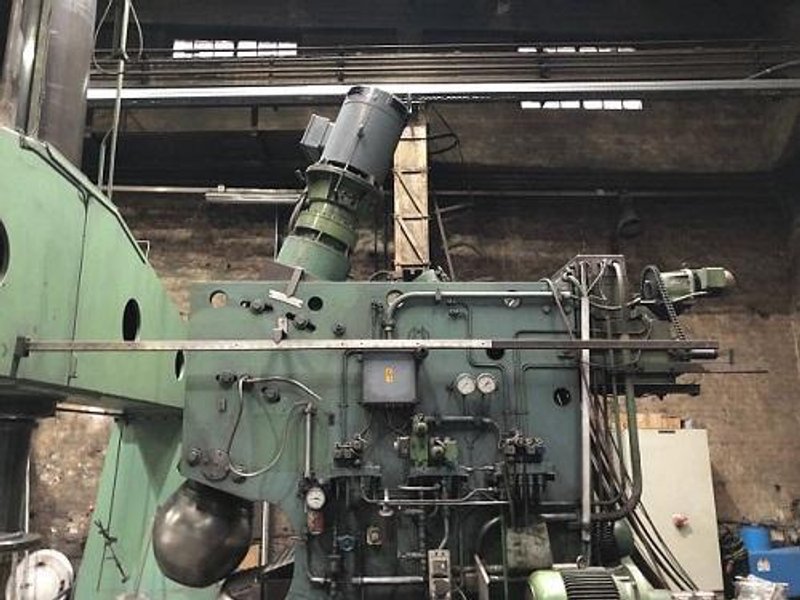

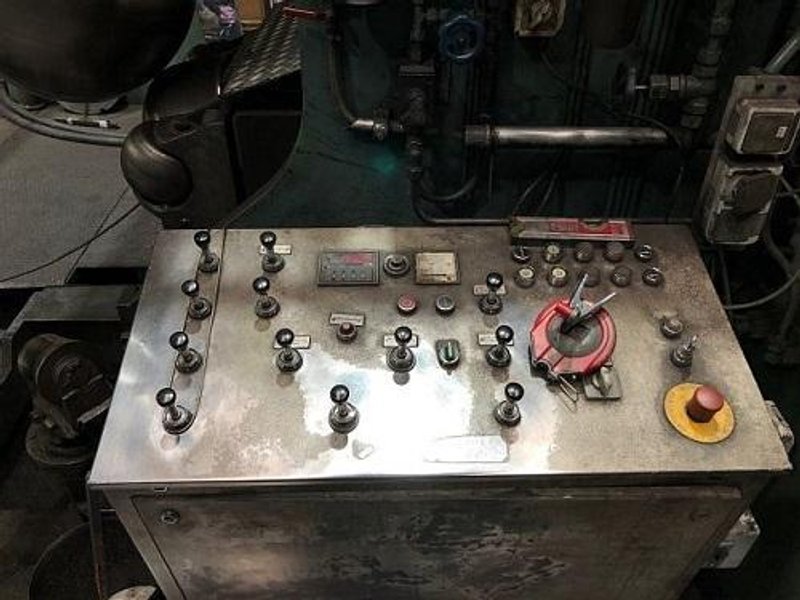

SMT MDL# MV20 BL5022 FLANGING MACHINE

SMT MDL# MV20 BL5022 FLANGING MACHINE

1983

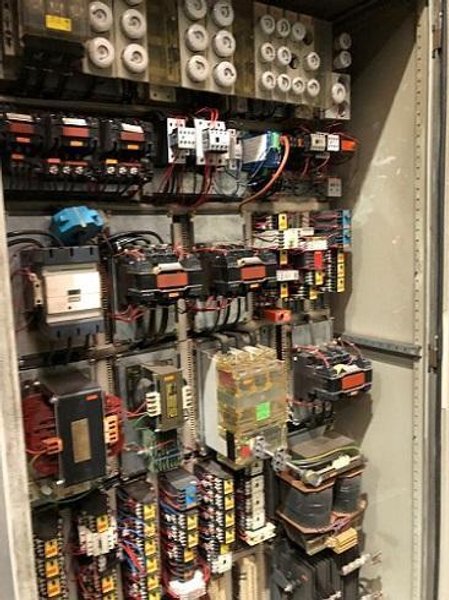

ELECTRICAL SPECIFICATIONS

TOTAL POWER CONSUMPTION (73.755 HP)     55 KW

DIMENSIONS / WEIGHTS

TOTAL WEIGHT APPROX.    (154350 LB)  70000 KG

MAXIMUM WALL THICKNESSES:

MATERIAL UP TO APPROX. 450 N/MM² MAX. 22MM (STEEL)

MATERIAL UP TO APPROX. 750 N/MM² MAX. 17.5MM (STAINLESS STEEL)

MAXIMUM DIAMETER :

DISHED END APPROX. 5000 MM

BASKET ARCH BOTTOM APPROX. 3200 MM

MINIMUM DIAMETER :

DISHED END APPROX. 1200 MM

CORNER RADIUS :

RANGE 150 - 500 MM

LARGEST CORNER RADIUS 500 MM

CLEAR WIDTH CLAMPING BRACKET APPROX. 5800 MM

MAX. SHEET THICKNESS CLAMPING APPROX. 32 MM

ELECTRICAL POWER :

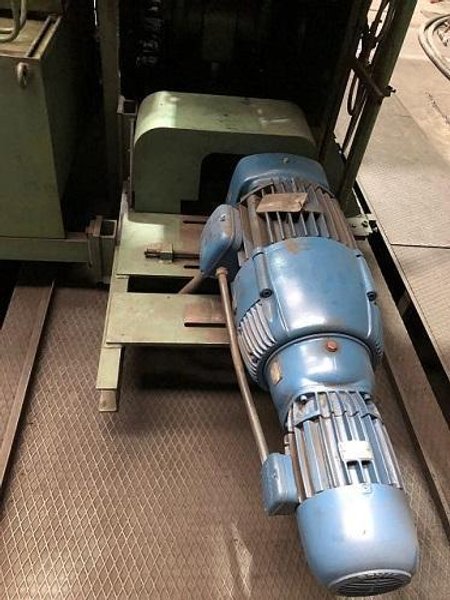

MAIN DRIVE APPROX. 55KW

SHIFTING DRIVE APPROX. 1,5/9 KW

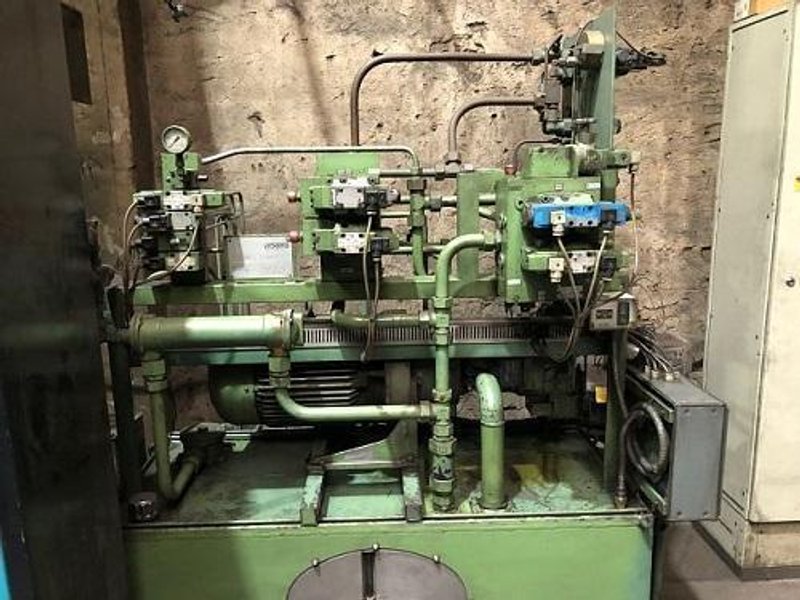

HYDRAULIC UNIT APPROX. 11 KW

ADDITIONAL PRESSURE ROLLER DRIVE APPROX. 7,5 KW

ACCESSORIES :

PUSH ROLLERS ADDITIONAL DRIVE

2 LATERAL PRESSURE ROLLERS

FORM ROLLER CHANGE CONSOLE

CENTRAL LUBRICATION

CLAMPING DEVICE OL 5033

INCLUDED :

TOOLS FOR FLANGING :

1 PIECE STANDARD FLANGING ROLLER

4 PIECES CAST IRON FLANGING ROLLERS

R85, R125, R150, R175

7 FLANGING ROLLERS MADE OF 1.2379

R225, R250, R300, R350, R400, R450, R500

NEW SPARE PARTS :

NEW CLAMPING PLATE BEARING

NEW THREADED SPINDLE WITH NUT

NEW FORM ROLLER SHAFT
