GAI 5031FM-BIER 2015 Isobaric Rotary Monobloc – 16-16-3 Rinser/Filler/Capper for Glass Bottles

Equipment Overview

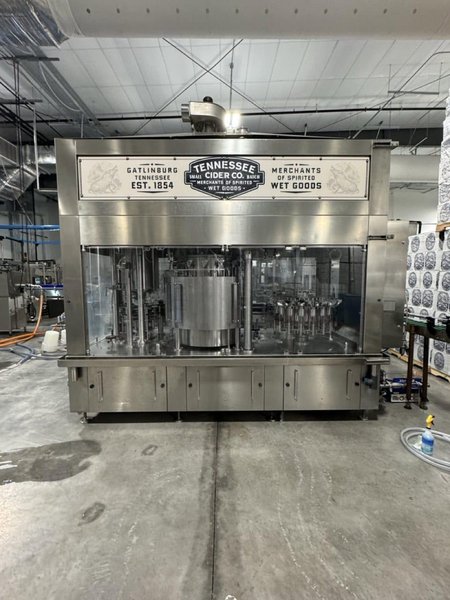

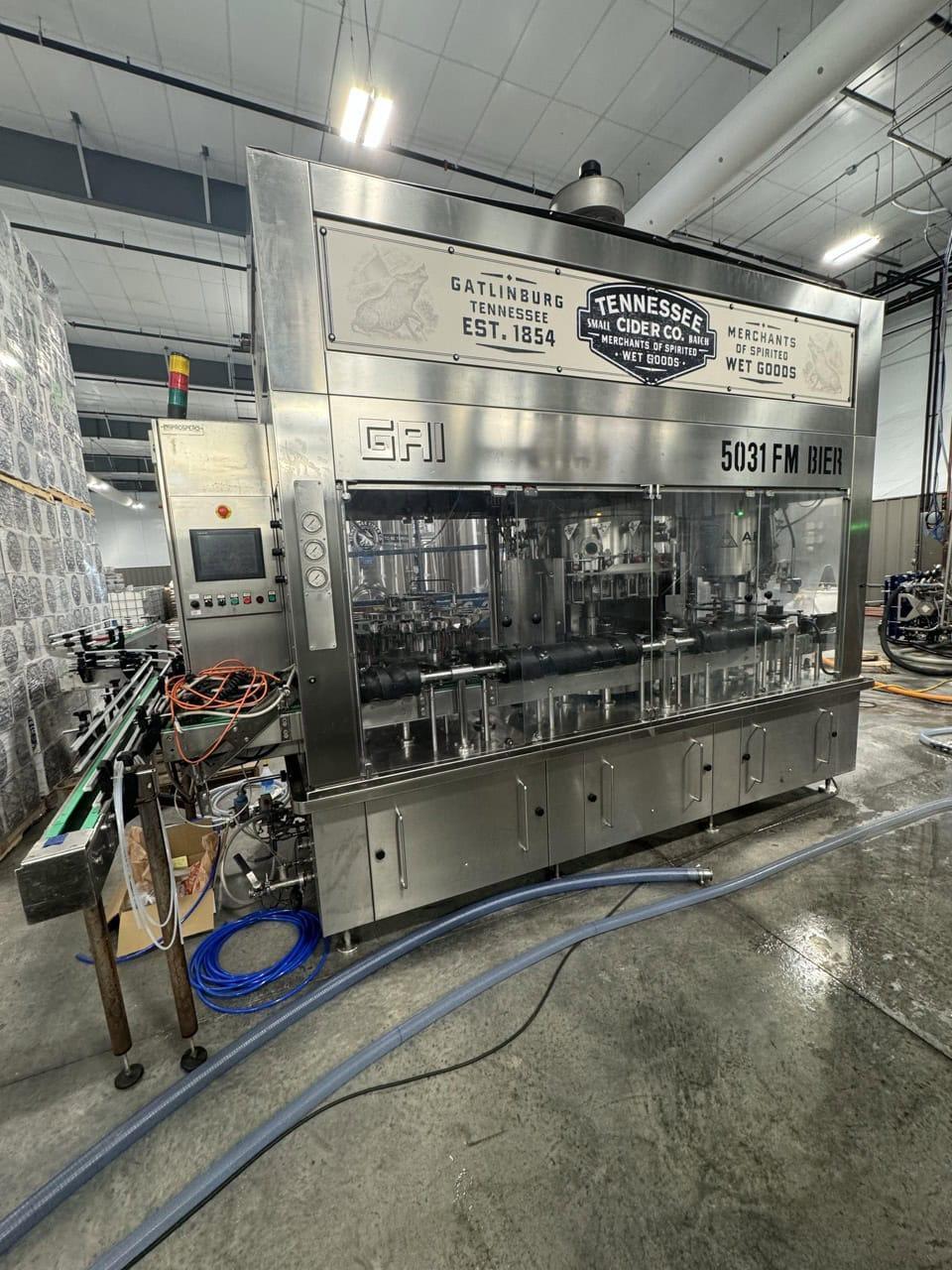

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The GAI 5031FM-BIER is a high-performance mechanical monobloc designed for bottling carbonated beverages into glass containers. Featuring an integrated rotary rinser, isobaric counterpressure filling carousel, and a 3-head AROL crowner, it delivers hygienic filling with low O₂ pickup and smooth rotary motion. Built entirely from AISI 304 stainless steel, it is optimized for clean-in-place (CIP), sanitation, and reliable continuous operation.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications

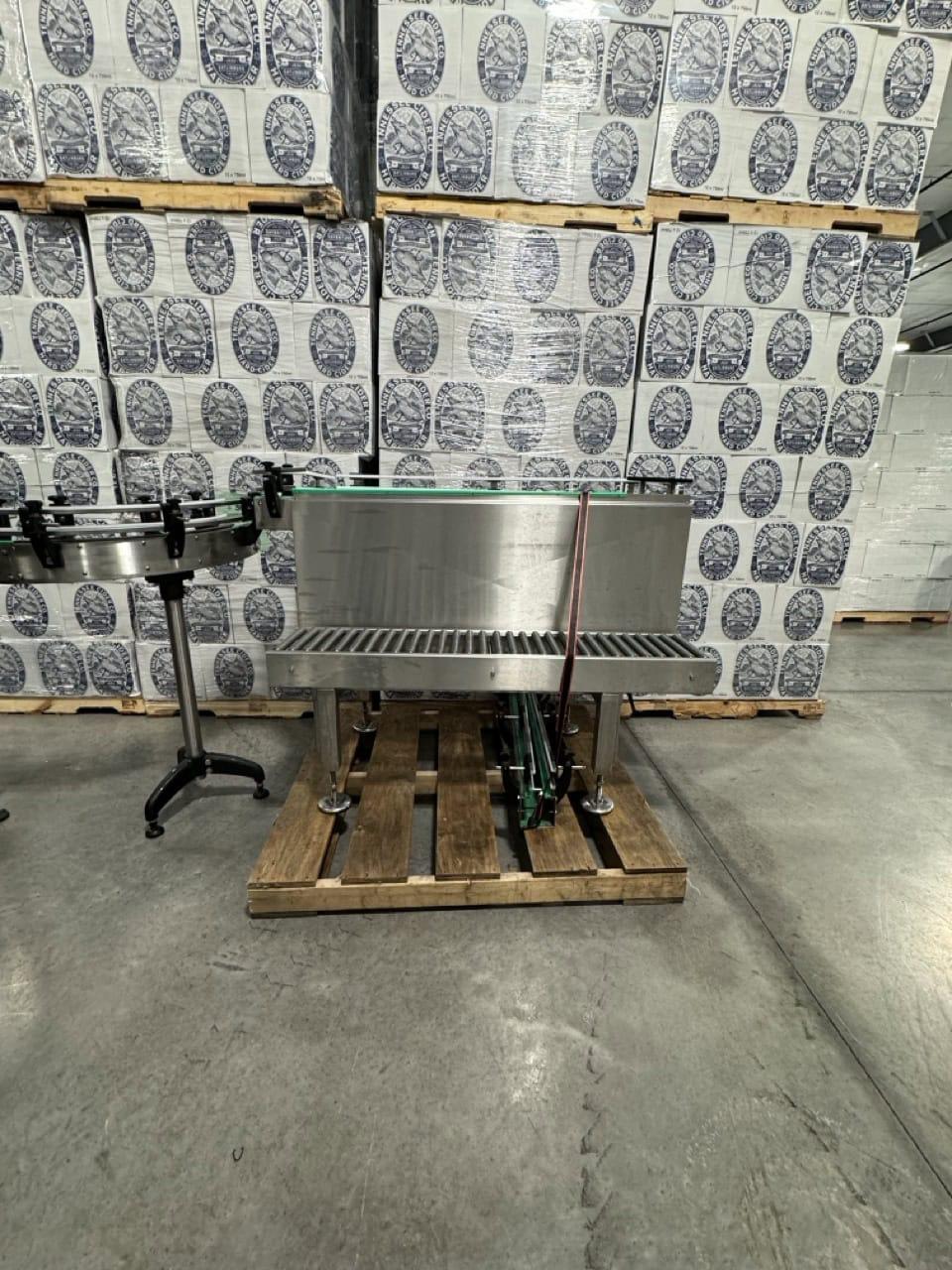

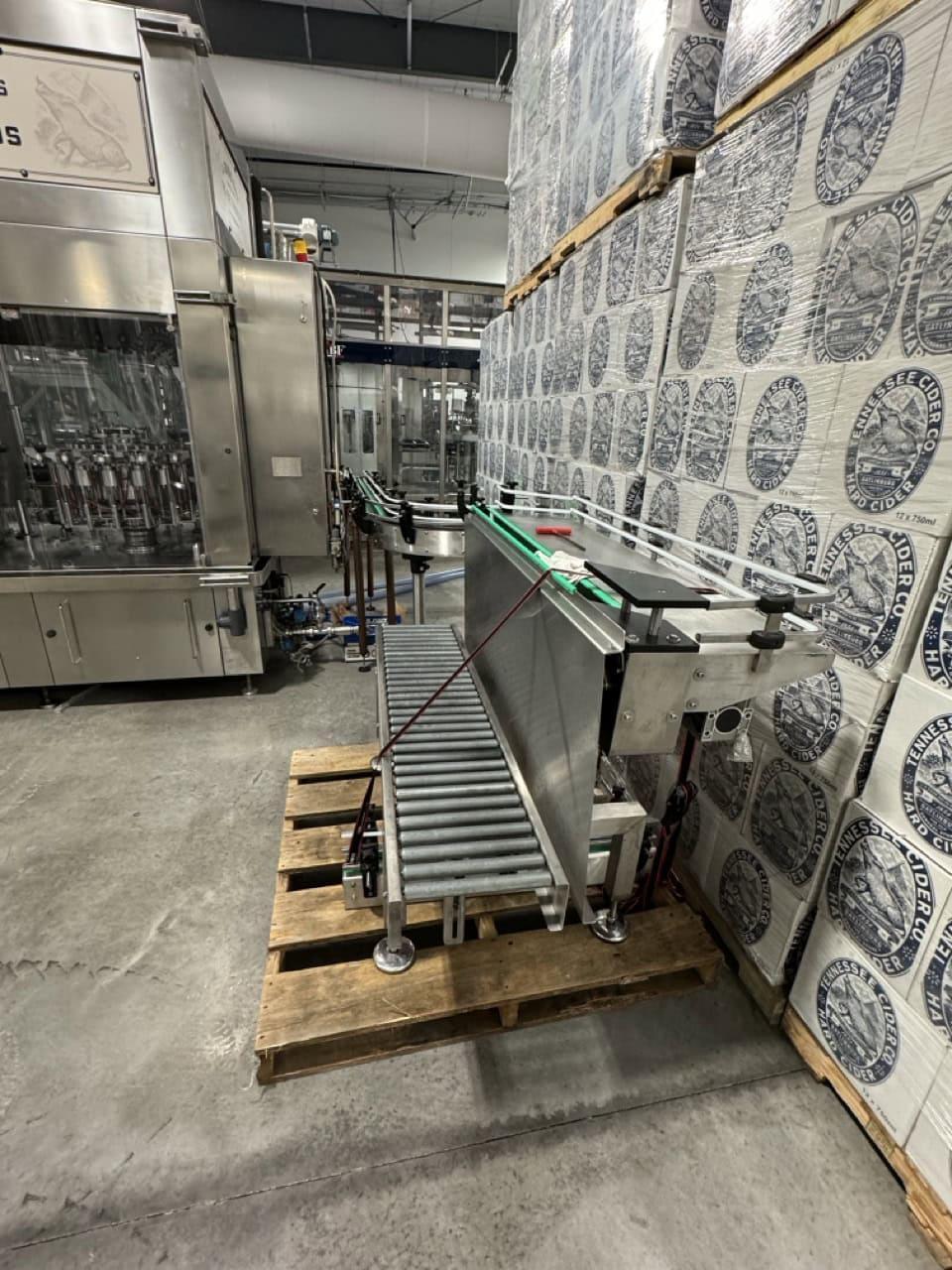

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,General Specifications -Monobloc Style: Rotary mechanical monobloc (FM-Series) -Filling Type: Counterpressure (isobaric) -Capping: Rotary AROL crown capper, 3 heads -Rated Output: ~1,700 L/hour (approx. 5,000 BPH) -Bottle Types: Glass -Bottle Sizes: 330ml to 750ml -Construction: Full stainless steel (AISI 304) -Enclosure: Hinged glass safety doors, CIP drain -Change Parts: Rotary star wheels and worm screws -Filler Valve Type: Mechanical piston-controlled isobaric valves -Pressure Class: Nominal operating pressure 2–6 bar, max 8 bar -Conveyor Integration: Included entry/exit conveyor + rollers

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Utilities Required -Air: 6–8 bar -CO₂ for counterpressure purge -CIP connections

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rinsing Module (Rotary) -16 rinse stations -Clamp-style bottle grippers -Internal and/or external rinsing nozzles -Adjustable rinse time -Programmable rinse logic (via panel)

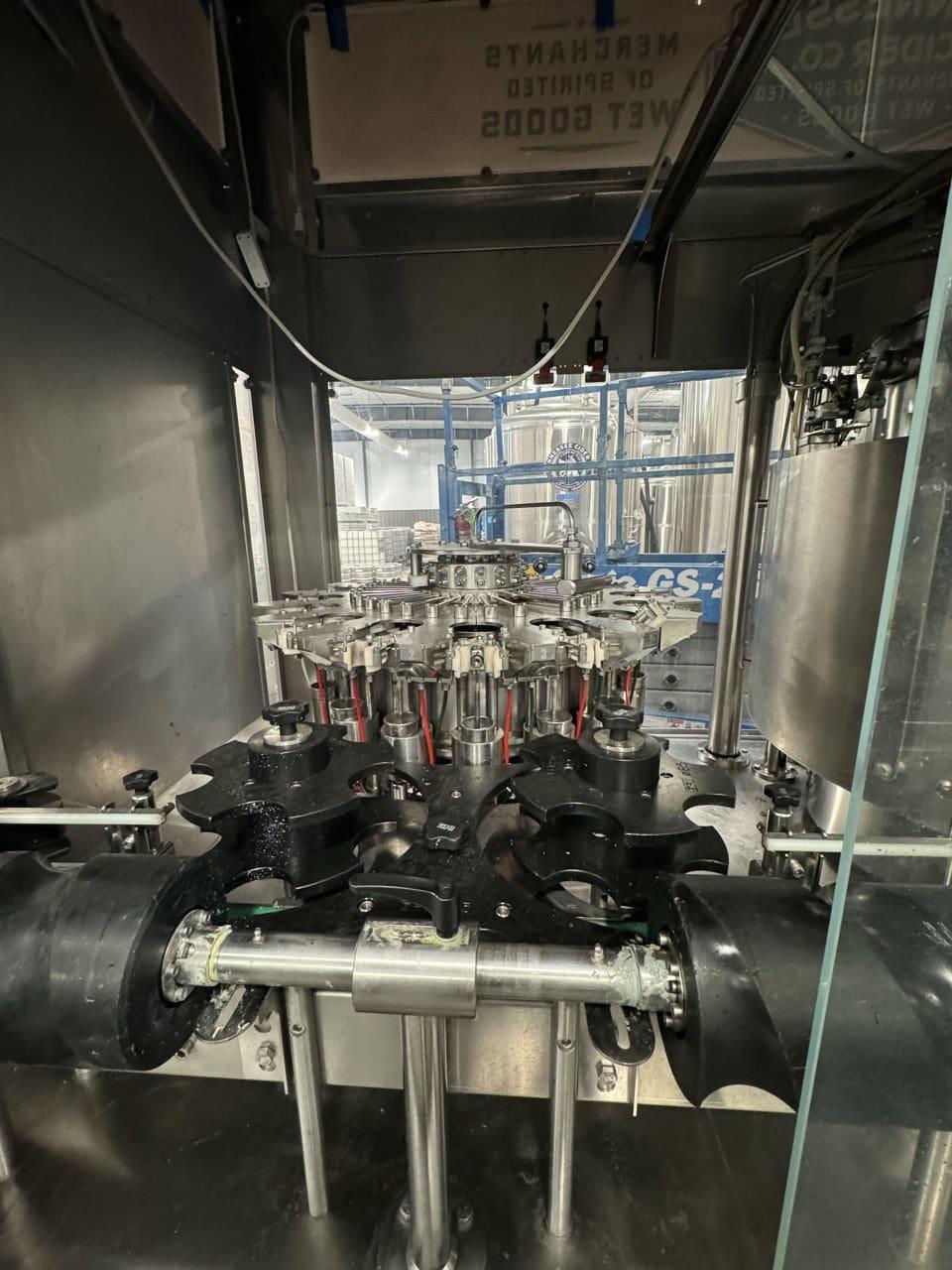

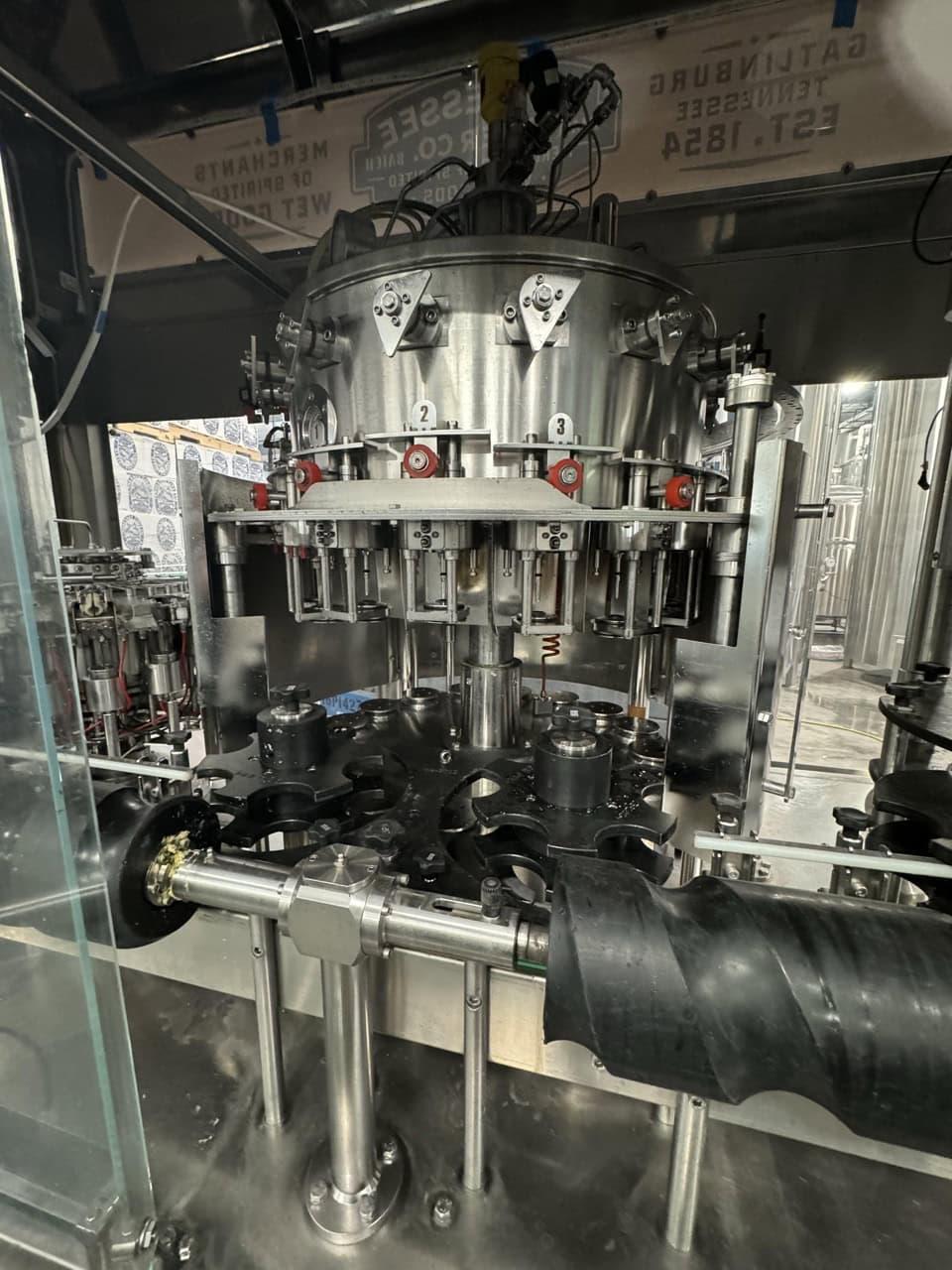

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Filling Module (Isobaric Filler) -16 mechanical isobaric filler valves -CO₂ pre-evacuation capability -Bottle elevation by pedestal -Pump-fed product tank -Electro-pneumatic probe level sensor -Return gas recovery system -Single or dual-stage fill profile

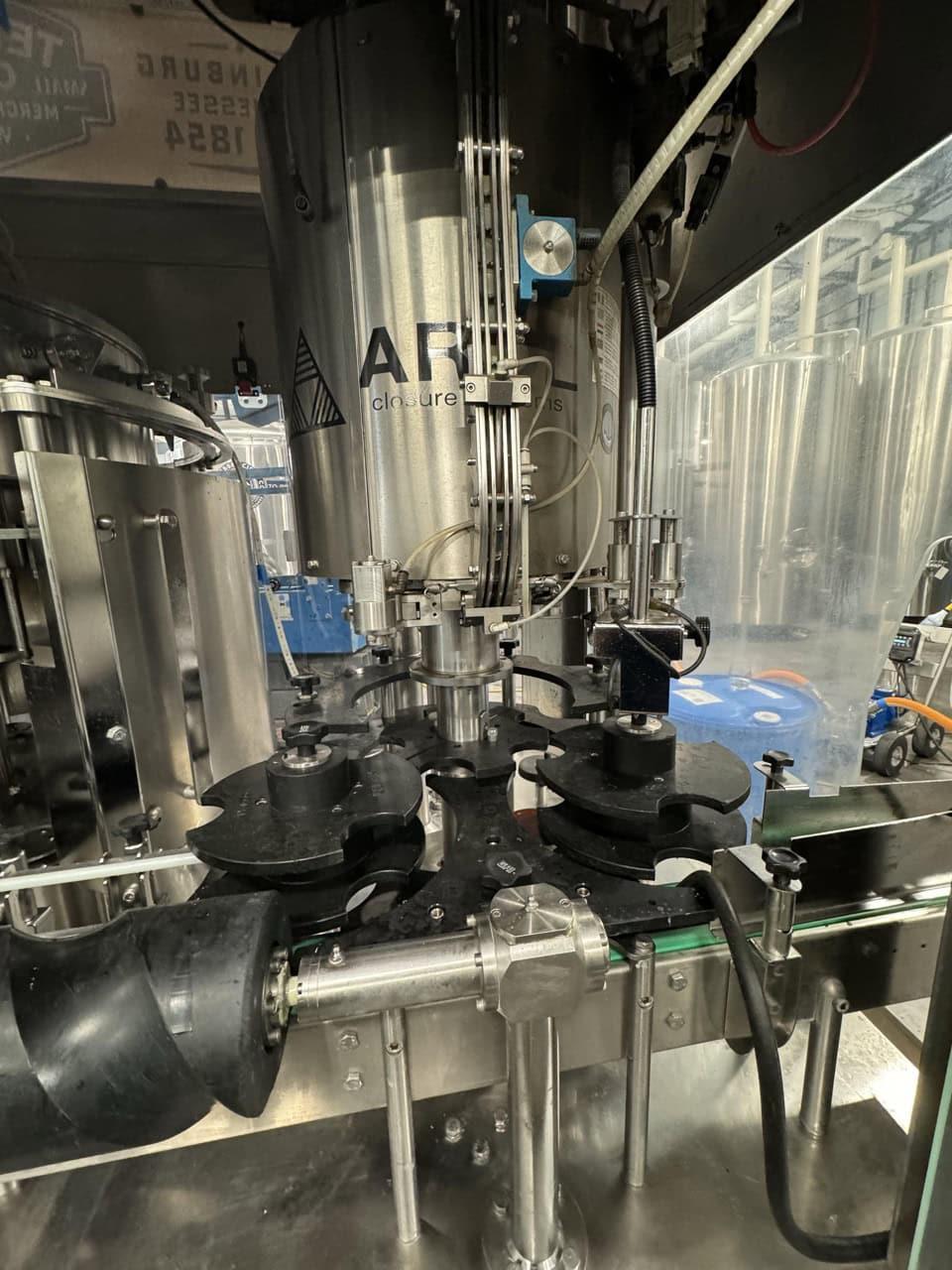

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Capping Module -AROL 3-head crowner -Rotary feed chute for crown caps -Magnetically clutched head for consistent torque -Stainless cap chute and vibrator drive -Pneumatic assist for crowner descent

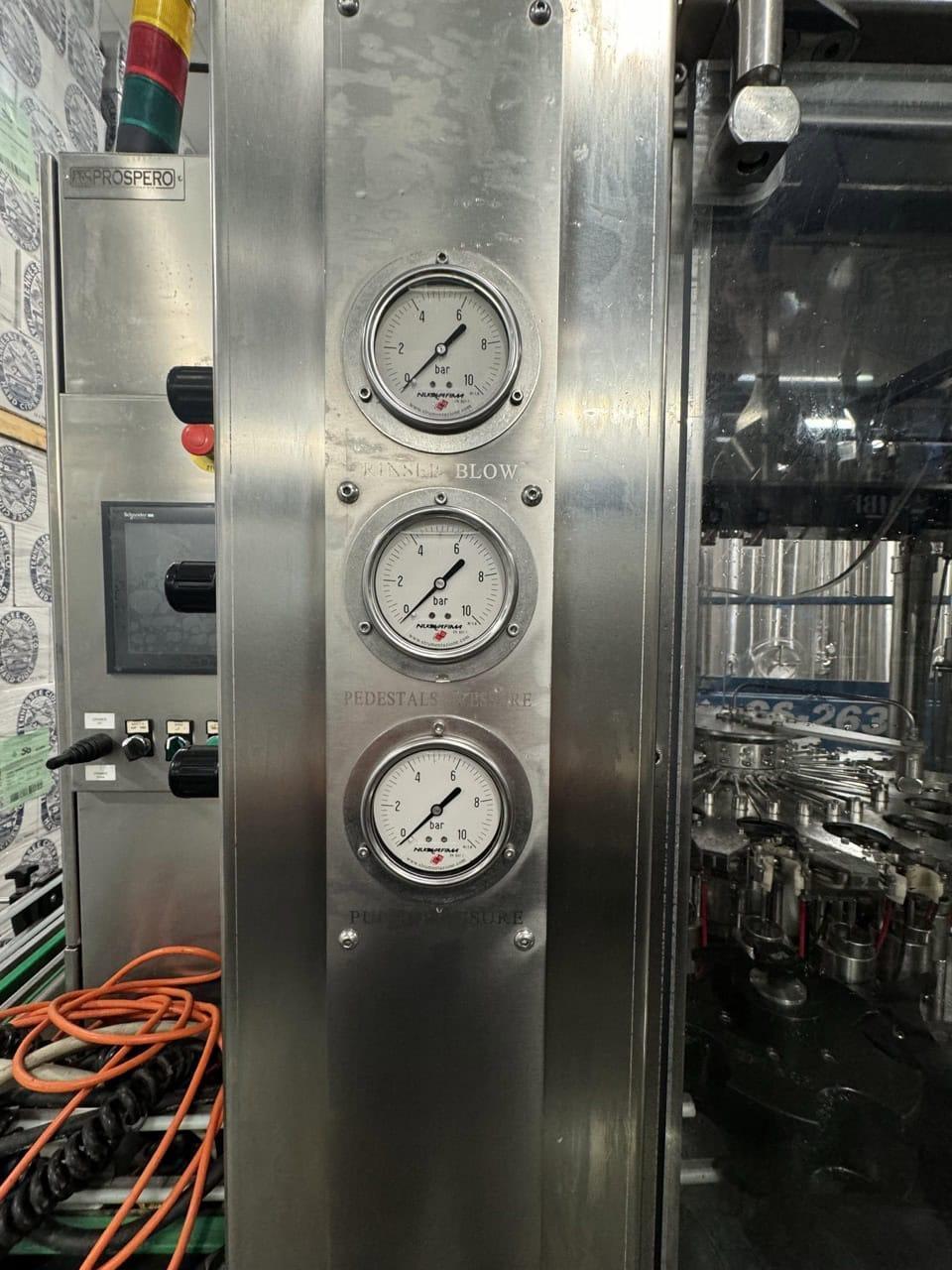

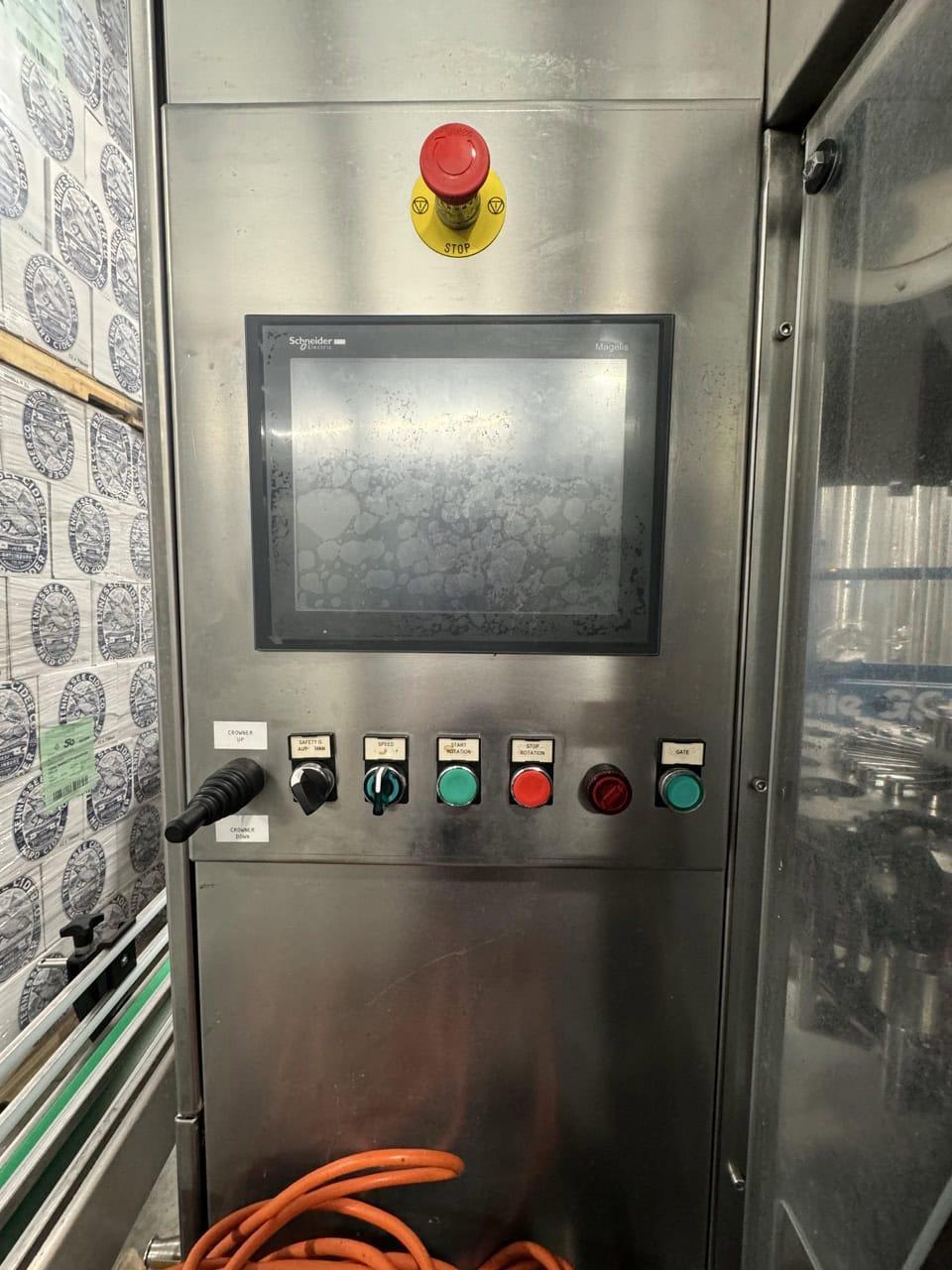

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Control Interface -Panel: Schneider Electric Magelis HMI -Manual Buttons: -Conveyor Start -Stop -Start Cycle -Manual/Auto -Emergency Stop -Gate Control -Pressure Gauges (stainless analog): -Rinse Blow Pressure -Pedestal Cylinder Pressure -Pump Tank Pressure
