Emco Hyperturn 665 MC Plus Multi-Axis CNC Lathe, 2007 – Fanuc Series 18i-TB Control

Workspace Circulation Diameter Over Bed 600 Mm Circulation Diameter Over Face Carriage 500 Mm Distance Between The Two Spindle Lugs 975 Mm Max. Turning Diameter 430 Mm Max. Part Length 744 Mm Max. Bar Diameter 65 (76.2) Mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Travel Range Travel X/X2 280/205 Mm Travel Z/Z2/Z3 900/750/750 Mm Travel Y 100 (+/–50) Mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Main Spindle Speed Range (Infinitely Adjustable) 0 – 5000 (4000) Rpm Torque Max. 250 Nm Spindle Connection Din 55026 A2-6 (A2-8) Spindle Diameter In Front Bearing 105 (130) Mm Spindle Bore (Without Tension Tube) Ø 73 (86) Mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Counter Spindle Speed Range (Infinitely Adjustable) 0 – 7000 Rpm Torque Max. 130 Nm Spindle Connection Din 55026 A2-6 Spindle Diameter In Front Bearing Ø 73 (86) Mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,C-Axes: 0.001° Rapid Traverse 1000 Rpm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Power Main Spindle (Ac Hollow Spindle Motor) 29 Kw Counter Spindle (Ac Hollow Spindle Motor) 22 Kw

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tool Turret Bottom 12 Tool Positions Mounting Shaft According To Vdi 40 (Din 69880) Turret Switching Time 0.2 Sec Speed Range 0 – 5000 (4500) Rpm Max. Torque 25 Nm Drive Power 6.7 Kw Driven Tools: 12 Milling Spindle

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,B-Powermill Swivel Range (Interpolable) 210° Indexing Holding Torque 3600/1300 Nm B-Axis Positioning 0.001° Number Of Tools 48 Tool Holder Capto C4 Torque Max. 40 Nm Drive Power 14.5 Kw Speed Range 0 – 10000 Rpm Tool Change Time (Tool – Tool) 1.3 Sec

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rapid Traverse Speed X/Z/Y/Z3 (Counter Spindle) 24/30/10/30 R4348693 M/Min Feed Force X/Z/Z3 (Counter Spindle) 5000/8000/9000 N Coolant System Container Volume 300 L Pump Capacity 2 X 2.2 Kw Power Consumption Connected Load 46 Kva Compressed Air Connection 6 Bar

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions Height 2300 Mm Footprint (Without Chip Conveyor) W X D 3400 X 2550 Mm Total Weight Approx. 9500 Kg Safety Acc. To Ce

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Other Equipment Features

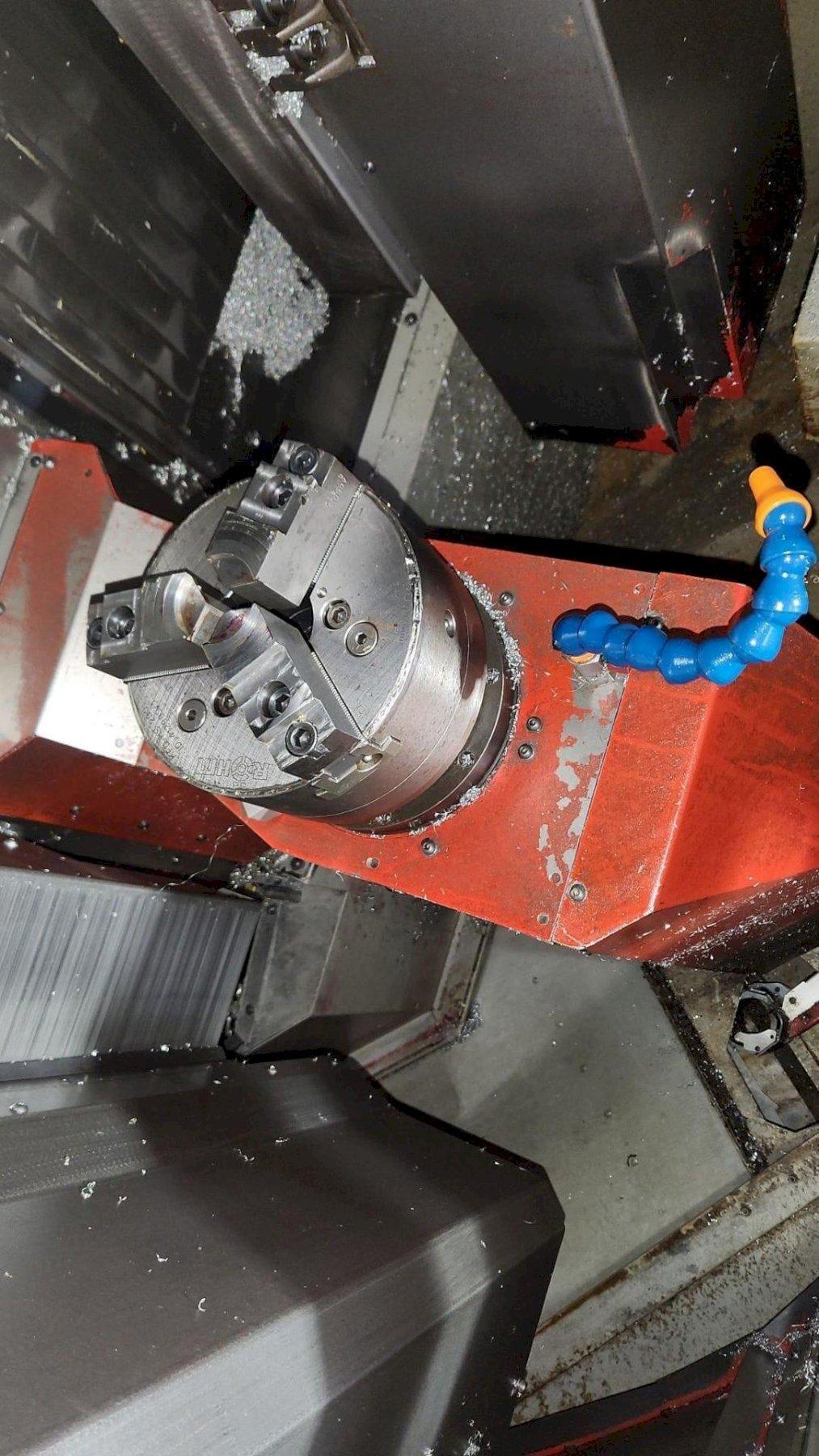

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Bar Loading Magazine Iemca Vip 80 E Chip Conveyors Made By Knoll With High-Pressure Pumps Various Hydraulic Chucks (3-Jaws; Collet Chuck) Various Tool Holders Part Unloading Counter Spindle With Conveyor Belt Spindle Oil Cooler Touch Setter, Tool Preset Work Area Flushing Lower Turret Is Damaged And Would Need Repair
