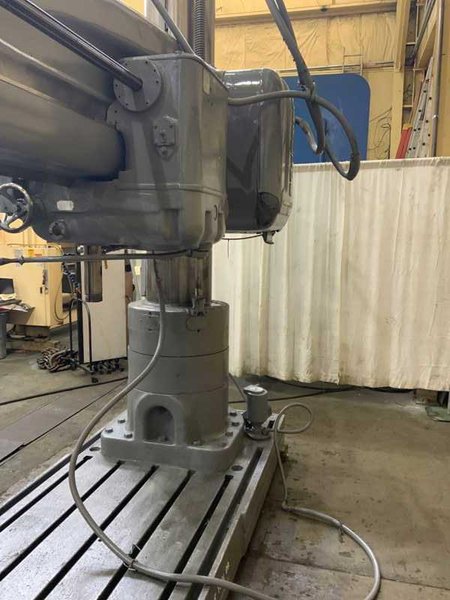

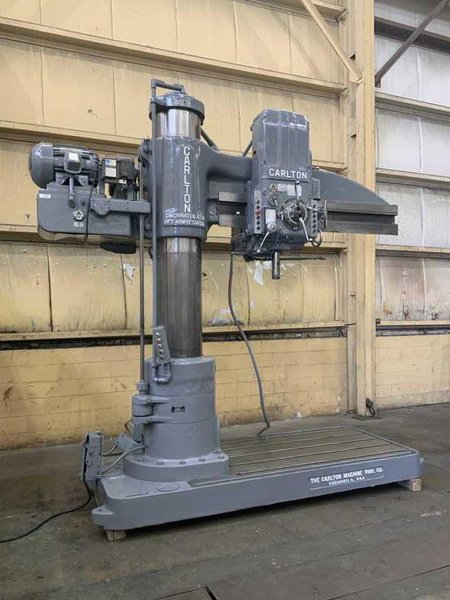

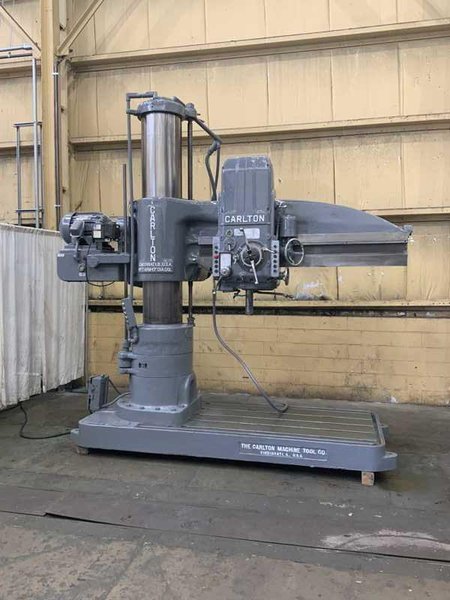

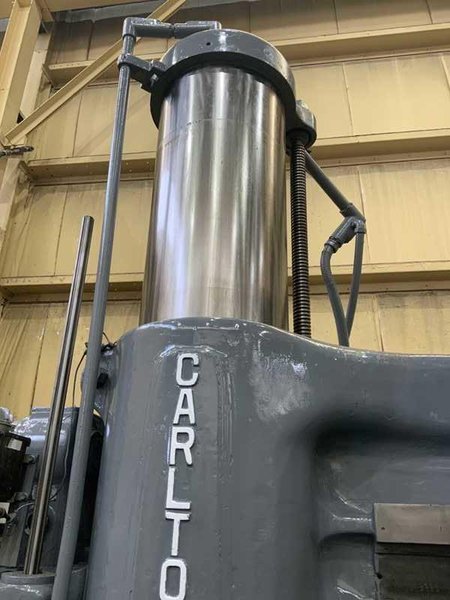

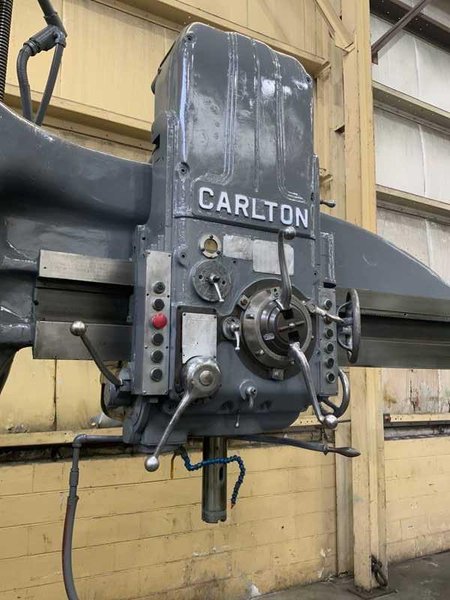

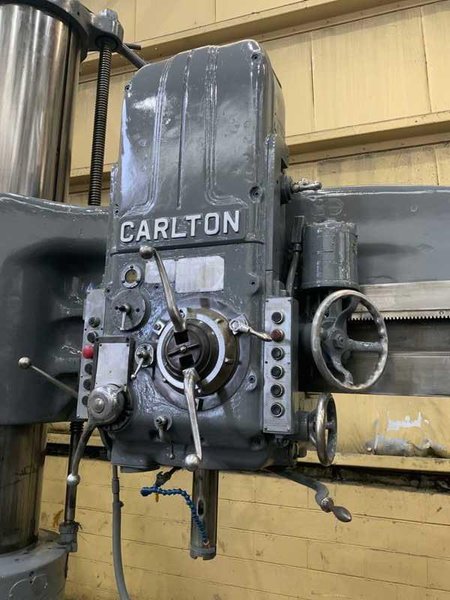

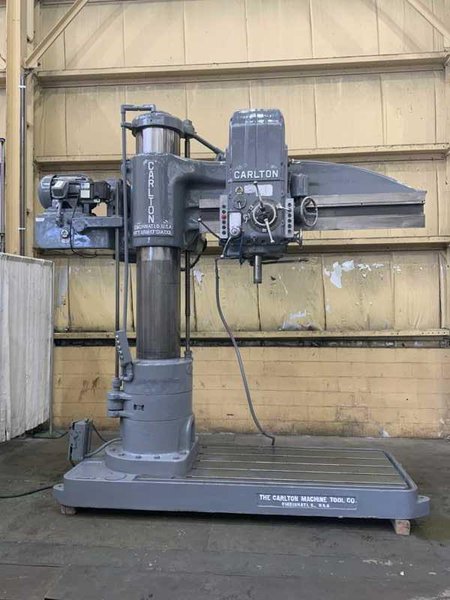

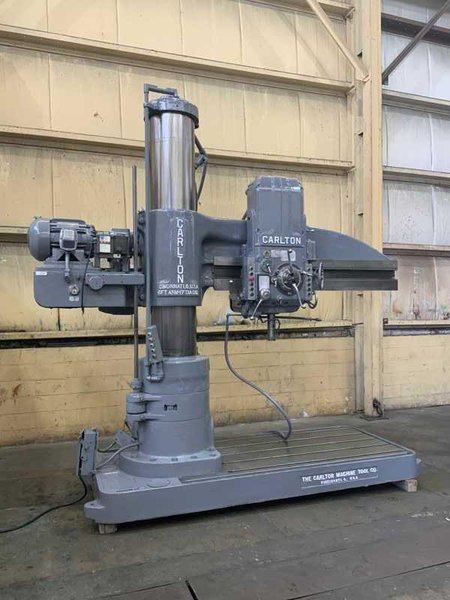

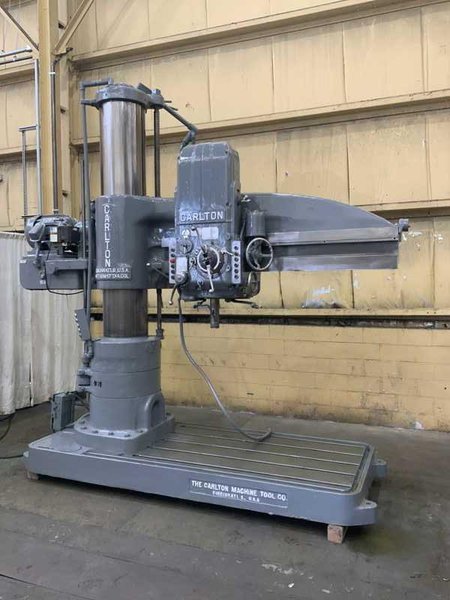

6' X 17" CARLTON MODEL #3-A RADIAL ARM DRILL: STOCK #22070
Brand
Category
Type
Model
3-A
Stock #
22070
Year
Not specified
Condition
Good
Location
Ohio
|
SERIAL ....................... #3A3993
MODEL ........................ 3A

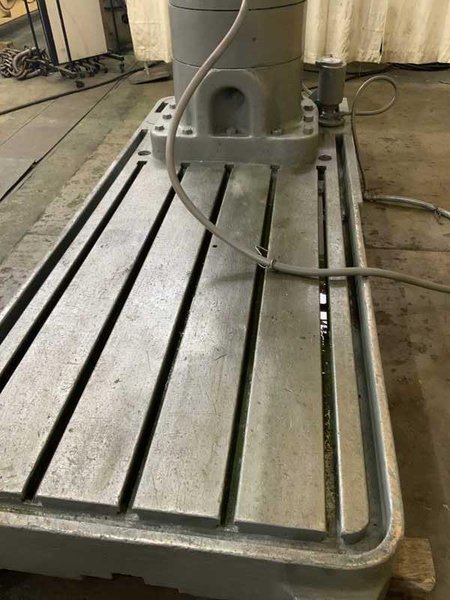

AREA OF BASE ................. 77" X 48"
SPINDLE SPEEDS ............... (36) 15 TO 1500 RPM
FEEDS ........................ (18) .004 TO .125 IPR
TAP LEADS .................... 8, 11-1/2, 14, 18 TPI
DIAMETER OF SPINDLE .......... 4"
TAPER IN SPINDLE ............. #5 MT
SPINDLE TRAVEL ............... 18"
DISTANCE SPINDLE TO COLUMN ... 13-1/4" MINIMUM, 72" MAXIMUM
DISTANCE SPINDLE TO BASE ..... 14-1/2" MINIMUM, 72" MAXIMUM
TRAVEL OF HEAD ON ARM ........ 58-3/4"
TRAVEL OF ARM ON COLUMN ...... 37-1/2"
POWER CLAMPING ............... YES
POWER ARM ELEVATION .......... YES
POWER HEAD TRAVERSE .......... YES
COOLANT ...................... YES
SPINDLE DRIVE MOTOR .......... 15 HORSEPOWER |
