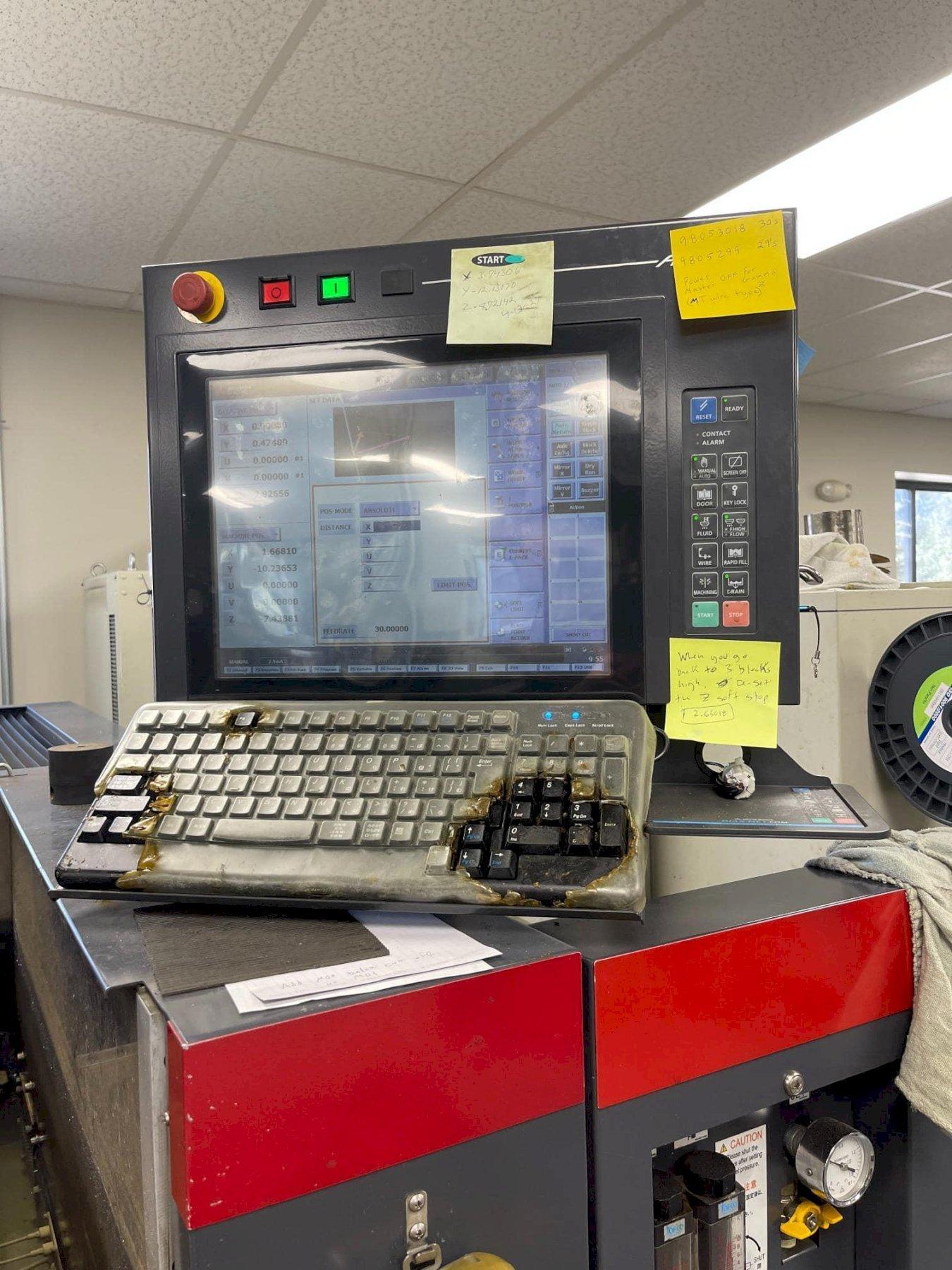

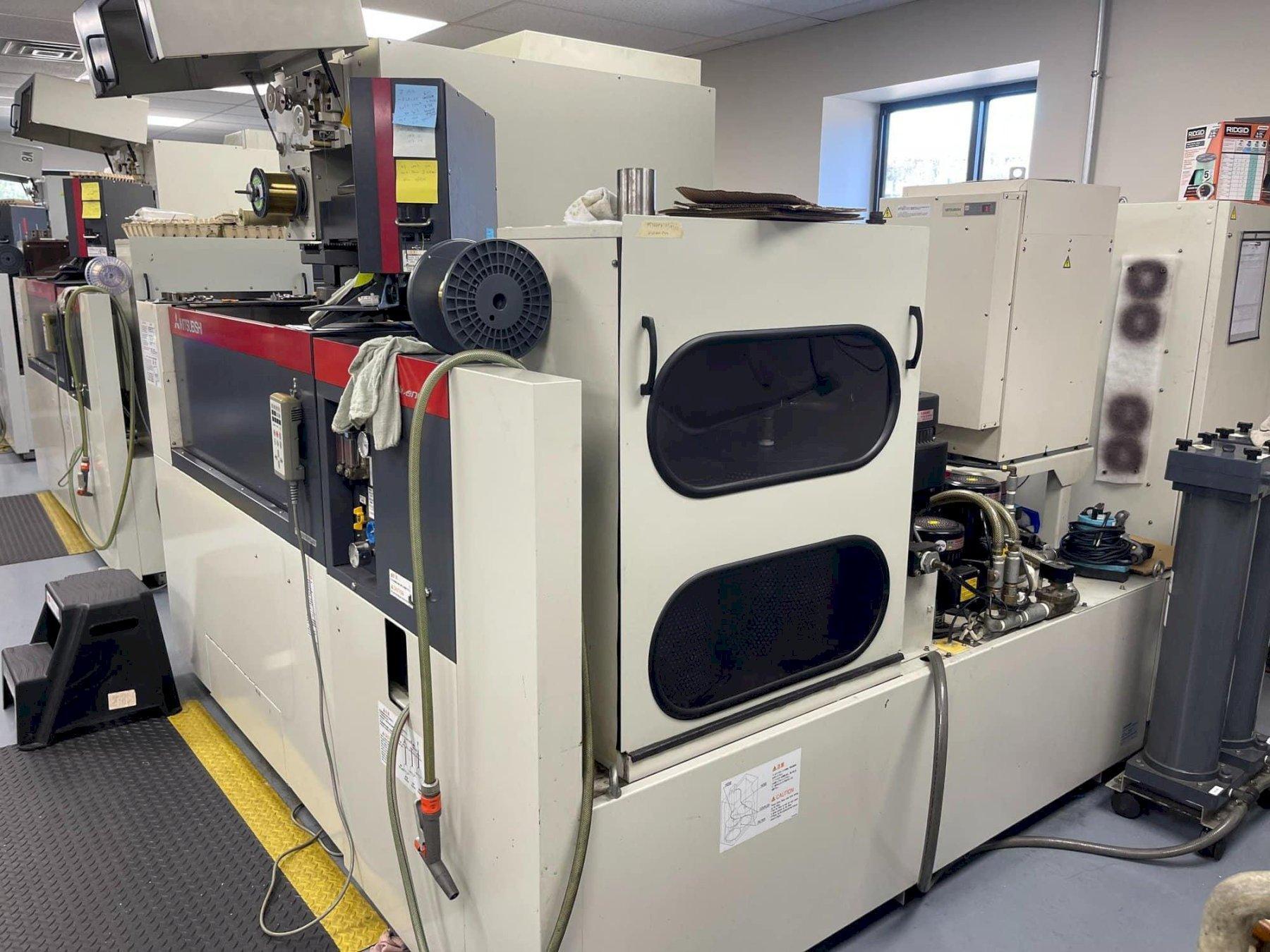

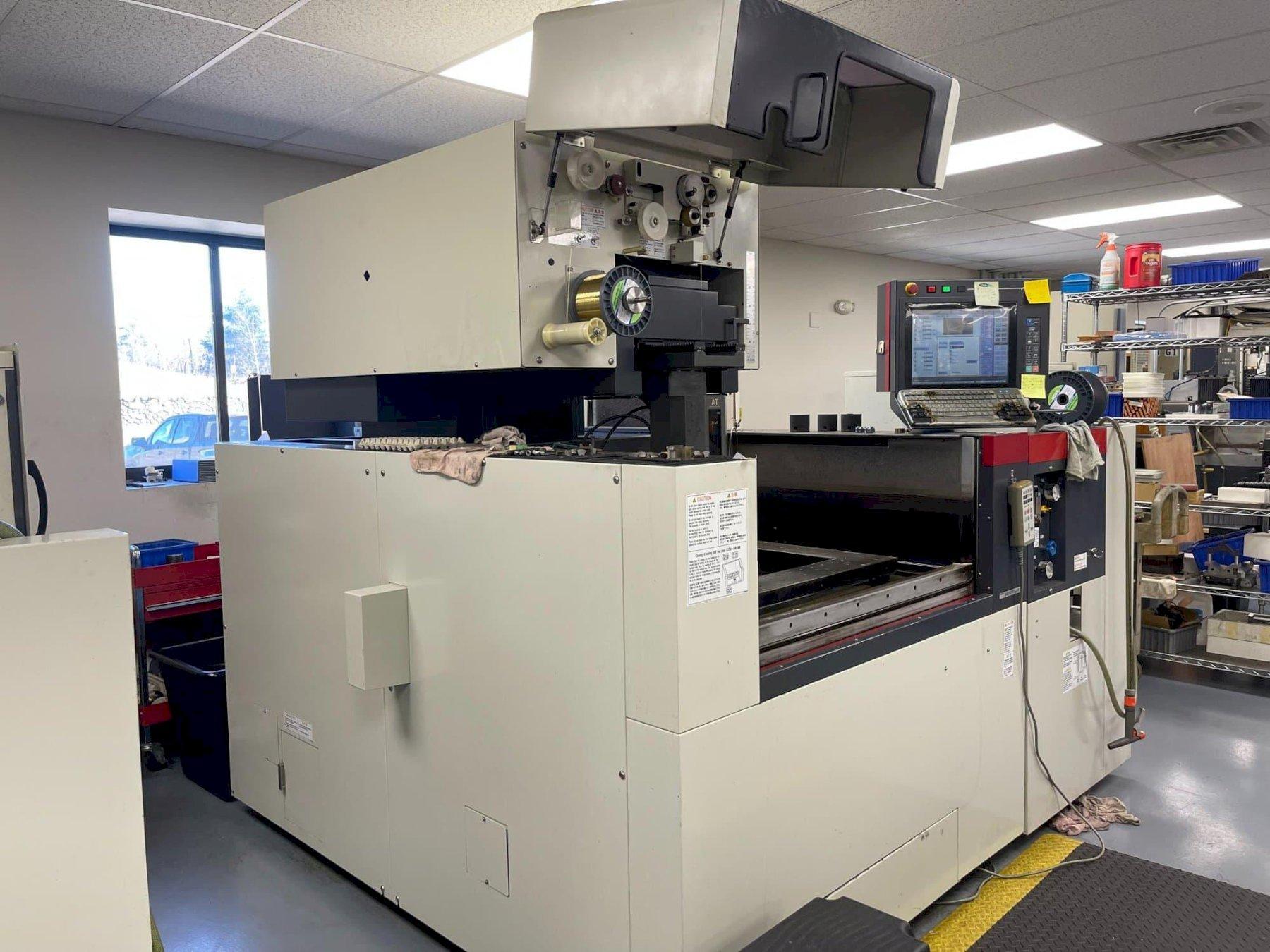

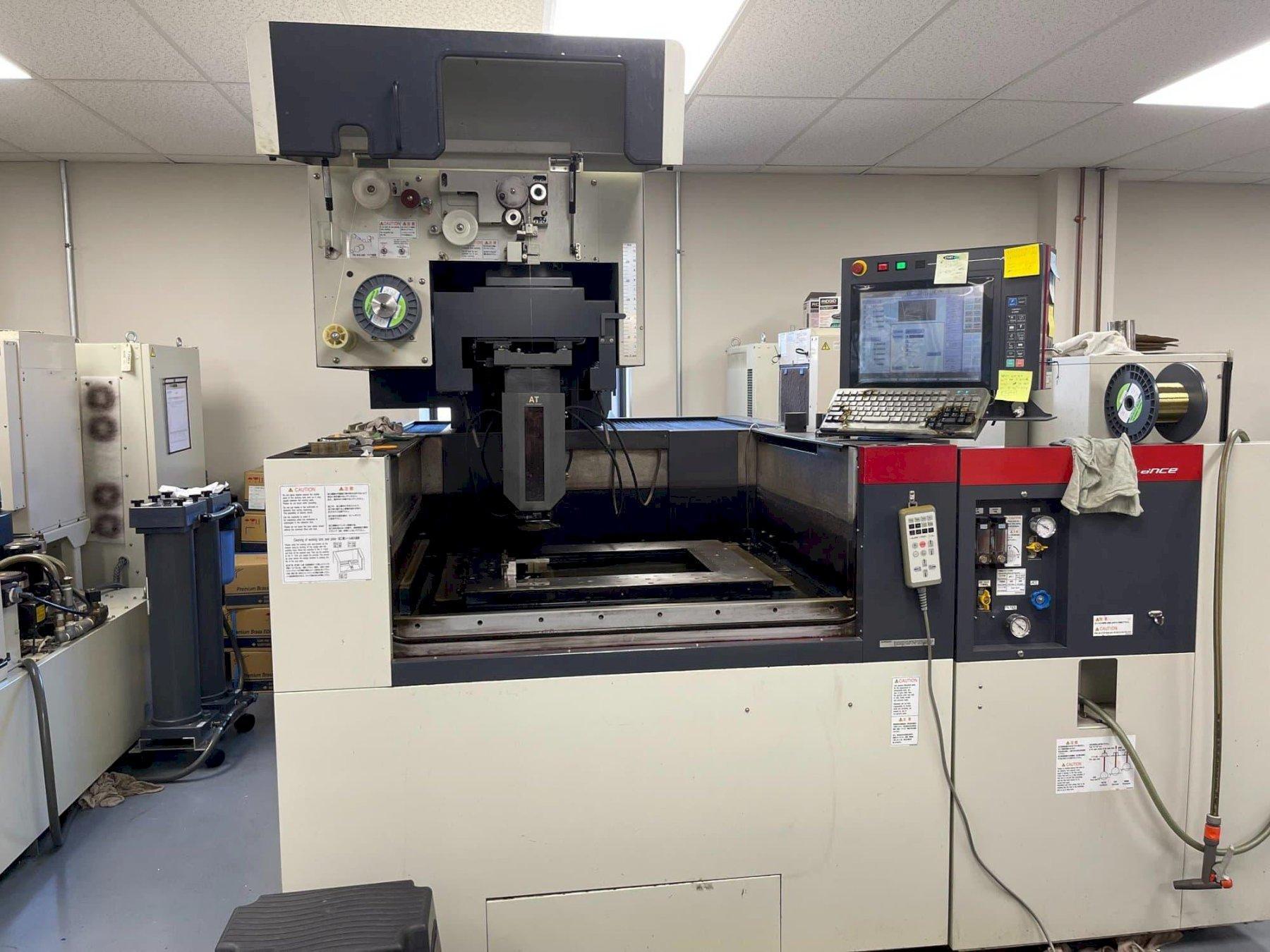

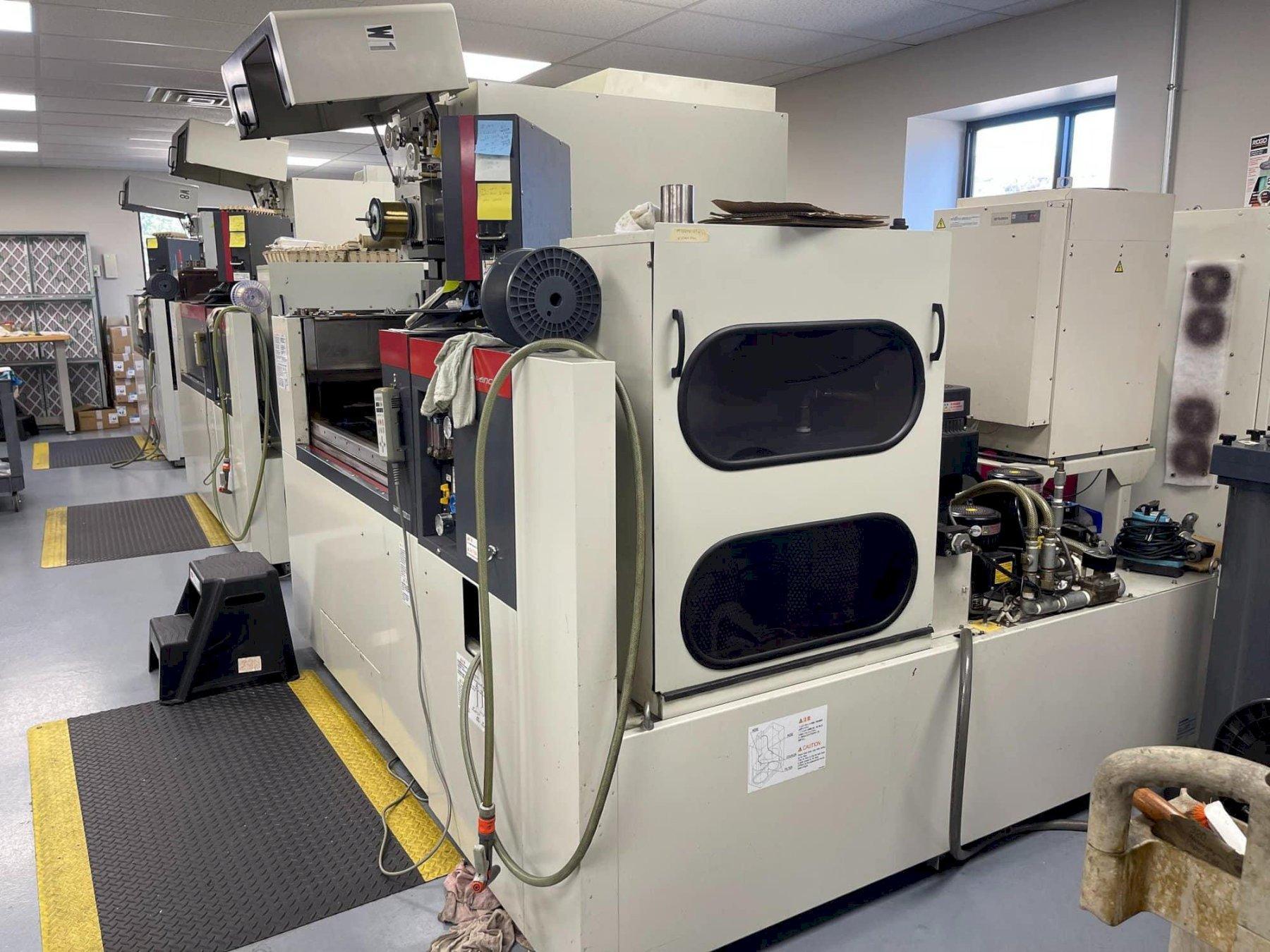

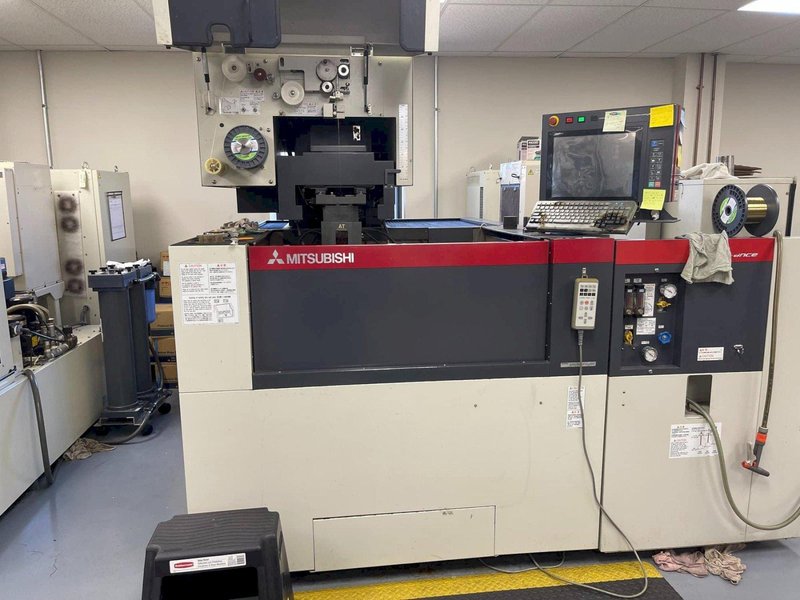

Mitsubishi FA20S Advance CNC Wire EDM, 2009 – 4 Sided Table, Auto Wire Threading, Chiller, Fast Fill Pump, Adaptive Control, Hand Pendant Control, Auto Oiler

X-Axis Travel: 19.6″ Y-Axis Travel: 13.7″ Z-Axis Travel: 11.8″ U/V Axis Travel: 3″ x 3″ Degree Taper Cutting: 15 @ 10.25′ Inside Tank Dimensions: 41.34″ x 31.50″ Taper Unit Travel: 3′ x 3′ Filter Tank Capacity: 187 Gallons Max. Workpiece Dimensions: 41.34″ x 31.5″ x 11.61″ Max. Workpiece Weight: 3,300 lbs Table Dimensions: 30.71″ x 24.8″ Wire Diameter: 0.004″ – 0.012″ Power Requirements: 200-230 V 3 Phase Machine Dimensions: 112″ x 102″ x 80″ Machine Weight: 7,716 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: 4-Sided Table (one-piece) Auto Wire Threading Chiller Fast Fill Pump 10 KG (22 lb) Wire Spool Hand Pendant Controller Adaptive Control (protects against wire breaks/accuracy losses/finish disruptions) Anti-Electrolysis Power Supply Auto Oiler Filter Type/Precision Type 7/3 Micro Glass Feedback Scale

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
