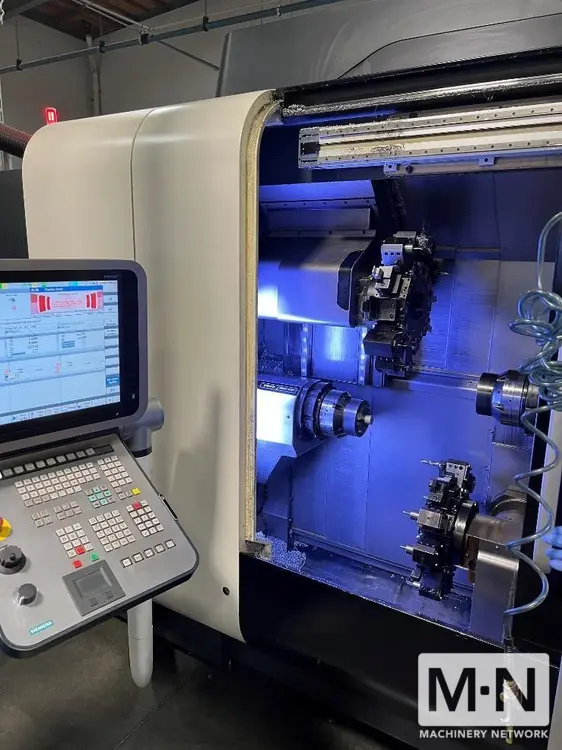

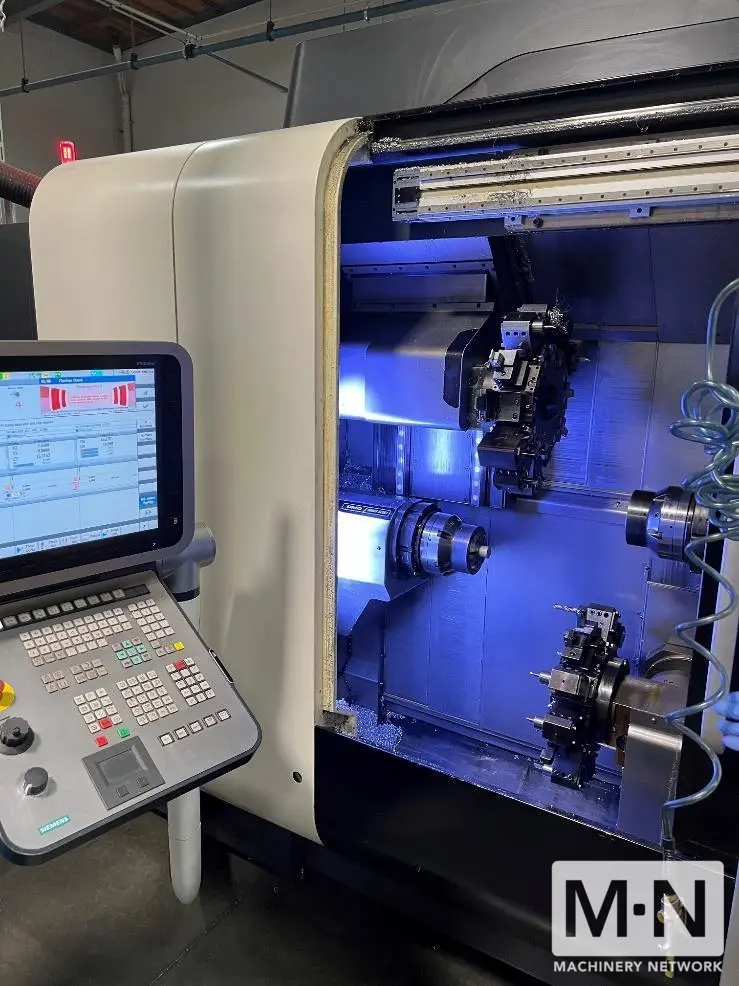

DMG Gildemeister Sprint 50 CNC Turning Center w/ Two Turrets

GILDEMEISTER SPRINT 50 with Two Turrets

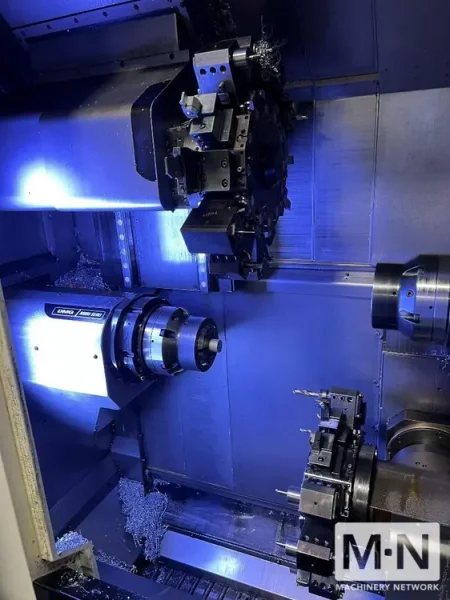

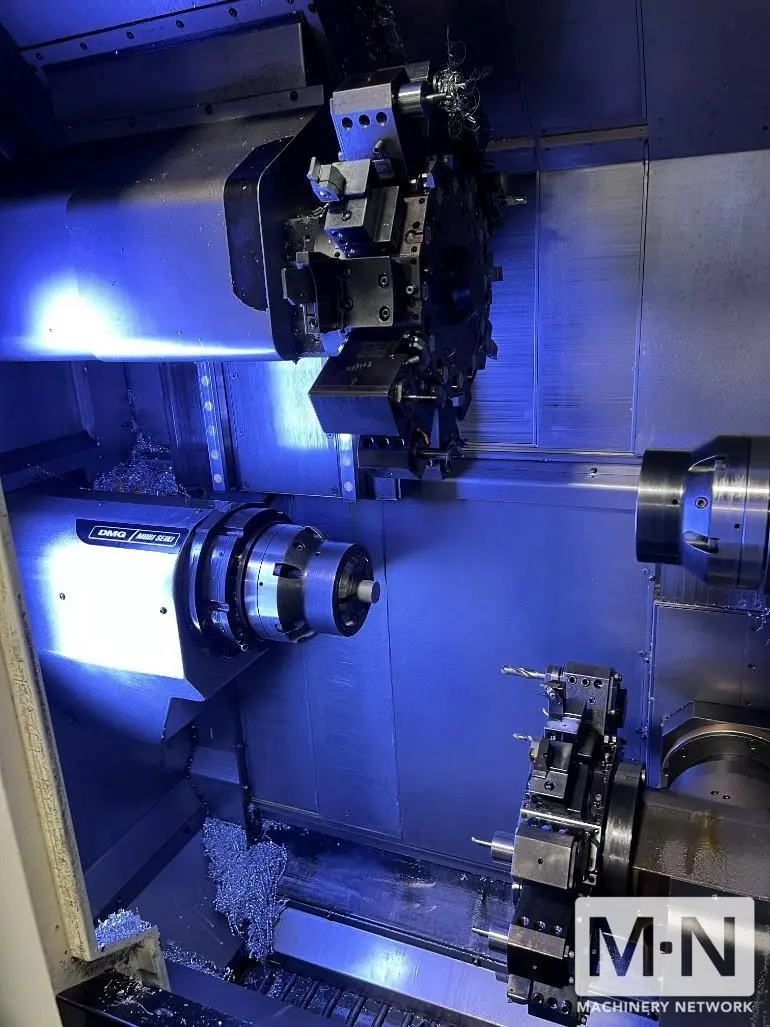

Work area
Spindle distance............................................................. 23.6 in.
Main spindle
Integrated spindle motor (ISM) with synchronous drive and C-axis (0.001°).... 7000 rpm.
Drive power (40 / 100 % DC).................................................. 32.2/21.5 hp.
Torque (40 / 100 % DC)....................................................... 73.8/55.3 ft. / lbs.
Run-up to 4,000 rpm.......................................................... 0.9 sec.
Spindle head diameter, flat flange........................................... 4.7h5 in.
Bar diameter max............................................................. 2.0 in.
Collet chuck diameter........................................................ 5.5 in.

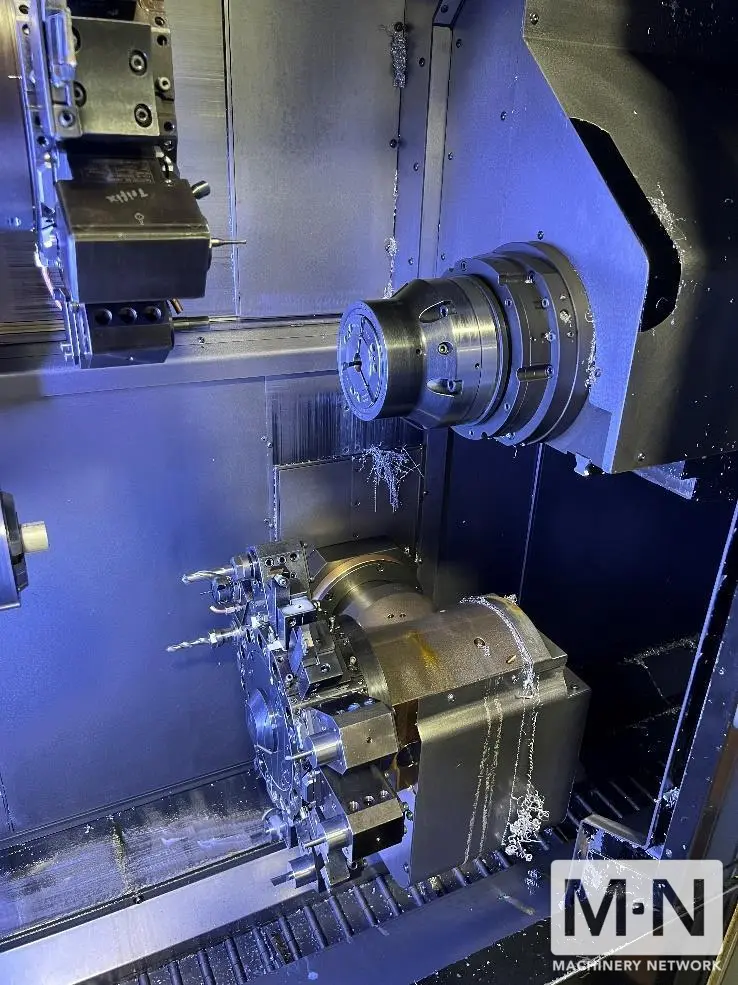

Counter spindle
Integrated spindle motor (ISM) with synchronous drive and C-axis (0.001°).... 7000 rpm.
Drive power (40 / 100% DC)................................................... 29.5/21.5 hp.
Torque (40 / 100% DC)........................................................ 73.8/55.3 ft. / lbs.
Run-up to 4,000 rpm.......................................................... 0.9 sec.
Spindle head diameter, flat flange........................................... 4.7h5 in.
Bar diameter max............................................................. 2.0 in.
Collet chuck diameter........................................................ 5.5 in.
Turret 1, 2 and 3
Width across flats........................................................... in.
Tool interface according to VDI 69880........................................ 12 × VDI 25 with TRIFIX®
Number of driven tools....................................................... 12
Speed........................................................................ 8000 rpm.
Drive power (40 % DC)........................................................ 8.4 hp.
Torque (40 % DC)............................................................. 8.9 ft. / lbs.
Chip-to-chip time............................................................ 0.8 sec. Turret slide 1 (top left)
X / Y / Z.................................................................... 8.5 / ±1.4 / 13.8 in.
Rapid traverse speed in X / Y / Z............................................ 1,181.1 / 590.5 /2,362.2 ipm.
Acceleration in X / Y / Z.................................................... 23.0 to 32.8 ft./s.² Turret slide 2
X / Y* / Z................................................................... 4.9 / ±1.4 / 13.8 in.
Rapid traverse speed in X / Y / Z............................................ 1,181.1 / 590.5 / 2,362.2 ipm.
Acceleration in X / Y / Z.................................................... 5.7 / 15.0 ft./s.²
Slide for the counter spindle X / Z.......................................... 1,181.1 / 2,362.2 in.
Rapid traverse speed in X / Z................................................ 23.0 to 32.8 ipm.
Acceleration in X / Z........................................................ ft./s.²
Tailstock
Stroke (hydraulic)........................................................... 20.1 in.
Power........................................................................ 3,000 N.
Center....................................................................... MK 3 connection
Machine
Machine footprint incl. chip conveyor........................................ 103.3 ft.²
Chip conveyor discharge height............................................... 45.3 in.
Machine height............................................................... 92.7 in.
Machine weight............................................................... 20282.5 lbs.
