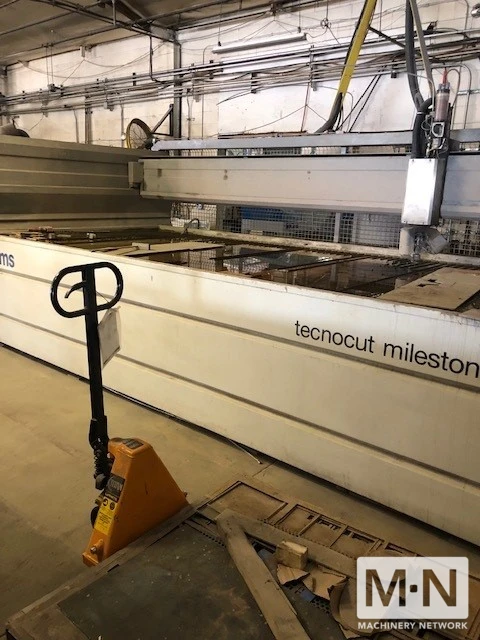

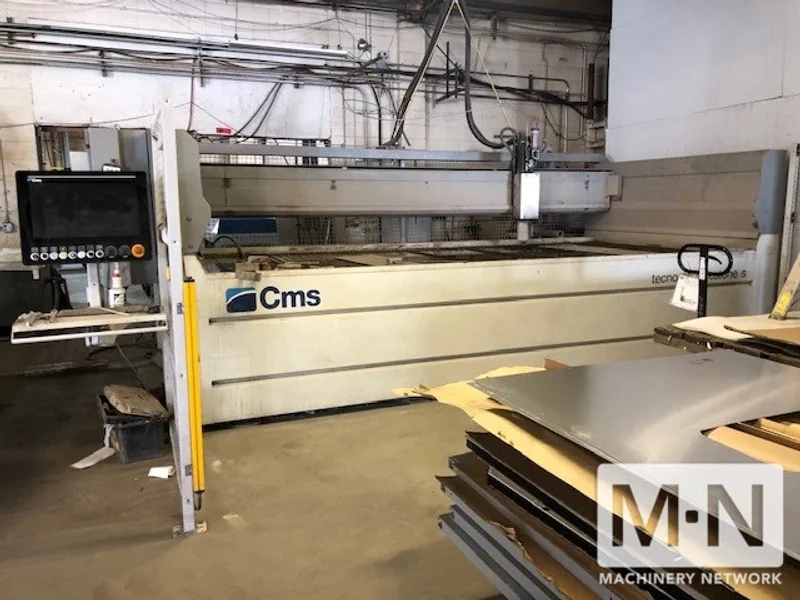

CMS 5-AXIS IDROLINE S 2040 CNC WATERJET

Name: Used IDROLINE S2040 5-AXIS For Sale 40699
Brand: Unknown
SKU: 40699
Availability: PreOrder

Brand

Not specified

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

WATER JET CUTTING, CNC

Manufacturer:

CMS TECNOCUT

Model:

IDROLINE S2040 5-AXIS

Year:

2019

Stock #:

40699

Status:

For Sale

Description

Discover precision with our 2019 CMS IDROLINE S2040 5-AXIS WATERJET. Advanced features for high-quality fabrication. Gently used, top-tier performance at unmatched value.

Specifications

THE IDROLINE S 2040 WATERJET
CUTTING SYSTEM CONCEIVED AND MANUFACTURED
AS A MACHINE TOOLS. ESPECIALLY SUITABLE FOR INTENSIVE USE AND MEDIUM/TIGHT TOLERANCES.
AN OUTSTANDING COMPROMISE OF ACCURACY,RELIABILITY AND TOP PERFORMANCE, IDROLINE S
IS IDEAL FOR ANY KIND OF FABRICATION PROCESS.
IT ALSO PERFECTLY FITS MACHINE SHOPS, LOOKING FOR A RELIABLE CUTTING SYSTEM
FOR PREMACHINING AND ROUGH CUTS.

AXES MOVEMENT
• X AXIS 4250 MM – 167" - 13.94' WITH 1 CUTTING HEAD
4000 MM – 157" – 13' WITH 2 CUTTING HEADS
THE CUTTING HEAD CROSS MOTION WORKS WITH TEMPERED GROUND GUIDES W/ RECIRCULATING BALLS,
FOUR CONTACT POINTS, DRIVEN BY A HIGH-PRECISION RACK AND PINION SYSTEM.
• Y AXIS 2000 MM – 78" – 6.5'
LONGITUDINAL MOTION OF THE BRIDGE MOVES ALONG TEMPERED GROUND
GUIDES WITH RECIRCULATING BALLS AND FOUR CONTACT POINTS.
THE MOTION IS DRIVEN BY TWO SYNCHRONIZED MOTORS & HIGH-PRECISION RACK AND PINION SYSTEM.
• Z AXIS 350 MM – 13.8" 3 AXIS HEAD –
250 MM – 9.5" 5 AXIS HEAD

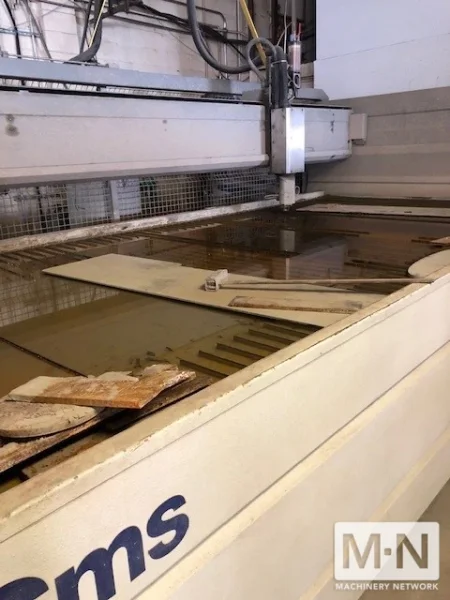

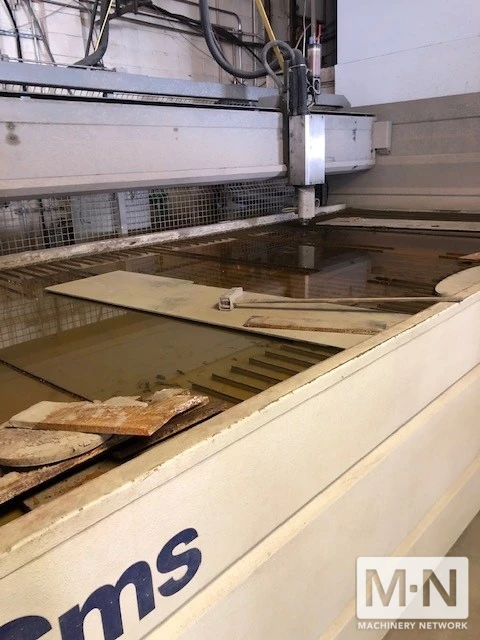

VERTICAL MOTION OF THE CUTTING HEAD BY MEANS OF A TEMPERED GROUND GUIDE
WITH RECIRCULATING BALLS, DRIVEN BY HIGH-PRECISION RACK & PINION SYSTEM.

STANDARD TECHNICAL FEATURES *
NET CUTTING AREA X AXIS 4250 MM 13.94'/13'
NET CUTTING AREA Y AXIS 2000 MM 6.5'
TABLE SIZE X AXIS 4650 MM 15.25'
TABLE SIZE Y AXIS 2050MM 6'8"
Z AXIS STROKE (3 AXIS HEAD) 350 MM 13.8"
Z AXIS STROKE (5 AXIS HEAD) 250 MM 9.8"
FOOT PRINT L X D X H MAX 5960 MM x 3900 MM x 3900 MM, 19.6' X 12.9' X 12.9'
XY AXES MAX FEEDRATE 40000 MM/MIN 131 FT/MIN 1570 IPM
ACCELERATION 2 MT / SEC2 131 FT / SEC2 78’’ / SEC2
POSITIONING ACCURACY +/- 0,038 +/- 0,0015
REPEATIBILITY +/- 0,0254 +/- 0,001
ABSORBED POWER 3 KW
MAX LOADING WEIGHT 2000 KG / 4400 LBS
WEIGHT (TANK EMPTY) 4000 KG / 8800LB

Equipped With:

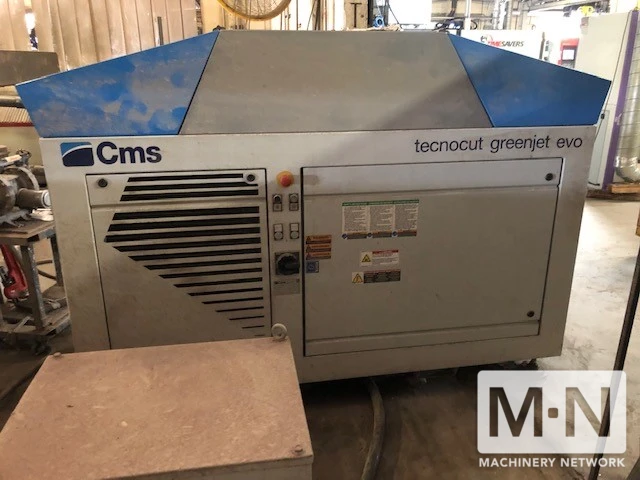

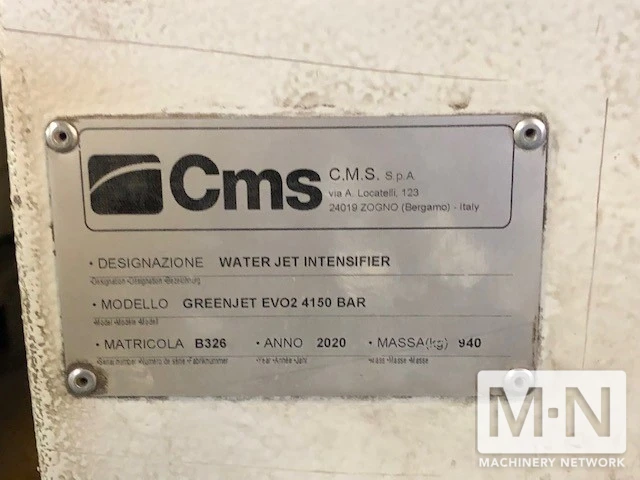

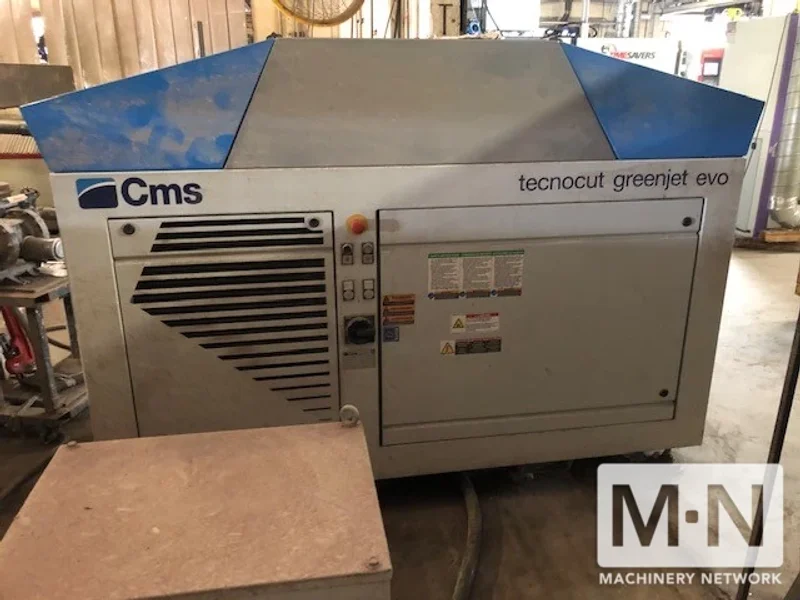

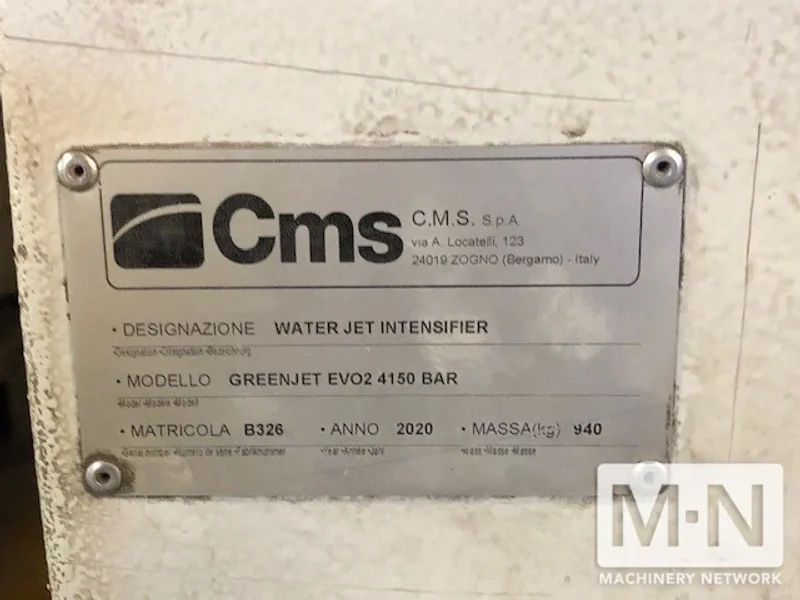

GREENJET 69,000 PSI INTENSIFIER

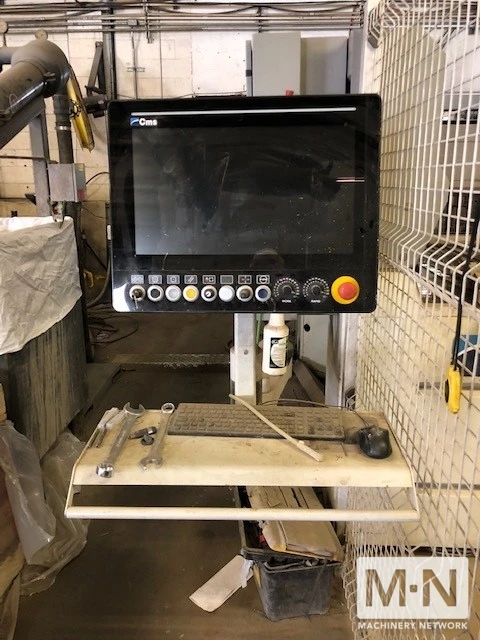

PC BASED OSAI OPEN-M NUMERICAL CONTROL

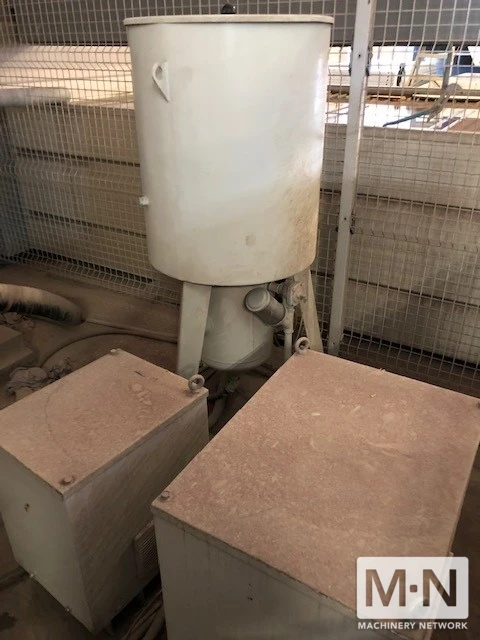

ELECTRONICALLY CONTROLLED ABRASIVE HOPPER
SOFTWARE LICENSE CAD/CAM TC2020 + JDE POST PROCESSOR

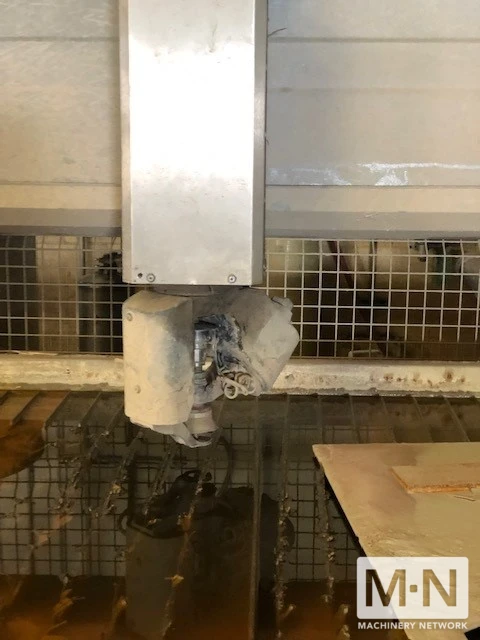

5-AXIS CUTTING HEAD
ANTI COLLISION SYSTEM W/HEIGHT SENSOR
LASER POINTER W/ROTO-TRANSLATION FUNCTION
PHOTO ELECTRIC BARRIERS

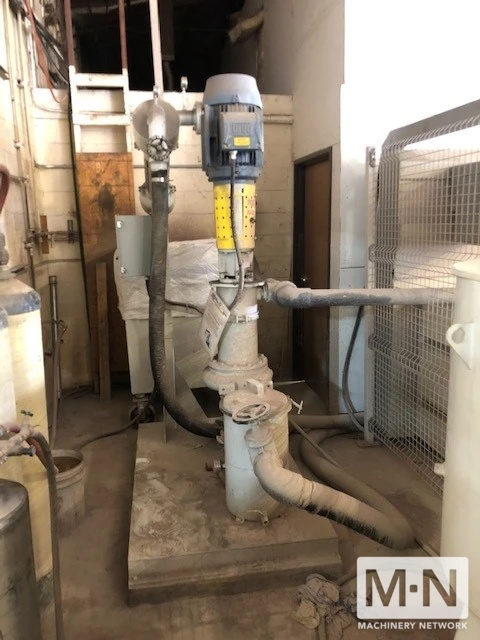

AUTOMATIC EXHAUST ABRASIVE EVACUATION W/STAINLESS STEEL CATCH TANK
AUTOMATIC WATER LEVEL ADJUSTMENT SUBMERGED CUTTING - MANUAL

NEW COST OVER $360,000.00
