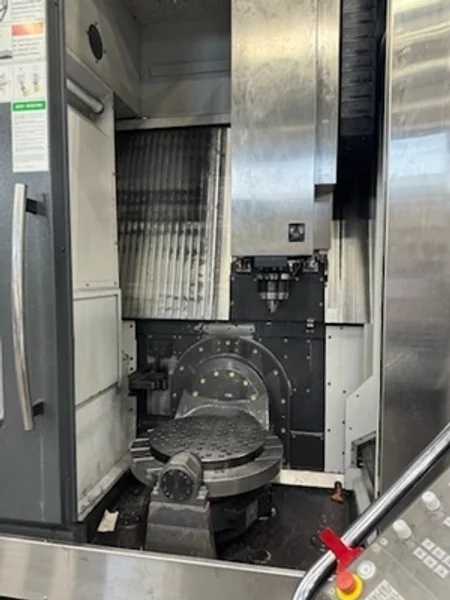

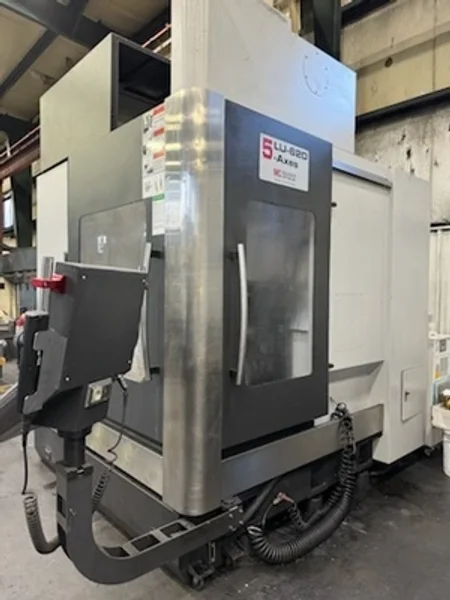

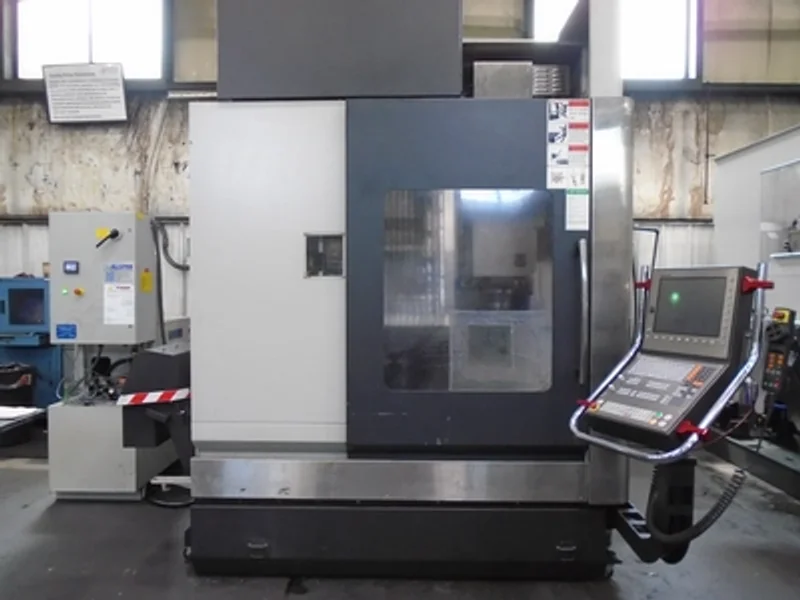

Litz Hitech LU-620 5 Axis Machining Center

Litz Hitech LU-620 5 Axis Machining Center (2015)

Travels
X / Y / Z Axes Travel mm 620 / 520 / 460
B Axis Tilting Range degree - 50° ~ + 110°
C Rotating Range degree 360°
Spindle Nose To Table Surface mm 150 ~ 610
Spindle
Spindle Transmission Type Direct Drive
Tool Shank ISO 40
Spindle Speed rpm 12000
ATC
Magazine Capacity T 30
Taper HSK 63A
Max. Tool Length mm 250
Max. Tool Diameter (No Adjacent Tool) mm Ø 75 ( Ø 127 )
Motor
Spindle Motor (Cont./30 Mins) KW 18 / 21(Siemens)
X / Y / Z Axes Motor Power KW 6.5/4.5/6.5( Heidenhain)
B/C Axes Motor KW 8.6/4.5( Heidenhain)
B/C Axes
Worktable Size (External/Inner) mm Ø 650
Center Hole Size mm Ø 55H7 x 12 In Depth
T Slot Type mm T18 Radial Type 8 Slots
Max. Workpiece Size mm Ø 580 x(50+R438) L
Max. Worktable Loading kg 300
Rapid Travel
X / Y / Z Axes Rapid Travel M / min 36 / 36 / 36
B / C Axes Rapid Travel rpm 25
Cutting Feedrate mm / min 1 - 20000
Control

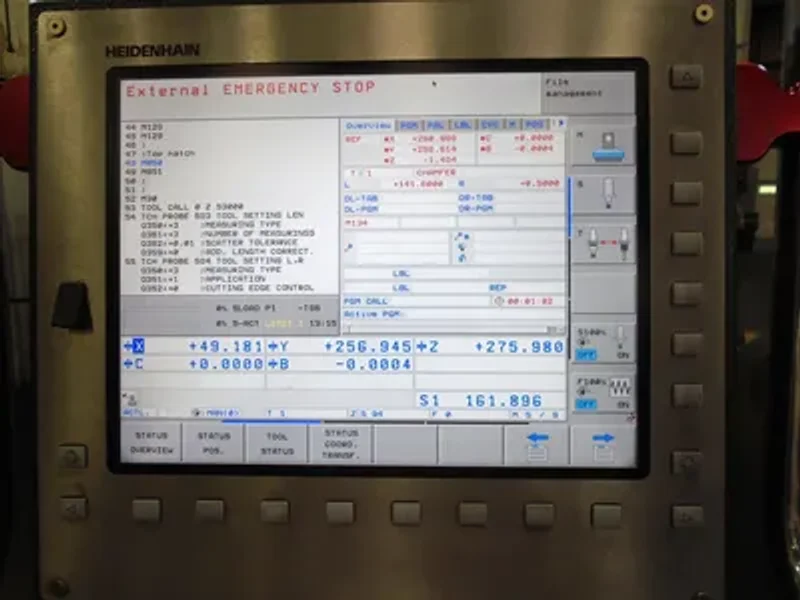

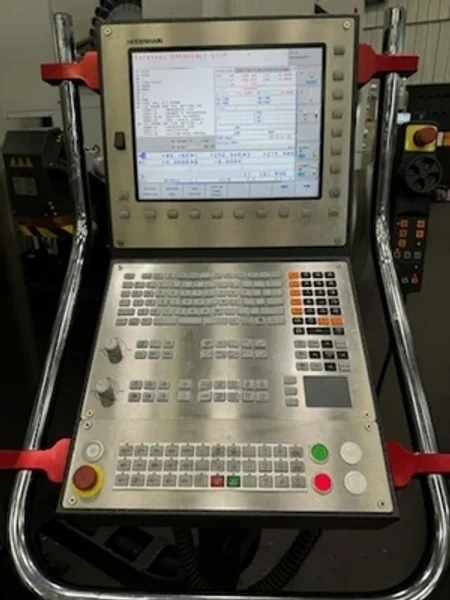

Type HEIDENHAIN TNC640
Miscellaneous
Machine Weight kg 8800
Coolant Tank L 240
Dimension (L*W*H) mm 2260 x 2590 x 3060
Power Requirement KVA 25
Air Source kg / cm2
( l / min ) 6 ( 1600 )
