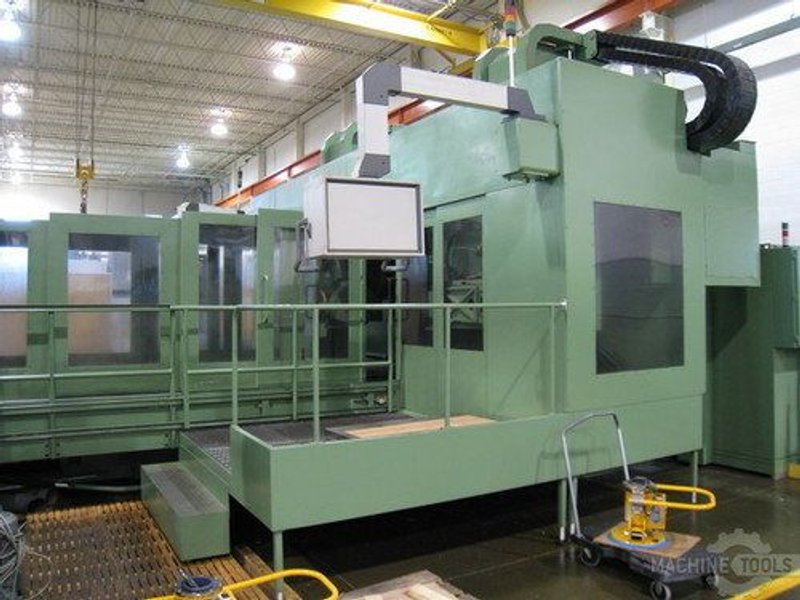

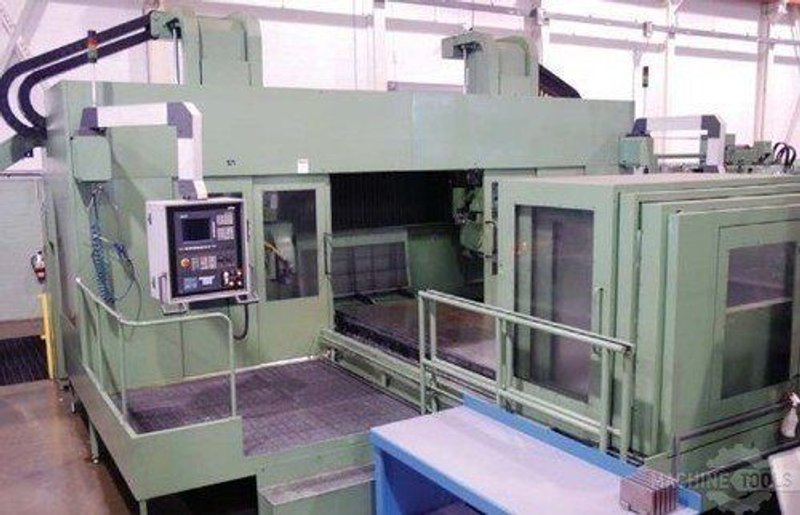

Favretto CNC Surface Grinder
Brand
Category
Model
MG-300 2T
Stock #
4932
Year
1995
Condition
Used
Location
Not specified
|
Table-W|59.05"
Table-L|118"
Spindle (Horz/Vert)|Horz
Power|67.1 hp
Grinding Wheel Width|3.94"
Grinding Wheel Dia.|24"
Control|CNC (Siemens)
VM-22 Dual head rough and finishing surface grinder
Table Size 59.05” x 118.11”
6 Magnetic chucks 59” x 19.68”
Max. grinding height 27.5”
Load capacity 19,000 lbs
Grinding wheel size 20” x 8” x 3.94”
Max. speed 1400 RPM
Longitudinal axis table max. travels 137.79”
Cross & vertical, axis head max. rapid speed 196 IPM
Vertical axis head max. 31.5”
Year Mfg. 1995
Equipped With The Following:

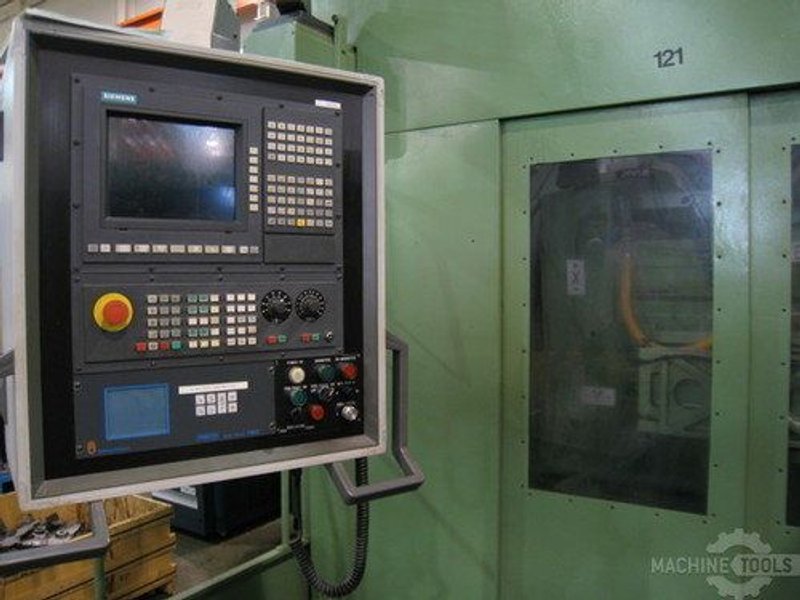

Siemens Control model Sinumek CNC
Berg – Model SC 6 Chilling system with filter with 30 HP
Location: Mississauga, Ontario, Canada
|
