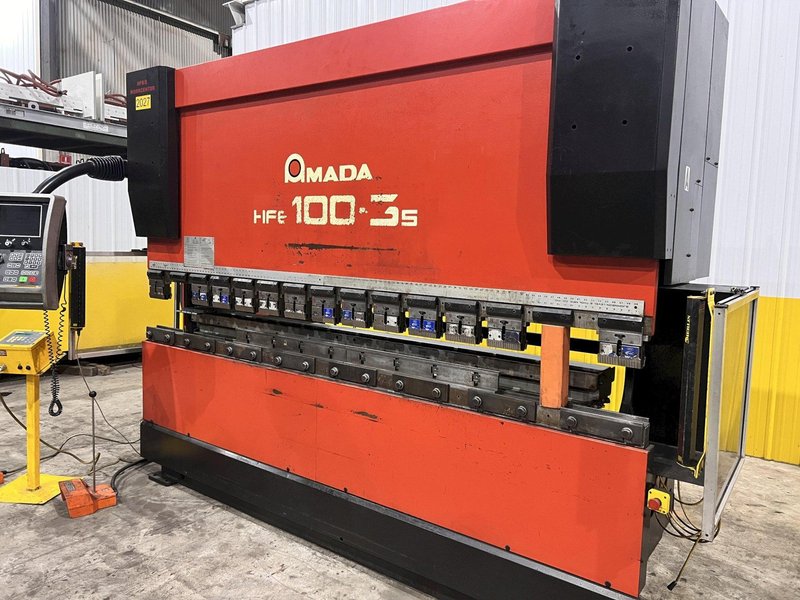

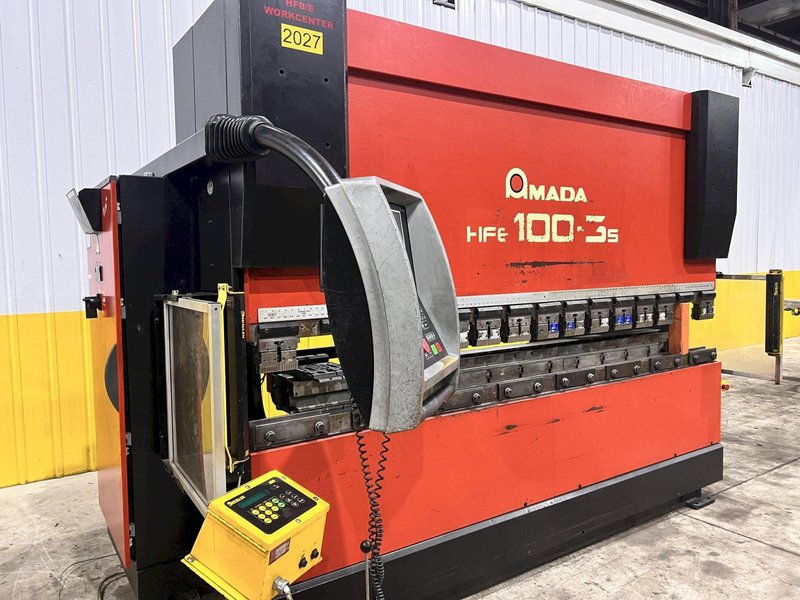

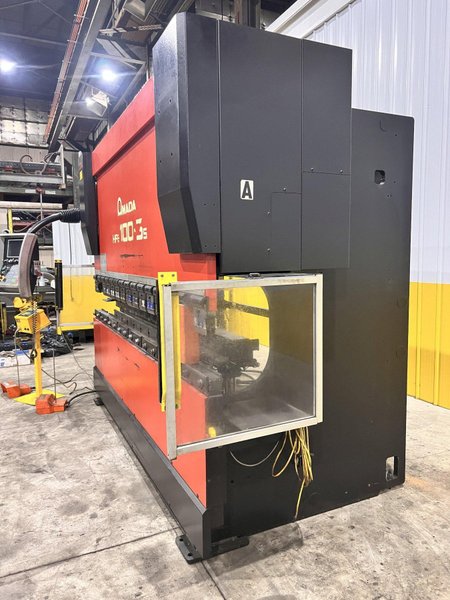

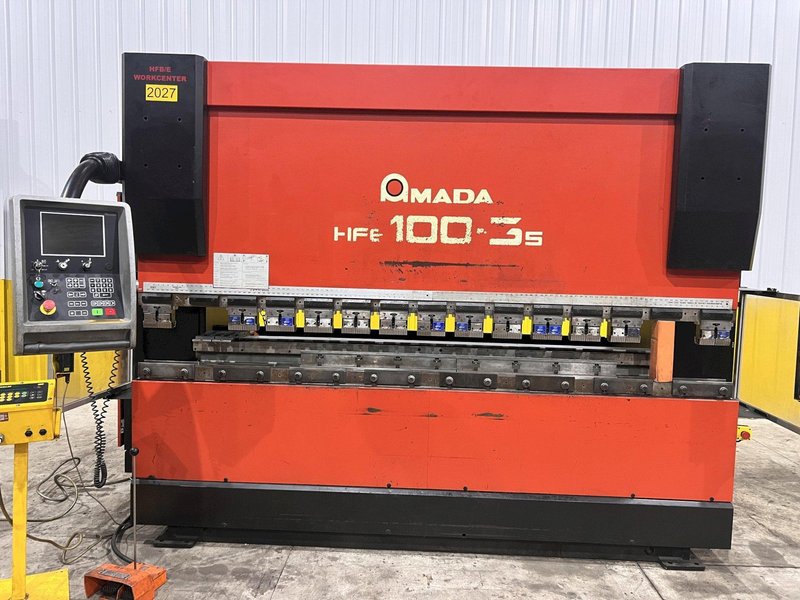

110 TON x 10' AMADA MODEL #HFE100-3S CNC HYDRAULIC PRESS BRAKE, 2001: STOCK #21984
Brand
Category
Type
Model
HFE 100-3S
Stock #
21984
Year
2001
Condition
Good
Location
Ohio
|

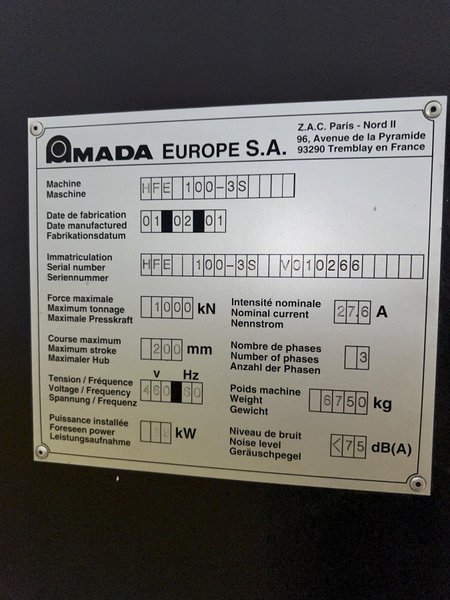

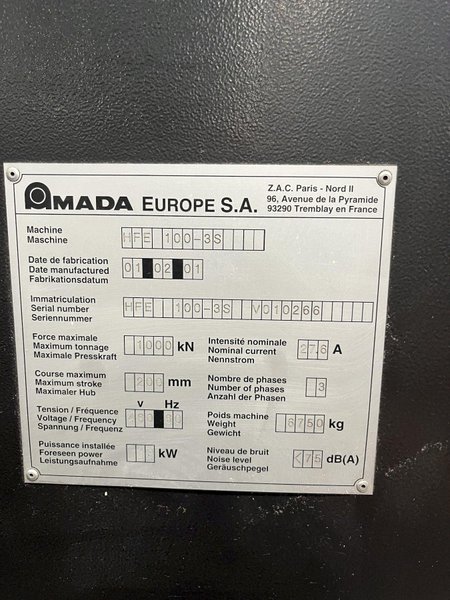

SERIAL HFE-100-3S-V010266
NEW 01-02-2001 MODEL HFE100-3S Capacity: 110 U.S. tons
Bend Length: 122 inches
Maximum Stroke Length: 7.8 inches
Open Height: 18.5 inches
Throat Depth: 16.5 inches
Distance Between Housings: 106 inches
Ram Repeatability: +/- 0.00004 inches
Table Width: 2.36 inches
Approach Speed: 7.87 inches per second
Bending Speed: 0.04 to 0.787 inches per second, programmable
Return Speed: .04 to 7.87 inches per second, programmable
Hydraulic Oil Capacity: 56 gallons

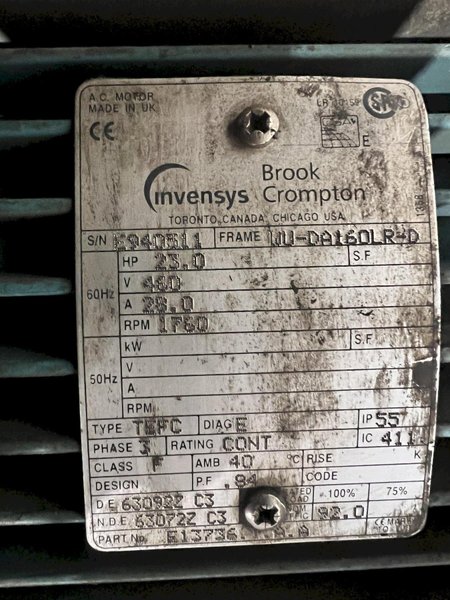

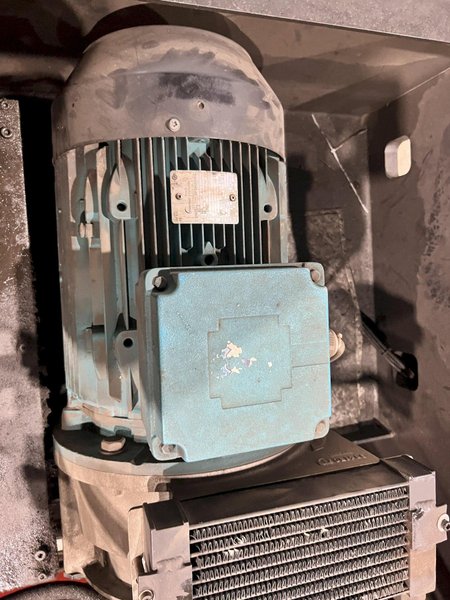

Motor HP: 25

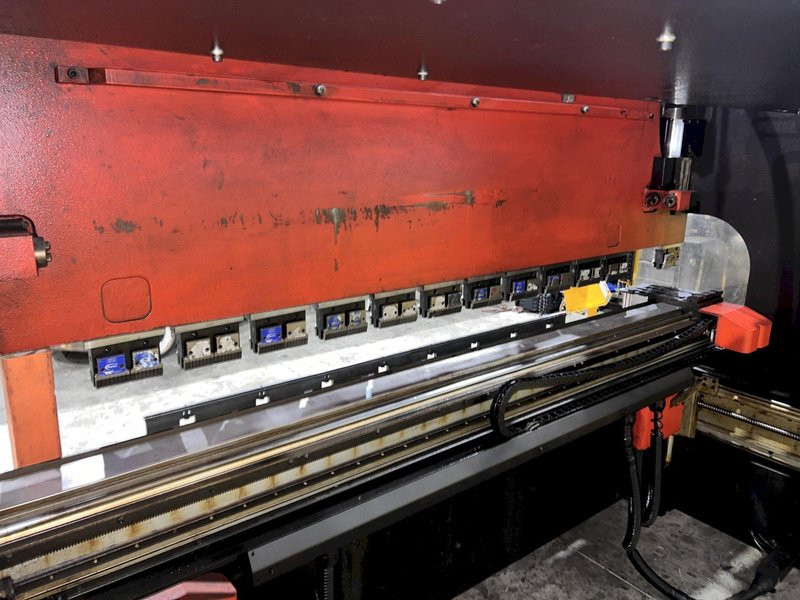

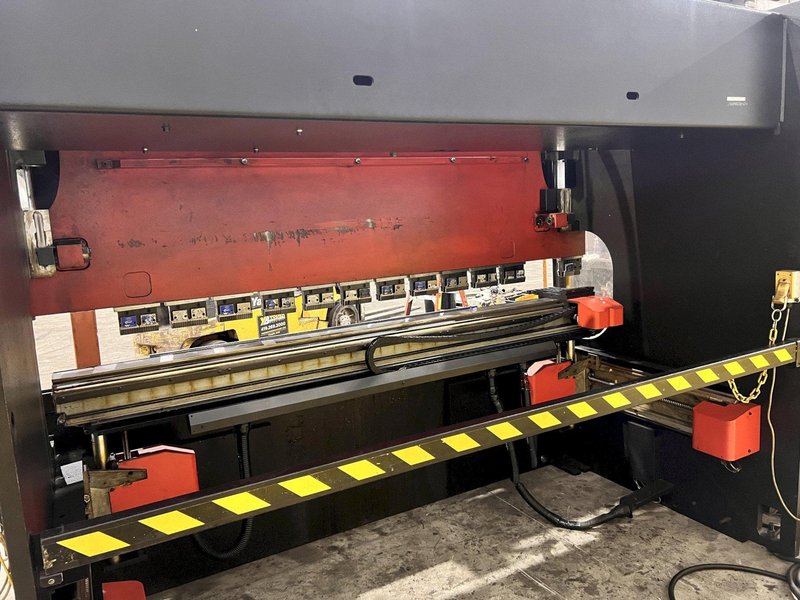

Backgauge
Model: Amada Type B
Repeatability: L Axis +/- 0.0004 inches
Movement Range
X Axis: 27.5/37.5 inches
R Axis: 9.84 inches
Z Axis: 94 inches
Feed Speed
X Axis: 19.5 inches per second
R Axis: 6.2 inches per second
Z Axis: 39.3 inches per second
Minimum Command Unit: 0.0001 inch

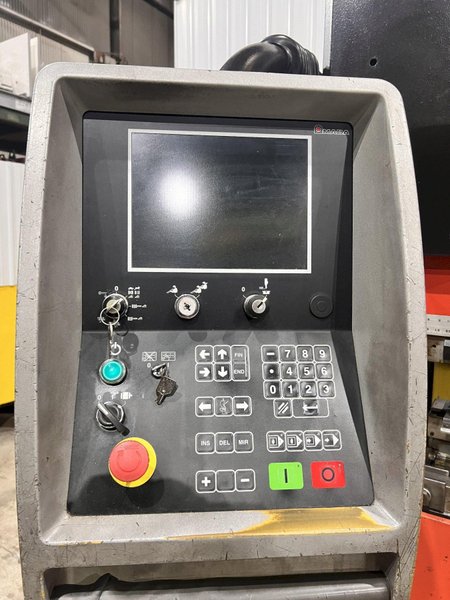

CNC Controller
Model: Amada OPERATEUR
Axes of Control: 7 standard
Y1Y2 Ram depth
X1X2 Backgauge
Z1Z2 Horizontal finger position of two stoppers
R Vertical finger position of two stoppers
Input Method: Keyboard, 3.5″ diskette and RS232
Display: 12″ Color VGA
Program Storage: 60 in active memory plus 30 on diskette
Bends per Program: 25
Die Library: 70 dies
Punch Library: 30 punches
|
Watch https://youtu.be/cNUbrrbI9Hs
