18" X 48" CINCINNATI UNIVERSAL CYLINDRICAL GRINDER W/ SWING DOWN I.D. GRINDING ATTACHMENT W/ SPINDLE

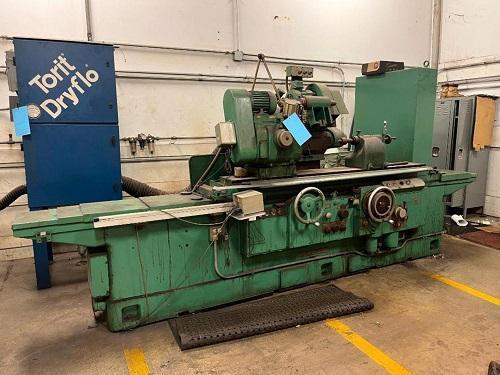

18" X 48" CINCINNATI UNIVERSAL CYLINDRICAL GRINDER

W/ SWING DOWN I.D. GRINDING ATTACHMENT W/ SPINDLE

MODEL: DE     S/N: 35326E5Z-1     NEW: 1972

  SWING OVER TABLE ........................ 18-15/16"

DISTANCE BETWEEN CENTERS .................. 48"

TABLE SWIVEL, TOWARD WHEELHEAD ............ 9 DEGREES

                             AWAY FROM WHEELHEAD .......... 2 DEGREES

  GRINDING WHEELHEAD:

LOWER SWIVEL LEFT & RIGHT OF CENTER ....... 90 DEG.

UPPER SWIVEL, RIGHT & LEFT ................ 30 DEG.

MOTOR ..................................... 15 HP

GRINDING WHEEL SIZE ................... 20" DIA. x 3"WIDE MAX.

  TABLE TRAVERSE:

INF. VARIABLE TABLE SPEEDS ............... 3" TO 220" IPM

HAND TABLE TRAVERSE PRE REVOLUTION

 OF HANDWHEEL (RAPID/SLOW) ............... 15/16" / 0.2"

  CROSS FEED:

AUTOMATIC INFEED AT TABLE REVERSAL:

LOW .................................. 0.0002" TO .0005"

HIGH ................................. 0.0005" TO .0125"

WHEELHEAD MOVEMENT PER TURN OF HANDWHEEL:

LOW ..................................... 0.050"

HIGH .................................... 0.250"

MINIMUM INFEED ON DIAMETER .............. 0.00005"

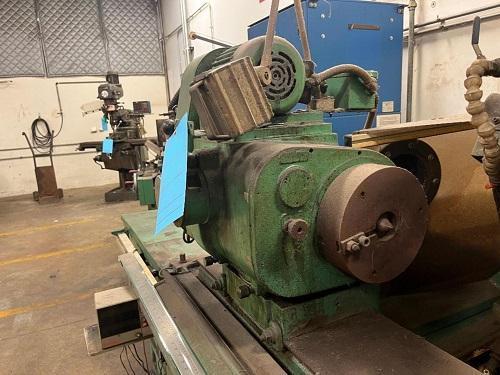

  HEADSTOCK:

MOTOR ................................... 1 H.P.

TAPER HOLE IN SPINDLES .................. #9 B&S

INF. VARIABLE WORKHEAD SPEEDS ........... 50 T0 500 RPM

SPINDLE NOSE, AMERICAN STANDARD ......... 5"

HEADSTOCK SWIVEL, TOWARD WHEELHEAD ...... 90°

                   AWAY FROM WHEELHEAD .. 30°

FLOOR SPACE FOR OPERATION:............... 72" X 185"

APPROX. DIMENSIONS:................ 166" L-R, 72" F-B, 66" H

APPROX. MACHINE WEIGHT .................. 12,800 LBS

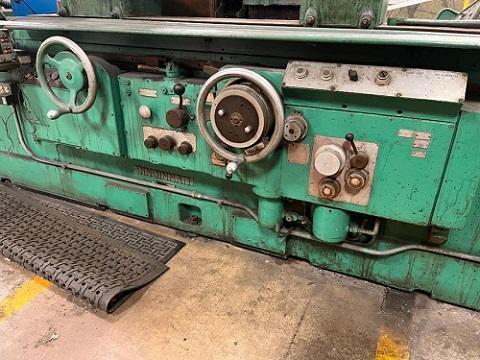

FULL HYDRAULIC OPERATION FEATURING:

-POWER TABLE TRAVERSE

-PICK FEED (AUTO INFEED)

-AUTO DUAL RATE PLUNGE INFEED

-POWER RAPID ADVANCE & RETRACTION OF WHEEL

-SPARKOUT TIMER

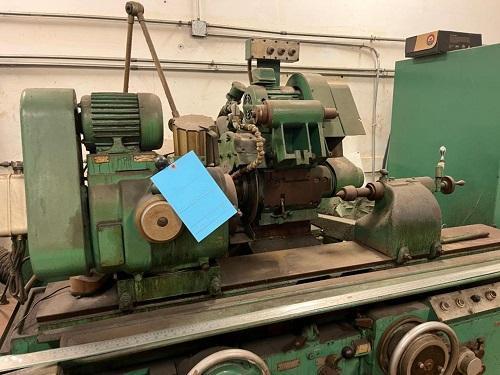

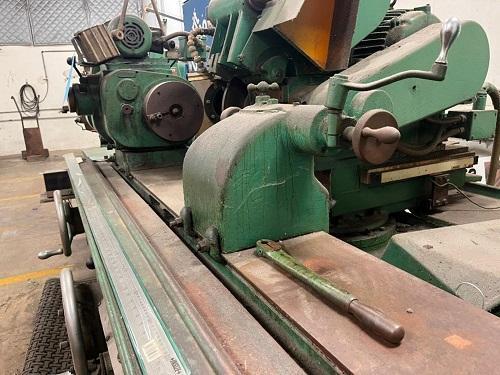

SWING DOWN I.D. ATTACHMENT W/SPINDLE

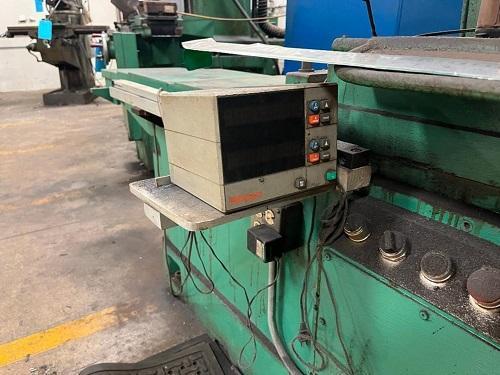

MITUTOYO 2-AXIS DIGITAL READOUT DISPLAY

MACHINE WILL ACCEPT AN 20" WHEEL, UP TO 3" WIDTH

PRESENTLY HAS A SMALLER WHEEL ON IT, FROM THE LAST OWNER

INFINITELY VARIABLE WORKHEAD SPINDLE SPEEDS

WORKHEAD SPINDLE IS BOTH LIVE & DEAD

SEPARATE ELECTRICAL CABINET

SELF-CONTAINED COOLANT SYSTEM

15 H.P./3/60/230-460 VOLT SPINDLE MOTOR

PRESENTLY WIRED FOR 3/60/460 VOLTS, 23 FLA
