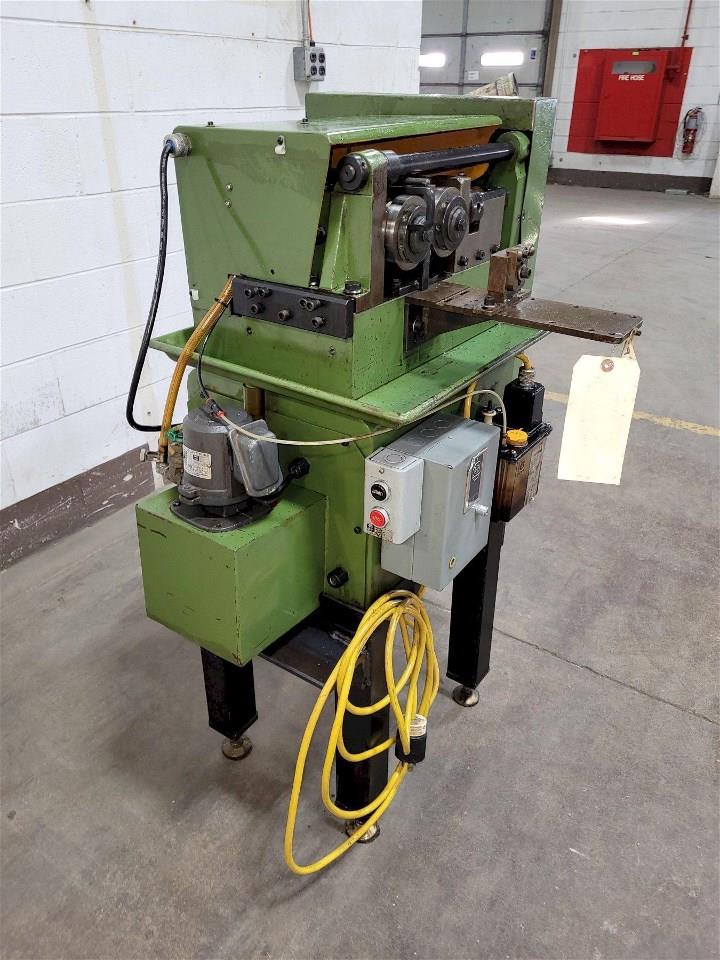

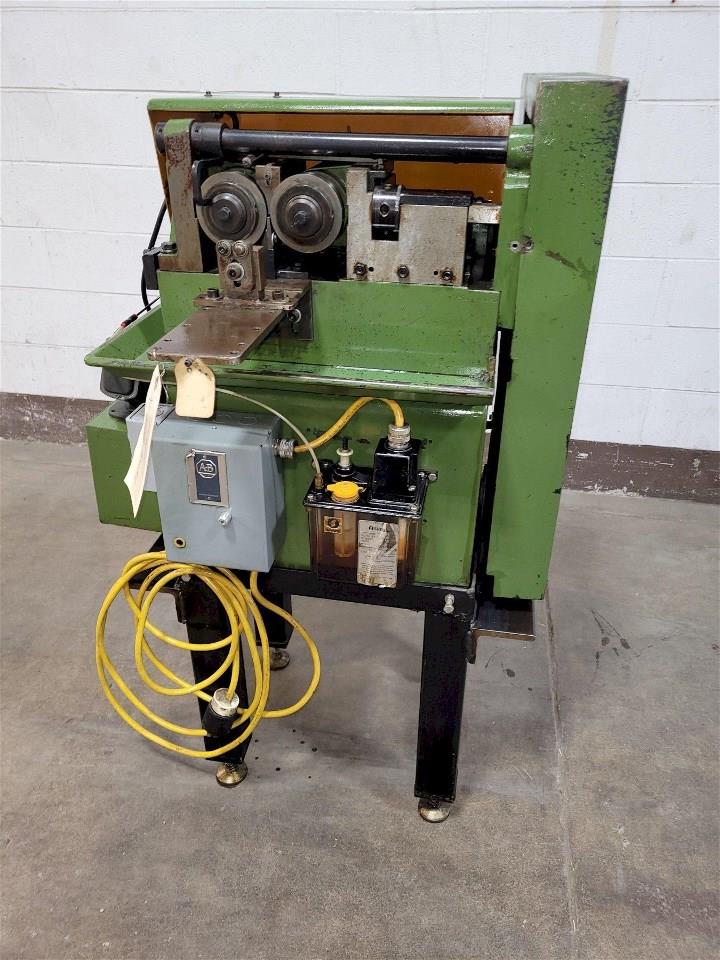

YIEH CHEN YC-3 TWO DIE CAM DRIVEN CYLINDRICAL THREAD ROLLING MACHINE
Brand
Category
Model
YC-3
Stock #
8558
Year
1998
Condition
Used
Location
Not specified
|
* Push Button Start/Stop
* Cam Operated Rolling Slide
* Adjustable Skew
* Coolant Pump and Tank
* Manual Lubrication
* Work Support
Workpiece Range:
Outside Diameter: 0.8 - 12.5 mm / 1/32" - 1/2"
Thread Pitch: 0.4 - 1.5P / 60 - 6 TPI
Max. Length: 30 (40) mm / 1-1/8" (1-9/16")

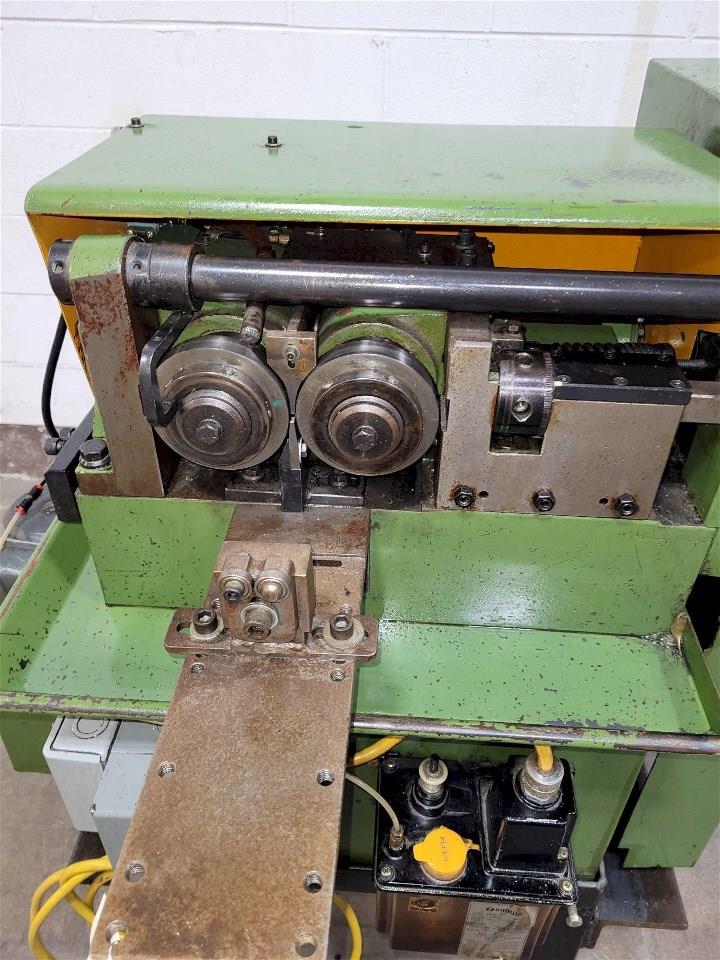

Roll Dies:
Rolling Speed: 40 rpm
Max. Outside Diameter: 100 mm / 3.93?
Inside Diameter: 50.5 mm / 1.98?
Max. Width: 30 (40) mm / 1.18?
Max. Center Distance of Die-Spindle: 130 mm / 5.11?
Min. Center Distance of Die-spindle: 90 mm / 3.5?
Output (Pcs/Min.): 20 - 40
Motor:
For Spindle: 1HP, 3 Phase, 60 Cycle, 220 Volt
For Coolant Pump: 1/8 HP
Machine:
Floor Space: 30? x 36?
Approx. Weight: 395 kg
Location: N.AMERICA
|
