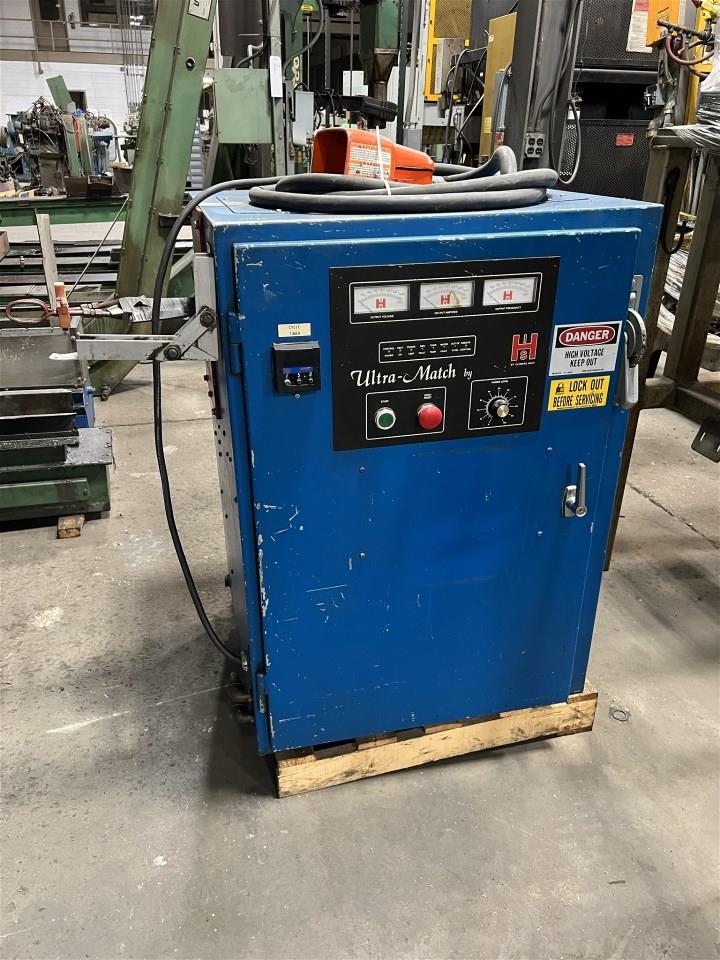

HEATING INDUCTION SERVICES Ultra Match 1-15/40 Induction Heating Machine

Catalog Standard Features and Specifications:

* 220-240 VAC, 3-Phase, 50-60 Hz Power Input
* Simple Operators Control Panel with Analog Meters
* Conservatively Rated Power Components for 100% Continuous Duty Operation
* Free Standing Package (24"D x 30"W x 60"T) or Portable with Wheels option
* Series Tune Power Circuit
* Water Cooled with Quick Disconnect Plumbing Fittings
* Input Pressure Switch, Output Thermal Sensors for Critical Power Component Protection
* Internal Heat Station Standard, Remote Heat Station Available
* Water Cooling Systems are Provided as Options (Refer to the Water Systems Section)

INPUT RATINGS:
VOLTS: 240 VOLTS
KVA: 22 KVA @100% POWER
AMPS: 45 @ 100% POWER
PHASE: 3-PHASE
FREQUENCY: 60HZ

OUTPUT RATINGS:
VOLTS: 10.8-21 VOLTS @COIL
KVA: 10KVA @100% POWER
AMPS: 930 @ 100% COIL
KILOWSTTS: 15 KILOWATTS
FREQUENCY/PHASE: 40 kHZ / 1-PHASE

Location: N.AMERICA
