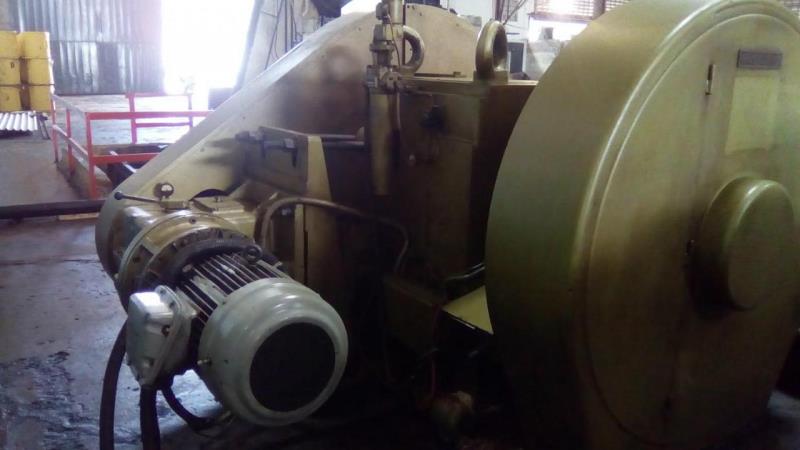

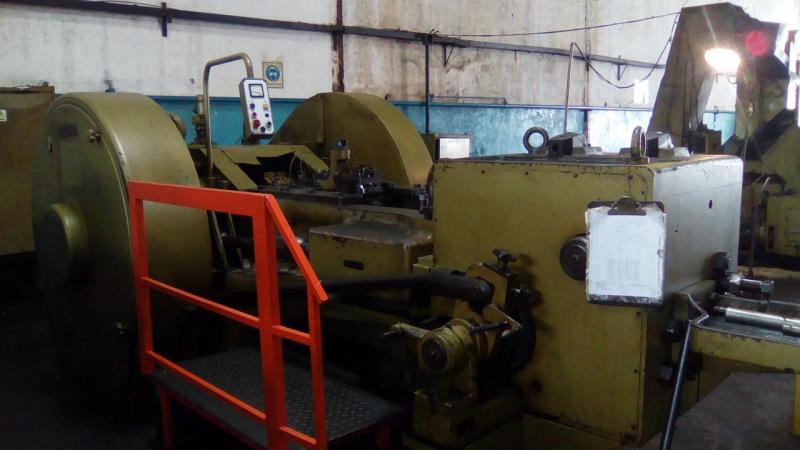

HILGELAND CH-6VA DSSD COLD HEADER

Brand
HILGELAND
Category
Fabricating Machines
Type
Cold Header, Solid Die, 1 Die 2 Blow
Model
CH-6VA
Stock #
7897
Year
1978
Condition
Used

Location

Not specified
REQUEST FINANCING
* PKO

Maximum Wire Diameter-Mild Steel: 20mm
Maximum Wire Diameter-Alloy Steel: 20mm
Range of Wire Diameter: 10 - 20mm
Range of Shank Length: 25 - 180mm
Maximum Length of Wire Blank: 230mm
Production Rate (Variable): up to 56 ppm
Standard Tool Dimensions::
Cutting Bush (max.): 50mm
Solid Die (max.): 90 (110)mm
First Punch: 70mm
Second Punch: 80mm
Main Motor: 40 kW
Electrics: 230V/60hz
Net Weight: 26,000 Kgs.

Location: N.AMERICAN PLANT
