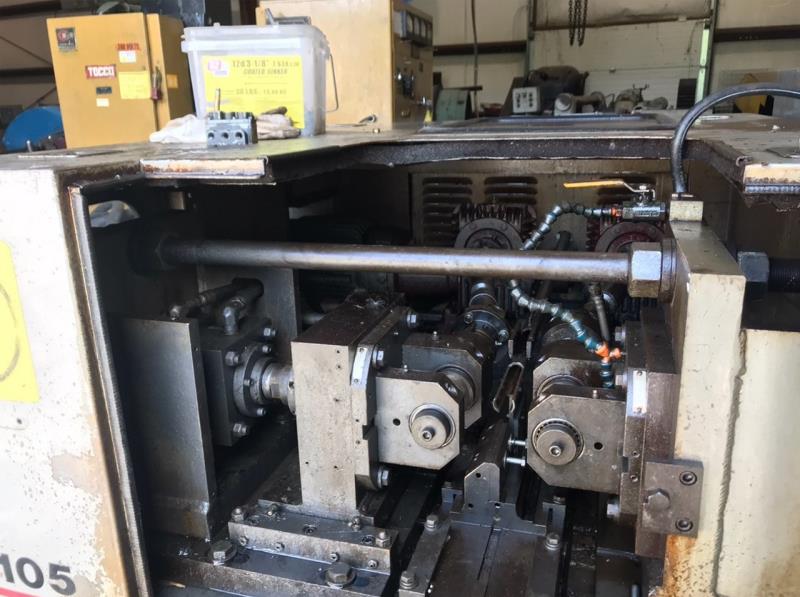

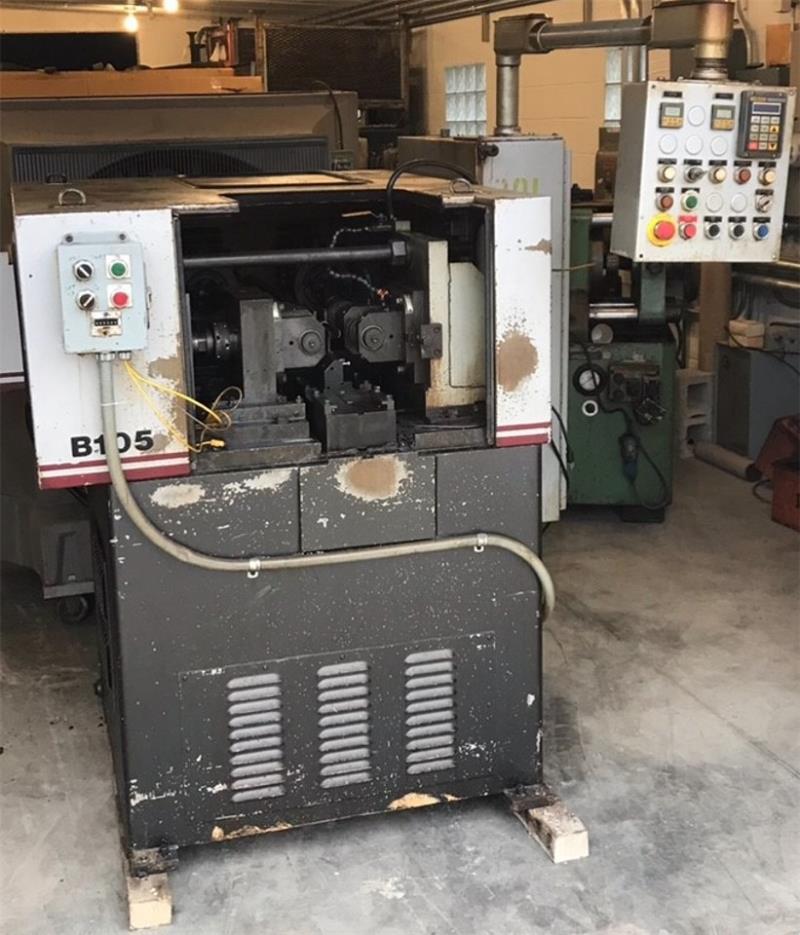

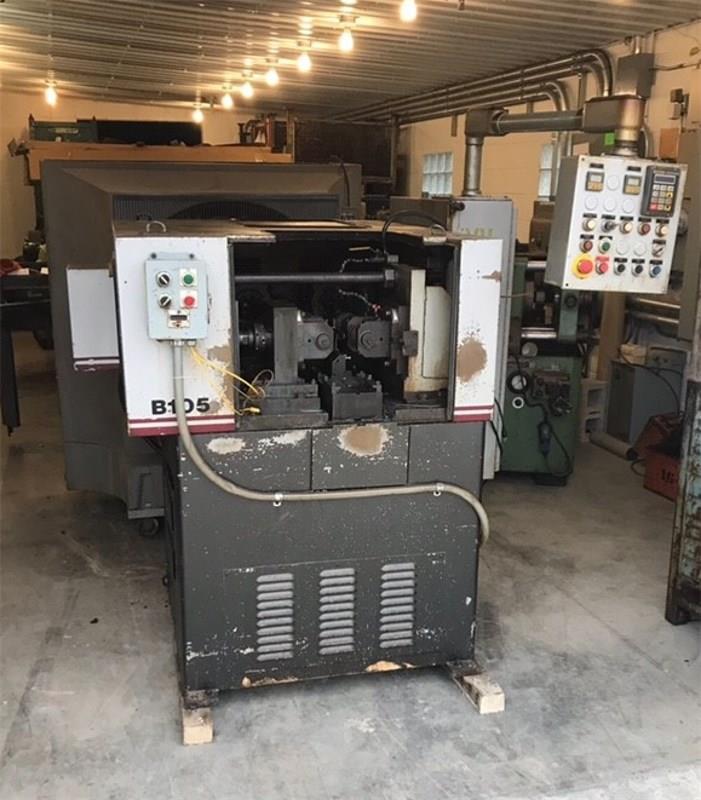

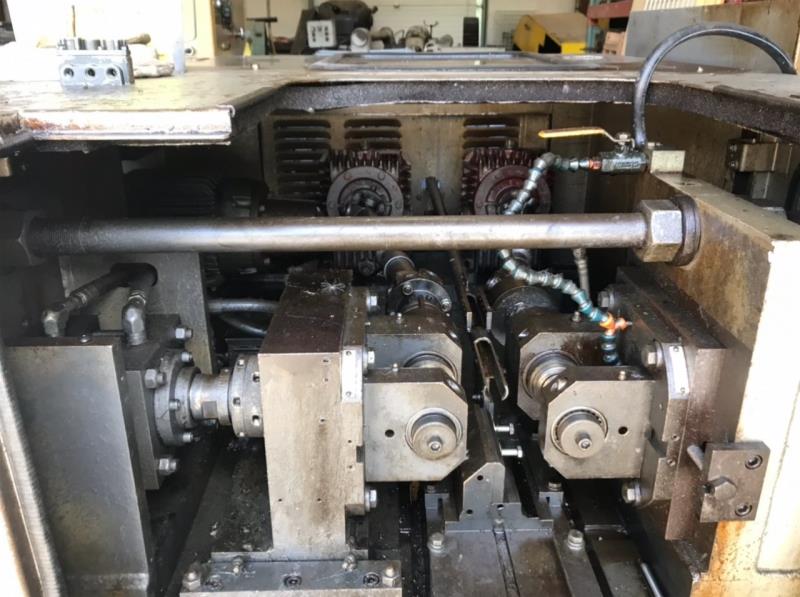

REED B105 TWO DIE CYLINDRICAL THREAD ROLLING MACHINE

Brand
REED
Category
Tube & Pipe Machinery
Type
Threading Machines, Thread Rollers, Cylindrical Die
Model
B105
Stock #
8171
Year
Not specified
Condition
Used

Location

Not specified
REQUEST FINANCING
*In Feed and Thru Feed Capability
*Quick setup features
*Work support tooling on a fixed centerline
*Hydraulically actuated
*Direct drive motor/gearbox ass'y
*AC inverter variable speed control
*Equipped with programmable controller
*Optional sound enclosure guard

Max. Threading Diameter (In-feed): 1-1/2"
Max Thread Dia Thru Feed: 1"
Maximum Thread Length (In-feed): 3"
Thru-Feed: 20'
Spindle Diameters: 1-1/2"
Spindle Drive: 5hp
Die Speeds: 50 - 200 rpm
Max. Diameter of Dies: 5-1/4"
Max Radial Die Load (In Tons): 10
Electrics: 460V/3/60
Weight,approx: 3,000 lbs.
Floor space, approx.: 68"L x 68"W

Location: N.AMERICAN PLANT
