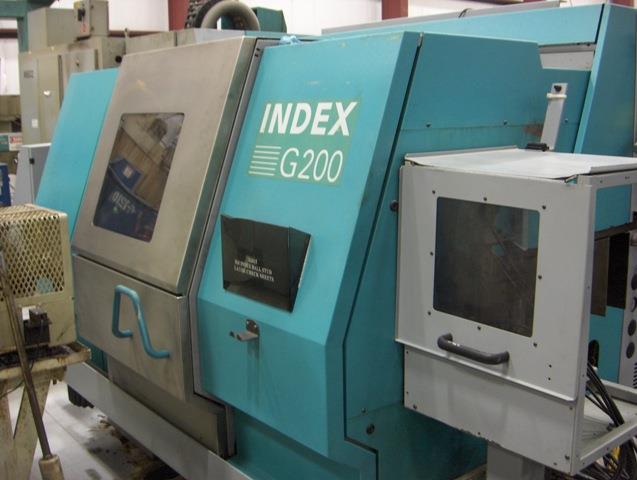

INDEX G200 Turn-Mill Center
Brand
Category
Type
Model
G200
Stock #
8618
Year
2002
Condition
Used
Location
Not specified
|

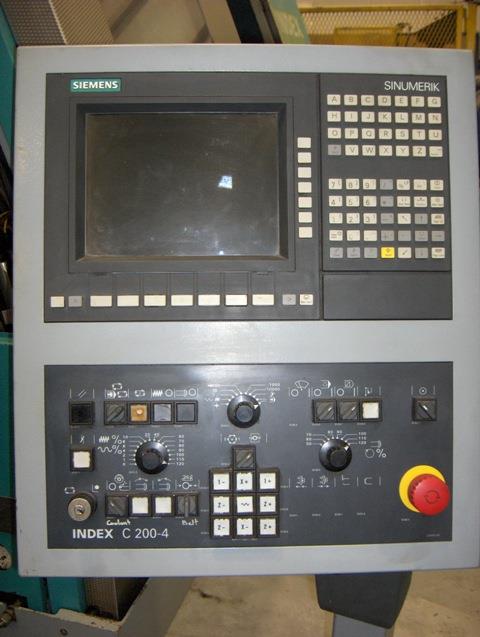

CONTROL: Index C-200-4 CNC (IDENTICAL TO SIEMENS 840C)

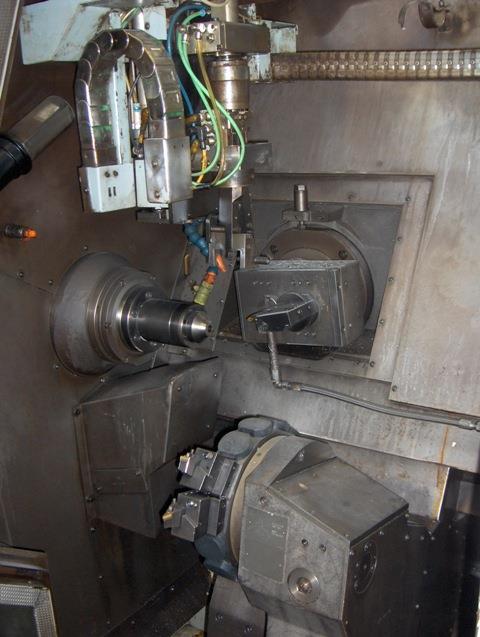

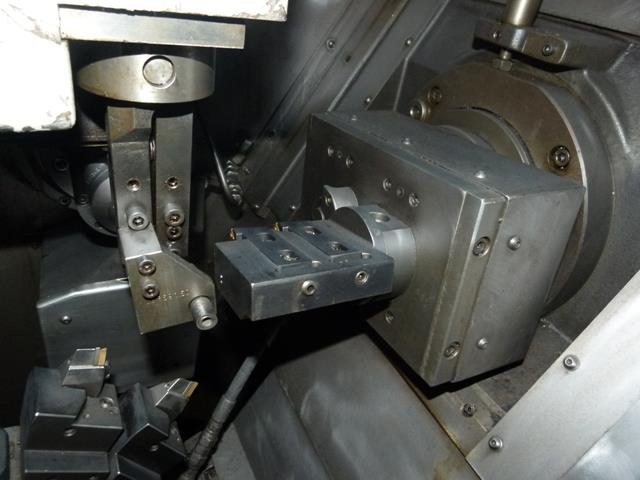

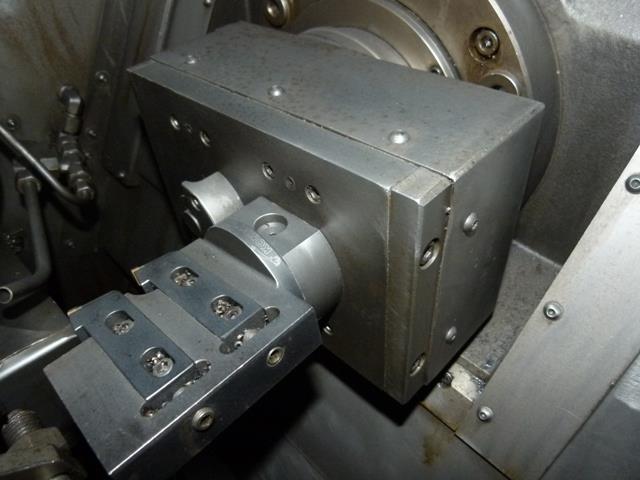

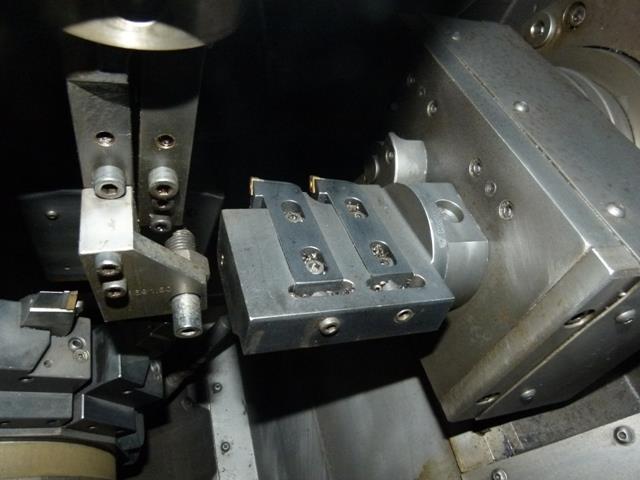

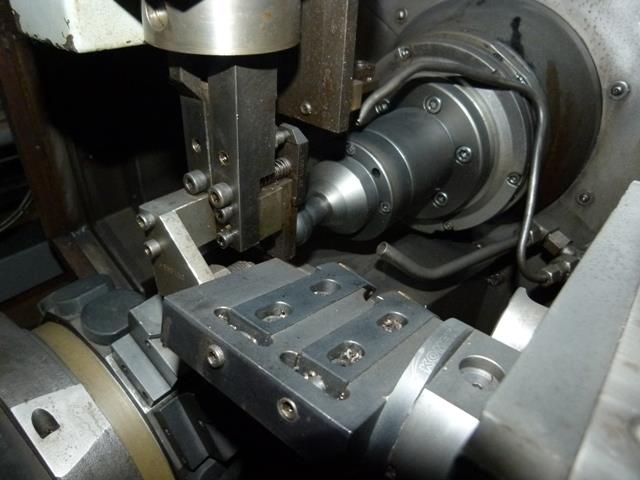

TURRET HEAD: 14 TOOL STATIONS / MOUNTED ON #2 RIGHT-HAND SLIDE ALSO AVAIL -- ADDITIONAL: STACE ALLEN COLLET CHUCK WITH LOCATOR GANTRY LOADING SYSTEM HINGED BELT CHIP CONVEYOR TORIT DRYFLO OIL MIST COLLECTOR MODEL DMC-D1 COOLANT MIST EXTRACTION AND FILTER SYSTEM VALENITE 767 GAGING SYSTEM WITH LCD DISPLAY SPECTRUM FEEDER CONVEYOR SYSTEM WORKING RANGE: TURNING LENGTH: 400mm / 15.75? SWING DIAMETER: 420mm / 16.54? SPINDLE: D60 NOSE DIAMETERS: 140mm / 5.5? O.D. / 85mm / 3.35? I.D. BAR DIAMETER: 60mm / 2.36? MAX. SPEED: 5000 RPM MAX. FRONT BEARING: 100mm / 4? POWER: 20/29 KW ELECTRICS: 400V/3PH/60HZ WEIGHT: 5,200 KG / 11,440 LBS. Location: N.AMERICA |
