Govama 3R-21 TRC Series Model 3R-21 TRC (21Ton) 3-Die Cylindrical Thread Rolling Machine for Hot Rolling of Railway Bolts
Brand
Not specified
Category
Model
3R-21 TRC Series
Stock #
NEW
Year
Not specified
Condition
Used
Location
Not specified
|

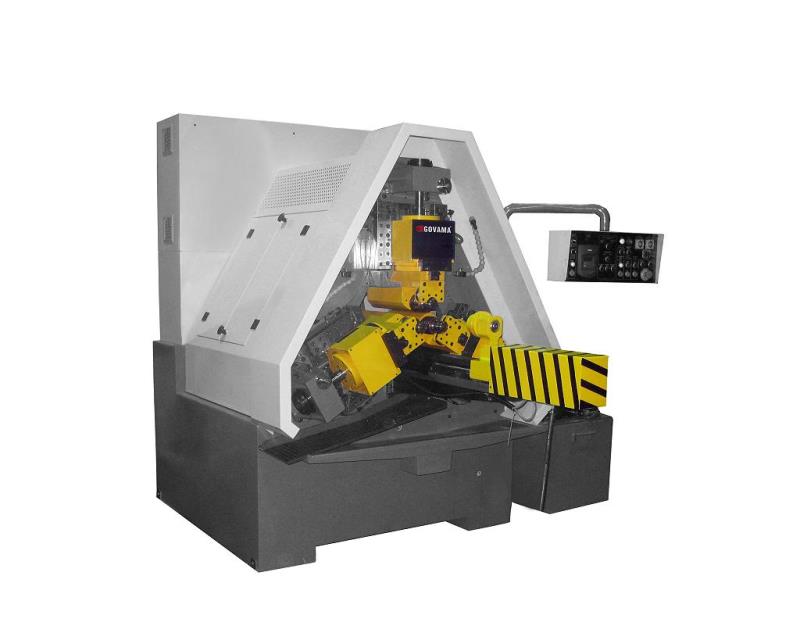

> The 3R-21 TRC series of hydraulic rolling machines

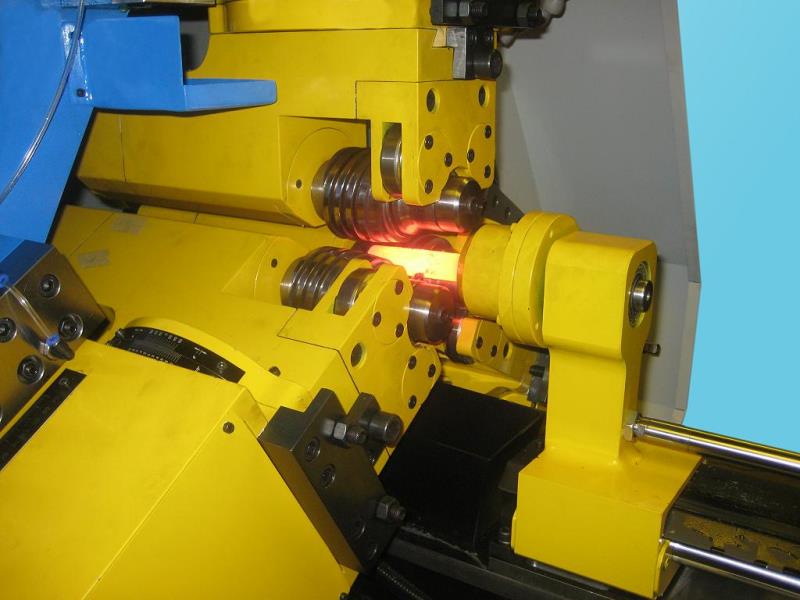

are equipped with three rolling spindles, & with three moving heads. > All machines equipped with PLC controls and AC Drives. > The machine have radial die loads up to 21 Ton (210 kN) > The 3R series machines are specially designed for rolling of Railway bolts in hot form using an induction heater. Rolling Force (kN): 10-210 Speed Range (rpm): 47.5-123.5 Min-Max Die Dia (mm): 80-140 Die Spindle Dia (mm): 40 Max Die Length (mm): 80 Workpiece Dia (mm): 14-90 Max Pitch (mm): 2 Swivel Angle: +/- 8Deg Main Motor (kW): 15 Total Power (kW): 19.3 Weight (kgs): 2500 Location: |
