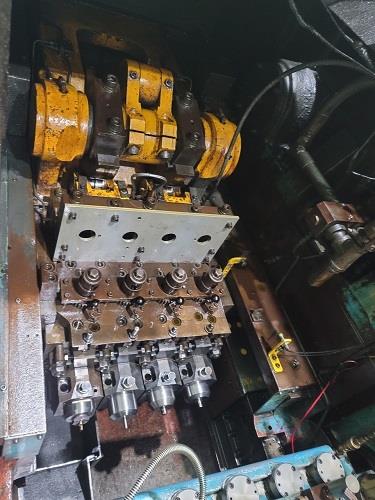

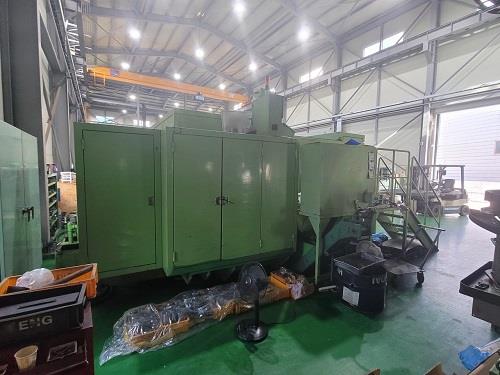

SAKAMURA HBP-440SSLM 4DIE PROGRESSIVE HEADER

Brand
SAKAMURA
Category
Fabricating Machines
Type
Headers, Progressive, 4 Die
Model
HBP-440SSLM
Stock #
8709
Year
Not specified
Condition
Used

Location

Not specified
REQUEST FINANCING
FORGING STATIONS: 4 STATION
BOLT SIZE (M): 12MM (21AF)
OPEN-UP DIA: 27MM
SHANK LENGTH: 18 - 150MM
FORGING LOAD: 140,000 KGF
CUT-OFF DIA: 18MM
CUT-OFF LENGTH: 25 - 175MM
CUT-OFF KNIFE SIZE: 60 x 25MM
CUT-OFF QUILL SIZE: 55 x 95MM
PUNCH DIA: 75 x 145MM
DIE DIA: 96 x 180MM
CENTER DISTANCE BETWEEN DIES: 108MM
P.K.O STROKE: CS 25MM
K. O STROKE: IC 155MM
RAM STROKE: 250MM
CRANK SHAFT DIA: 260MM
MAX. RPM: 150 Pcs/Min
MAIN MOTOR: 45 (6) KW
MACHINE DIMENSIONS: 5.3L x 3.0W x 2.5H
MACHINE WEIGHT: 35,000 KG

Location:
No files or videos to display

Want to request a quote from the owner of this listing?
