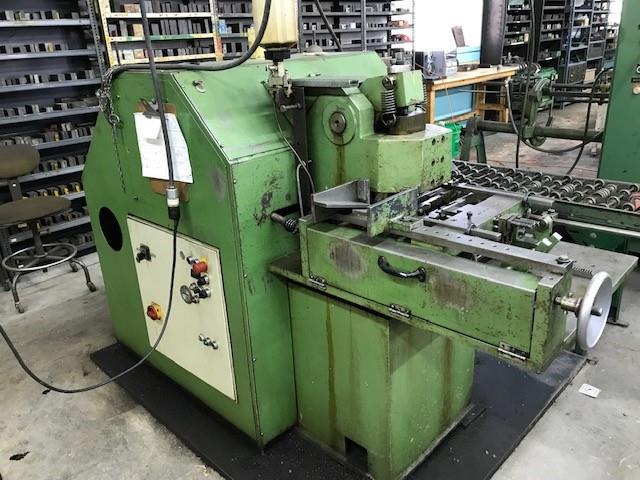

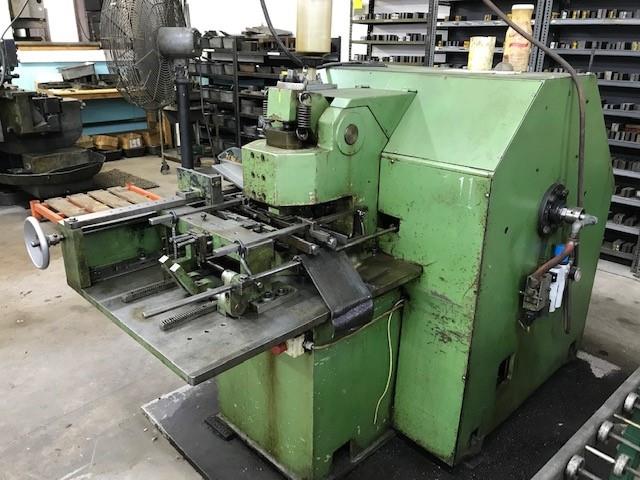

* For heading and extruding long rods

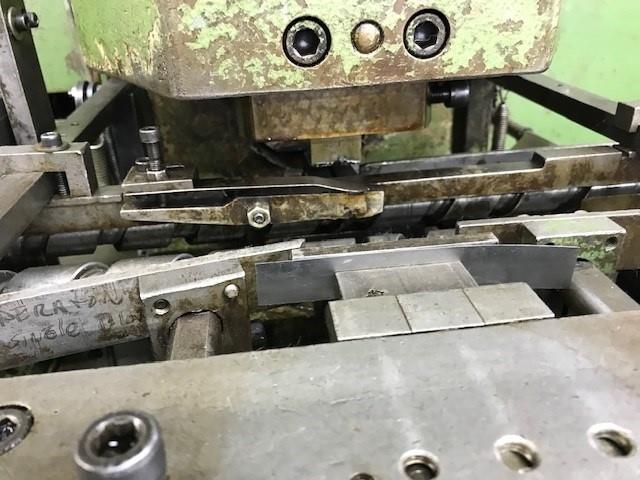

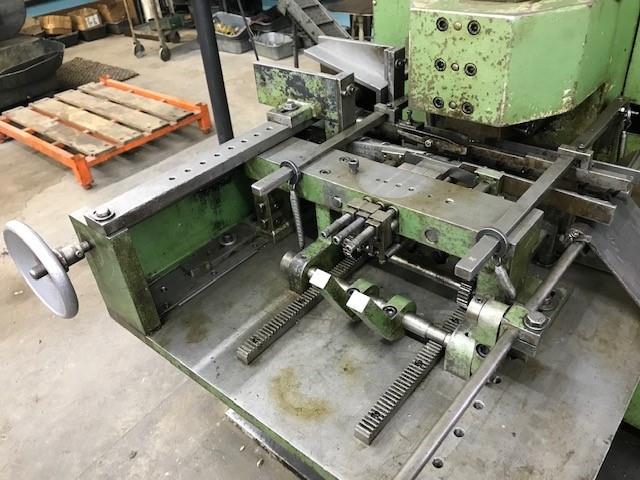

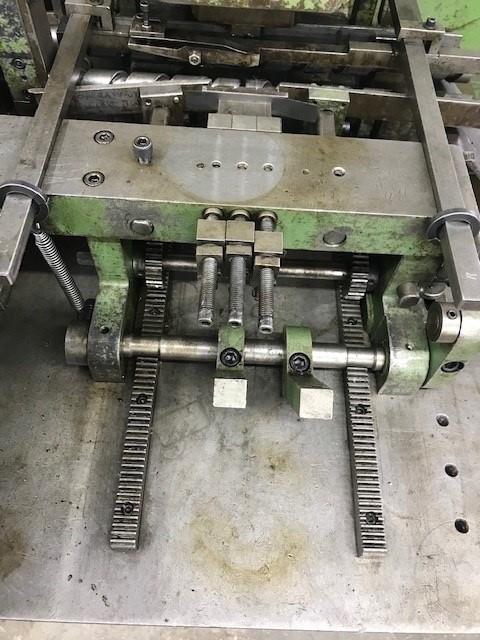

* Can be run as single blow or double blow * Parts can be rerun through machine for double end work and secondary operations such as pinch pointing. * Unique transport spindle that picks up the blanks from a rack feed and transports them across the machine and drops the parts into a pan Max. wire dia at one station: 8mm (5/16") Max. wire dia at two stations: 6mm (1/4") Blank length underhead: 100-400mm (4-16") Output speed: 70-80ppm Length of die: 50mm Heading punch at one station: 50mm dia X 80mm dia Heading punch at two stations: 36mm dia X 80mm dia Effective stroke: 50mm Weight,approx: 8,800 lbs Floors space, approx: 4'Wx8'L Location: N.America |
