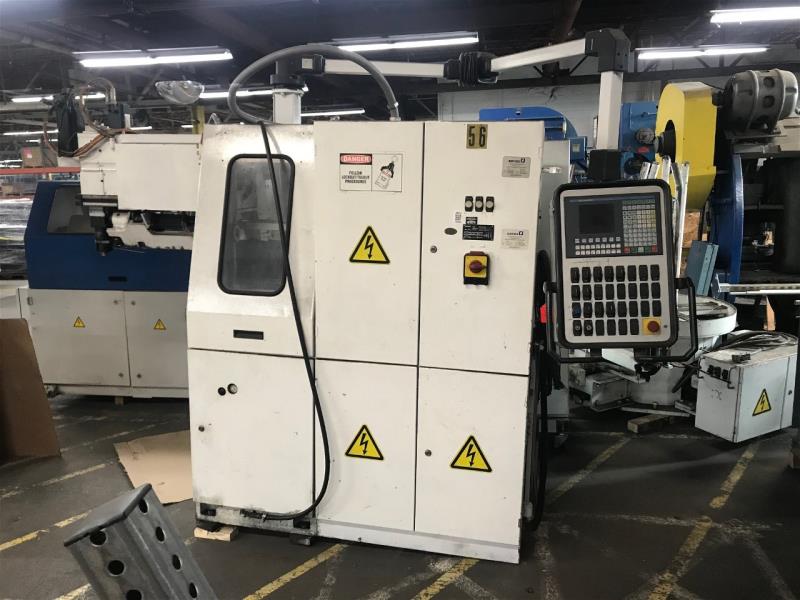

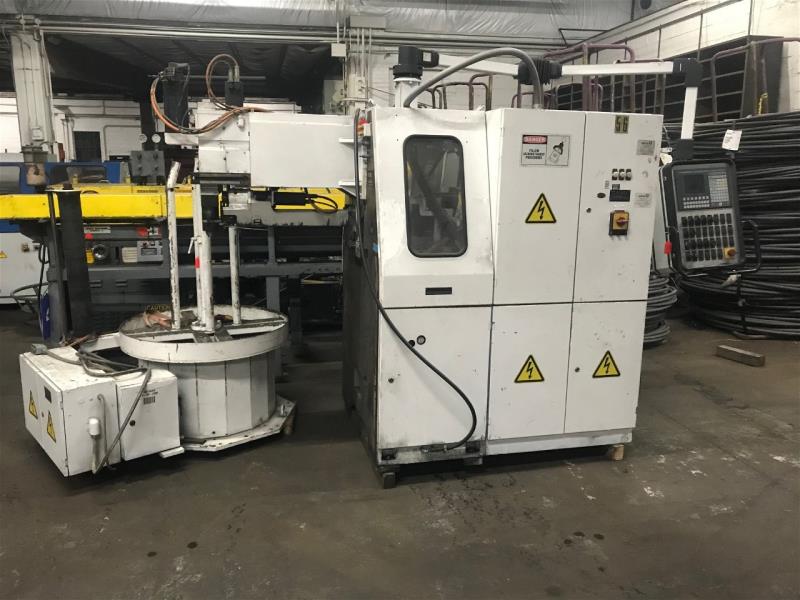

WAFIOS FTU-3.3 CNC Spring & Wire Forming Machine
Brand
Category
Type
Model
FTU-3.3
Stock #
8117
Year
1994
Condition
Used
Location
Not specified
|

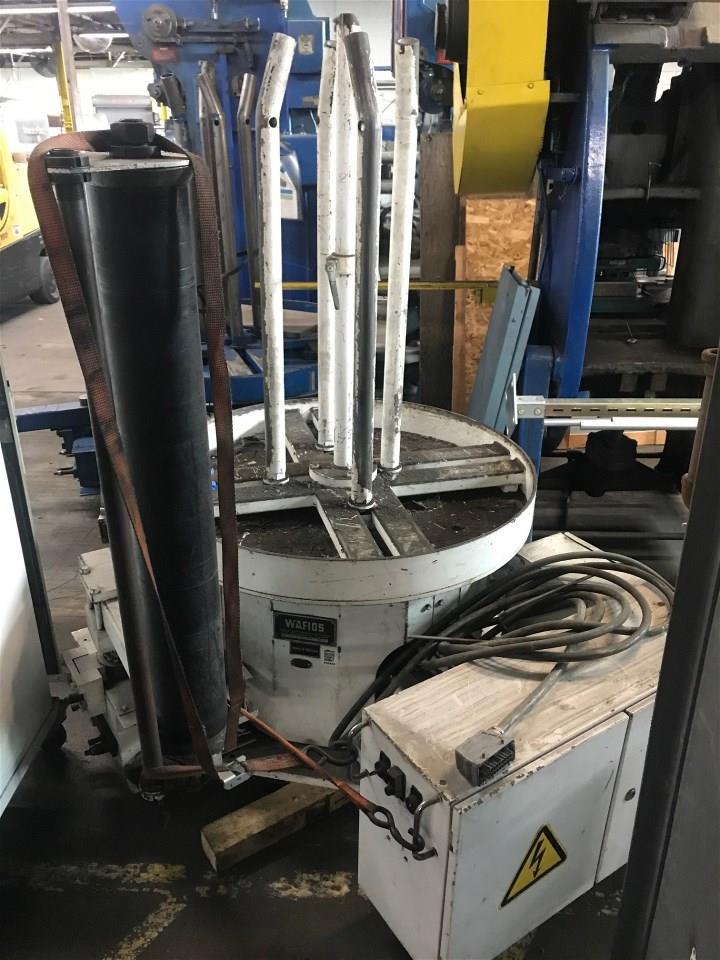

* Wafios AHL-41D wire decoiler
CNC Spring and wire forming for the production of all types of springs
Wire diameter range: 0.5 - 3.0 mm
Max winding spindle path (=approx spring length): 100mm
Max winding mandrel dia(=approx spring inner dia): 30mm
Length of peripheral staring shank, apprx: 120mm
Wire feed length: unlimited
Output: 80 pieces per minute
Wire feed speed: 40m/minute
Extended loop springs with extended loop device:
w/o transport, working length uploaded up to apprx: 120mm
w/transport, length of the starting loop up to apprx: 120mm
Machine weight, approx.: 2800 kgs
Machine dims: 2300 x 2500 x 2400 mm
Location: N. American Plant
|
