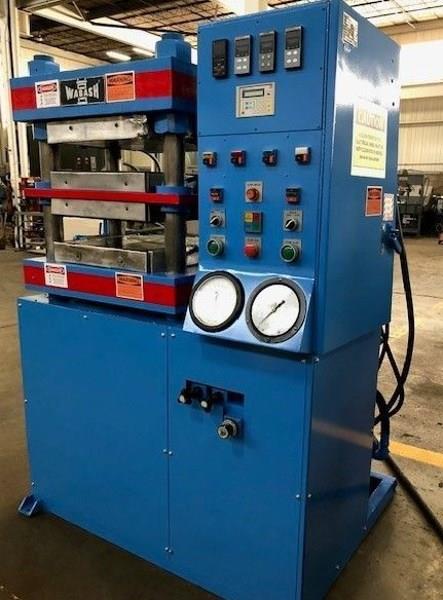

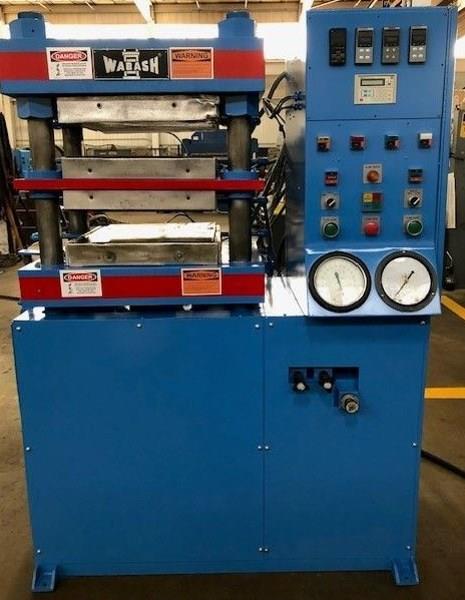

WABASH 150-18-2TM 4-POST HYDRAULIC PRESS

* Controls: Pushbutton operation with stroke & pressure control * Dual palm buttons * Selector switch for manual or semi-automatic operation * (4) temperature controllers * Low & high pressure gauges Capacity: 150 Ton Type: 4 post, upstroke No of openings: 2 Max Stroke: 8" Daylight Opening, max: 21" Distance between 3" dia. posts: 22" L-R x 11" F-B Platen area (nominal): 22" L-R x 22" F-B Overall dimensions of platen: 1" L-R x 22" F-B Daylight opening between hot plates (2): 4" max/ea Hot plates (4): 18" L-R x 18" F-B x 2" thick : (electrically heated - water cooled) Insulation (2): 18" L-R x 18" F-B x 1" thick Main ram diameter (1): 12"/5.5" @ 2650 PSI - Floor to top of moving platen: 44" Power unit (base of press): (2) hydraulic pumps : Driven by 5 HP 1750 RPM 230/460/3/60 motor Weight approx.: 8,000 lbs. Overall dimensions approx.: 60" L-R x 48" F-b x 74" H Location: N.AMERICA
