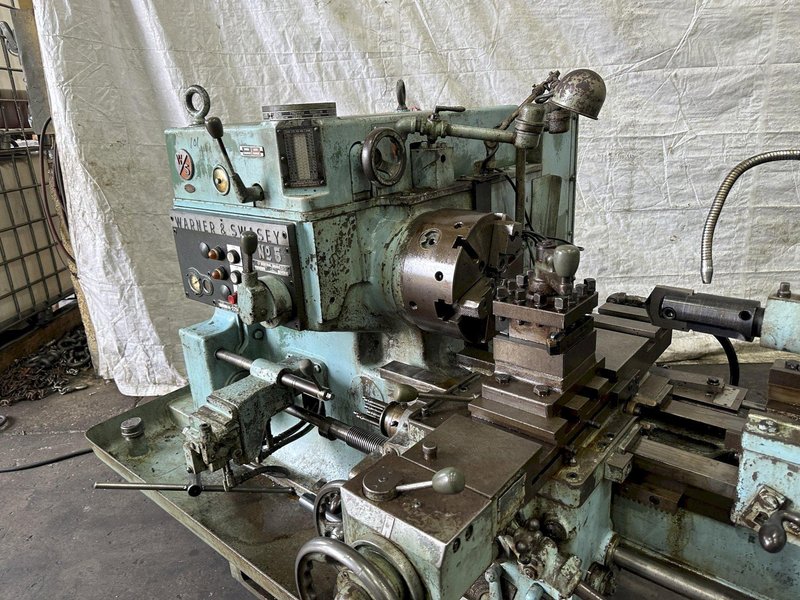

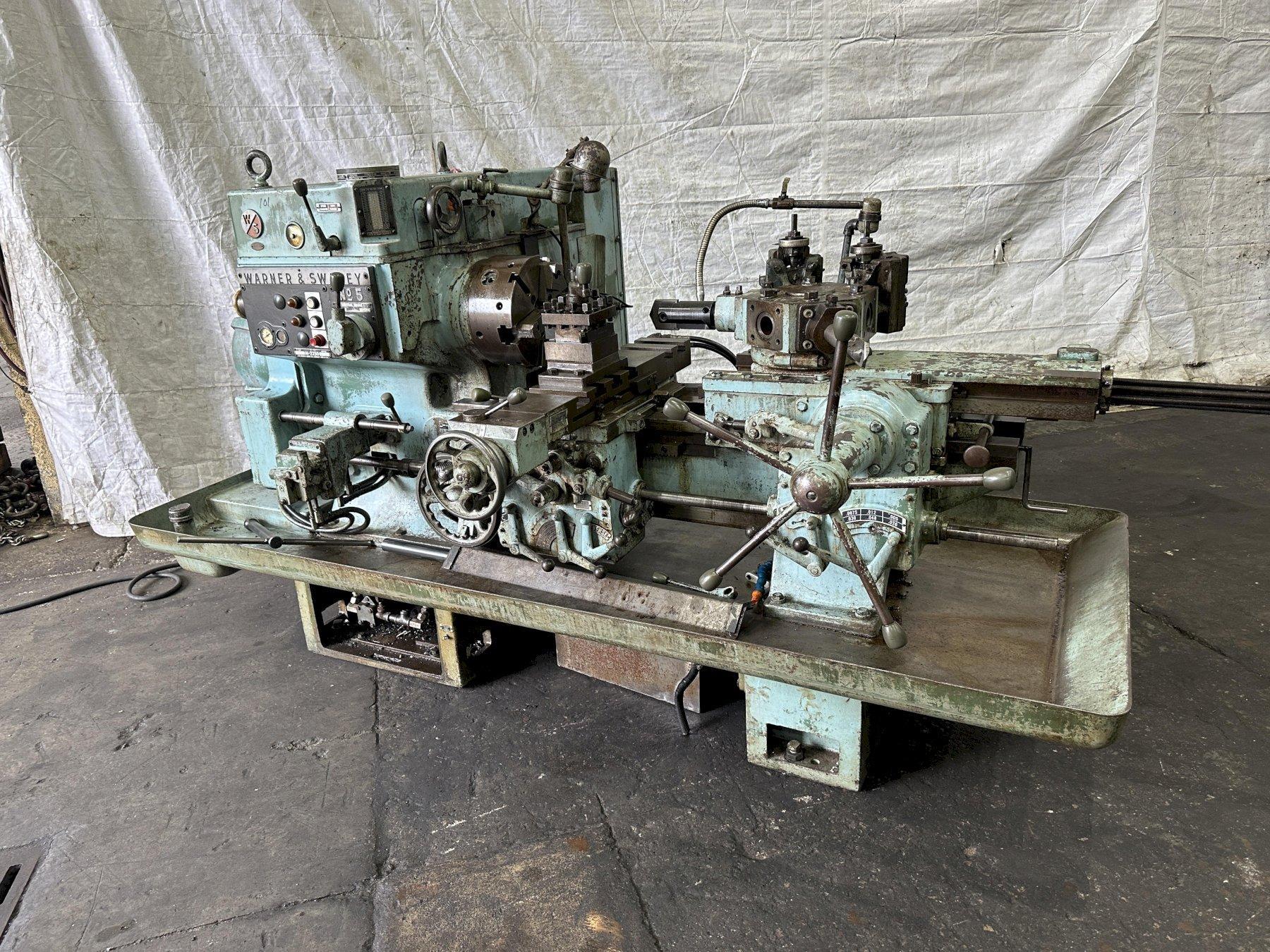

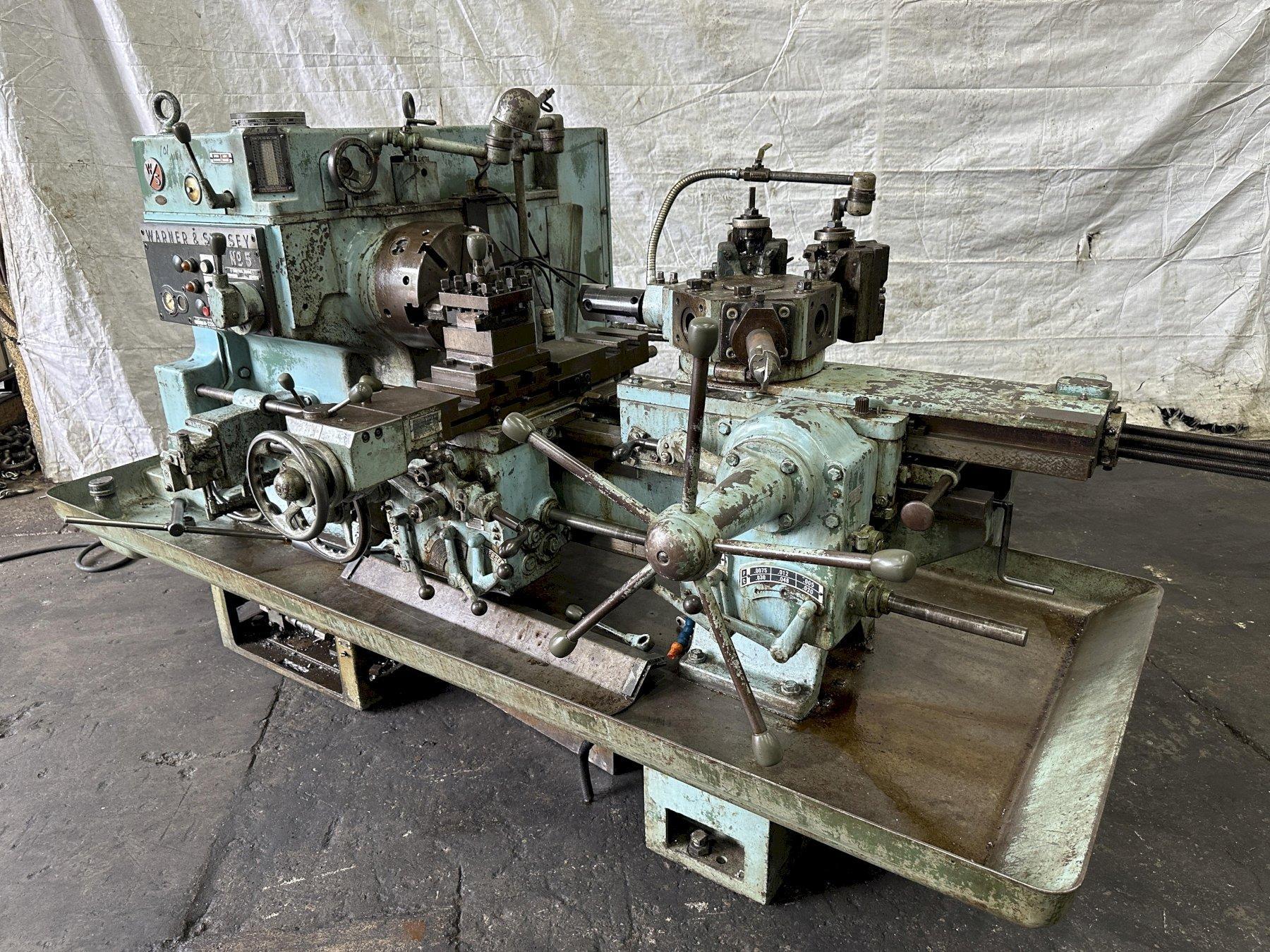

#5 WARNER & SWASEY MODEL 2250 TURRET LATHE: STOCK #78922

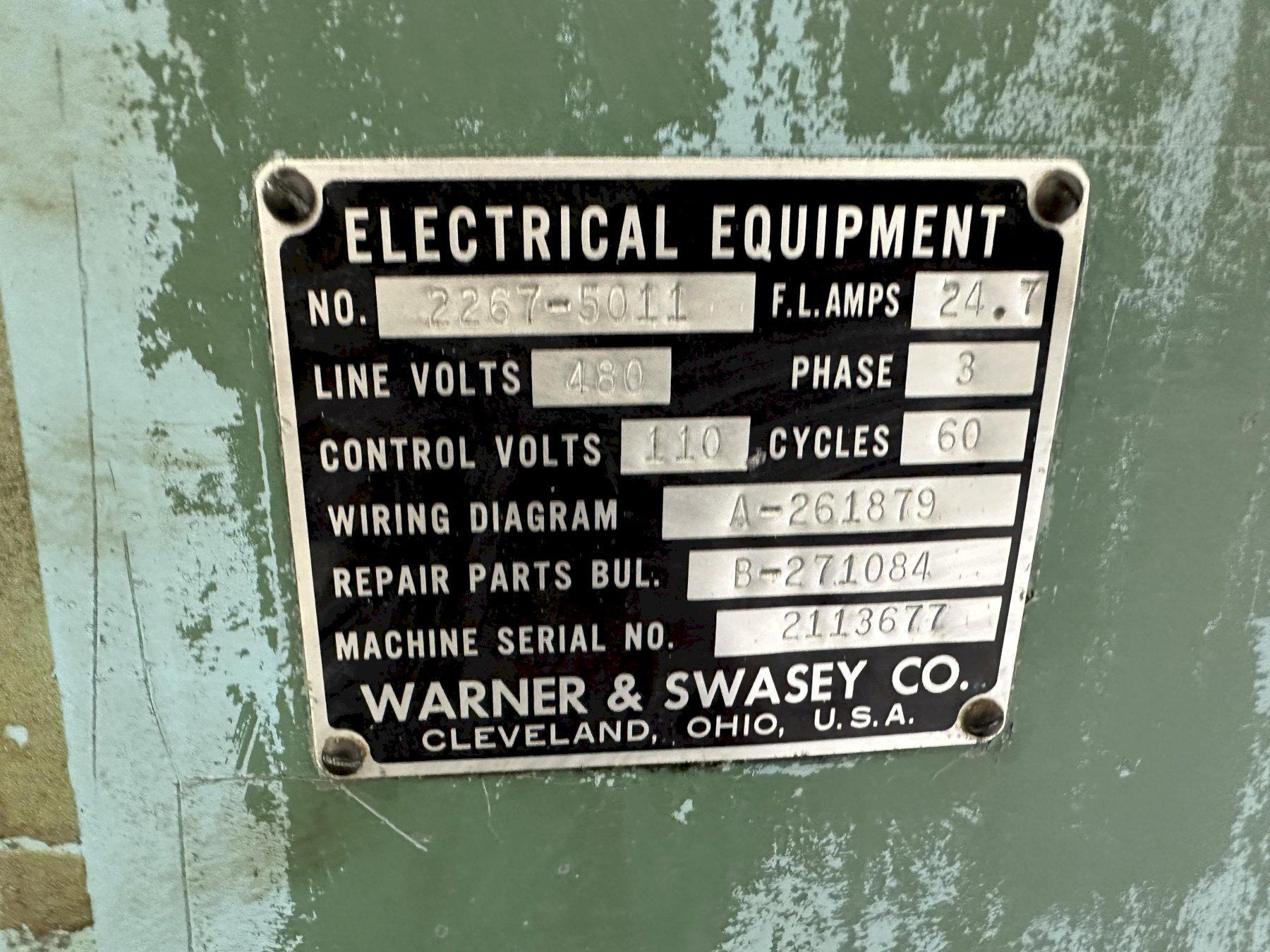

SERIAL .............................. 21136775

MODEL ............................... M2250

SWING OVER BED ...................... 20"

SWING OVER CROSS SLIDE .............. 10-1/4"

SPINDLE NOSE TO TURRET FACE (MAX.) .. 36-1/2"

HOLE THRU SPINDLE ................... 2-7/8"

SPINDLE SPEEDS ...................... (24) 25 TO 1556 RPM

CARRIAGE LONGITUDINAL FEEDS ......... (6) .0023 TO .022 IPR

CARRIAGE CROSS FEEDS ................ (6) .0015 TO .014 IPR

TURRET FEEDS ........................ (6) .003 TO .024 IPR

CHUCK ............................... 12" 3 JAW

TAPER ATTACHEMENT ... YES

LEAD ON THREADING .... YES

CHIP PAN ............................ YES

COOLANT ............................. YES

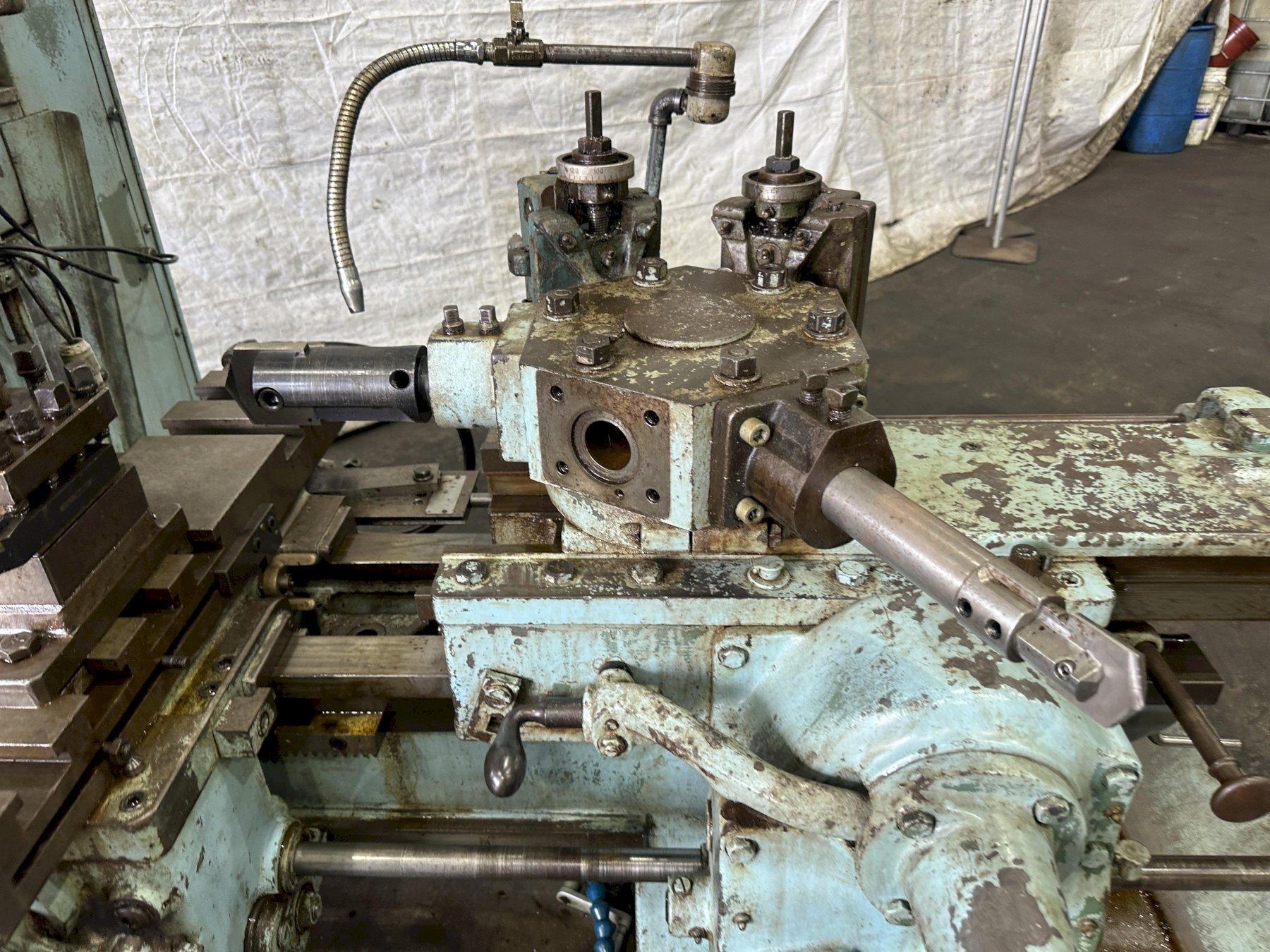

TOOLING (FLANGE TOOL HOLDER ......... 2

TOOLING (ADJUSTABLE SLIDE) .......... 2

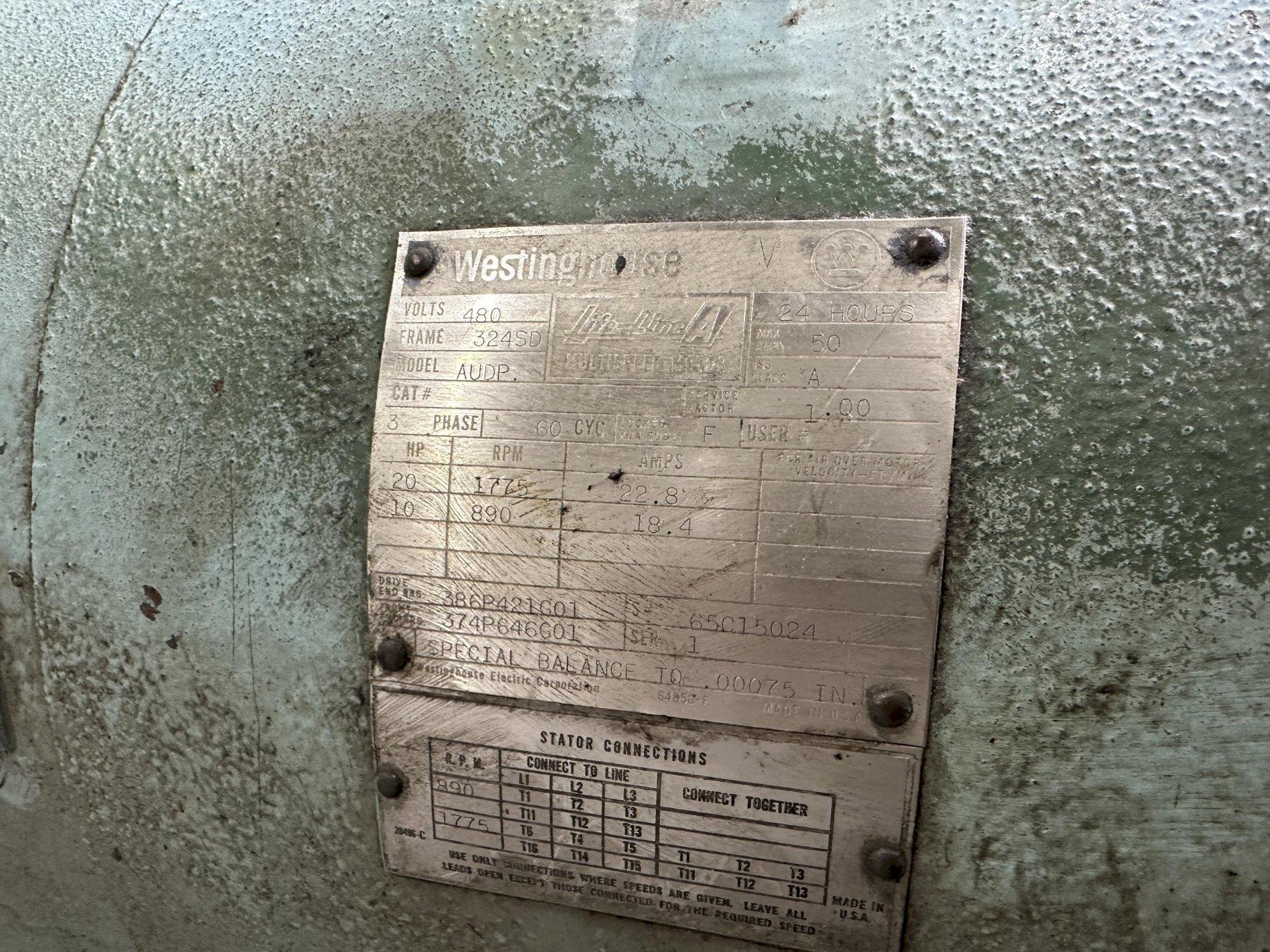

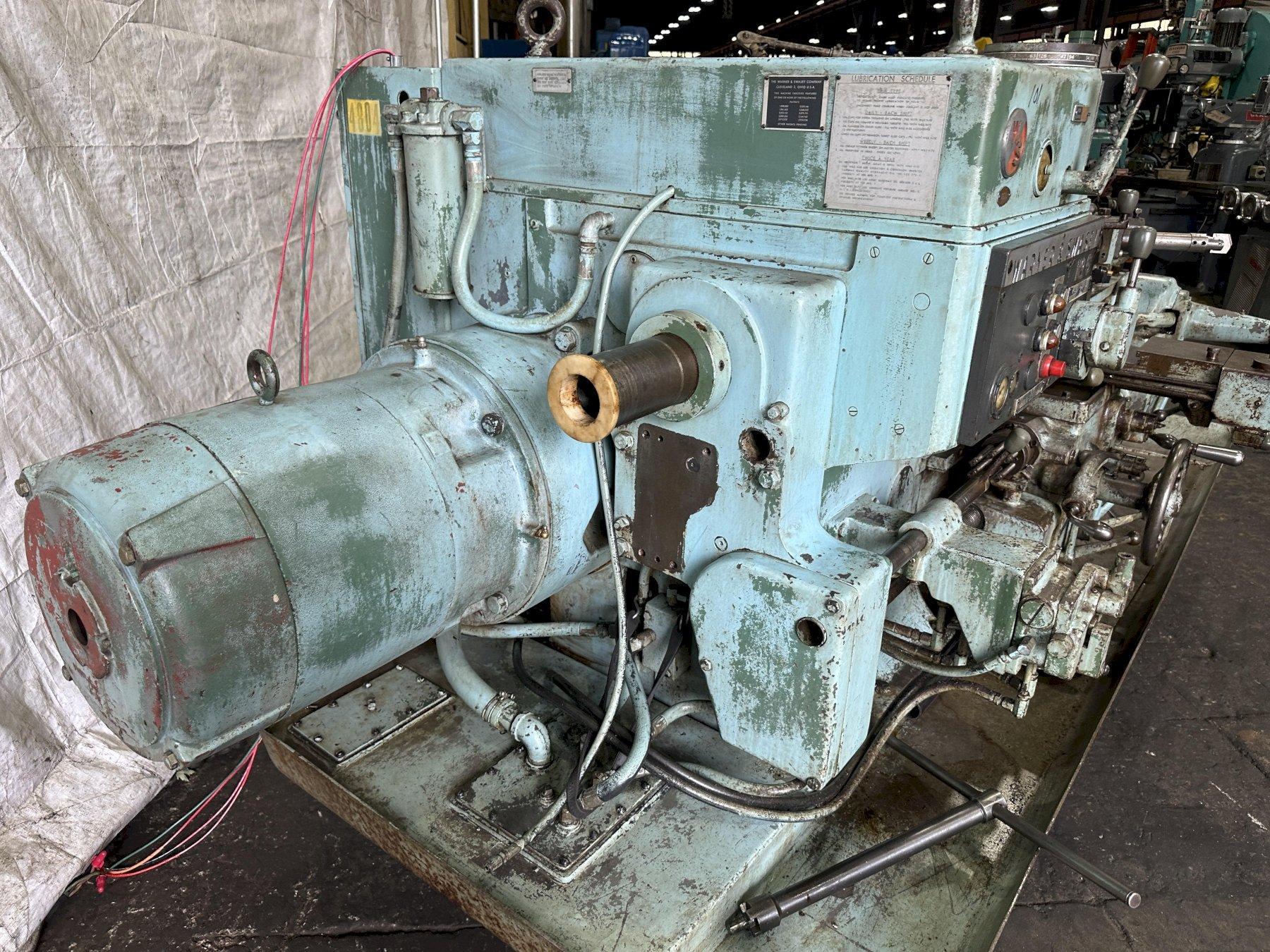

SPINDLE MOTOR (2-SPEED) ............. 20/10 HORSEPOWER
