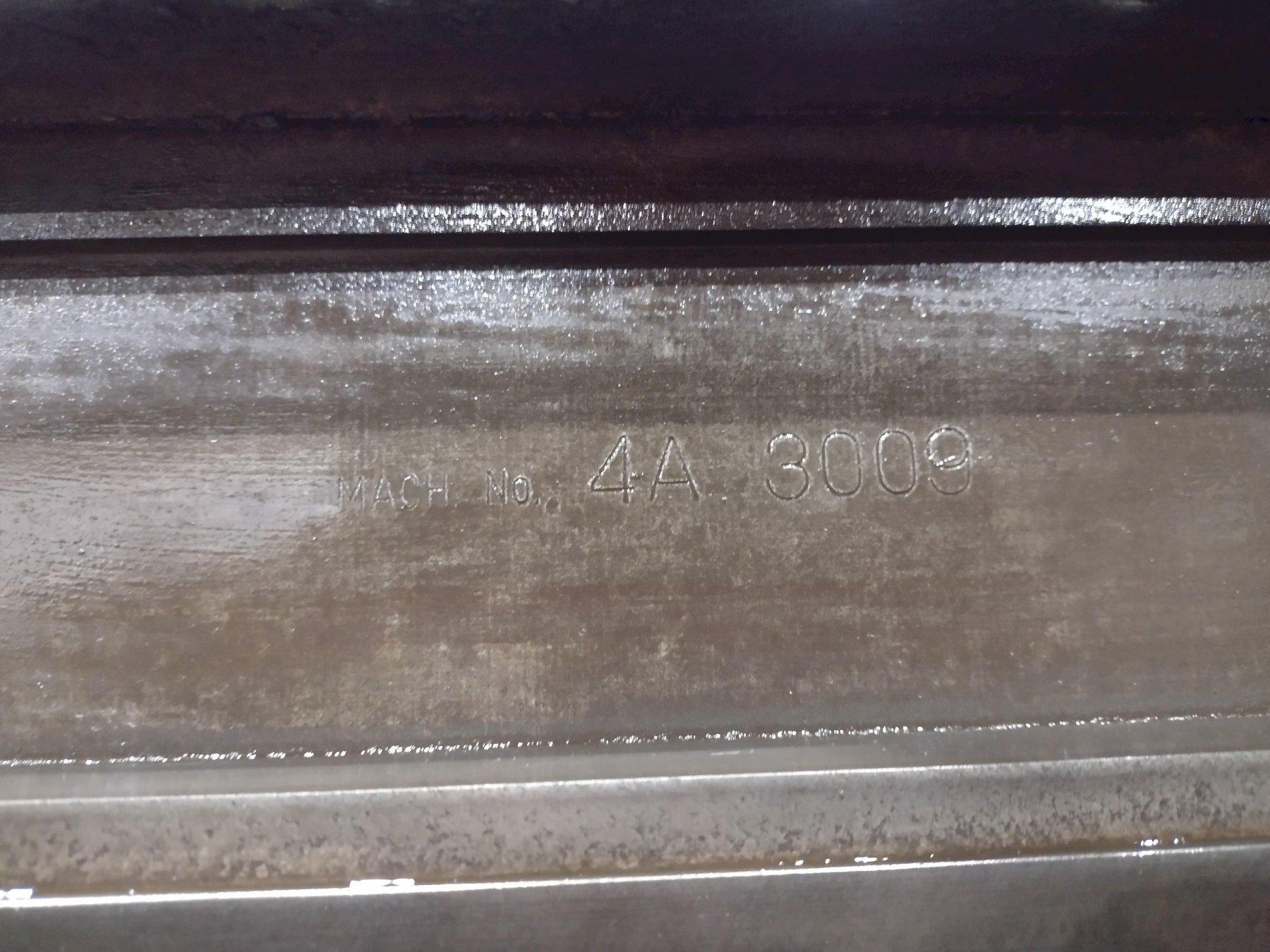

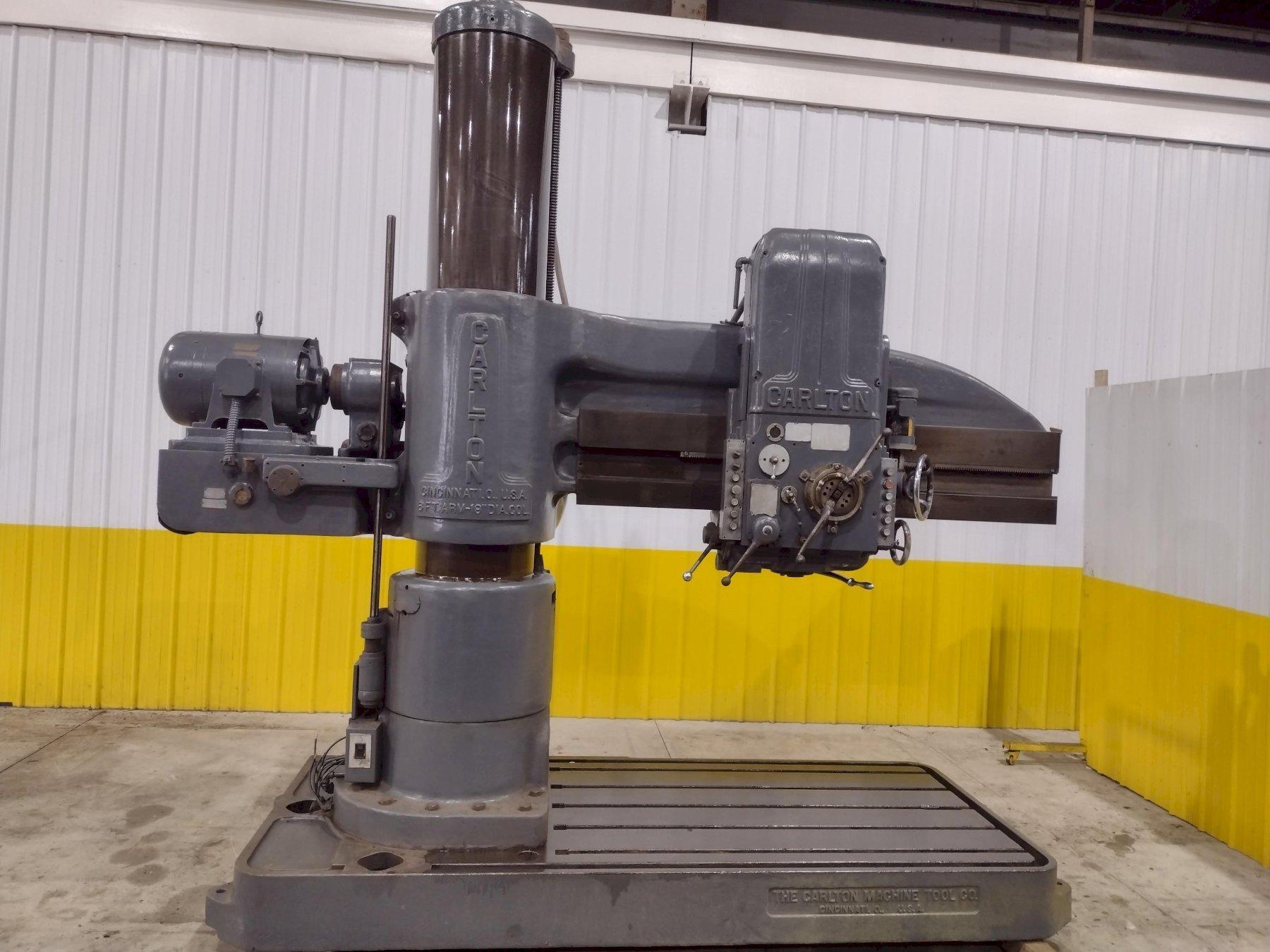

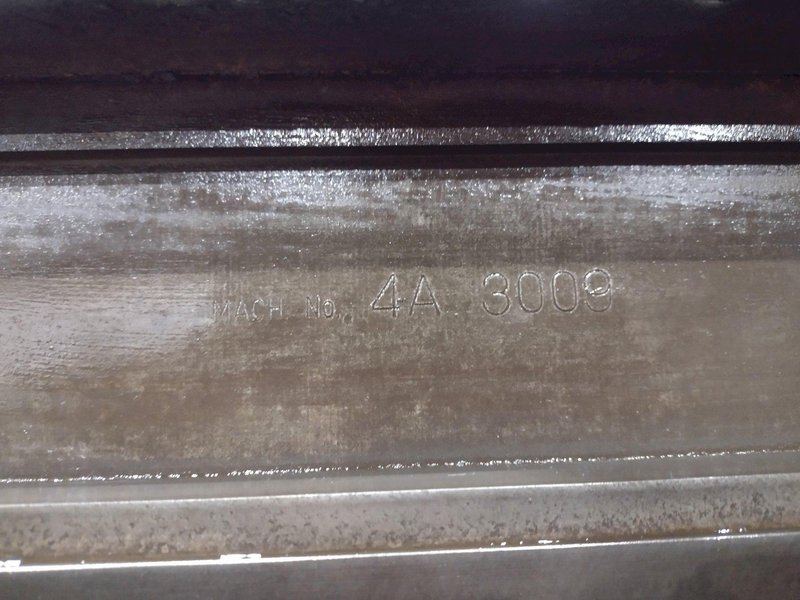

SERIAL ....................... 4A-3009

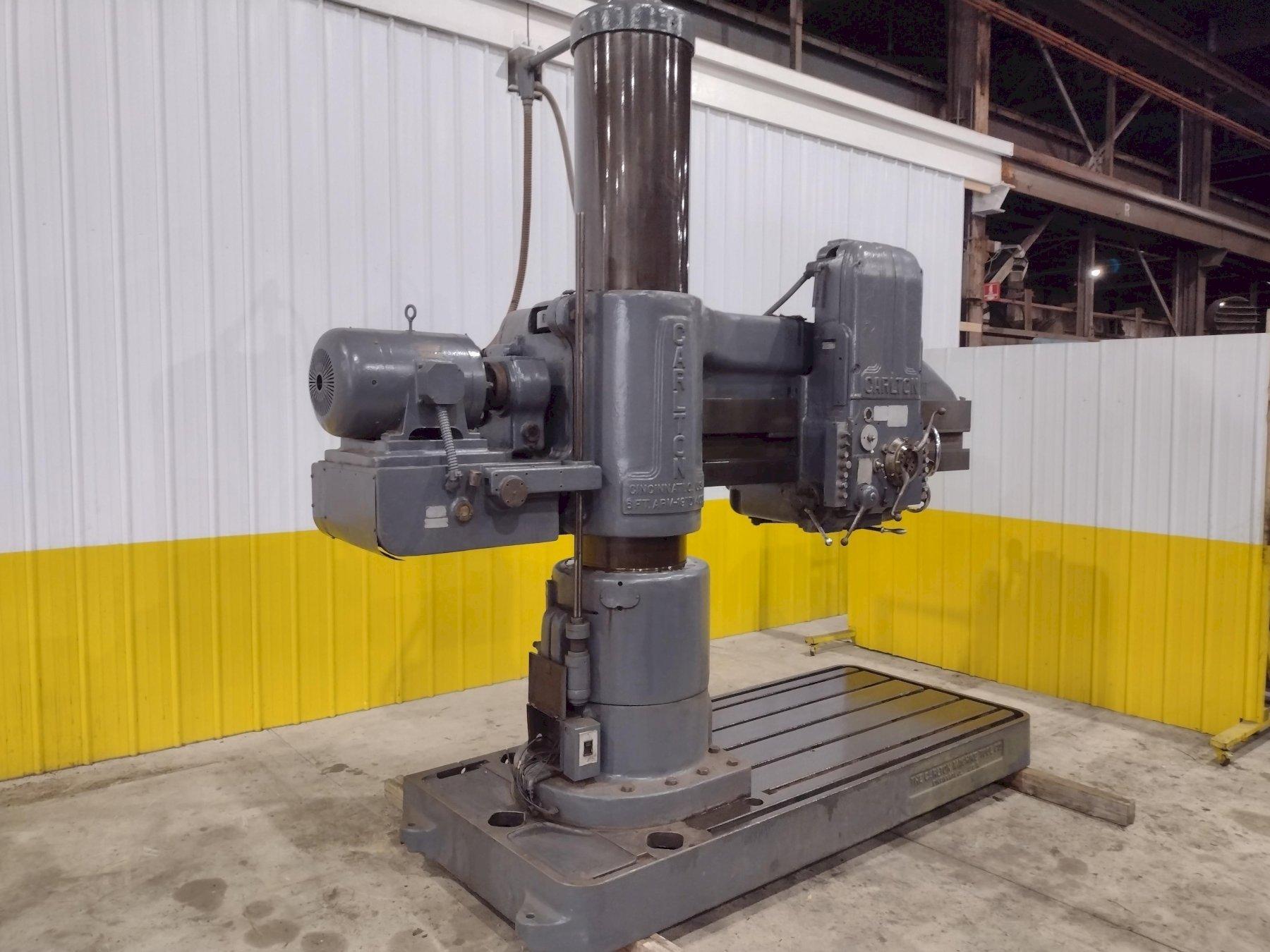

MODEL ........................ 4A
LENGTH OF ARM ................ 72"

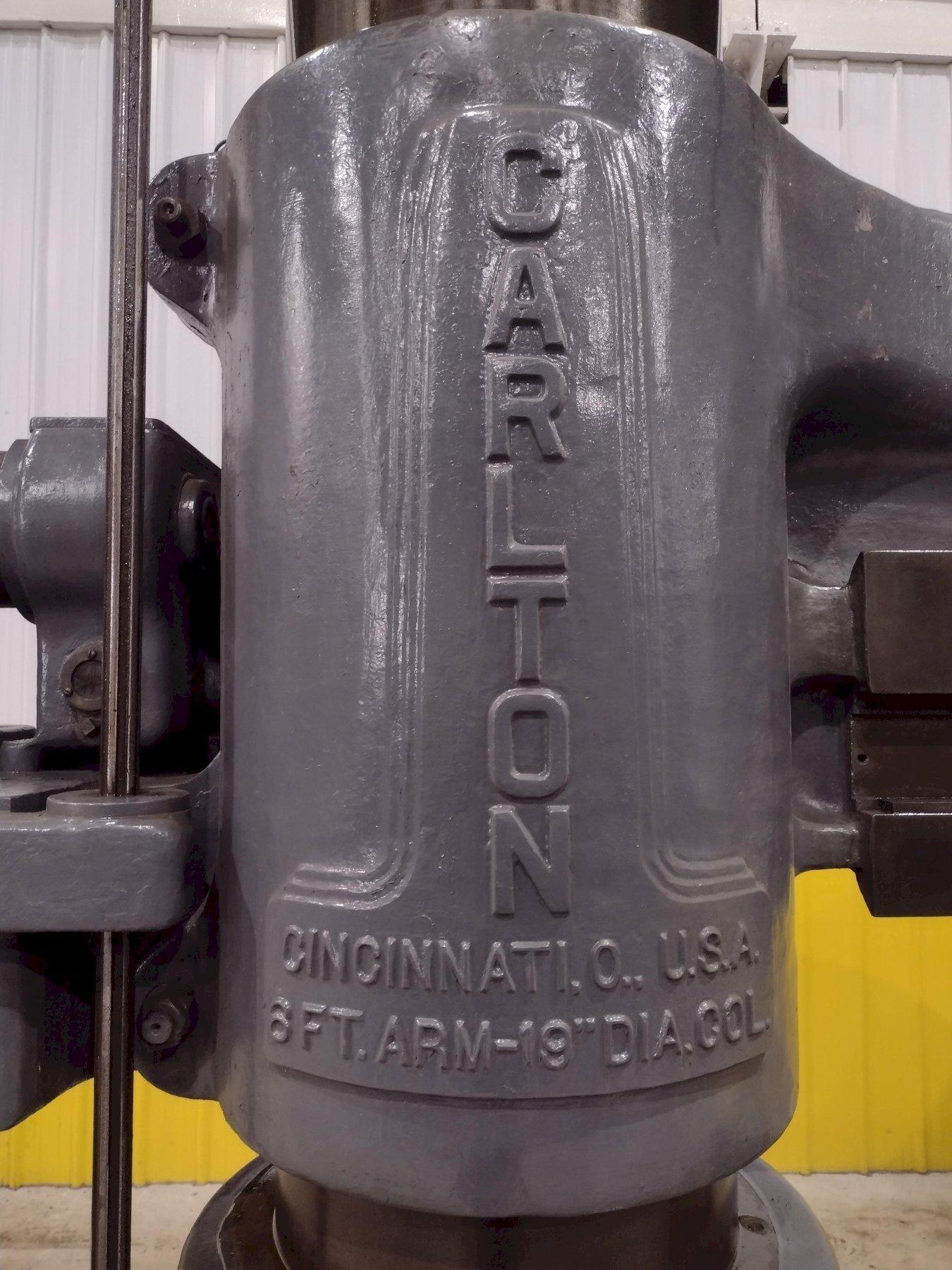

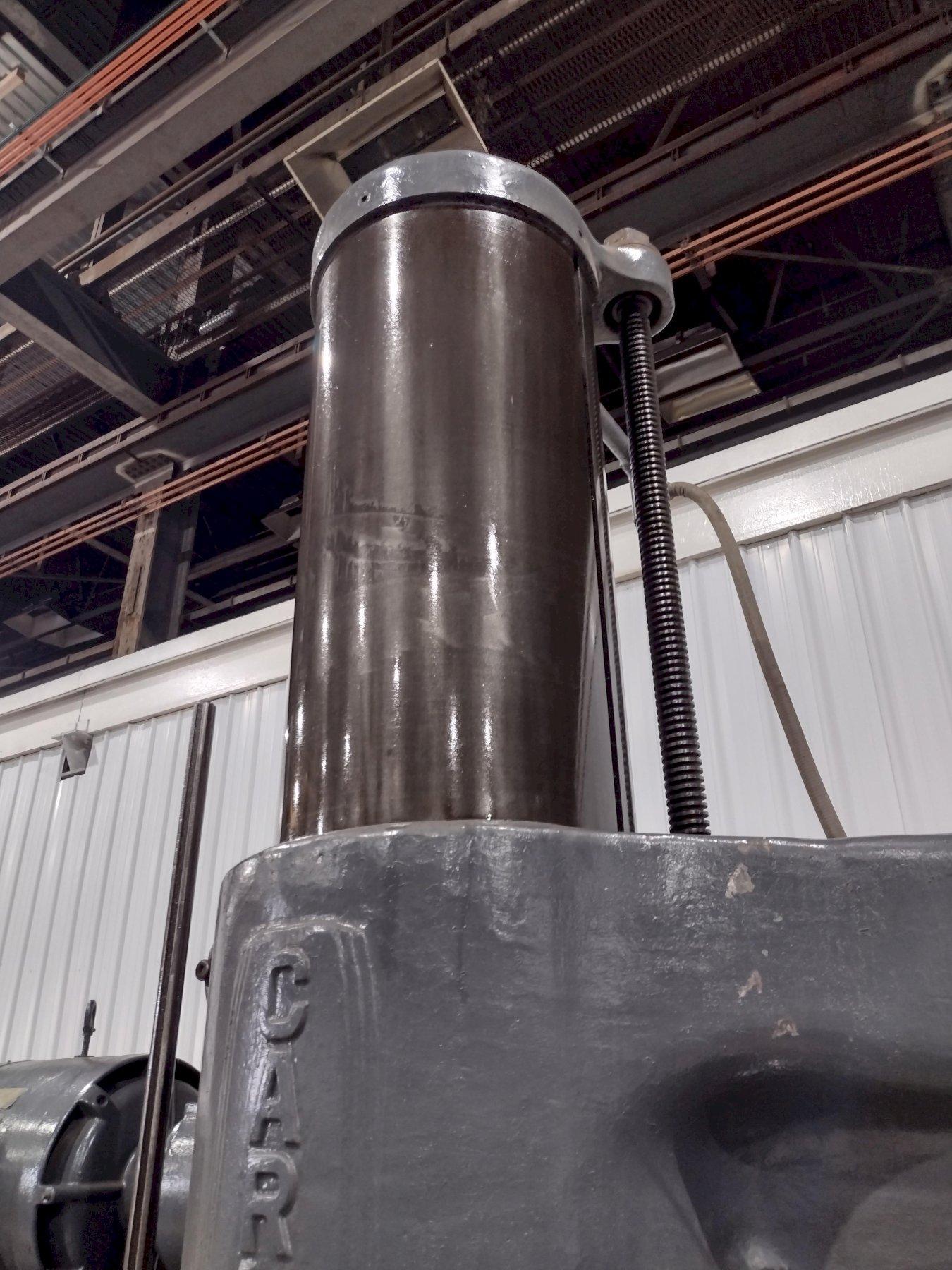

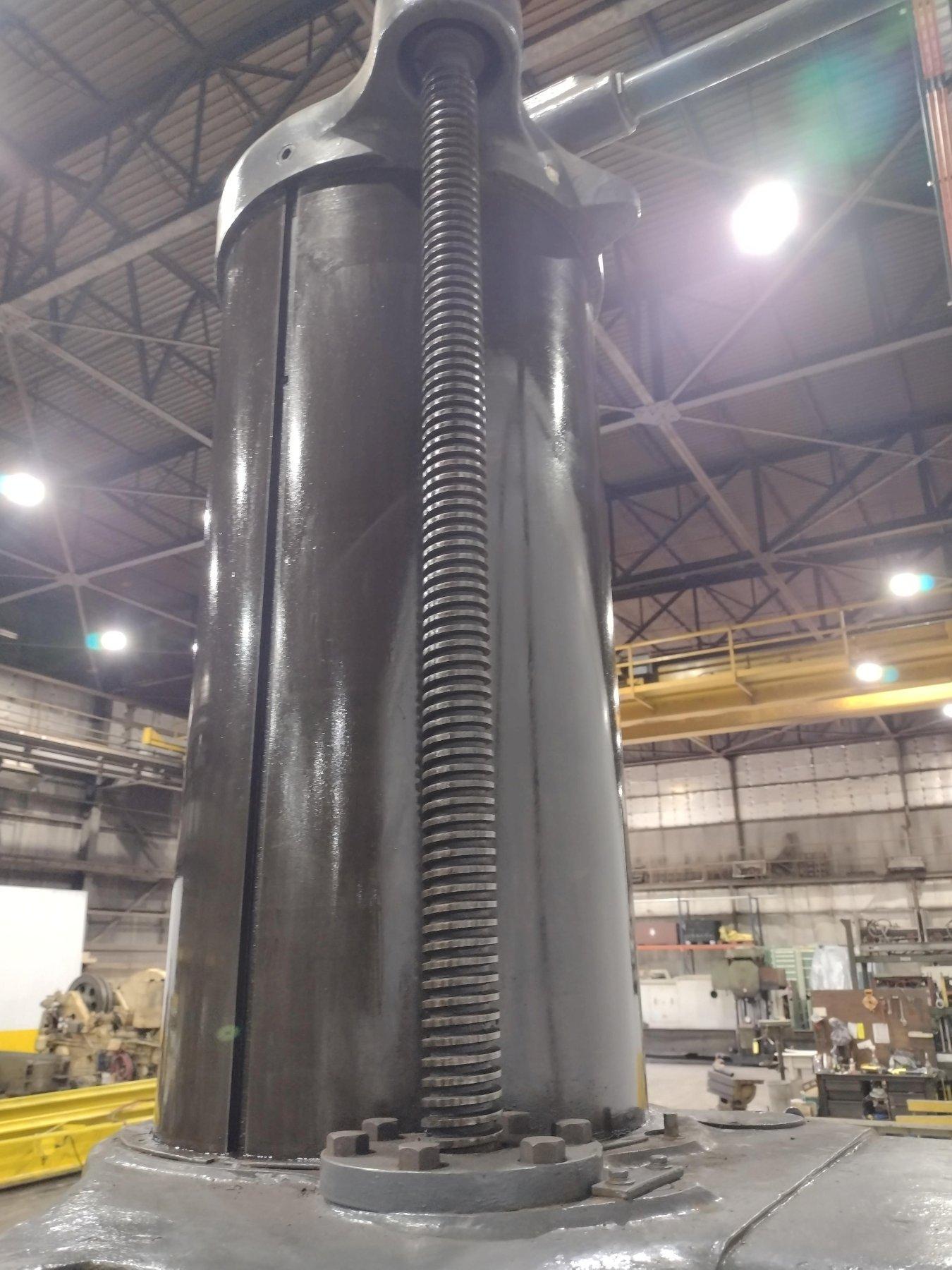

DIAMETER OF COLUMN ........... 19"

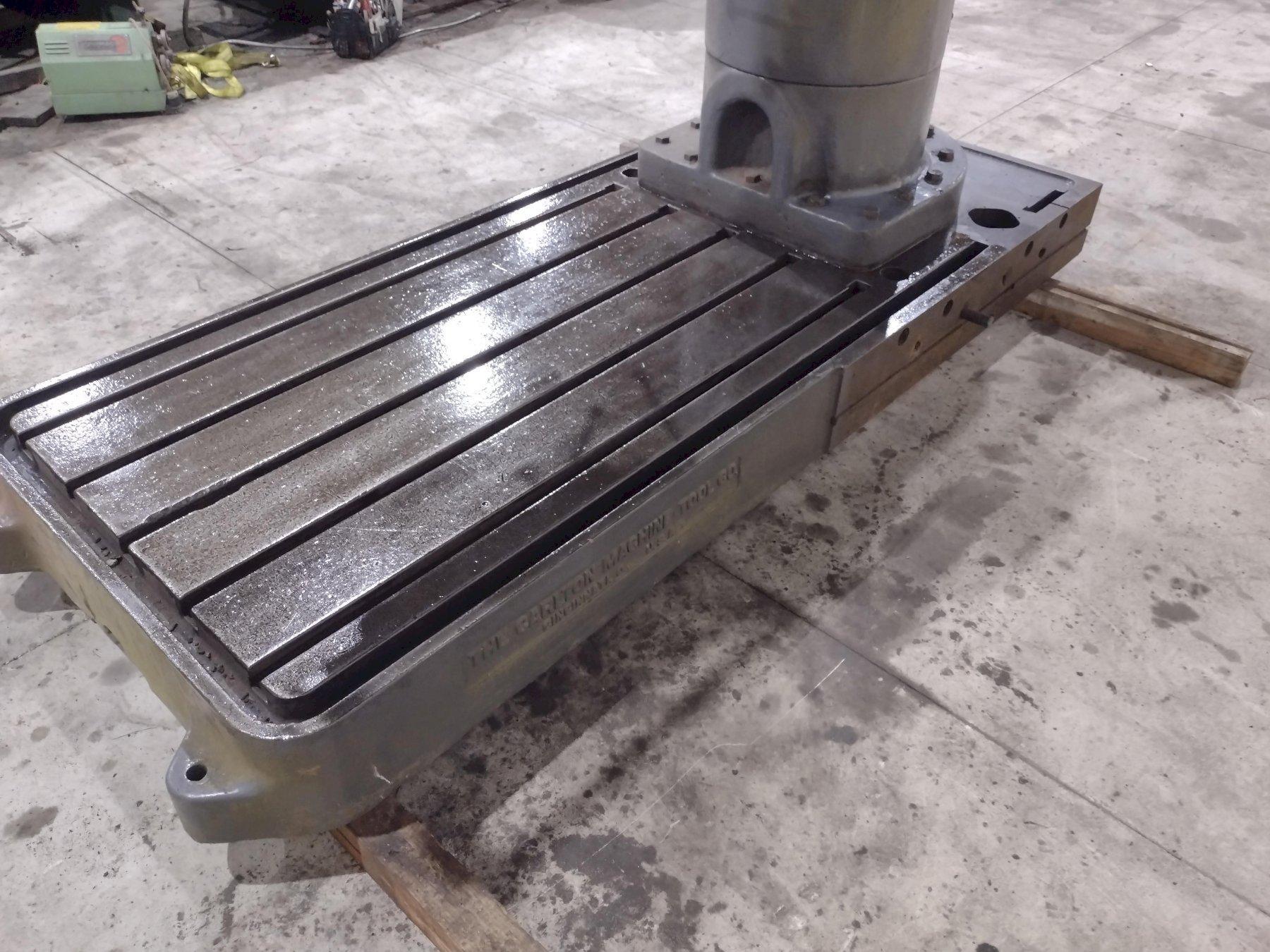

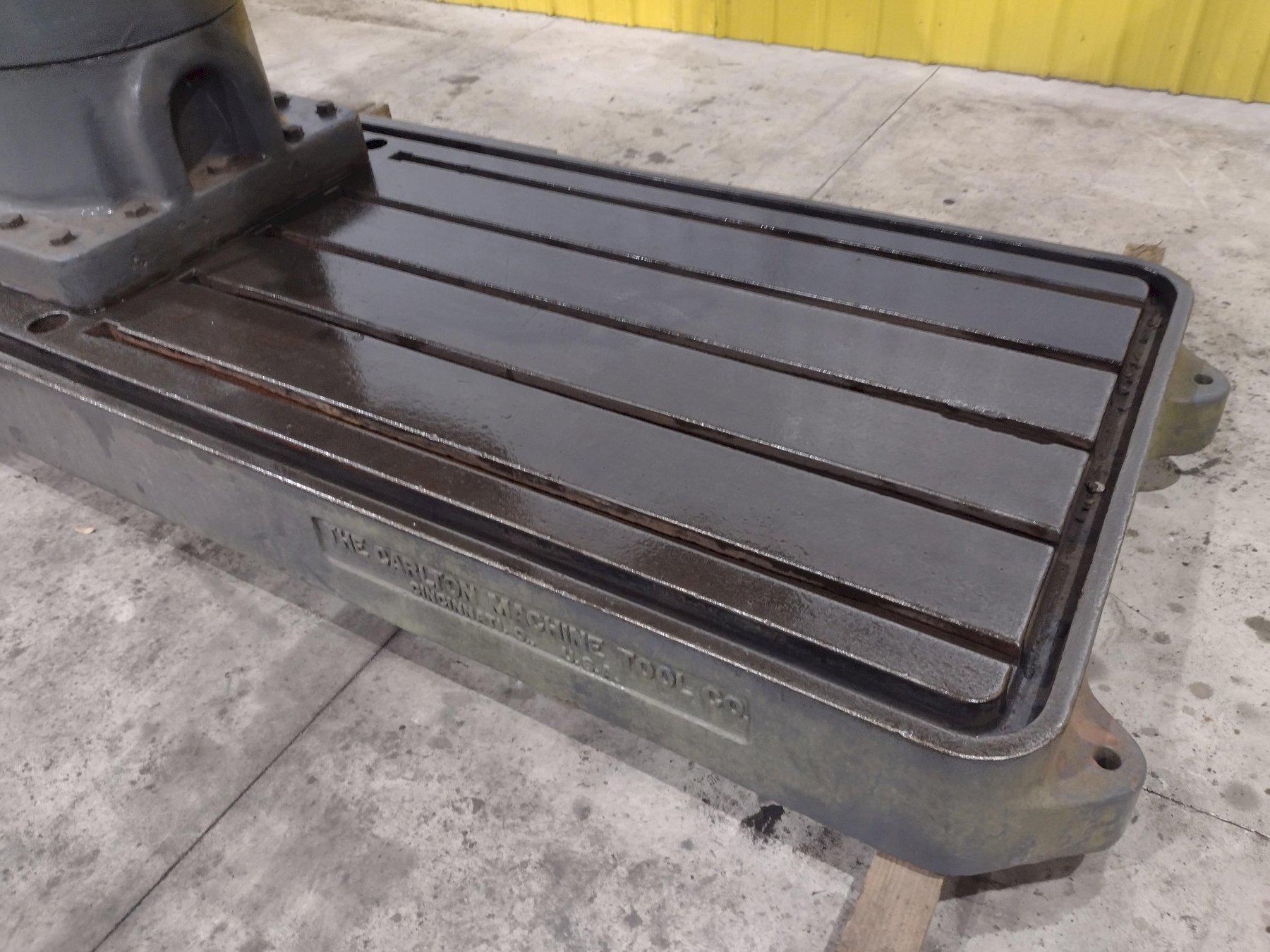

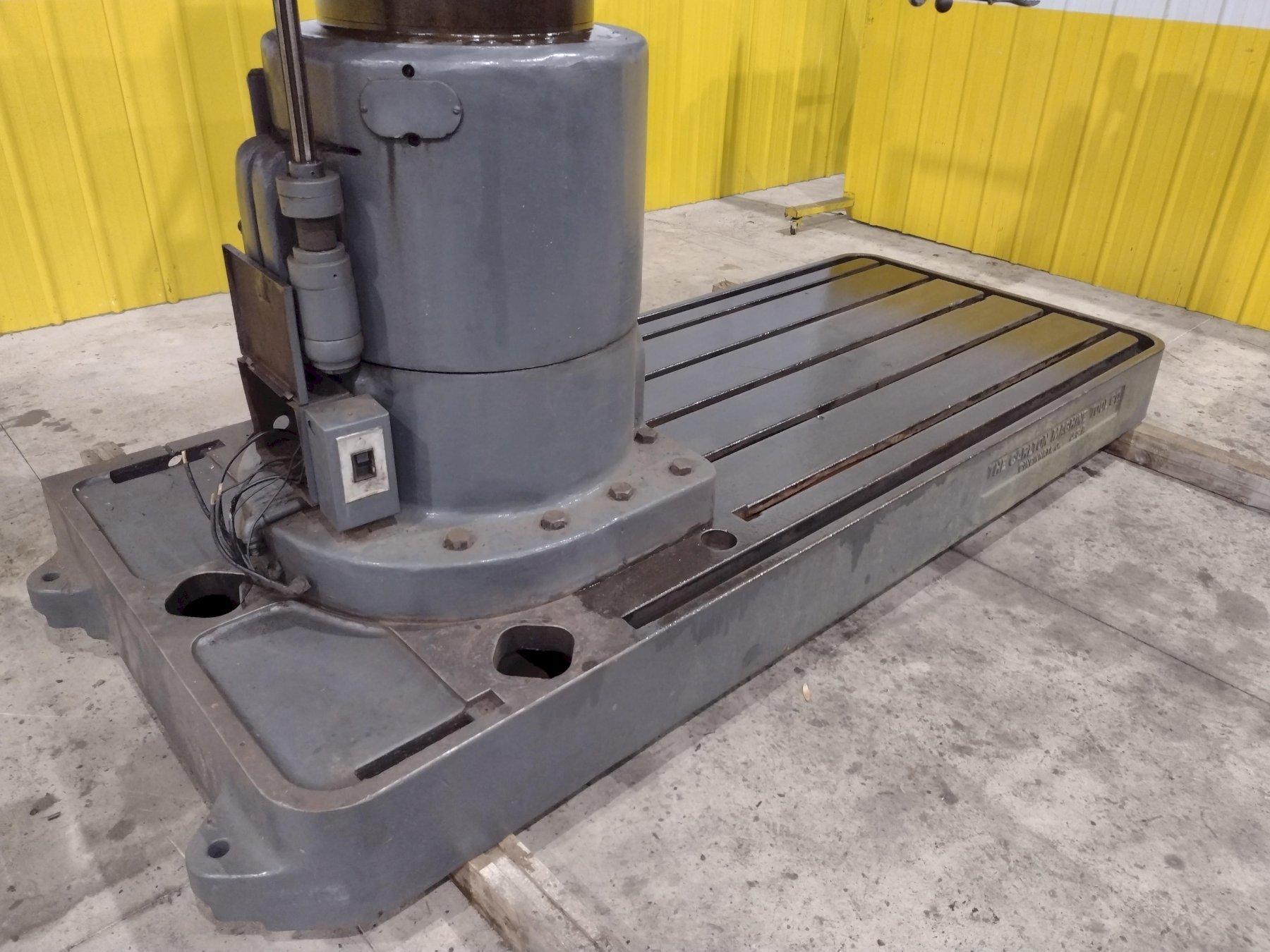

WORKING SURFACE OF BASE ...... 77" X 50"

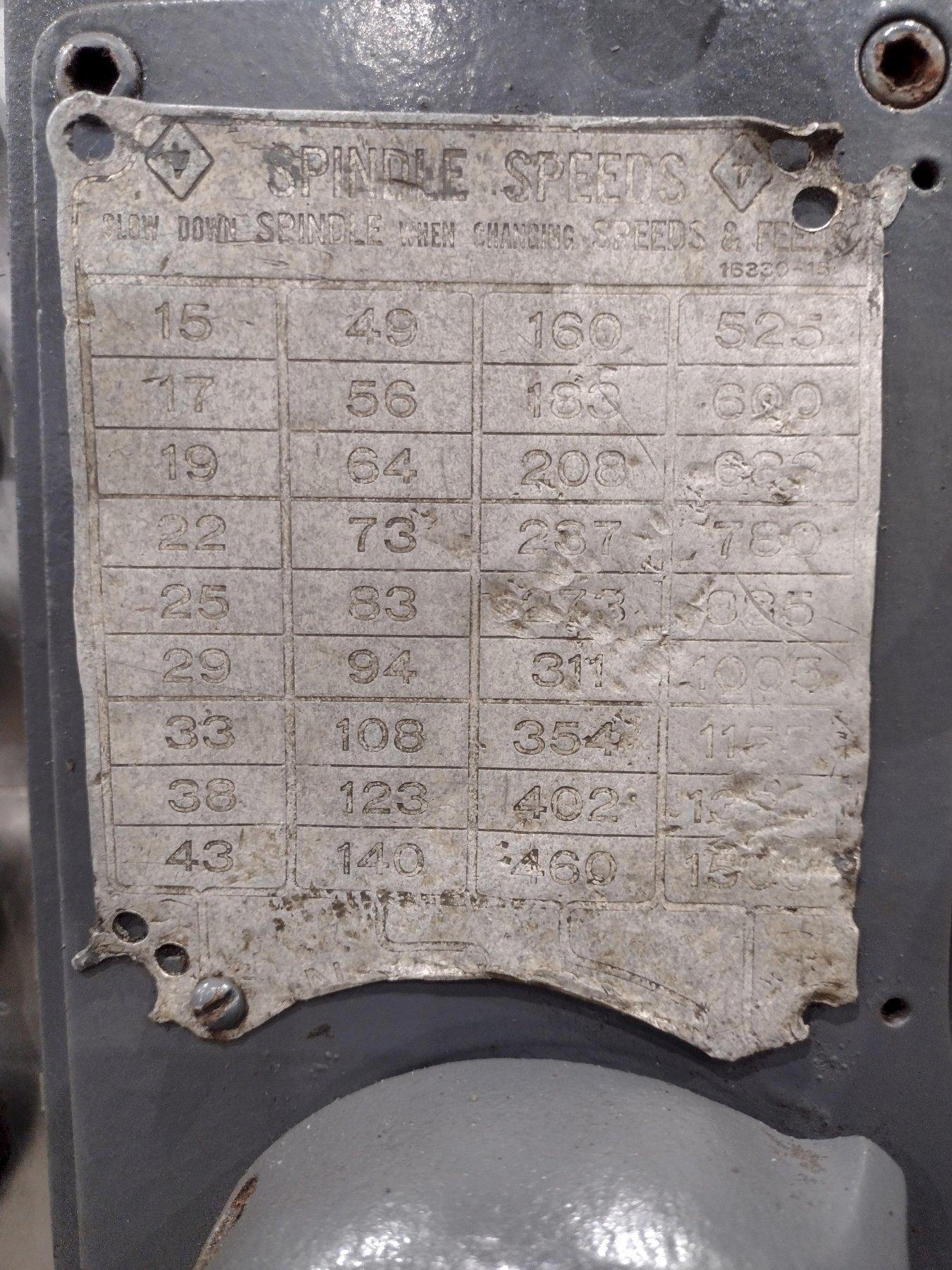

SPINDLE SPEEDS ............... (36) 15 TO 1500 RPM
FEEDS ........................ (18) .004 TO .125 IPR
THREADS ...................... 8, 11-1/2, 14, 18 TPI
SPINDLE TRAVEL ............... 20"

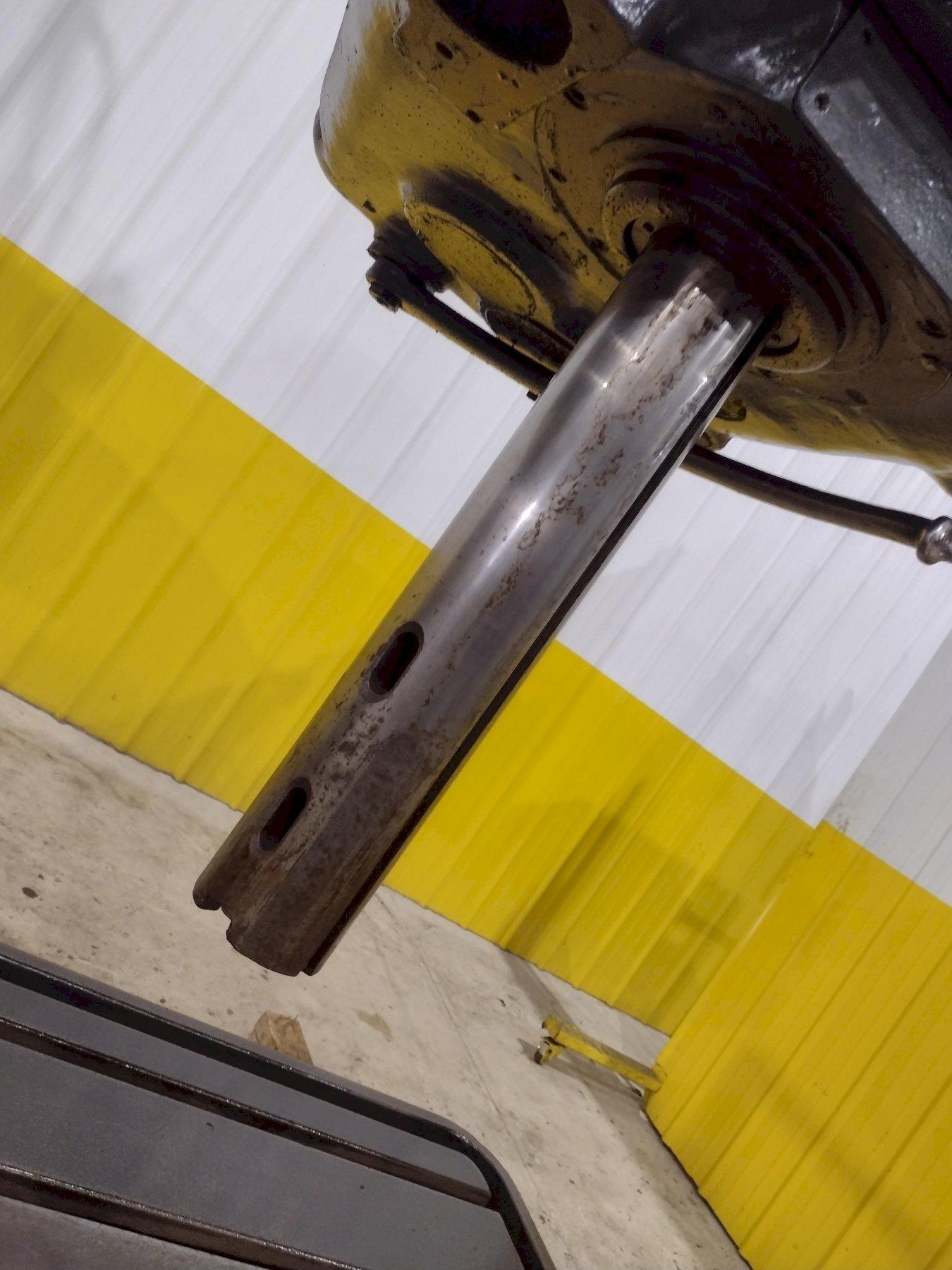

DIAMETER OF SPINDLE .......... 4"
TAPER IN SPINDLE ............. #6 MT
DISTANCE SPINDLE TO COLUMN ... 13-1/4" MINIMUM TO 72" MAXIMUM
TRAVEL ARM ON COLUMN ......... 46"
TRAVEL HEAD ON ARM ........... 59"

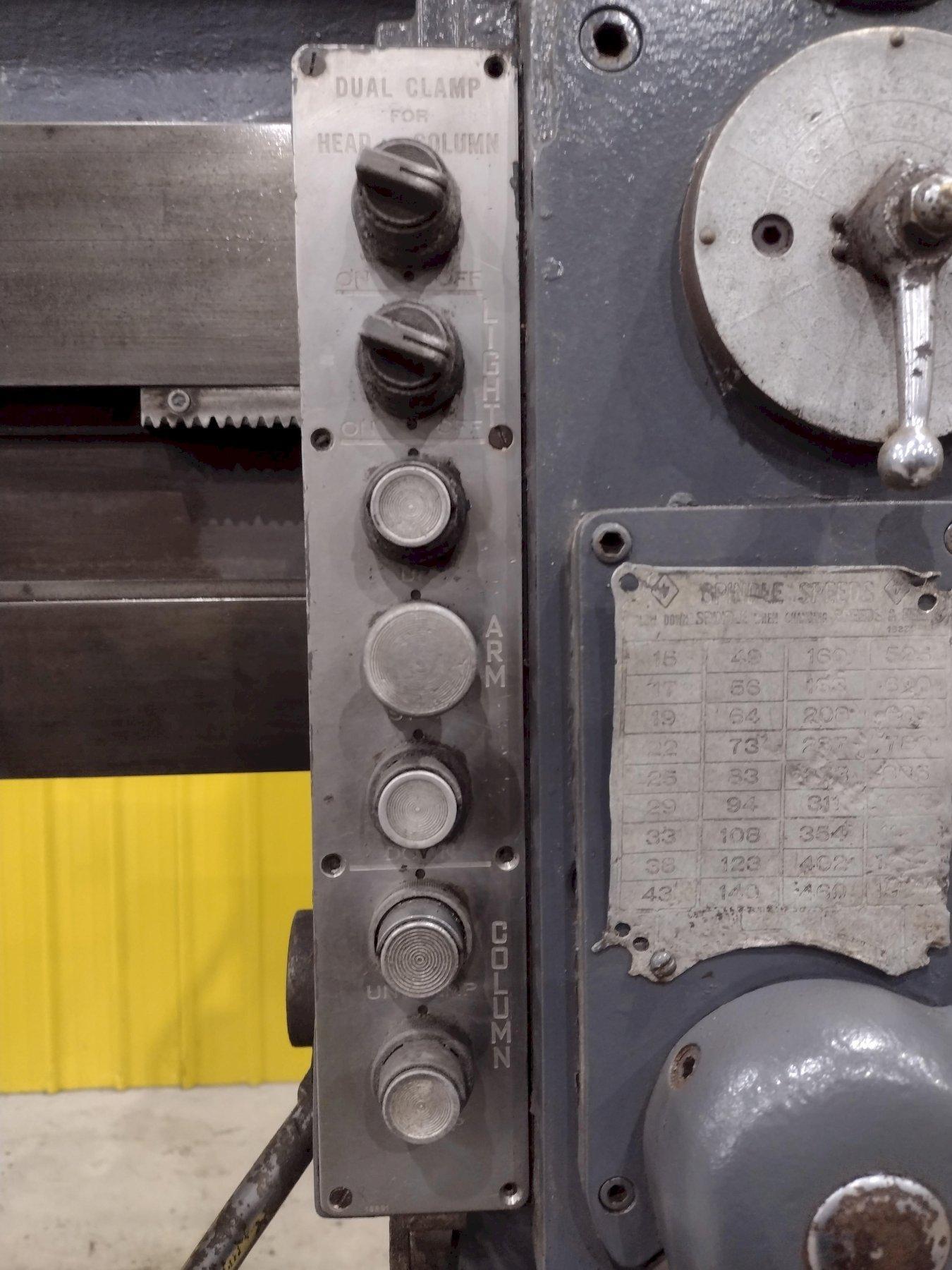

POWER CLAMPING ............... YES
POWER ELEVATION .............. YES
POWER HEAD TRAVERSE .......... YES
COOLANT ...................... YES

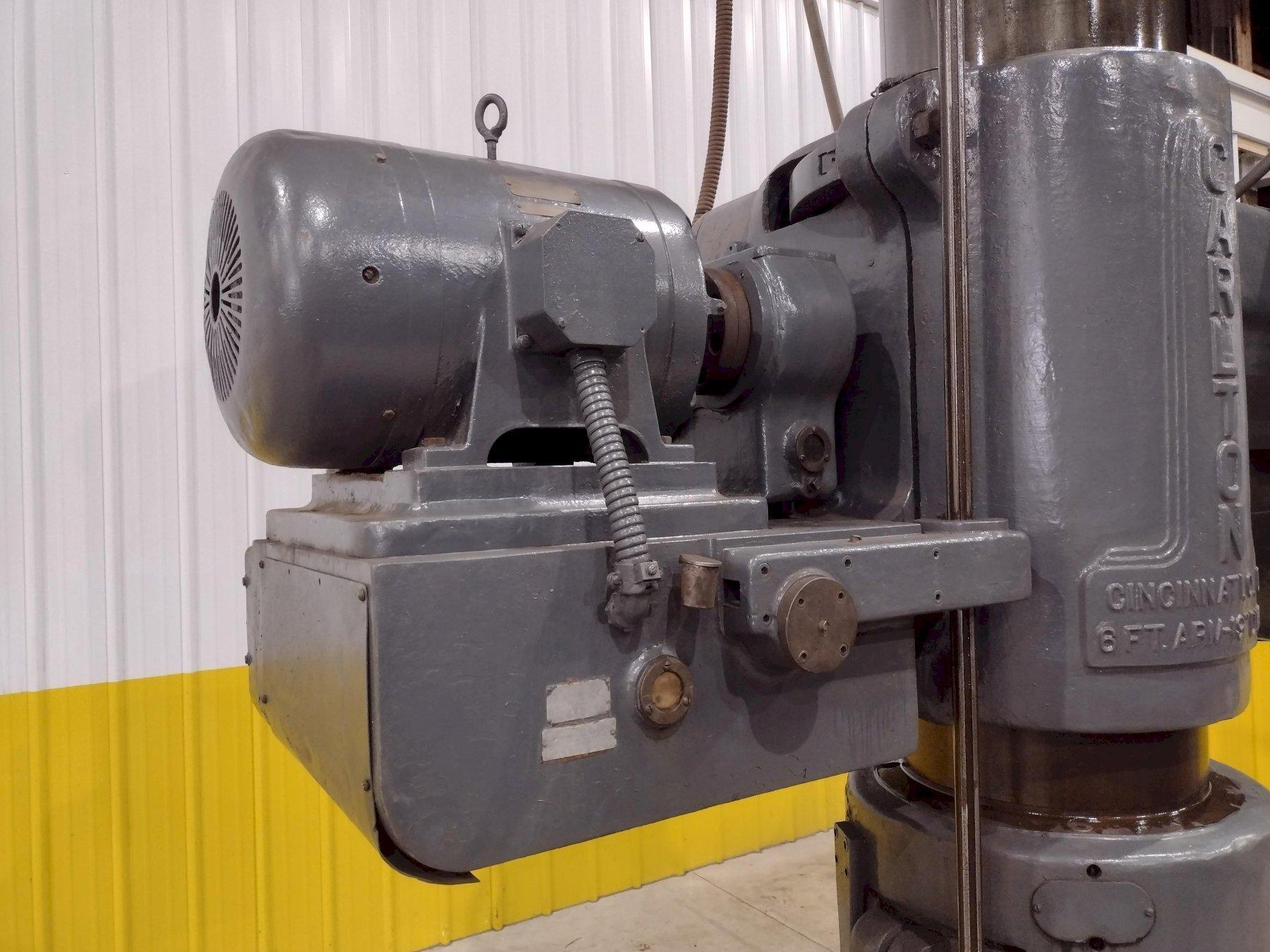

MOTOR ........................ 15 HORSEPOWER |
