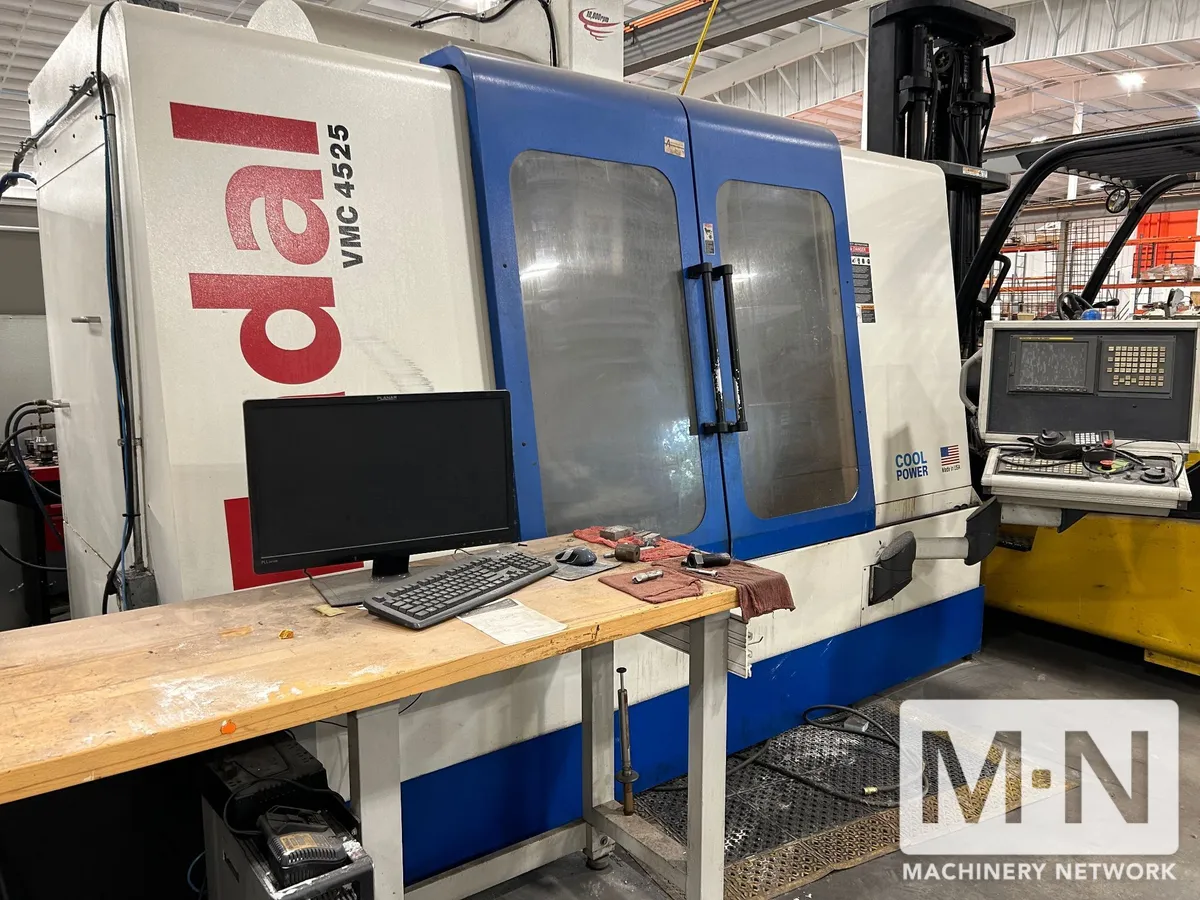

Fadal VMC-4525HT CNC Vertical Machining Center

Brand
YINGLI
Category
Filtration Systems
Type
Coolant Filtering Systems
Model
VMC-4525HT
Stock #
51357
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Overview

Type:
Vertical Machining Centers
Manufacturer:
FADAL
Model:
VMC-4525HT
Stock #:
51357
Status:
For Sale
X Axis Travel45"1,143 mm
Y Axis Travel25"635 mm
Z Axis Travel24"609.6 mm
Distance From Spindle To Column27.87"707.9 mm
Spindle Motor22.5 hp16.8 kW
Spindle Speed10,000 RPM10,000 RPM
ATC Capacity2424
Spindle TaperCAT-40CAT-40

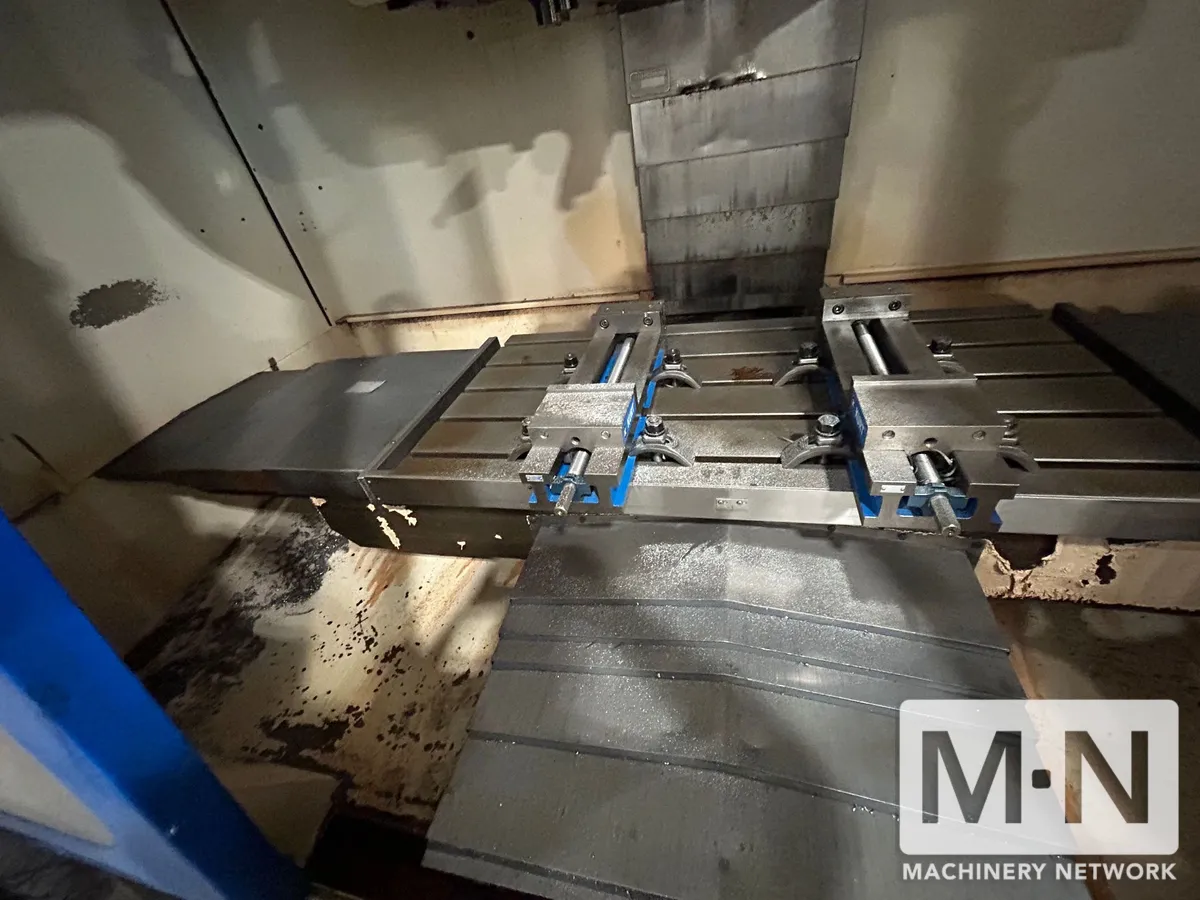

Table dimensions53.5" x 25"53.5" x 25"
Max. Table Load4,250 Lbs4,250 Lbs
Dimensions131" x 102" x 100"131" x 102" x 100"
Weight15,750 Lbs15,750 Lbs

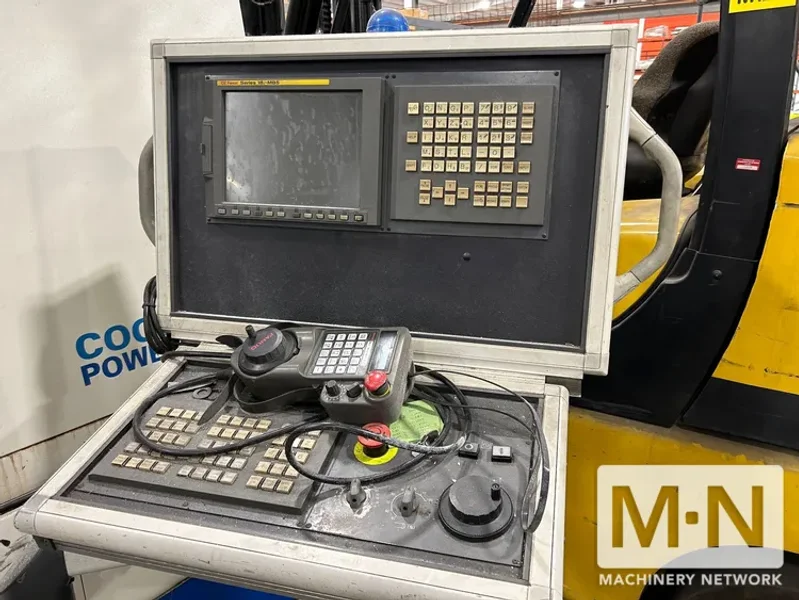

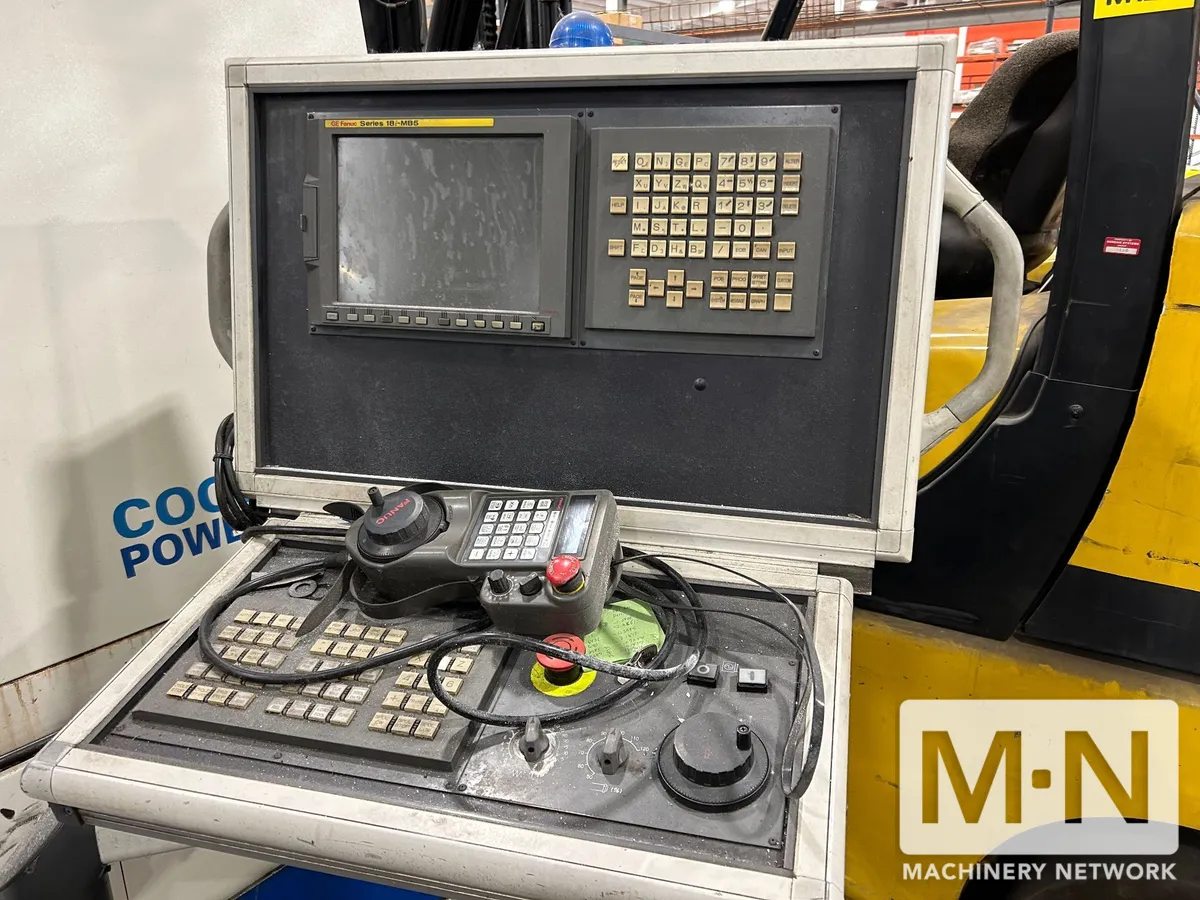

Fanuc 18i-MB5 CNC Control
High Torque
Side Mount Tool Changer

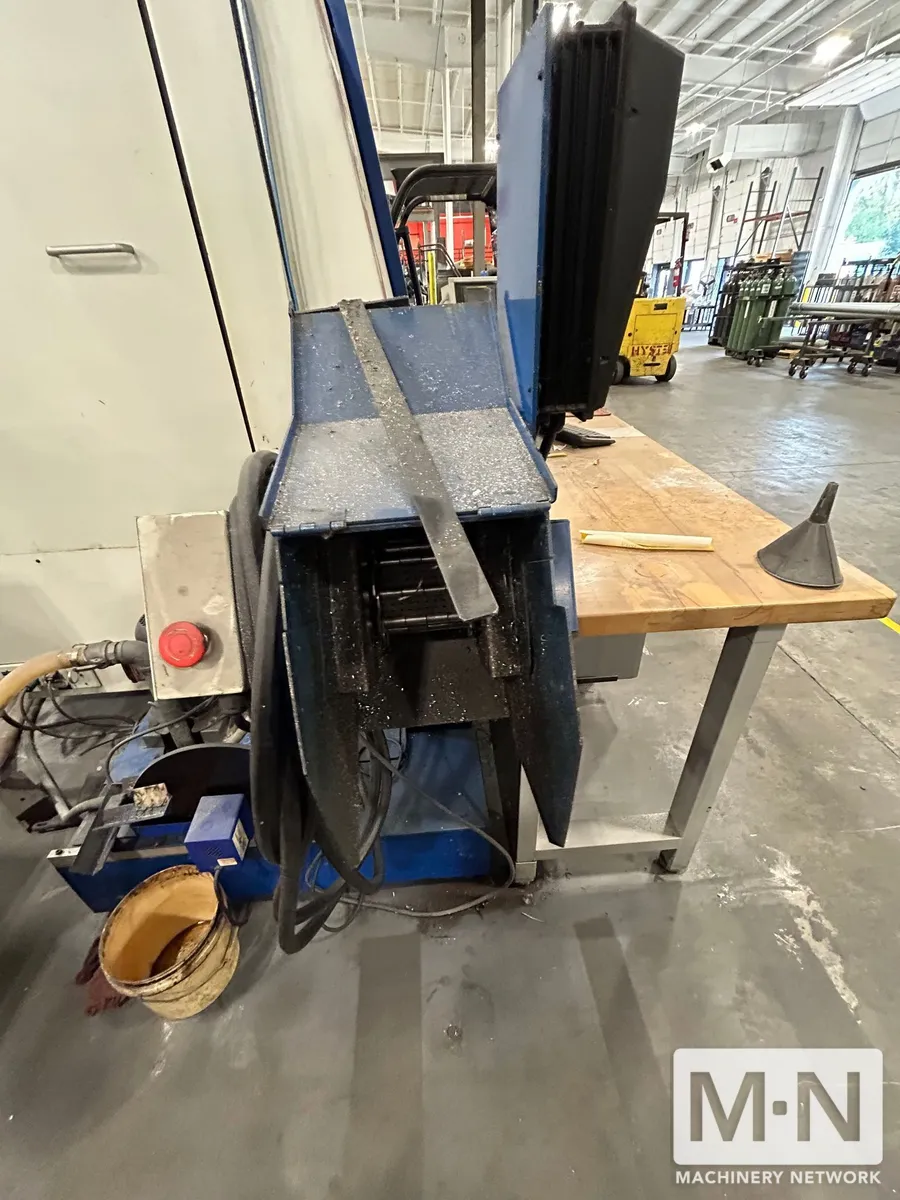

Chip Conveyor

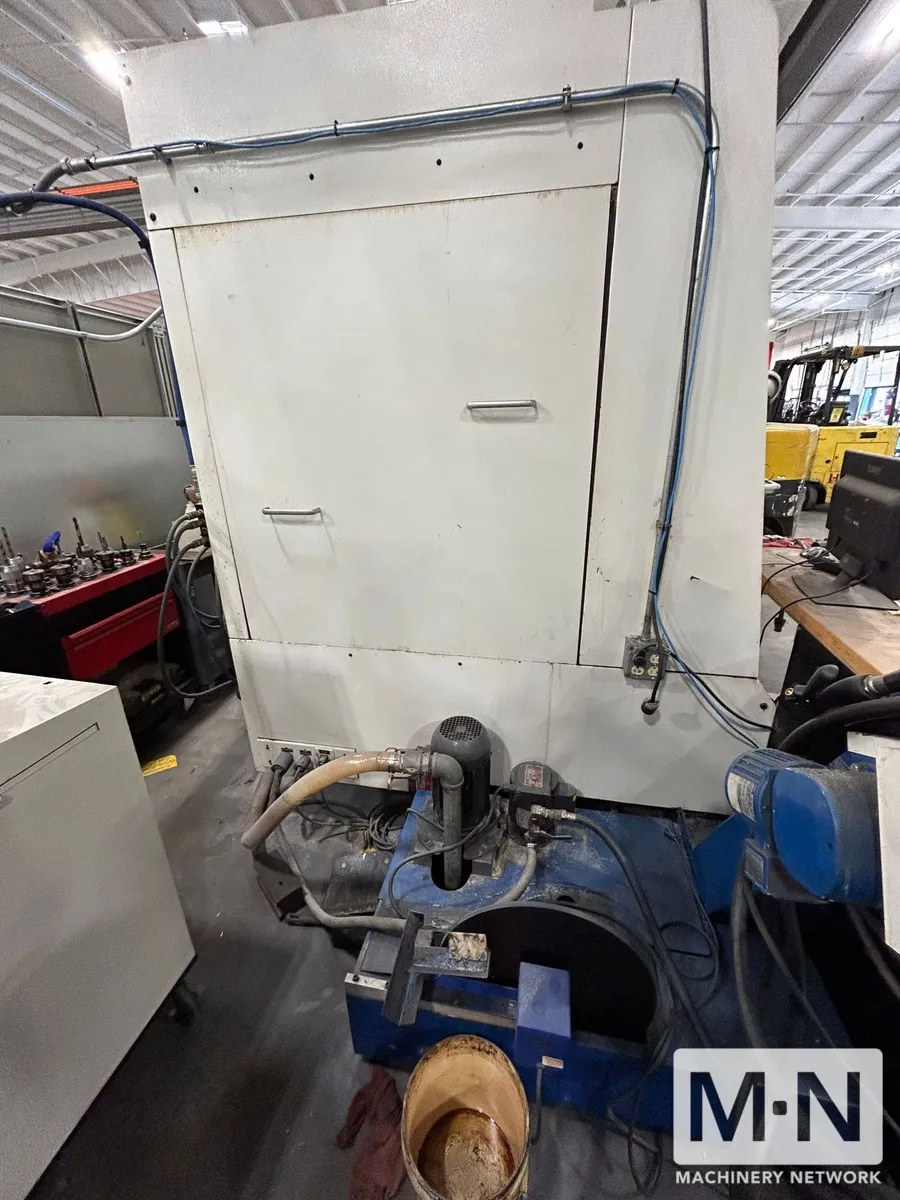

Coolant System
Rigid Tapping
