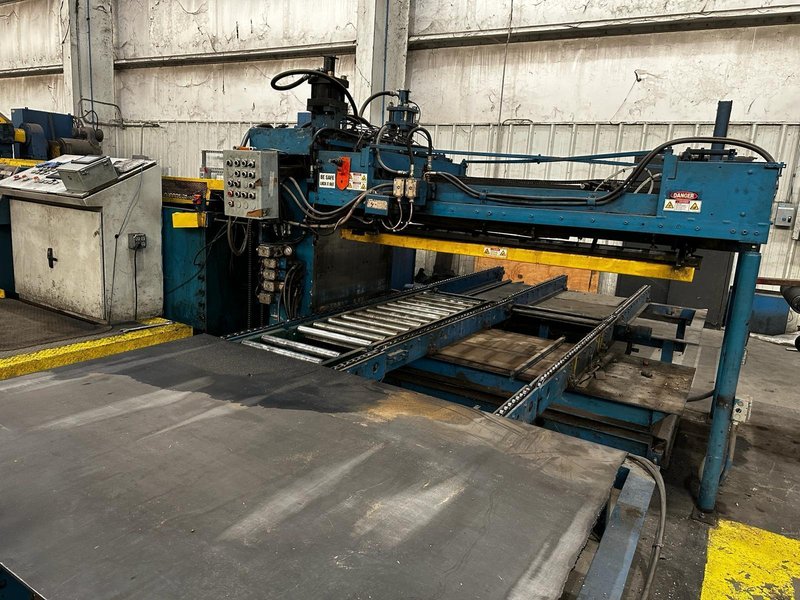

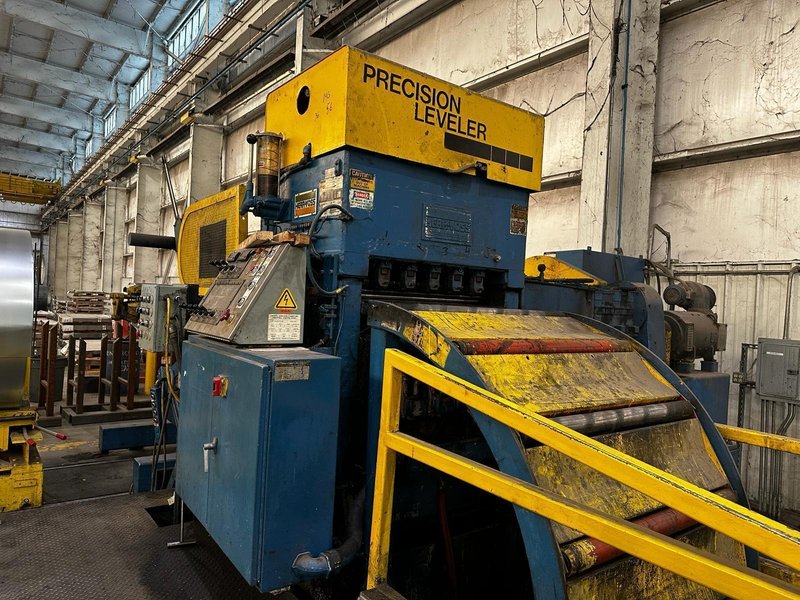

30” x .060” x 20,000# Herr Voss / Red Bud High Speed Blanking Line (14370)
Brand
Category
Type
Model
30" X 0.060" X 20,000 LBS
Stock #
14370
Year
Not specified
Condition
Not specified
Location
Not specified
| Max Weight | 20000 pounds |
| Max Coil Width Capacity | 30 inches |
| Max Stock Thickness Capacity At Full Width | 0.060 inches |
|
30” x .060” x 20,000# Herr Voss / Red Bud High Speed Blanking Line

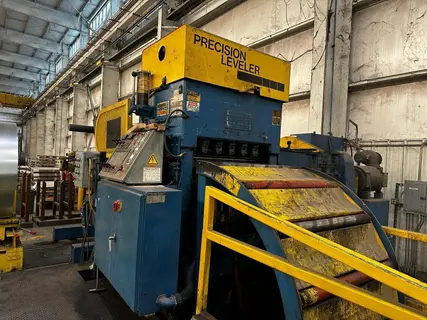

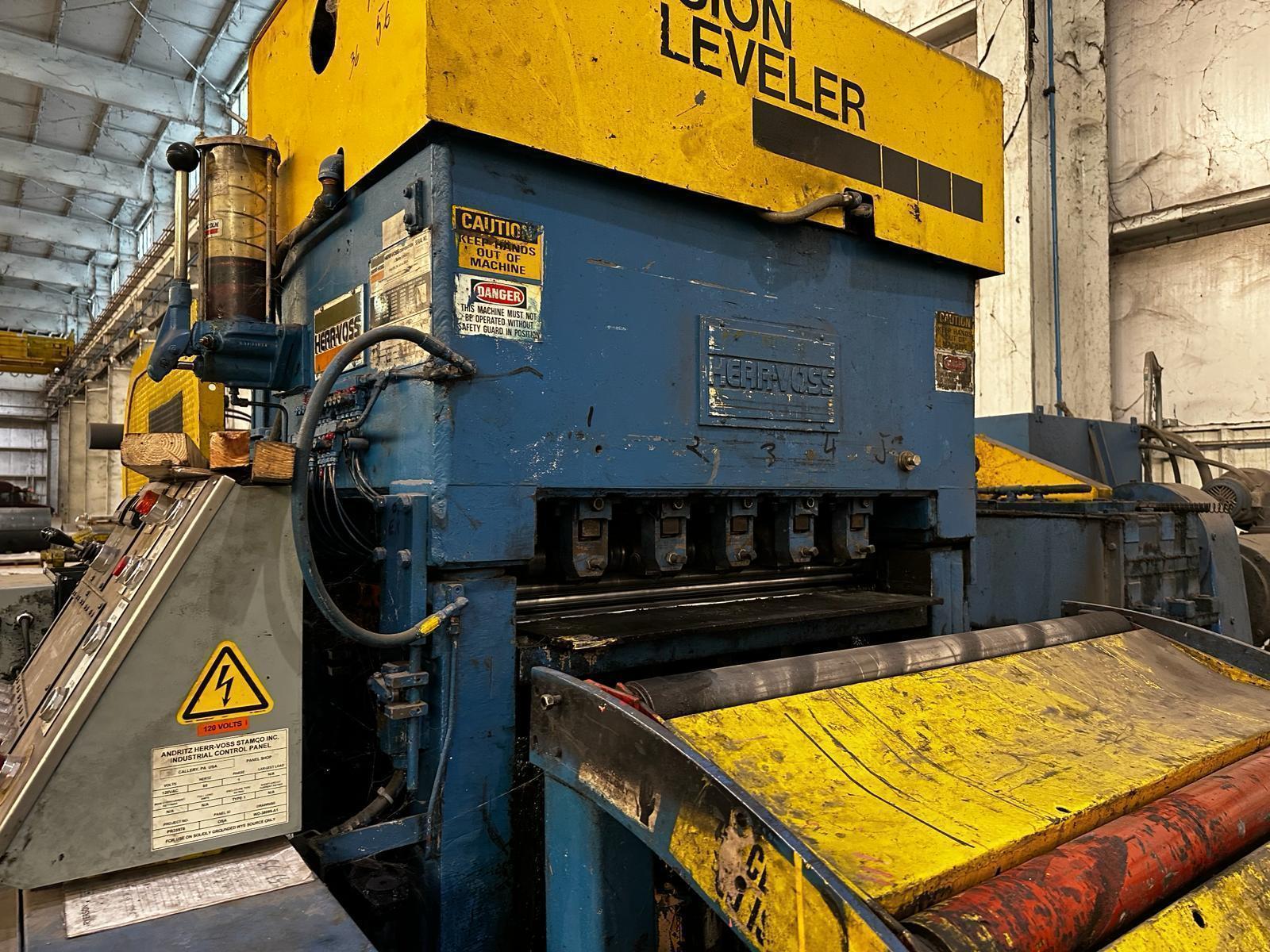

Type: Cut To Length Lines Stock Number: 14370 Coil Capacity: 20,000# Thickness Range: .015” - .060” Minimum Strip Width: 2.5” Maximum Strip Width: 30” Coil OD: 72” Coil ID: 20” Sheet Length: 2” - 168” Pack Height: 20” Pack Weight: 10,000# Line Speed: 125 FPM Grade: 45K KSI Complete Line With: L-Type Coil Car Floor Standing / Self Contained Hydraulics Mandrel Uncoiler Hold Down Roll Feed-up Drive Hydraulic Expansion 3 Leaf Mandrel Peeler Table In / Out / Up / Down Edge Guides Pinch Rolls Herr Voss 5HI Precsion Model No: RH 36/1.156-19/5, 5HI W/PR 5 Flights Top & Bottom Back-Ups Individual Motorized Adjustments Digital Readout Back Up Positioning Entry & Exit Tilt with Digital Roll Positioning 2 Sets of Operator Stations Spare set of Rolls Looping Pit Cascade Rolls Red Bud Gripper Feeder Double Grip Feeder Red Bud Shear Model SH18-140-36-6 Drop Type Stacker Lift Tables Side Squaring Motorized Width Adjustment Motorized End Stop Side Pallet Feed Side Discharge Motorized Belt Conveyor for Short Lengths Central Hydraulic Unit Spare Set of Rolls for Leveler Quick Panel View Digital Readout **TEMPORARY SPECIFICATIONS SUBJECT TO REVISIONS** **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE** **ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION** |
|
