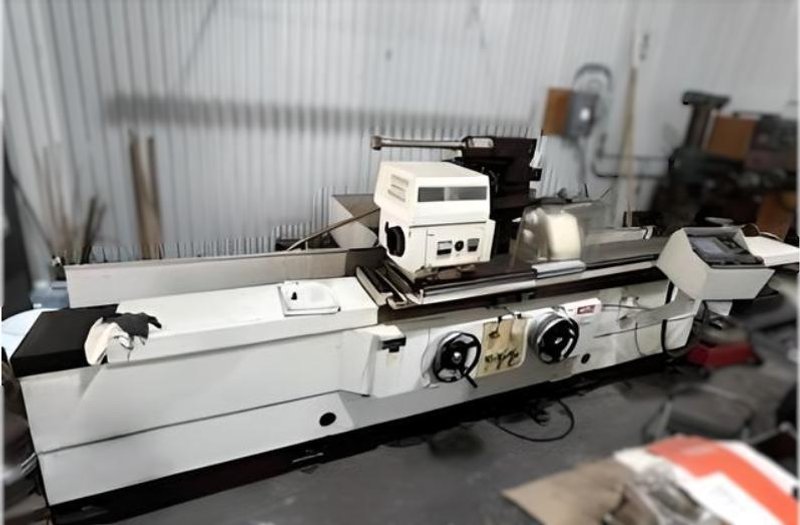

Chevalier 14" x 60" Automatic Universal CG-1460A Cylindrical Grinder 2000 equipped with Mitsubishi Touch Screen PLC Control, Coolant System with Magnetic Seperator, Hydraulic Unit, Tailstock Mounted Dresser, Automatic Grinder Cycle, Swing Down Internal Attachment
Brand
Category
Model
CG-1460A
Stock #
6837
Year
2000
Condition
Not specified
Location
California
| Max Swing Over Bed | 14.9 inches |
| Max Grinding Length | 59 inches |
| Max O.D. | 14.17 inches |
| Max Workpiece Weight | 330 pounds |
| Variable Speed | 25 to 350 RPM |
| Swiveling Angle | 90 DEG. CCW |
| Spindle Center/Rotation | M.T.4/DEAD & LIVE |
| Spindle Table Speed | 2 to 118 IPM |
| Table Handwheel Per Revolution | 0.39 inches |
| Table Swivel Angle (CCW/CW) | 5 deg./5 deg. |
| Table Minimum Traverse Length | 0.3 inches |
| Grinding Wheel | 16" x 2" x 5" |
| Grinding Wheel Speed (Standard) | 1,650 RPM |
| Maximum Infeed Travel | 9.64 inches |
| Tailstock Quill Travel | 1 inches |
| Wheelhead Motor | 5HP A.C. |
| Dimensions | 196" x 90" x 66" |
| Weight | 12100 pounds |
|
Chevalier 14" x 60" Automatic Universal CG-1460A Cylindrical Grinder 2000 equipped with Mitsubishi Touch Screen PLC Control, Coolant System with Magnetic Seperator, Hydraulic Unit, Tailstock Mounted Dresser, Automatic Grinder Cycle (Rough Grind, Fine Grind, Sparkout, Return), Swing Down Internal Attachment
