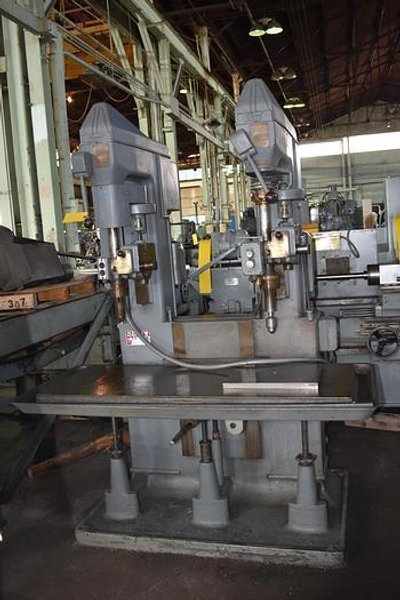

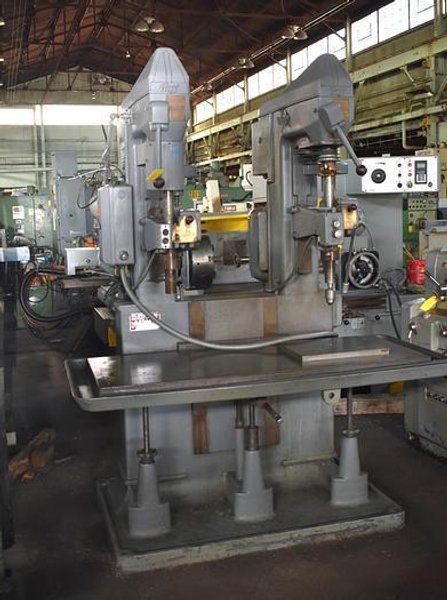

24" AVEY "2BMA-6" MULTIPLE-SPINDLE DRILL PRESS w/POWER DOWN FEED. STOCK # 10100

EQUIPPED WITH:

Sliding Head Type Machine Design

Power Down-Feed to All Spindles

Tapping On Right Hand Spindle

Manual Table Adjustment

Coolant System (Built-In)

CATALOG SPECIFICATIONS:

Number of Spindles 2-SPINDLE

Drilling Capacity, Mild Steel 3/4"

Drilling Capacity, Cast Iron 1"

Spindle-Head Travel, Vertical 7"

Spindle Travel, Power 6"

Spindle-Nose to Table, Minimum 0"

Spindle-Nose to Table, Maximum 26"

Spindle-Center Distance 30"

Spindle-Center to Column 12"

Table Adjustment, Vertical 19.5"

Table Working Surface, W x L 22" x 58.5"

Table Overall, W x L 28.75" x 67"

Spindle Nose Diameter 1.69"

Spindle Taper #2 MT

Spindle Speeds Range, RH Head 150 to 1800 RPM

Spindle Speeds Range, LH Head 250 to 3000 RPM

(4) Spindle Feeds, Range .003 to .012 IPR

Electrical System 220-440/3/60

Floor Space Required, W x D 4'7" x 4'2"

Weight, Approximately 3500 LBS
