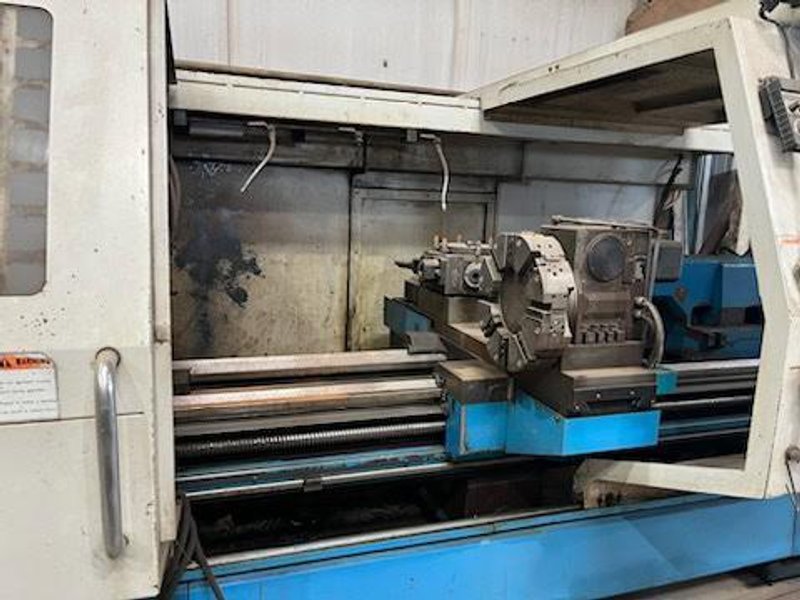

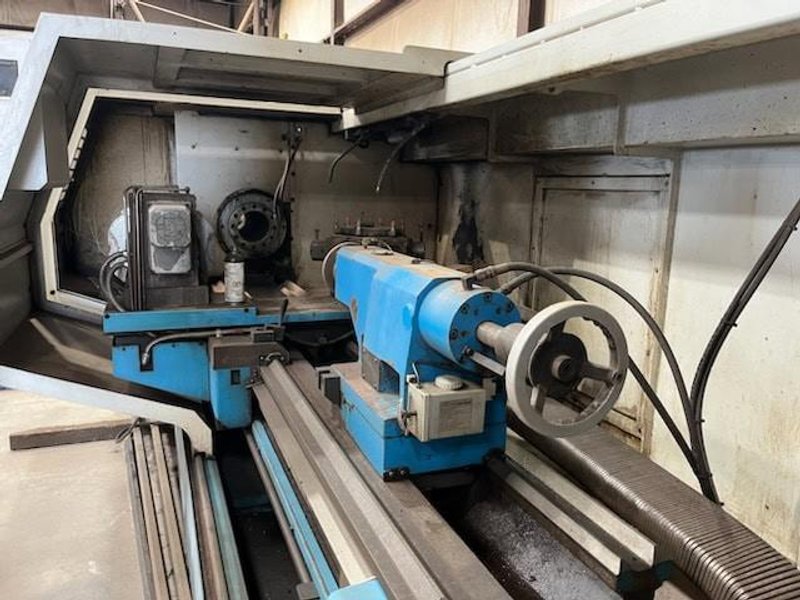

Kingston, CL38-2000, Hollow Spindle Lathe, 2006 – w/ 24″ Air Chuck
Brand
Category
Type
Model
CL-38
Stock #
242893
Year
2006
Condition
Not specified
Location
Not specified
|
FANUC oi-TC Control

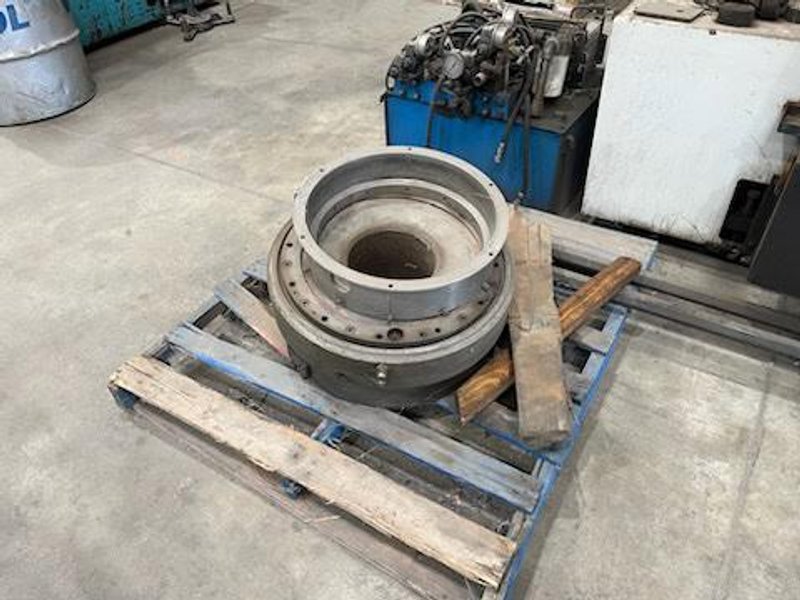

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,24″ 4-Jaw Chuck Air Chuck 2000 rpm 2 Speed A2-11 Spindle 7.3″ Spindle Bore 26″ Swing Over Bed 14.6″ Swing Over Cross Slide 78″ Distance Between Centers 18.1″ Bed Width 21.26″ X-Axis Travels 76.8″ Z-Axis Travels 4 Station Turret Steady Rest Remote Jog Handle One Touch IGF Programming Hydraulic Tailstock MT#5 7.9″ Tailstock Travel 3.97″ Diameter of Tailstock Quill 30 HP Motor Coolant Tank and Pump Chip Conveyor Dimension 282″L x 91″W x 78″H Weight 17,857 pounds All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
