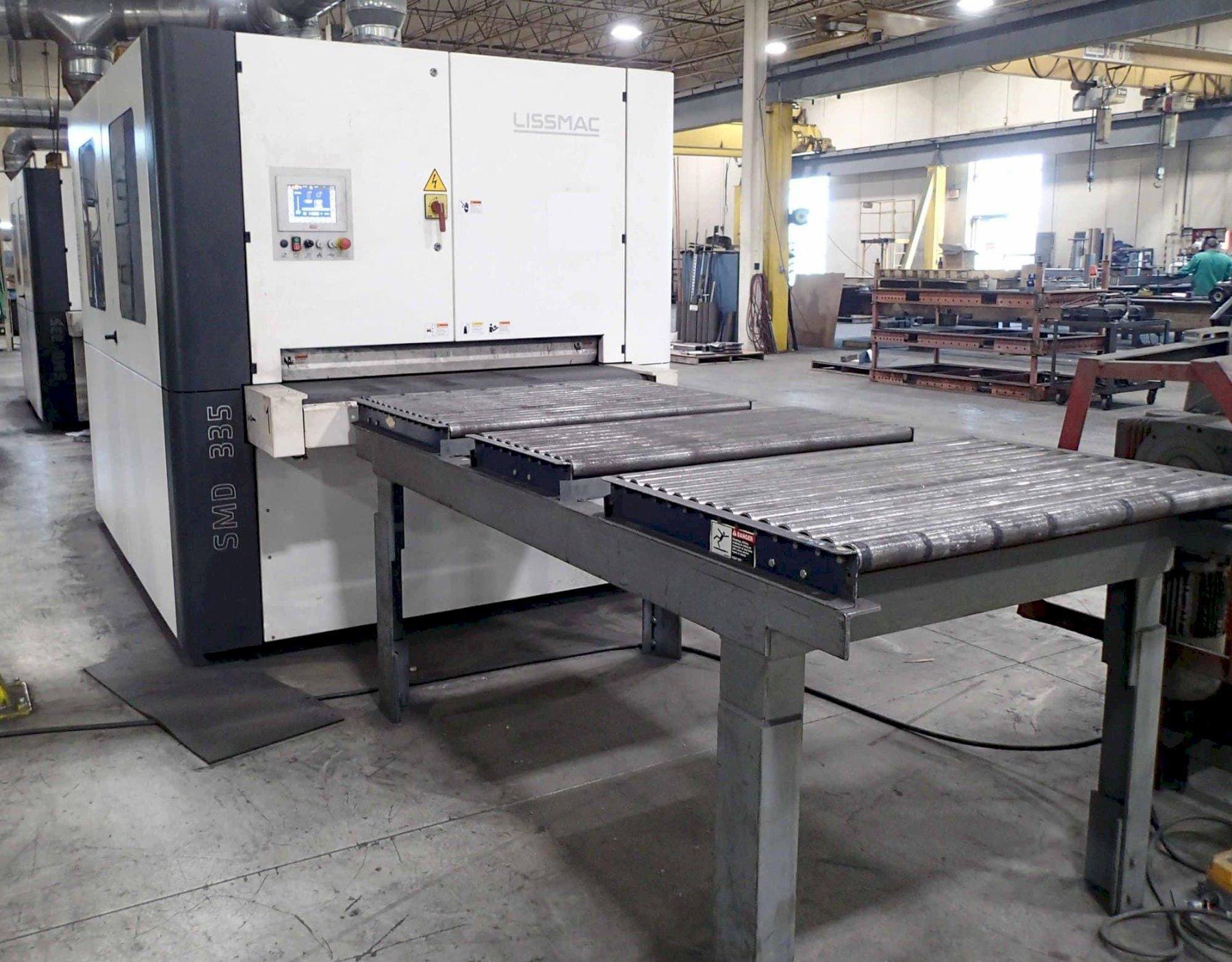

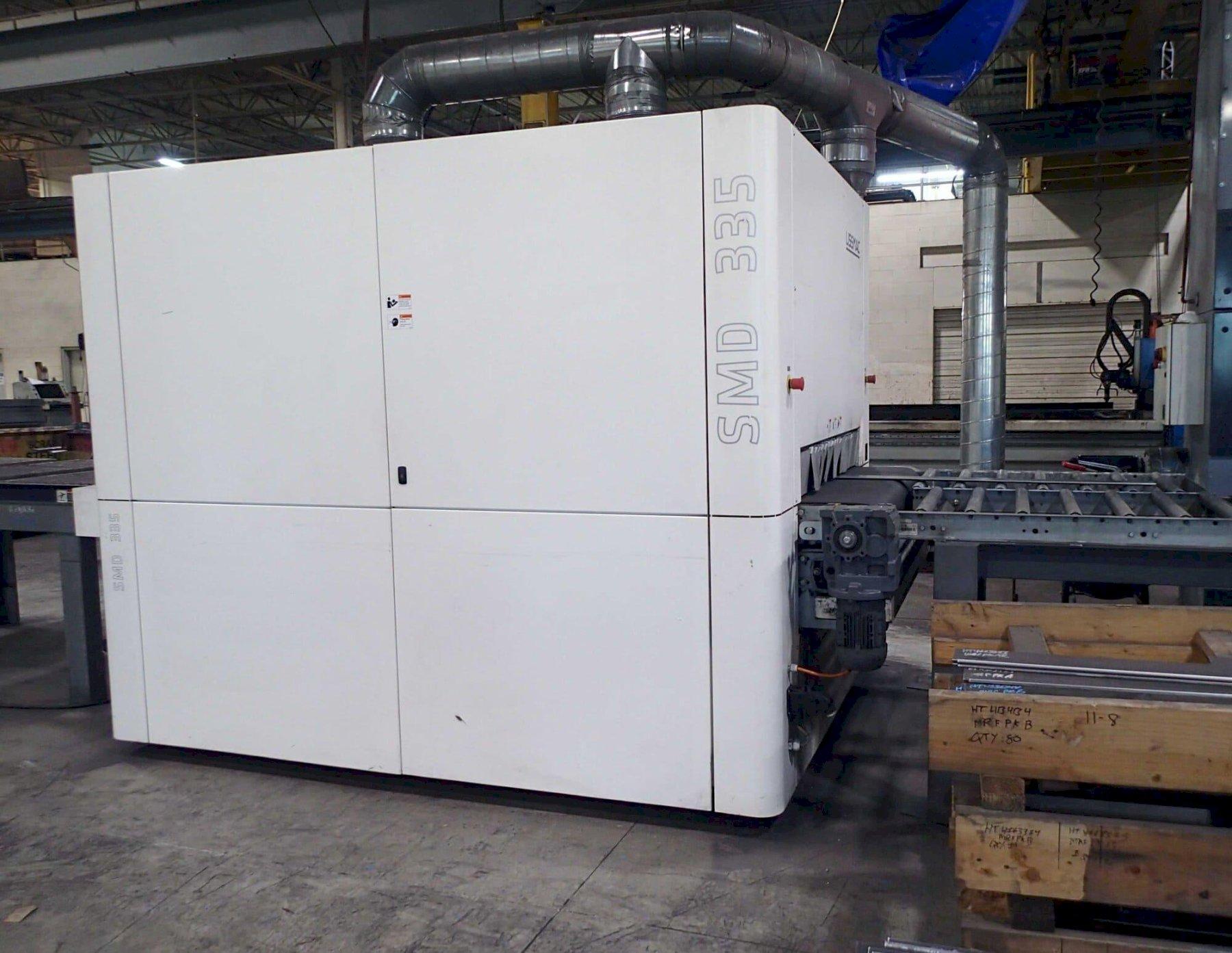

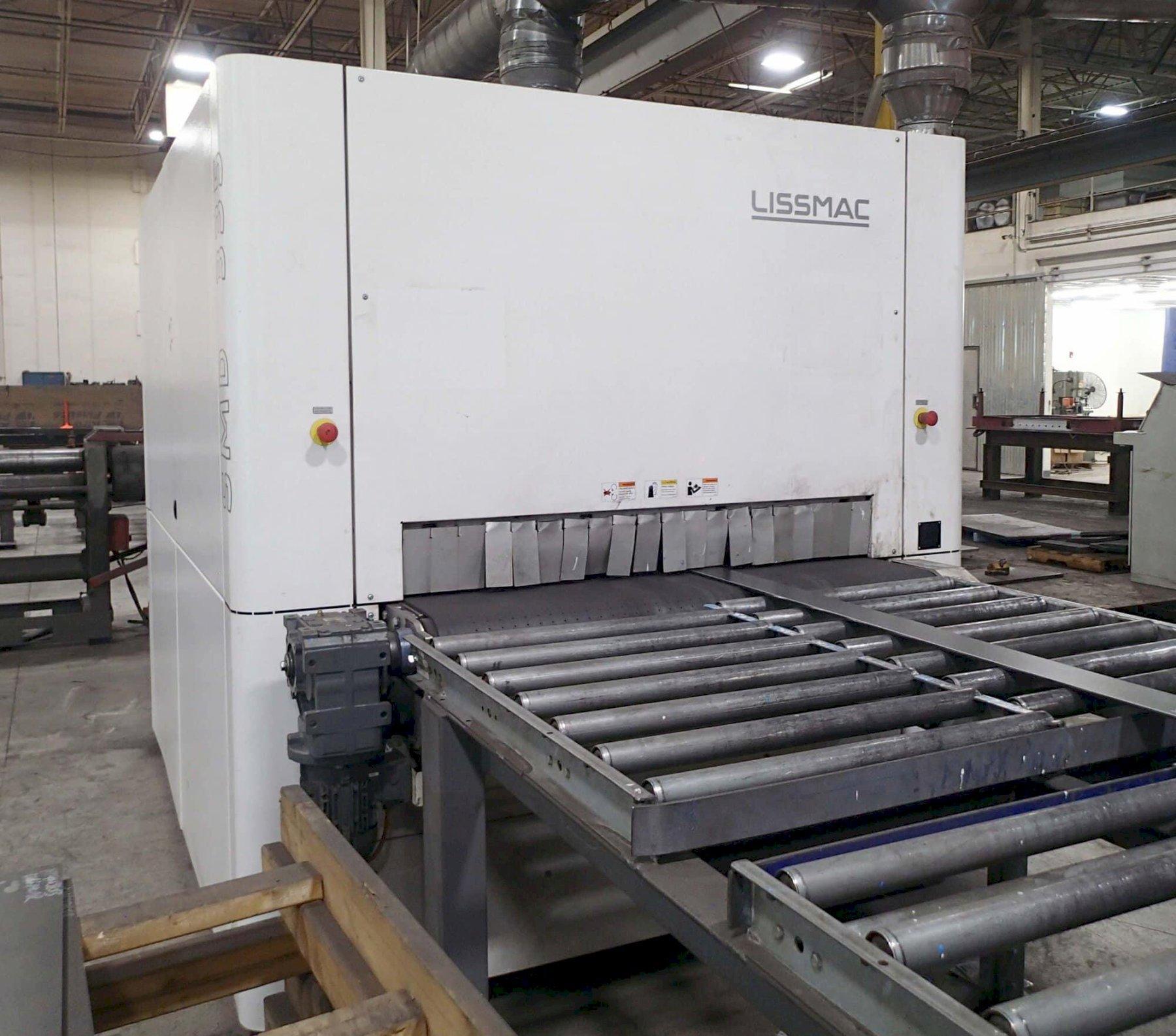

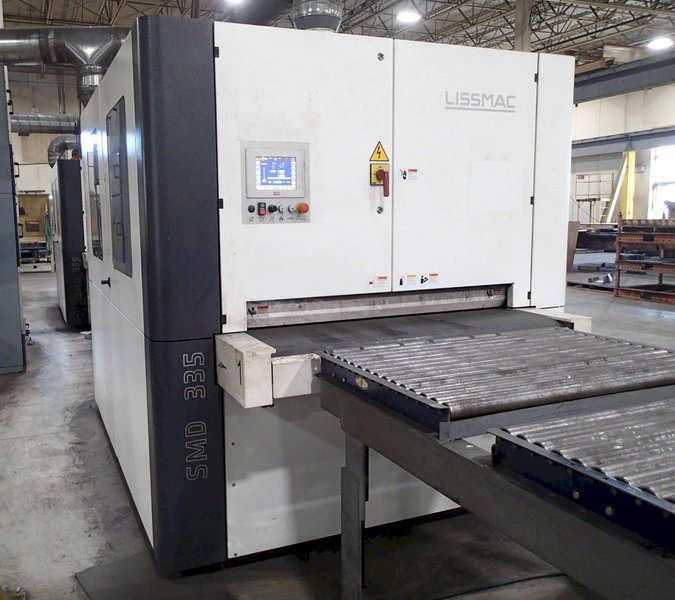

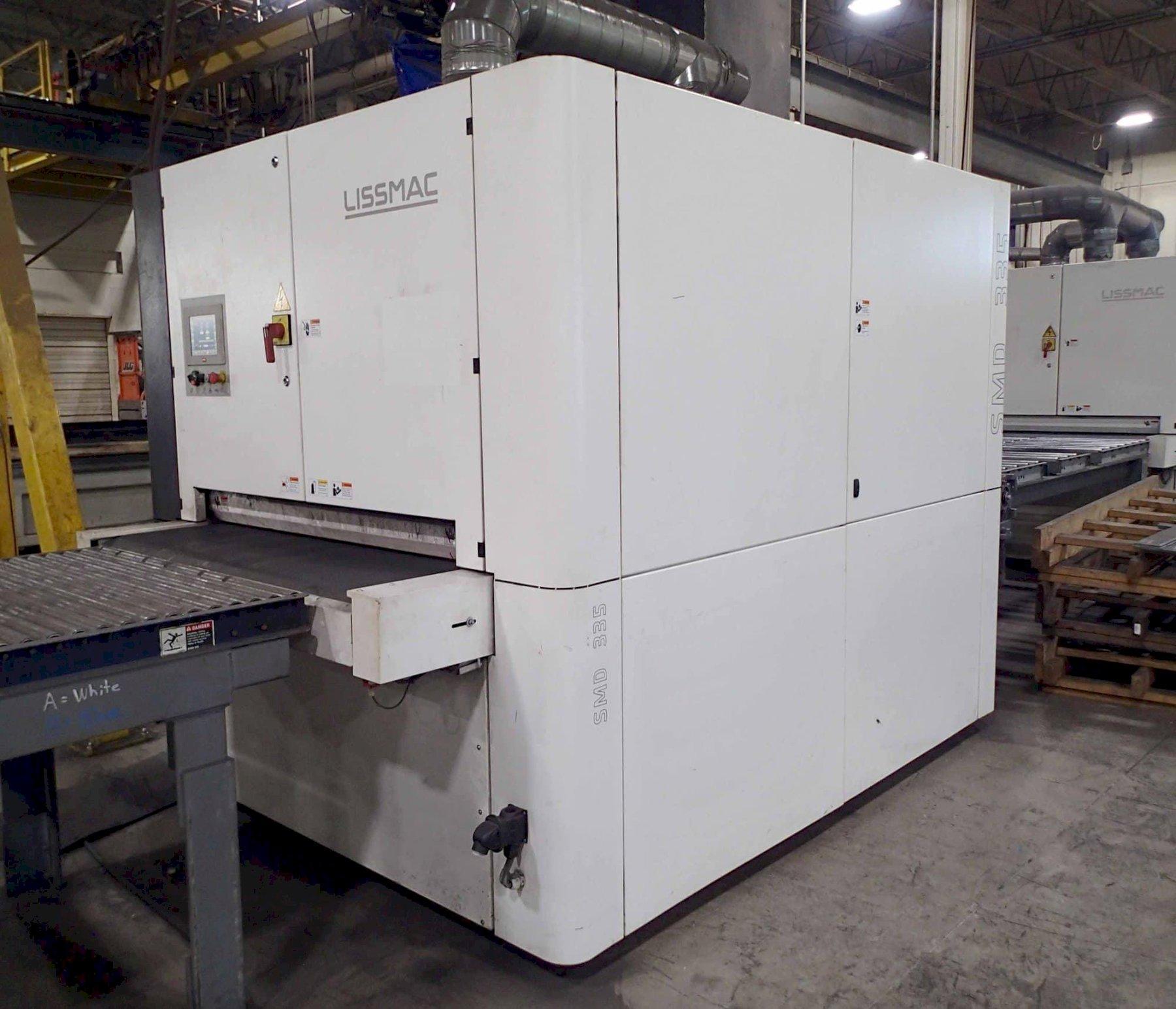

Lissmac Steelmaster SMD 335 REE-S Deburring Edge Rounding Finishing Grinder, 2022 – 53″ Width, Vacuum Table, 3 Aggregate, Conveyor Brush

Operational Width: 53″ Max Material Thickness: 4.75″ Edge Rounding up to 2mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Working width: 53.15” Material thickness (min – max): 0.04” – 4.75” Part size min (vacuum): 2 x 2 inches Max part weight: 202 lbs/ft Conveyor speed: 1.0-26 ft/min

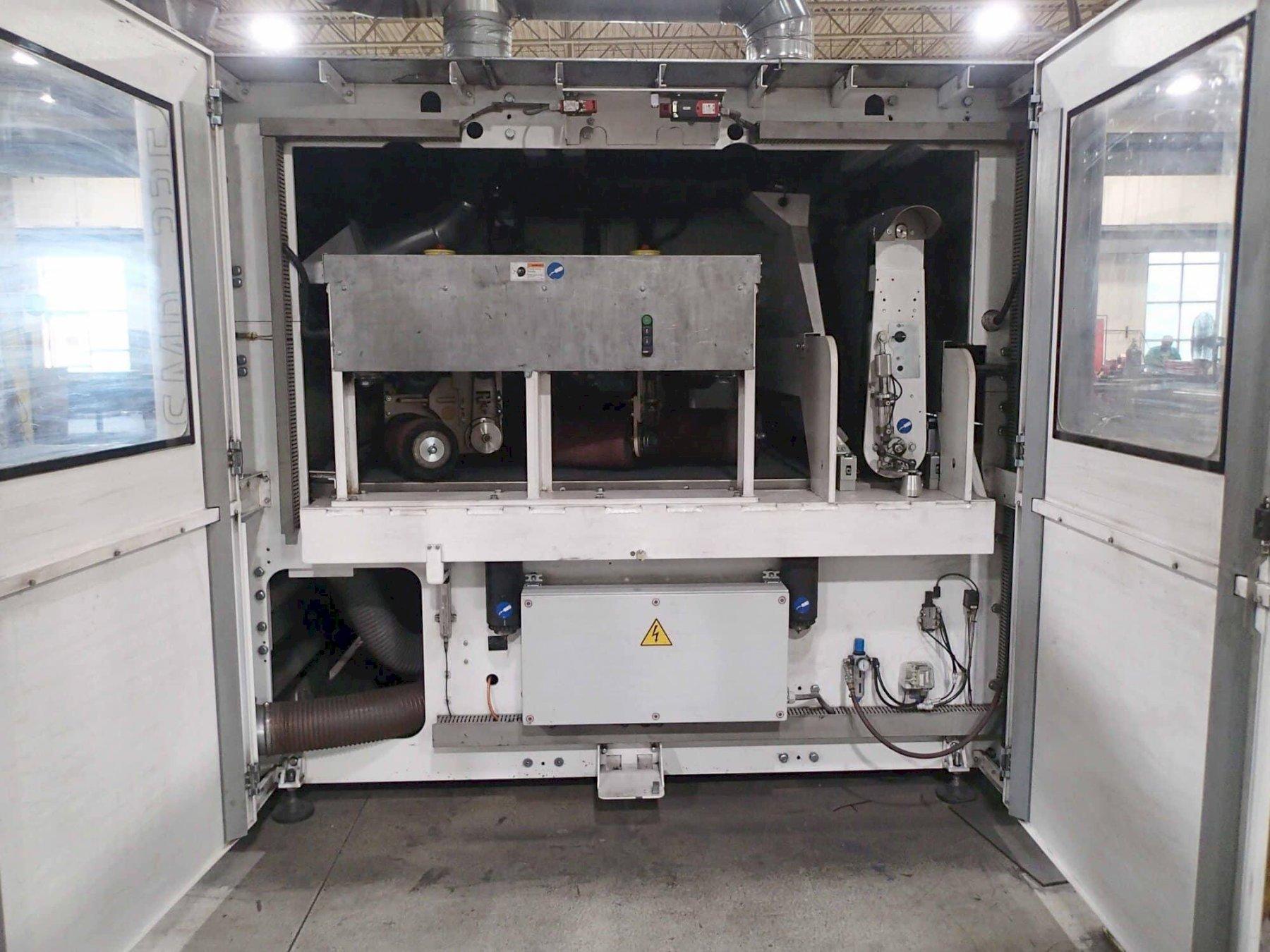

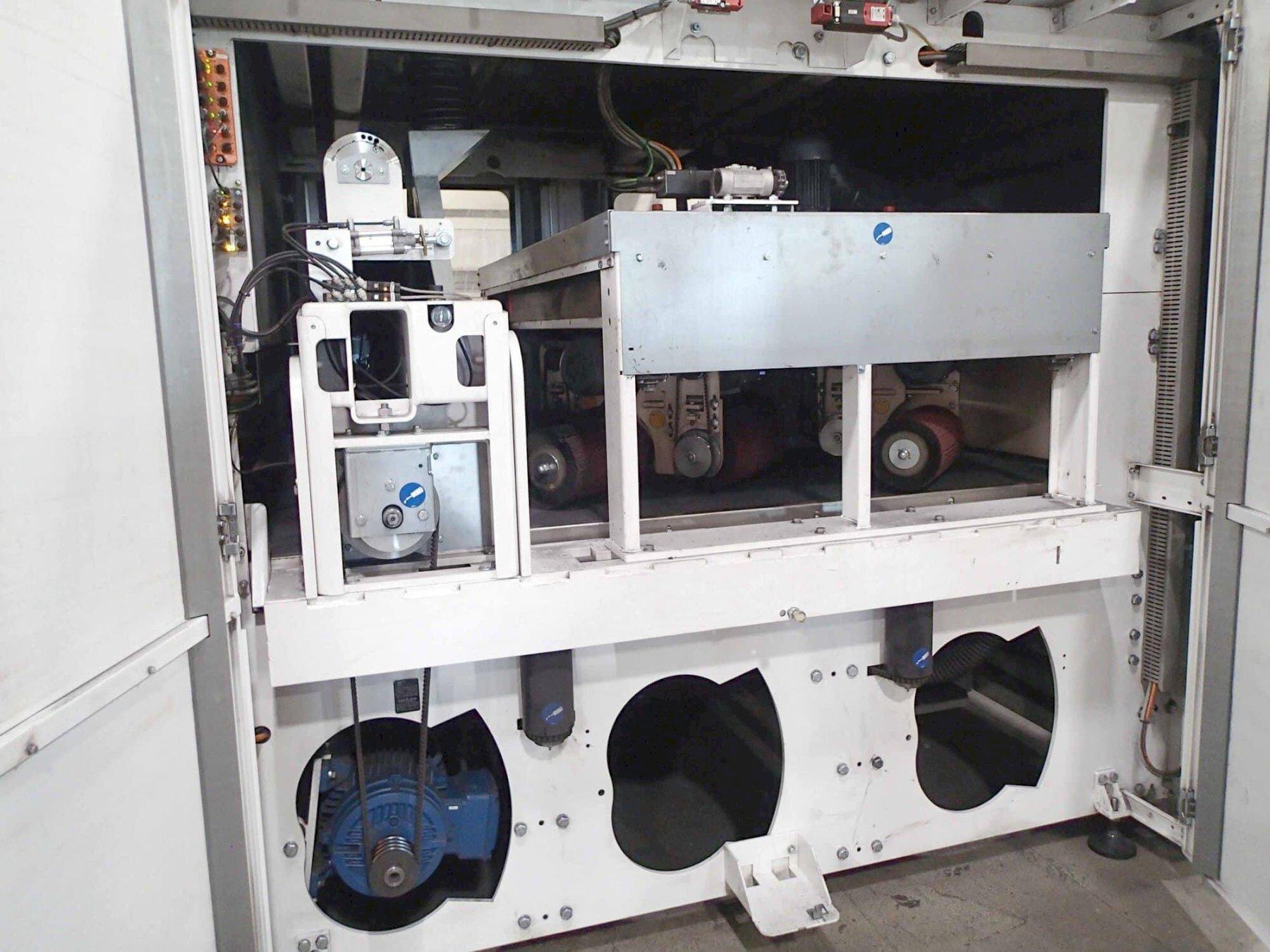

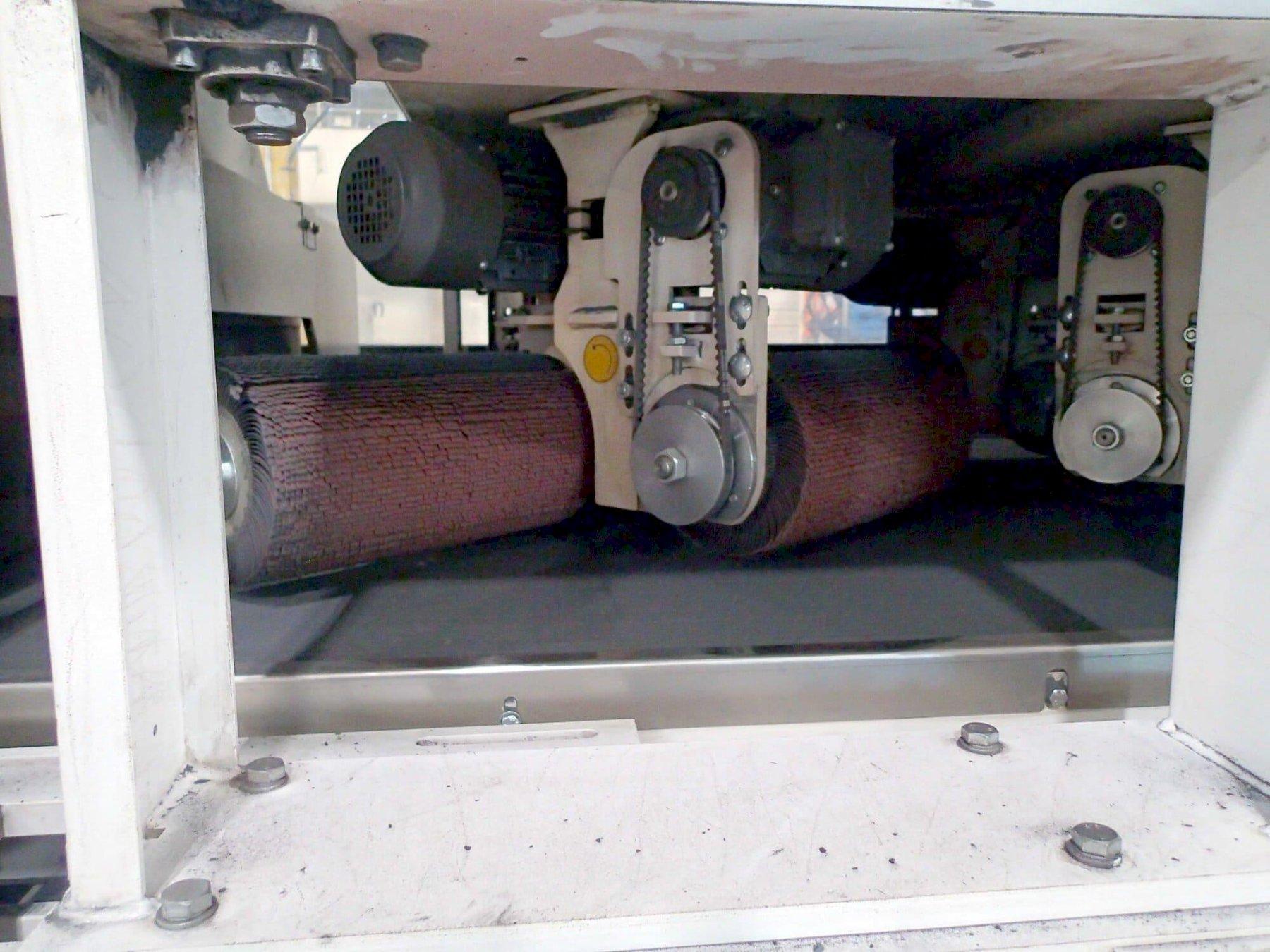

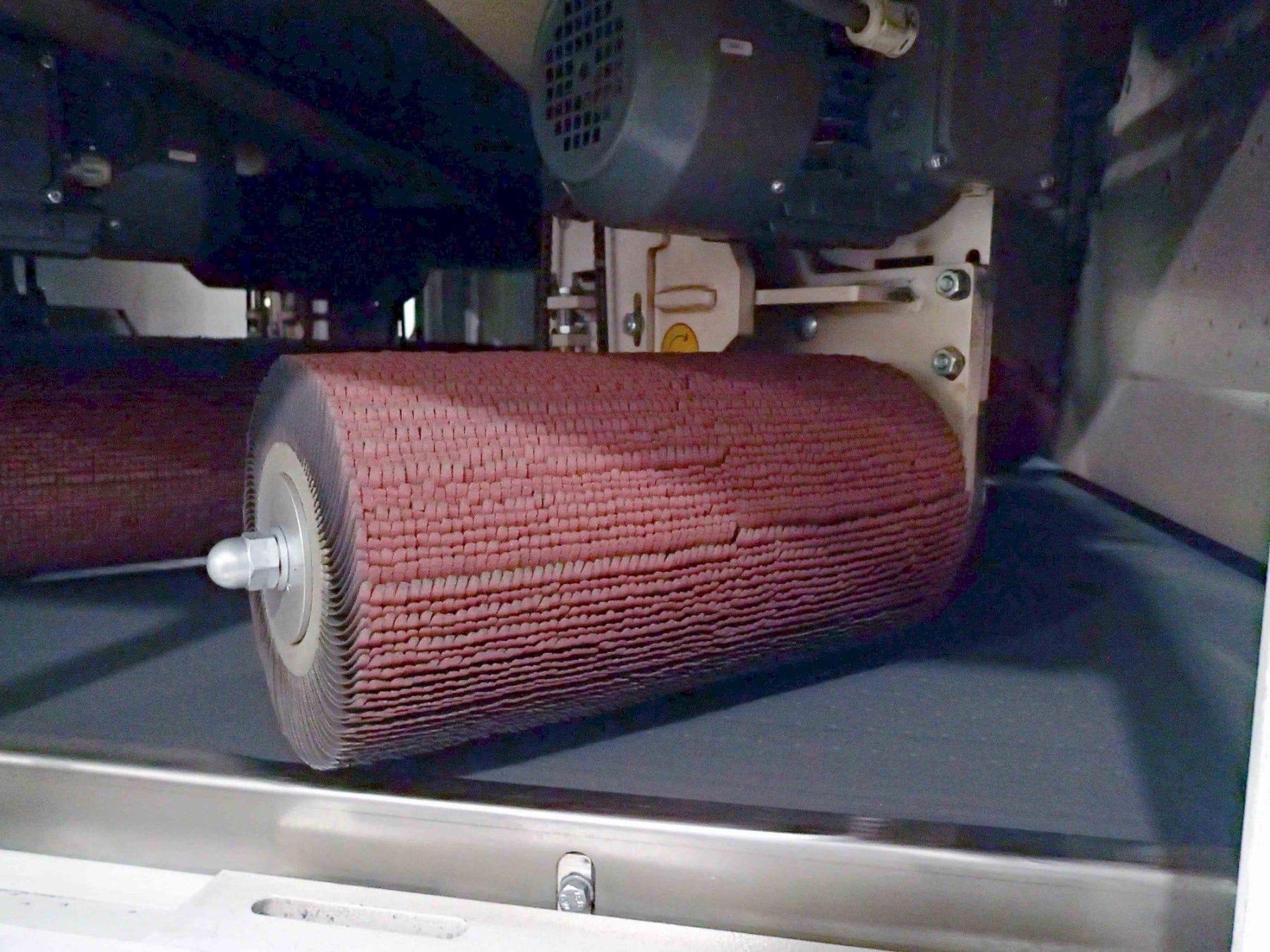

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Head Grinding (R) Main drive motor: 1x 15 kW Current load motor: 1x 29 A Edge Rounding (E) Main drive motor: 8x 0.75 kW Current load motor: 8x 1.7 A Vacuum Main drive motor: 1x 7.5 kW Current load motor: 1x 17 A

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical Voltage: 480 V; 60 Hz Total weight: 11,244 lbs Dimensions (WxDxH): 86″ x 130″ x 89″

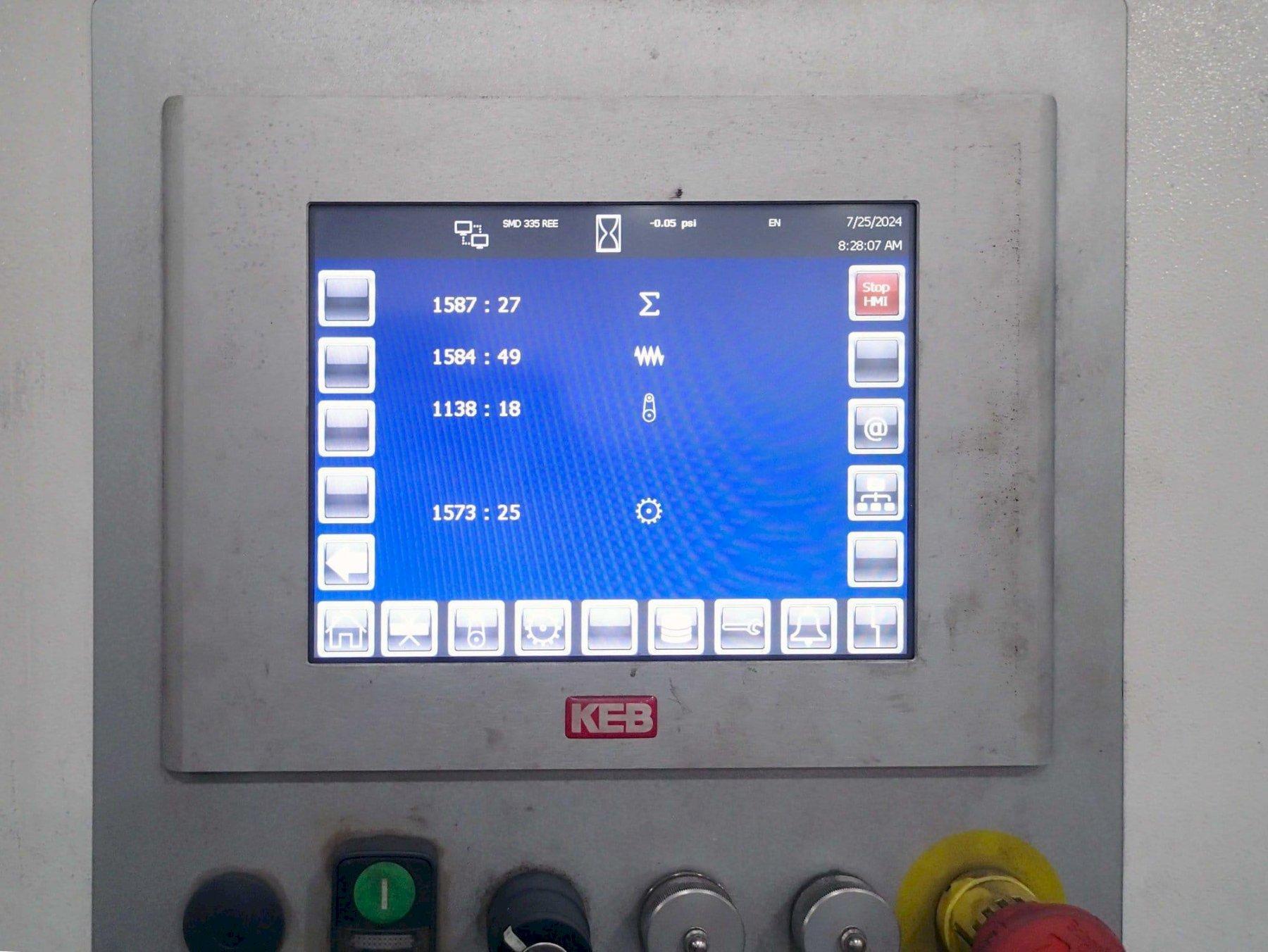

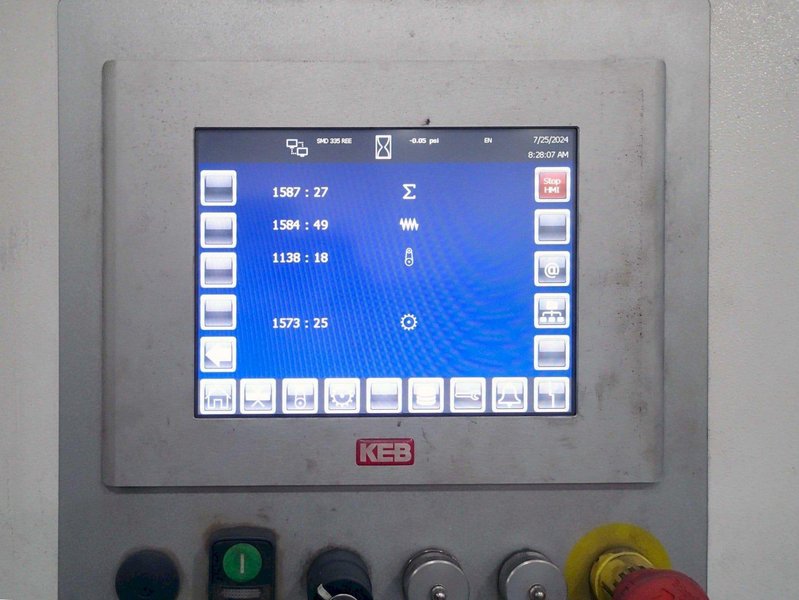

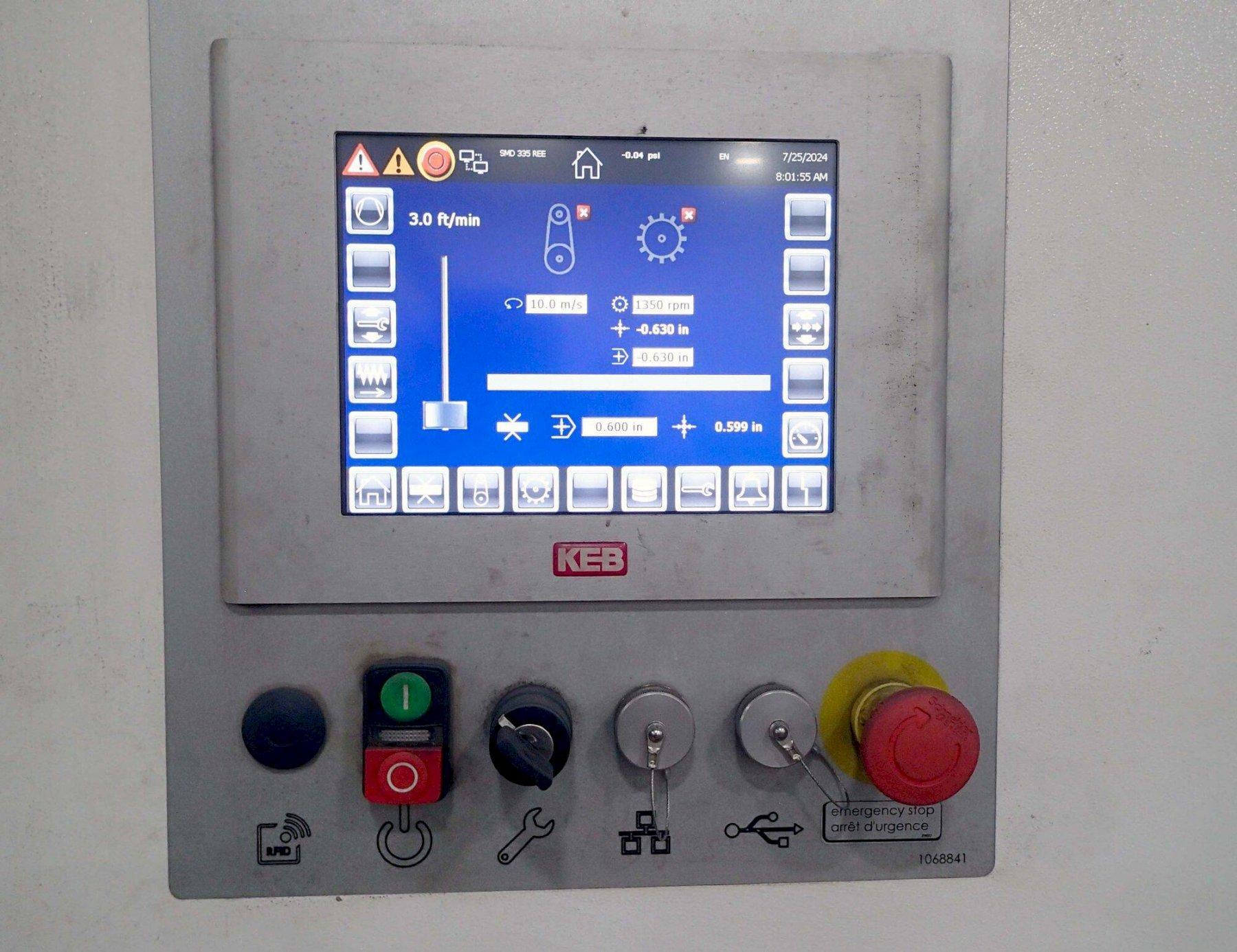

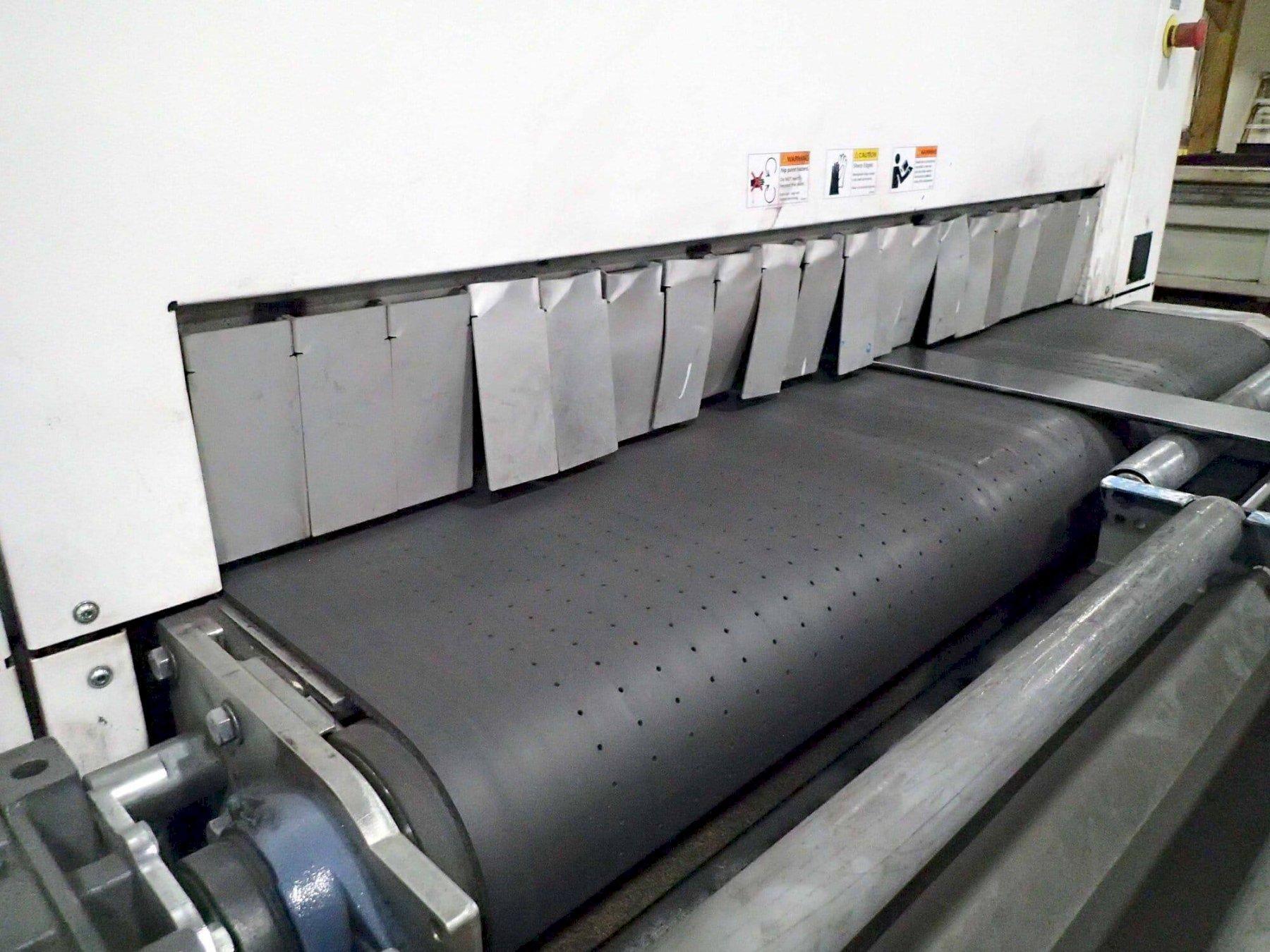

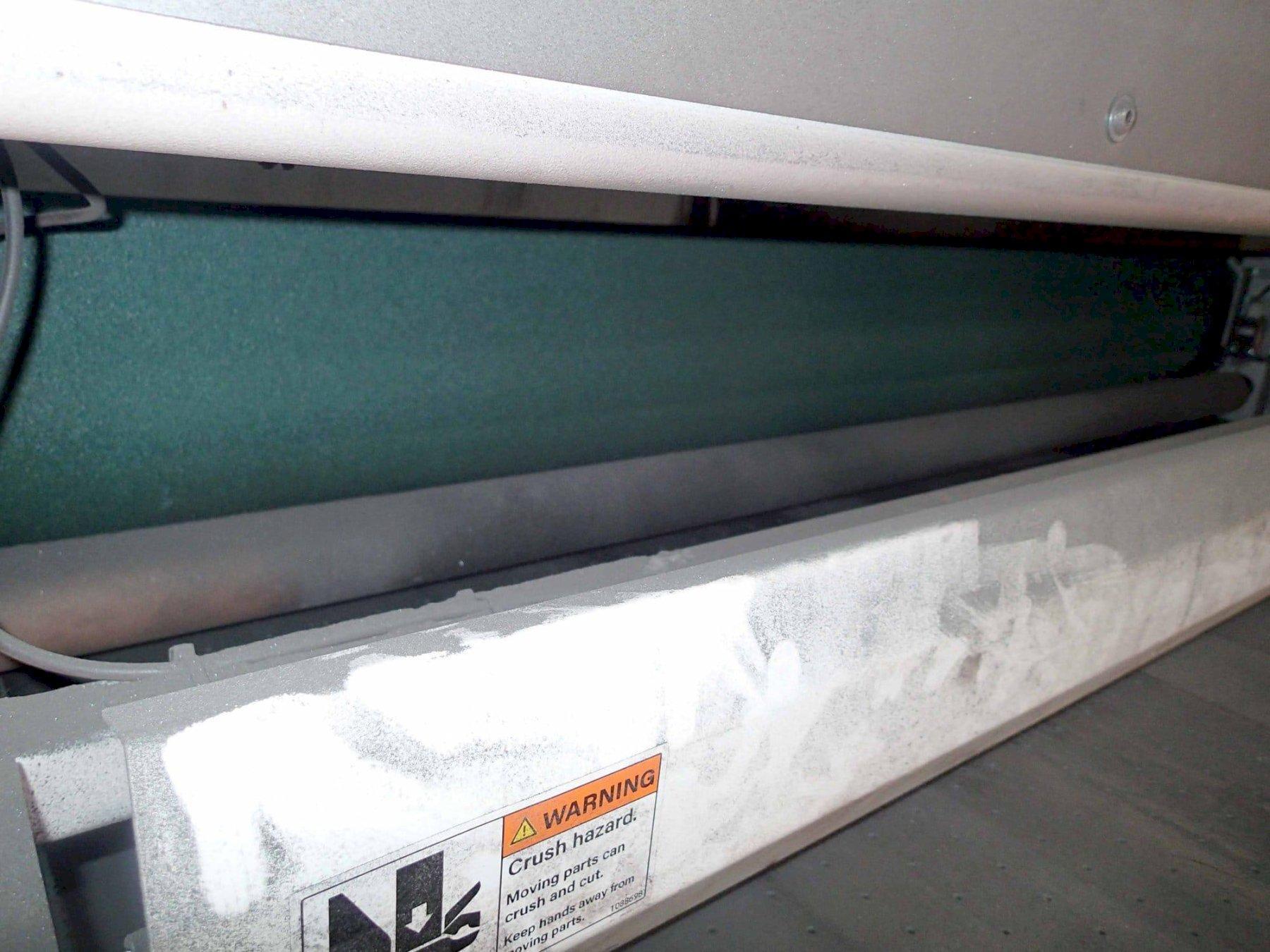

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,EQUIPPED WITH: Siemens S7-1200 PLC with Tough Screen Photo Optic Belt Tracking Pneumatic Belt Tensioning 53″ Operational Width 3 Aggregate System Conveyor Belt Cleaning Brush Vacuum Table, SMD 335- 13,300 kpa

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
