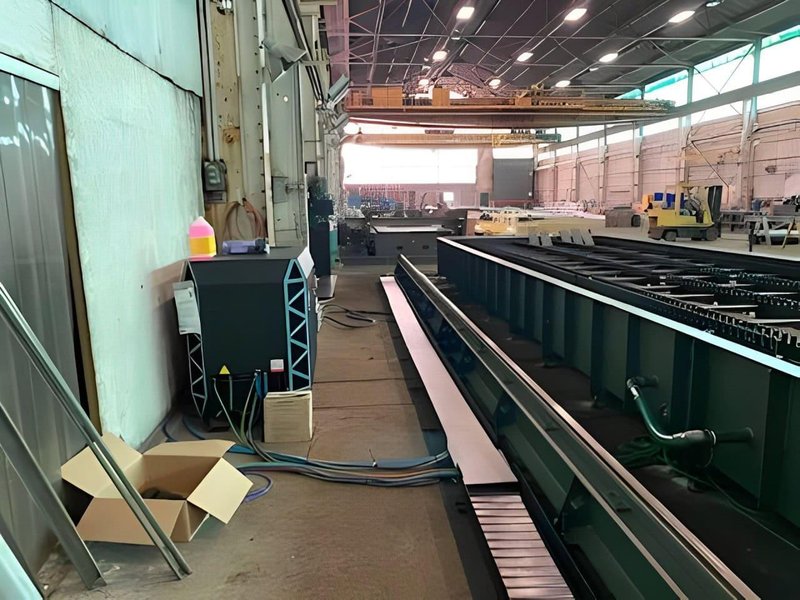

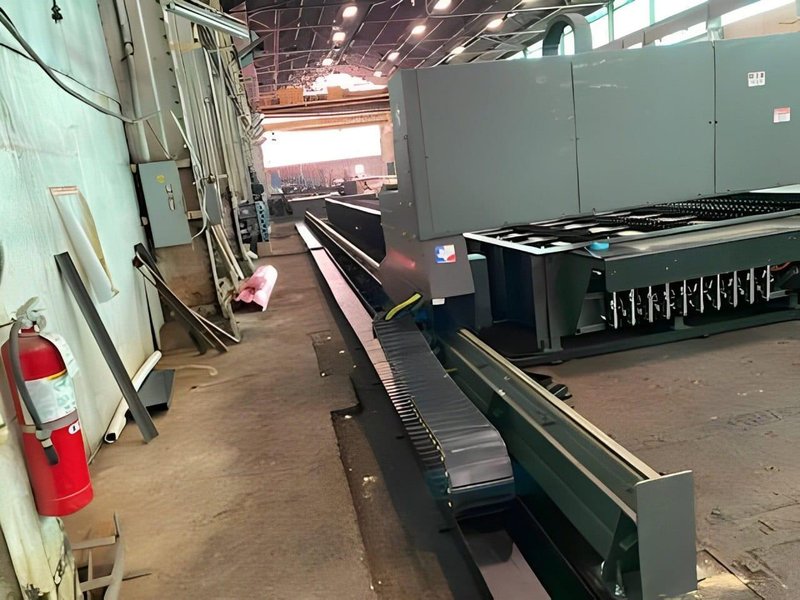

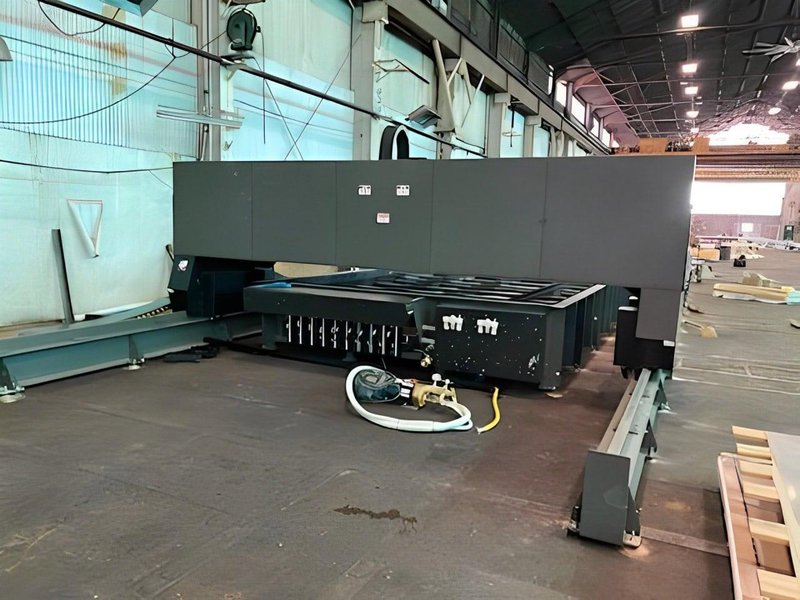

10′ x 60′ Lone star Commander III CNC Plasma Fuel Table Pipe Cutting and Steel Beam Machine, 2020

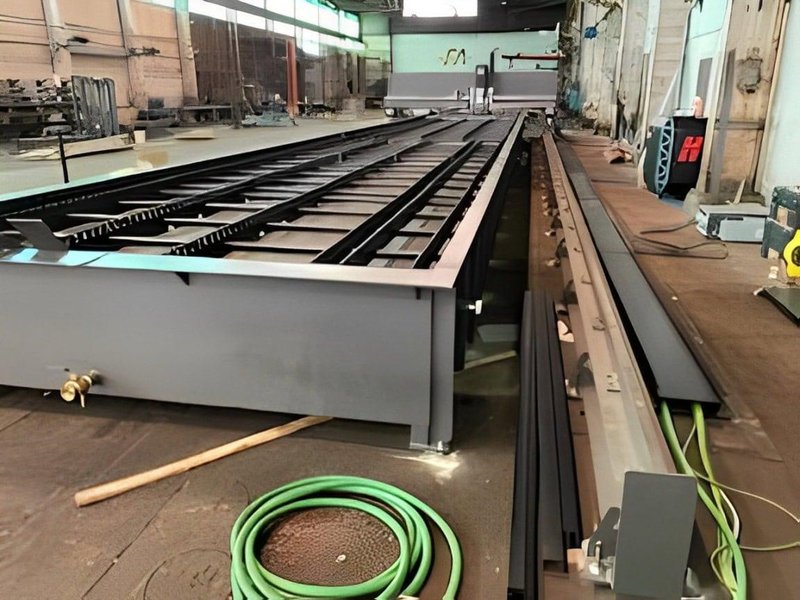

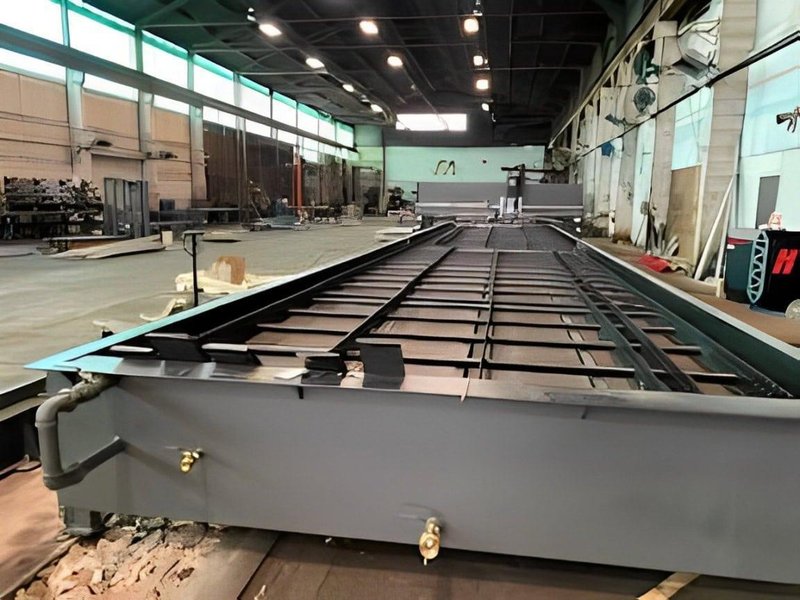

Table Size: 10′ x 60′ Effective Cutting Width: 10′ 11″ Distance Between H-Beams (Inside): 14′ 11″ Max Thickness – Mild Steel (Argon Assist): 1-9/16″ (40mm) Max Thickness – Mild Steel (Standard Air): 1-3/8″ (35mm) Max Thickness – Stainless Steel: 7/8″ (22mm) Max Thickness – Aluminum: 1″ (25mm) Rapid Traverse Speed: 1,500 IPM Positioning Accuracy: ±0.007″ Repeatability: ±0.002″ Table Type: Single Zone Water Table, 60′ Crane Rail Voltage: 110V/20A, 120V/20A, 230V/15A

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With

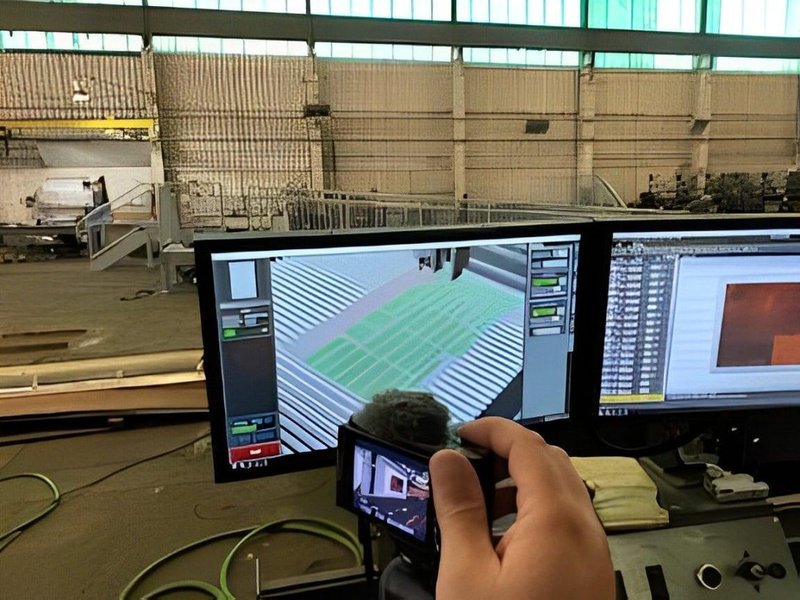

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Hypertherm XPR170 HyDefinition Plasma System Hypertherm Edge Connect TC CNC Control & Software Hypertherm Sensor Torch w/ Lifter ProNest Plasma Nesting Package Single Zone Water Table 60′ Crane Rail Pneumatic Braking System (holds machine during drilling process) 35mm HiWin Linear Bearings & Rails on All Axes Upgraded Gantry

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,All specifications are assumed to be correct but must be verified by the purchasing entity. All machinery is sold as-is, where-is, with no warranties expressed or implied. Buyers are encouraged to inspect prior to purchase.
