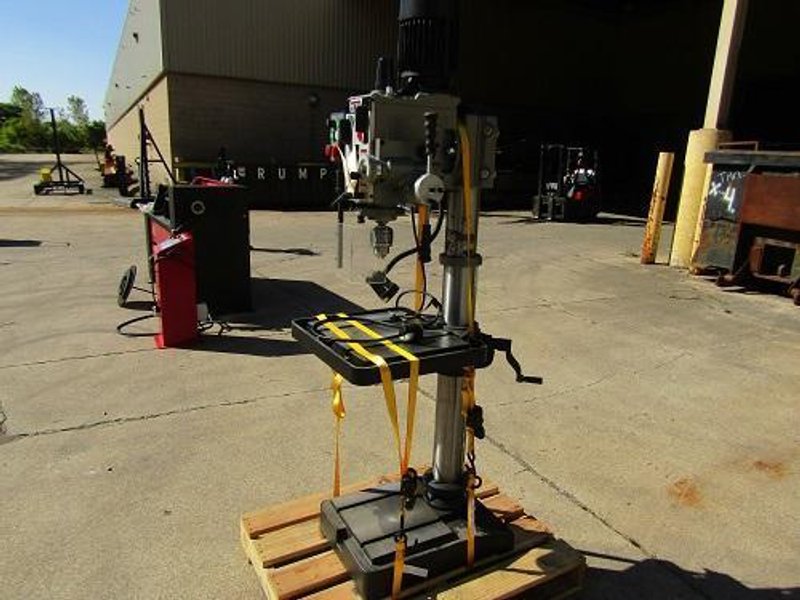

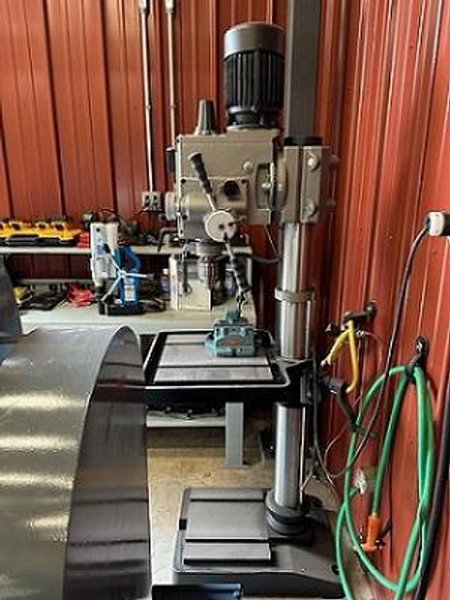

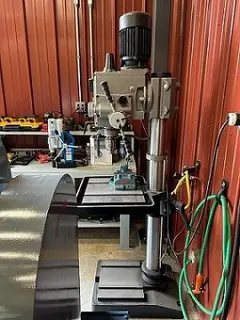

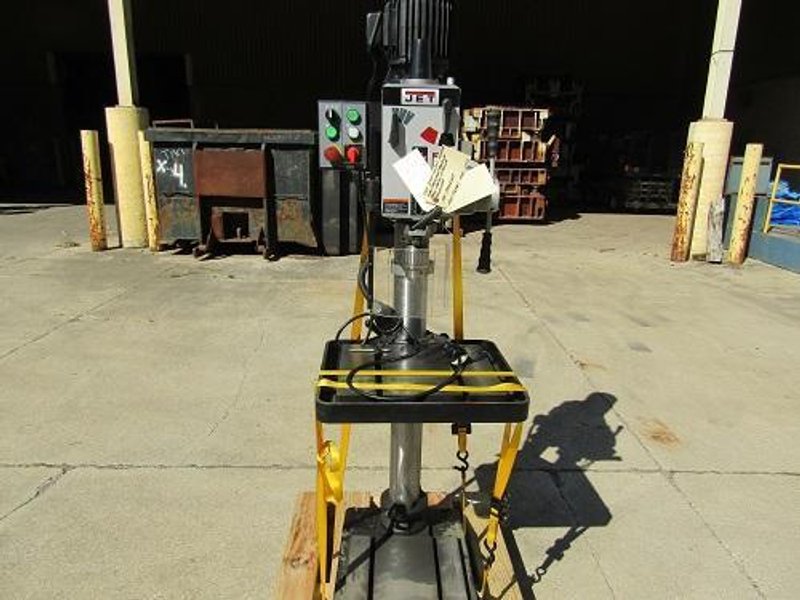

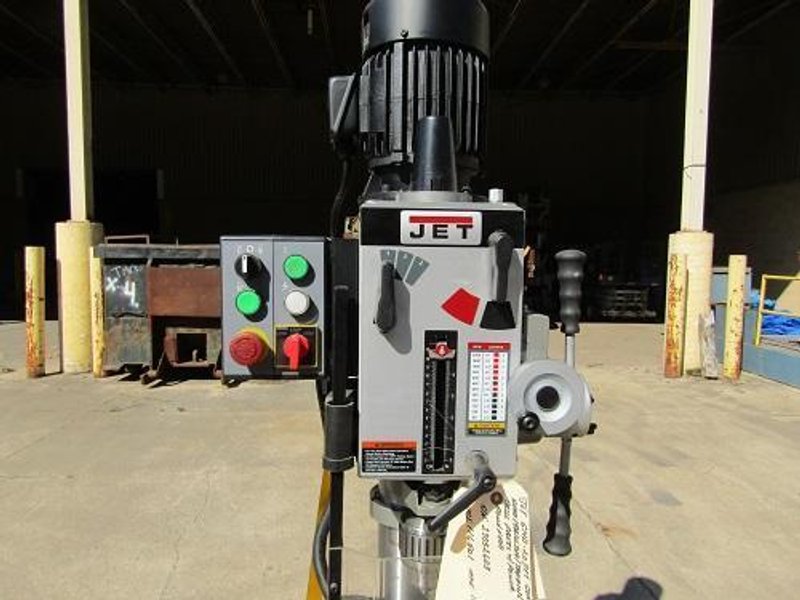

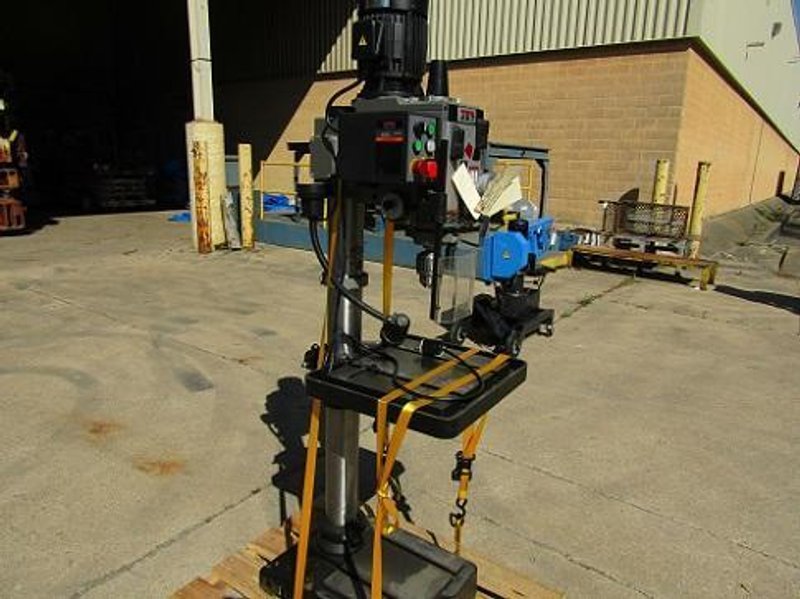

JET GHD-20PFT GEARED HEAD DRILLING/TAPPING DRILL PRESS WITH POWER DOWNFEED

JET GHD-20PFT GEARED HEAD DRILLING/TAPPING DRILL PRESS WITH POWER DOWNFEED

MANUFACTURER – JET

TYPE – GEARED HEAD DRILL PRESS WITH POWER DOWNFEED

CONDITION – LIKE NEW CONDITION

DRILLING CAPACITY CAST IRON (IN.) 1-1/2
DRILLING CAPACITY MILD STEEL (IN.) 1-1/4
DRILLS TO CENTER OF CIRCLE (IN.) 20
MODEL NUMBERGHD-20PFT
MOTOR (HP)2 HP (2 SPEED), 230V, 3PH
SPINDLE SPEEDS 60, 120, 130, 230,260,450,460, 800, 900, 1,500, 1,600, 3,000 (RPM)
SPINDLE DISTANCE TO BASR (IN.) 44-5/16
SPINDLE DISTANCE TO TABLE (MAX) (IN.) 30-1/2
SPINDLE TAPER (IN. X TPI) MT-3
SPINDLE TRAVEL (IN.) 4-1/2
STYLE (TYPE) GEARED HEAD
T-SLOT CENTERS (IN.) 9
TABLE SIZE (LXW) (IN.) 25 1/2
TAPPING CAPACITY CAST IRON (IN.) 15/16
TAPPING CAPACITY MILD STEEL (IN.) 15/16
WEIGHT 708LBS
WORK TABLE WEIGHT CAPACITY 275 LBS
