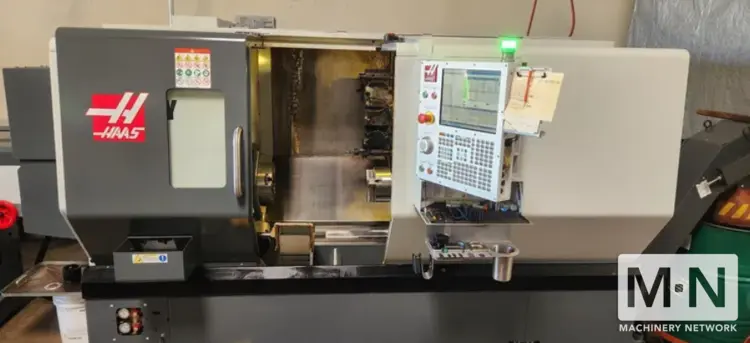

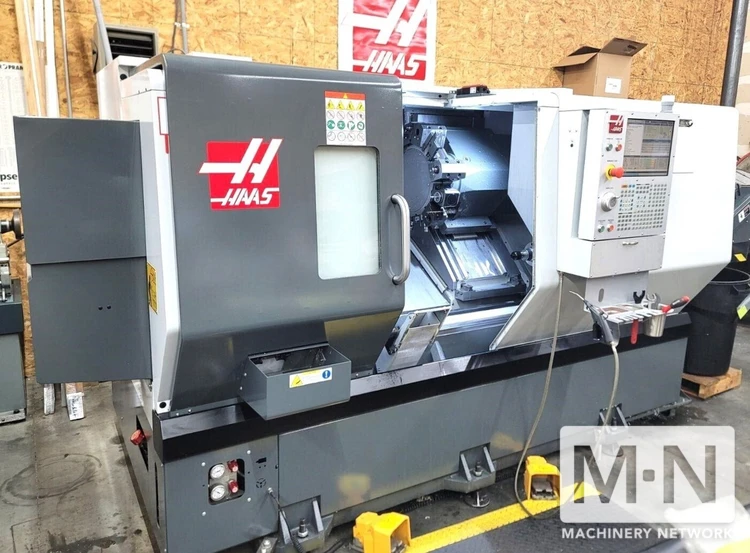

HAAS DS-30Y CNC Lathe, 2021

Brand

JINRUNDA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

CNC Lathes

Manufacturer:

HAAS

Model:

DS-30Y

Year:

2021

Stock #:

50979

Status:

For Sale

Specifications

ImperialMetric

Swing	31.75"	806.45 mm
Machining Length	23"	584.2 mm
Max. Turning Diameter	18"	457.2 mm
X-Axis	12.5"	317.5 mm
Z-Axis	23"	584.2 mm
Chuck Size	10"	254 mm
Bar Capacity	3"	76.2 mm
Spindle Nose	A2-6	A2-6
Power	30 hp	22.4 kW
Max RPM	4,500 RPM	4,500 RPM
Tailstock	No	No
Live Tooling	Yes	Yes
Sub Spindle	Yes	Yes
Cut Hours	460 hr.	460 hr.

Equipped With:

**$195,000 Replacement Cost**
HAAS CNC Control
Y-Axis
Live Tooling w/ 6,000 RPM Upgrade

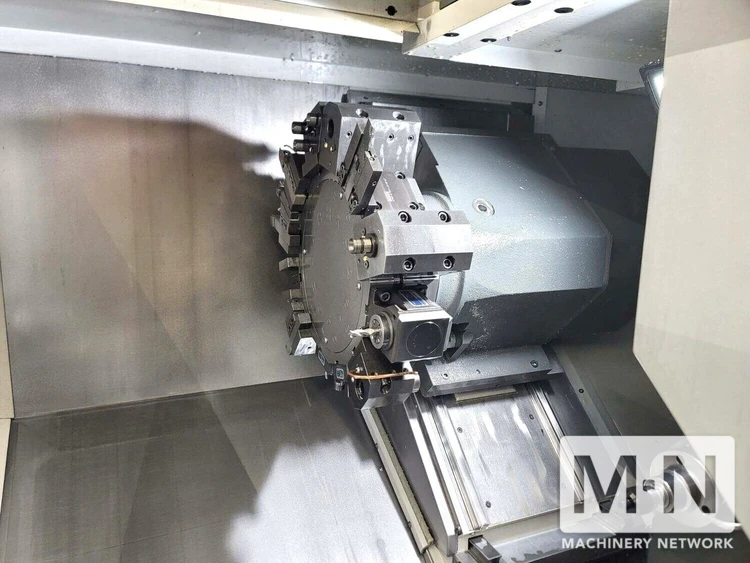

24 Station BMT65 Turret
Belt Type Chip Conveyor

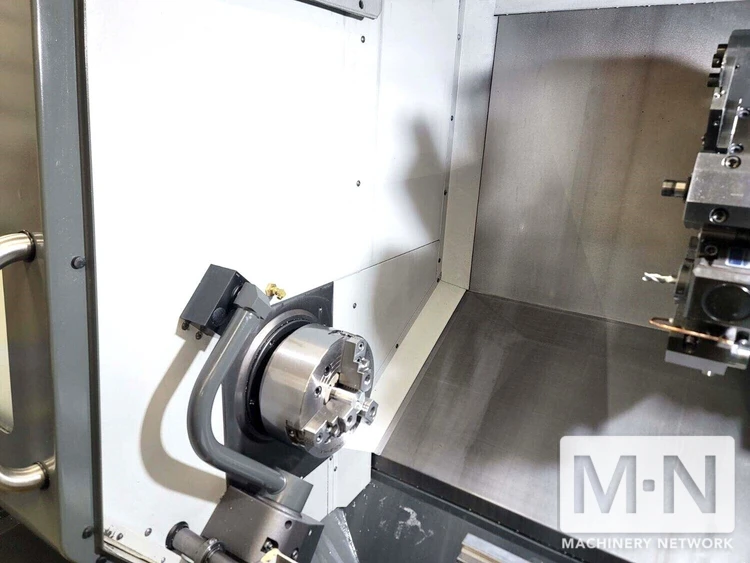

8.3" Hydraulic Chuck(SUB)
10" Hydraulic Chuck (MAIN)
Tool Presetter
Parts Catcher
Chuck Air Blast
Automatic Coolant Refill
55-Gallon Coolant Tank
Cabinet Cooler
Rigid Tapping
Spindle Orientation

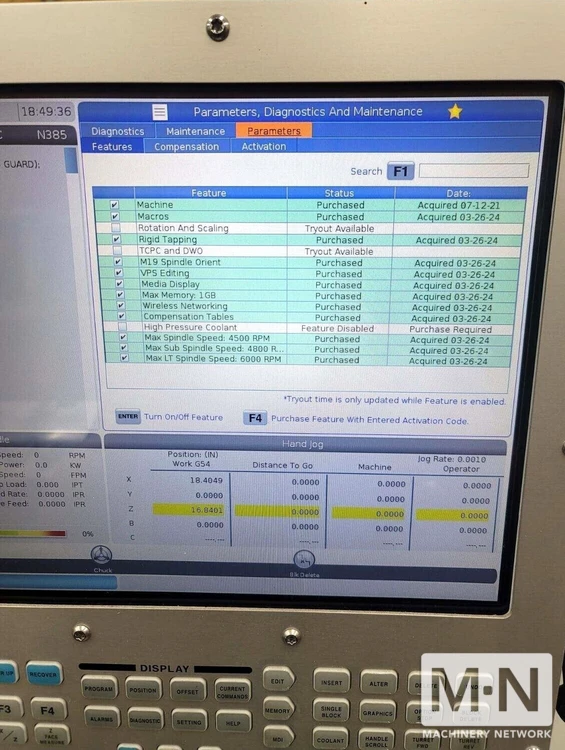

Compensation Tables
WiFi Connection

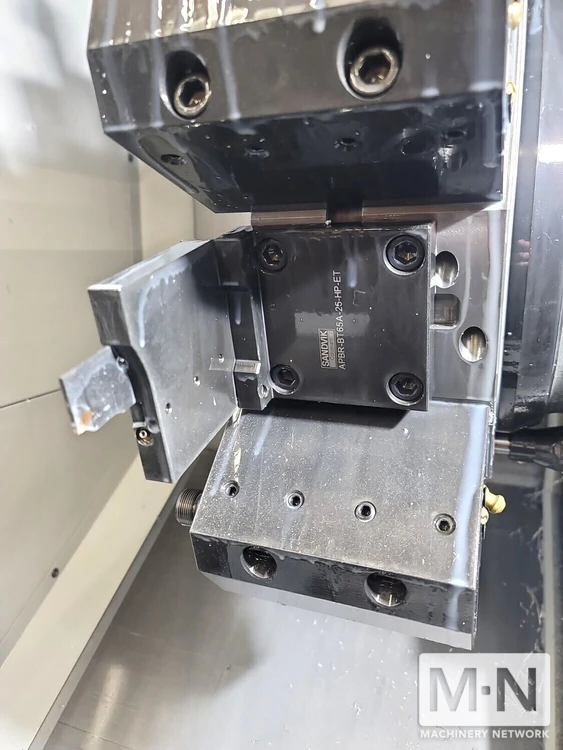

Sanvic Parting
Spindle Liner Guide & Kit
Live Tool Holders Included:
(2) 90° Radial
(2) Straight Axial

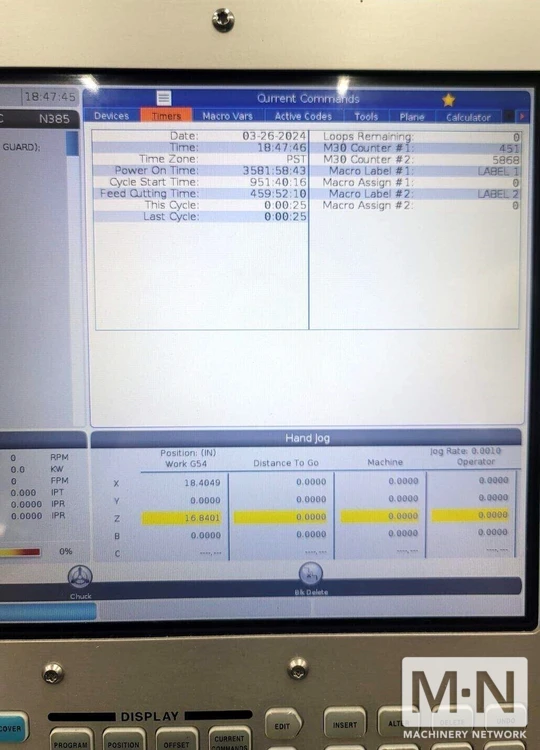

** AS OF MARCH 2024, FEED CUTTING TIME: 460 HOURS
