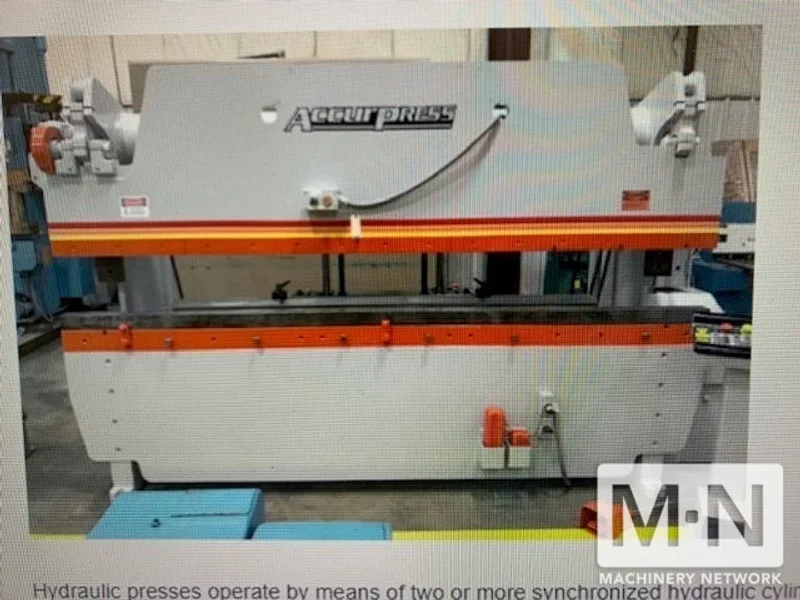

60 TONS ACCURPRESS 706010 PRESS BRAKES, 1985

60 TONS ACCURPRESS 706010 PRESS BRAKES, 1985

Name: Used HUILI 706010 For Sale 41694
Brand: HUILI
SKU: 41694
Availability: PreOrder

Brand

HUILI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Press Brakes

Manufacturer:

ACCURPRESS

Model:

706010

Condition:

Excellent

Year:

1985

Stock #:

41694

Status:

For Sale

Description

For sale: Used 60 ACCURPRESS 706010 with ETS 2000 CNC Controls, set up for 480V. 1985 model, in working condition with 3,000 PSI Hydraulic Oil Pressure. Comes with a good back gauge and dies.

Specifications

Bending capacity: 10' x 14 ga. mild steel
8' x 12 ga. mild steel
Tonnage capacity: 60 tons
Overall length of bed & ram: 10'
Distance between housings: 100"
Stroke: 8"
Open height: 14"
Closed height: 6"
Throat depth: 8"
Width of bed: 3"
Speeds approx.: 130"/minute fast approach
24"/minute slow bend
260"/minute fast return

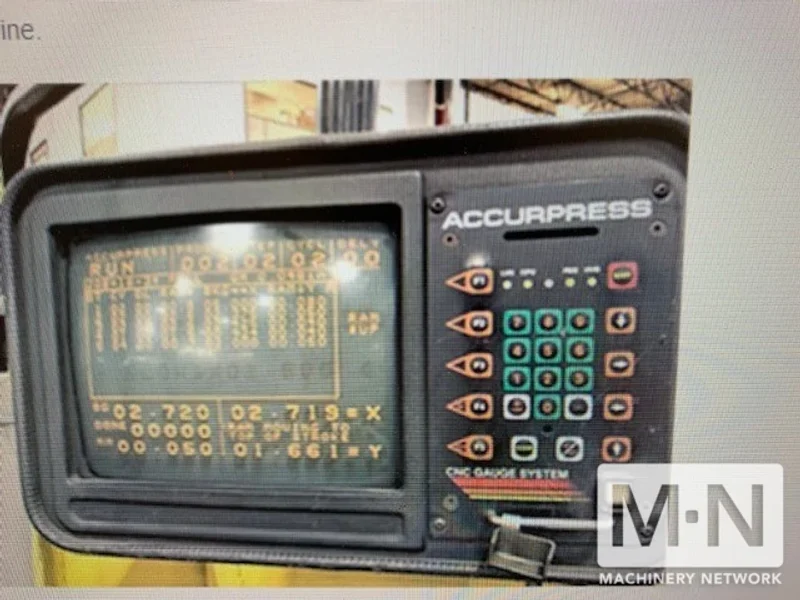

EQUIPPED WITH: 24" Accurpress 2-axis CNC control

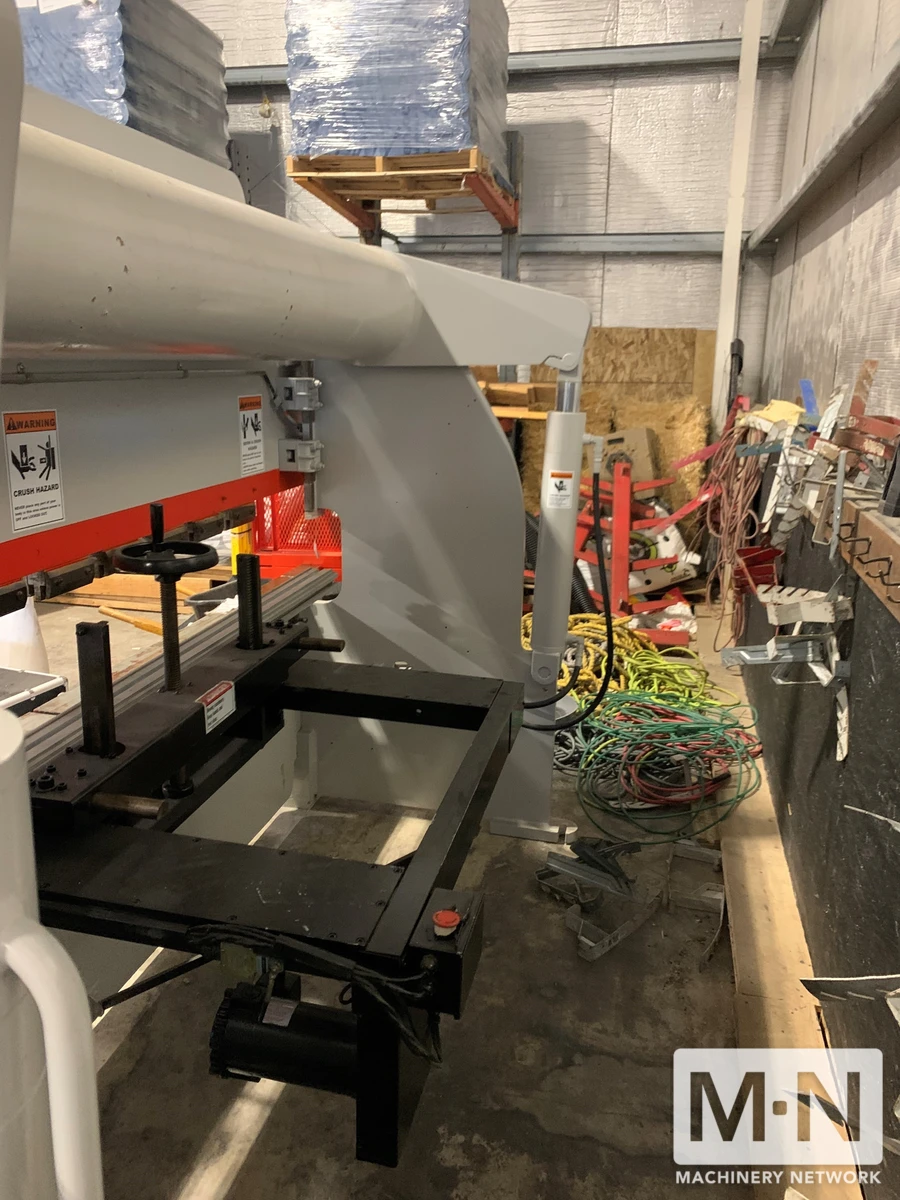

24" X-axis back gauge with vertical adjustment

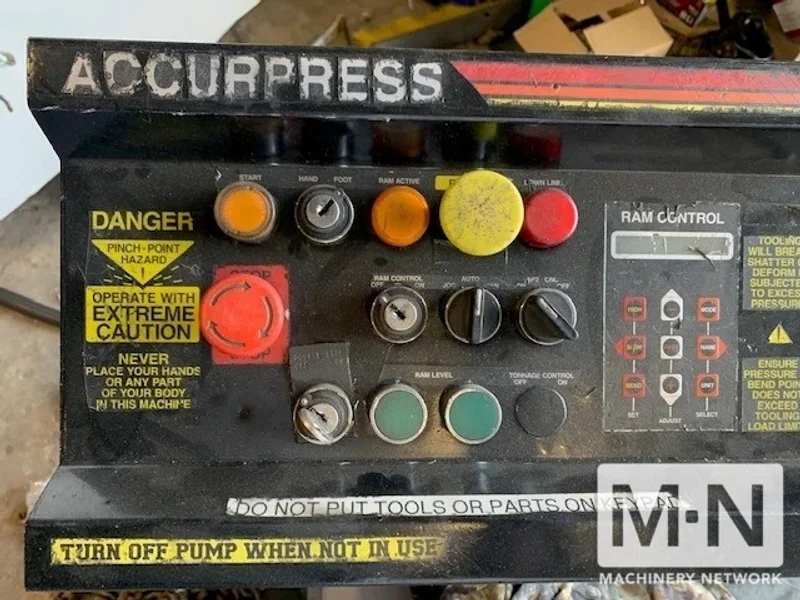

Free standing Accurpress control with dual palm

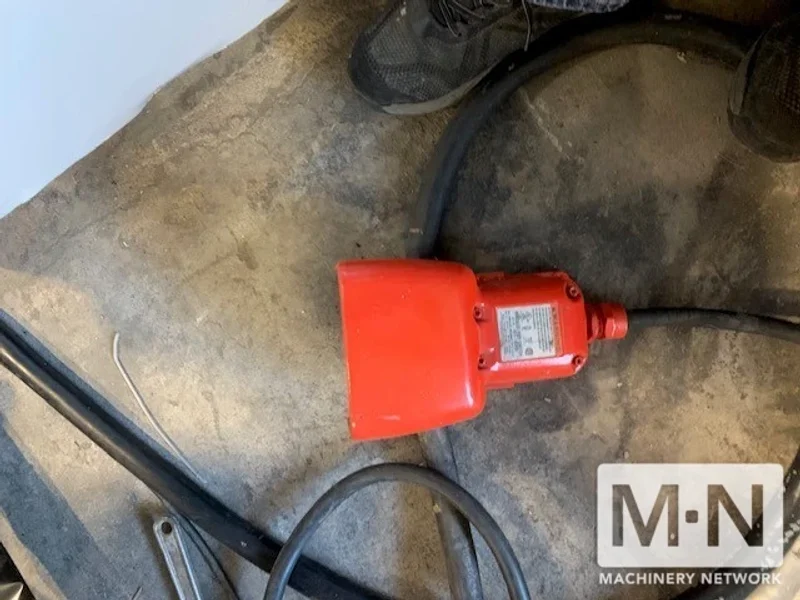

buttons, electric foot switch, key selector switch
for hand - foot, ram control off - on, selector
switches for jog - auto - manual & CNC on - off
80" long x 1-3/4" high die rail
Power ram tilt adjustment
Tonnage indicator
Sectional ram die clamps
(3) T-slots in top of bed
.25 HP 208/230/460/3/60 ram tilt adjustment motor
Hydraulic pump, driven by
10 HP 1725 RPM 208/230/460/3/60 motor
Weight approx. 10,000 lbs.
Overall dimensions approx. 160" L-R x 68" F-B x 84" H
Serial no. 2367

Hydraulic Oil Pressure: 3,000 PSI

Equipped With:

ETS 2000 CNC CONTROLS

Everything works as it should. It is set up to run on 480 volts but I've been told the motor can be re-wired to run 240 volts. The back gauge and dies are good.
