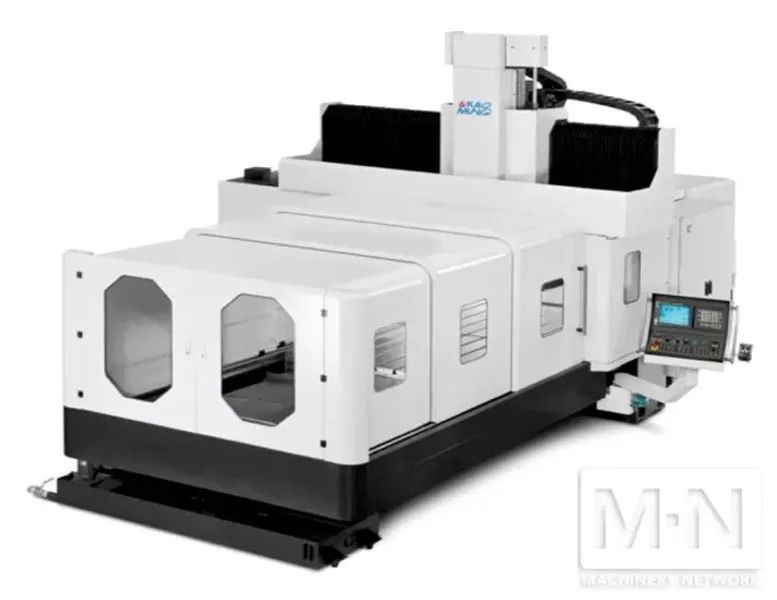

YCM Kao Ming KMC321-SR Double Column CNC Vertical Machining Center, 2019

YCM Kao Ming KMC321-SR Double Column CNC Vertical Machining Center, 2019

Name: Used KMC321-SR For Sale 41227
Brand: Unknown
SKU: 41227
Availability: PreOrder

Brand

Not specified

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Vertical Machining Centers

Manufacturer:

YCM KAO MING

Model:

KMC321-SR

Year:

2019

Stock #:

41227

Status:

For Sale

Description

FANUC Series 0i-MODEL F, 127.2" X 78.7" Y 43.3"Z, wired for 4th-Axis, 35 HP, ATC 50, 6K RPM, 1.5 HP Coolant Pump, CAT-50

Specifications

ImperialMetric

X Axis Travel	127.2"	3,230.9 mm
Y Axis Travel	78.7"	1,999 mm
Z Axis Travel	43.3"	1,099.8 mm
Distance From Spindle To Column	82.7"	2,100.6 mm
Spindle Motor	35 hp	26.1 kW
Spindle Speed	6,000 RPM	6,000 RPM
ATC Capacity	50	50
Spindle Taper	CAT50	CAT50
# Axis	4	4
Table-W	118.11"	3,000 mm
Table-L	65"	1,651 mm
Control	CNC (FANUC Series 0i-MODEL)	CNC (FANUC Series 0i-MODEL)

Equipped With:

Roof Guarding
7.87 - 51.2" Spindle Nose to Table
1.5 HP Coolant Pump
120g Coolant Tank
Coolant Through Spindle Prepped
Handheld Coolant Gun
Oil Cooled Through X-Axis Ballscrew
Air Cooled Bearings on X-Axis
Spindle Taper & Cutting Air Blast
Heat Exchanger for Electrical Cabinet
Hi/Lo Gearbox
High Response Vector Drive HRV3
AC Digital Servo & Spindle Drive
Box Ways Guides
High Quality & Rugged Meehanite Casting
Prepped for Glass Scales
